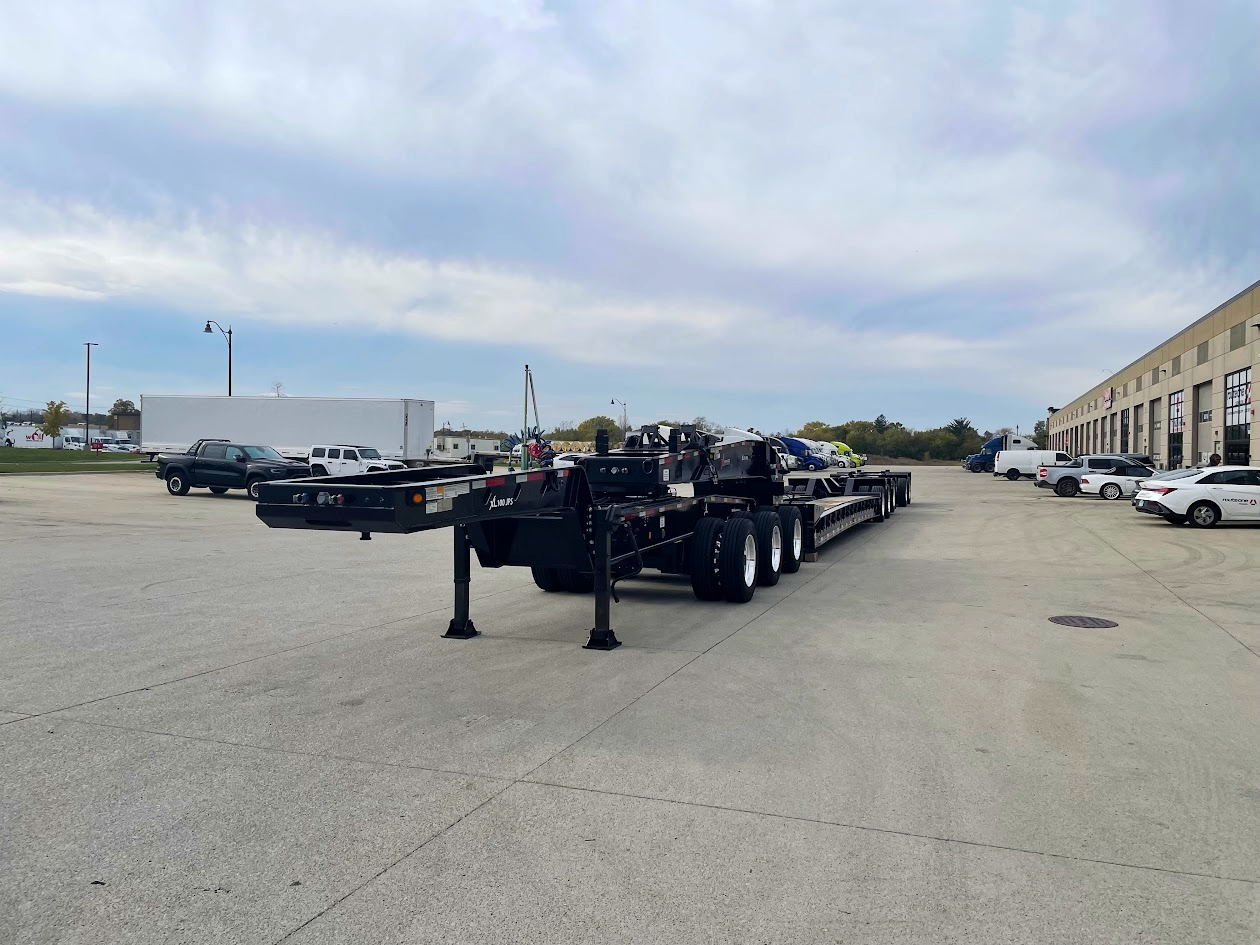

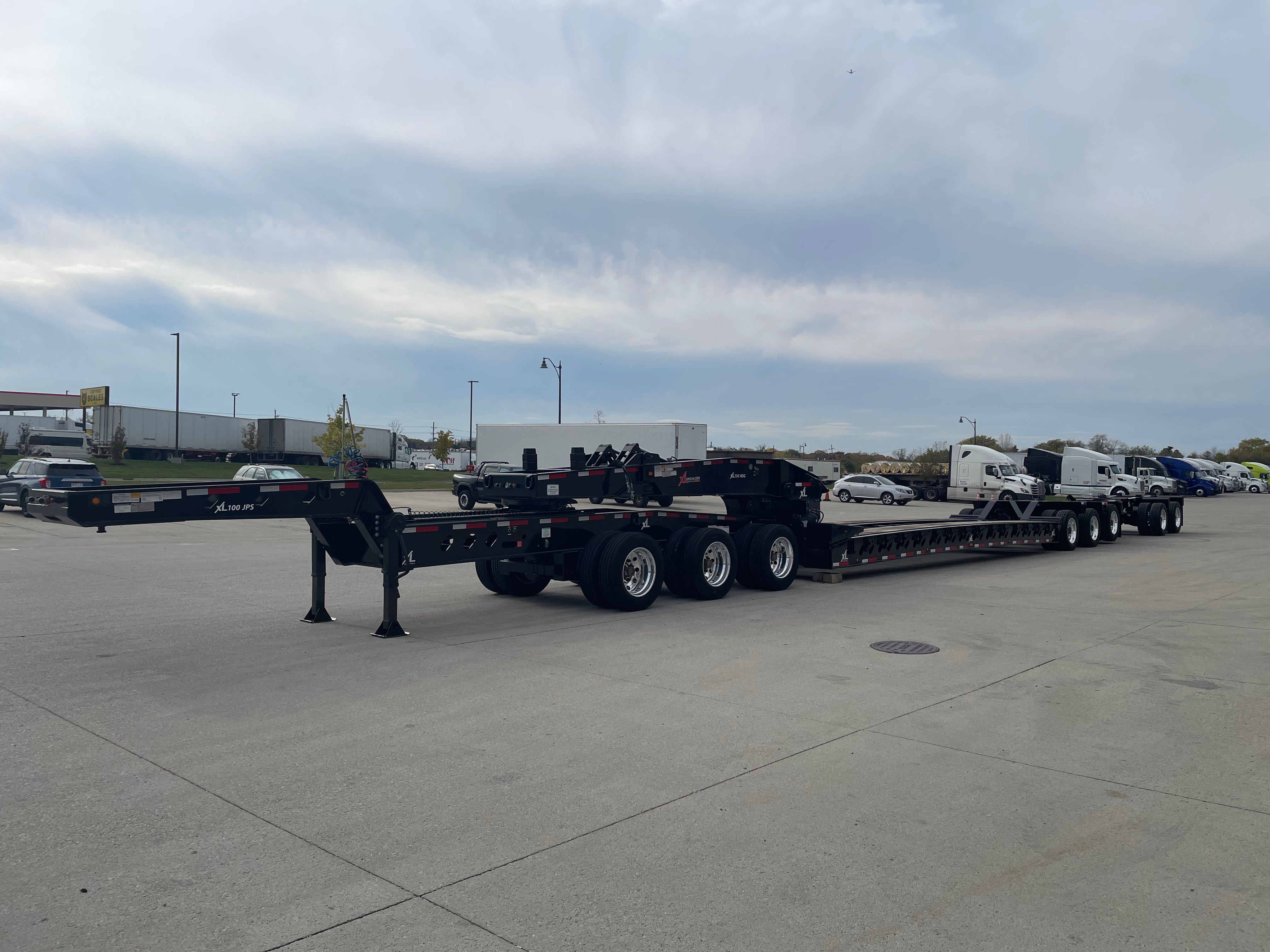

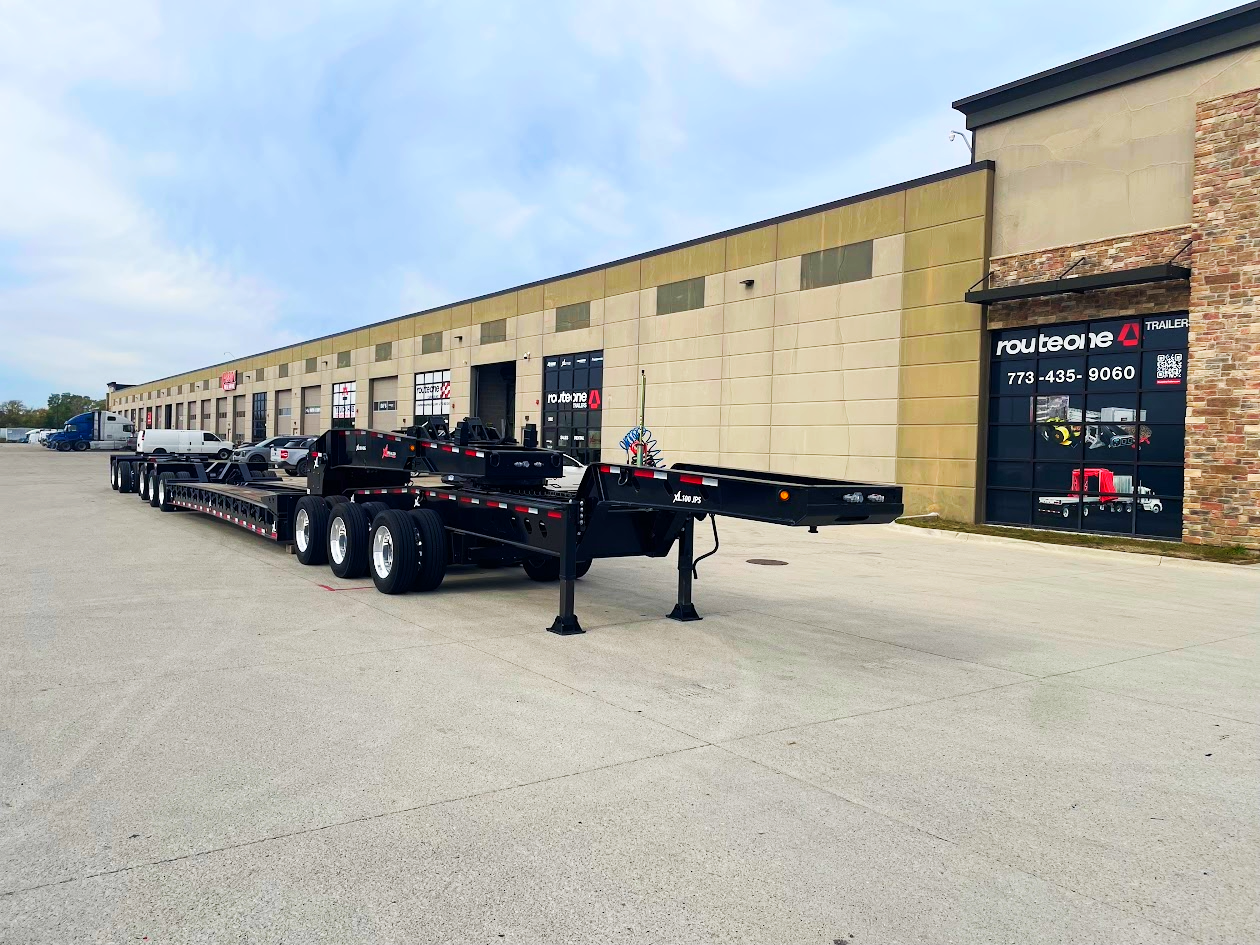

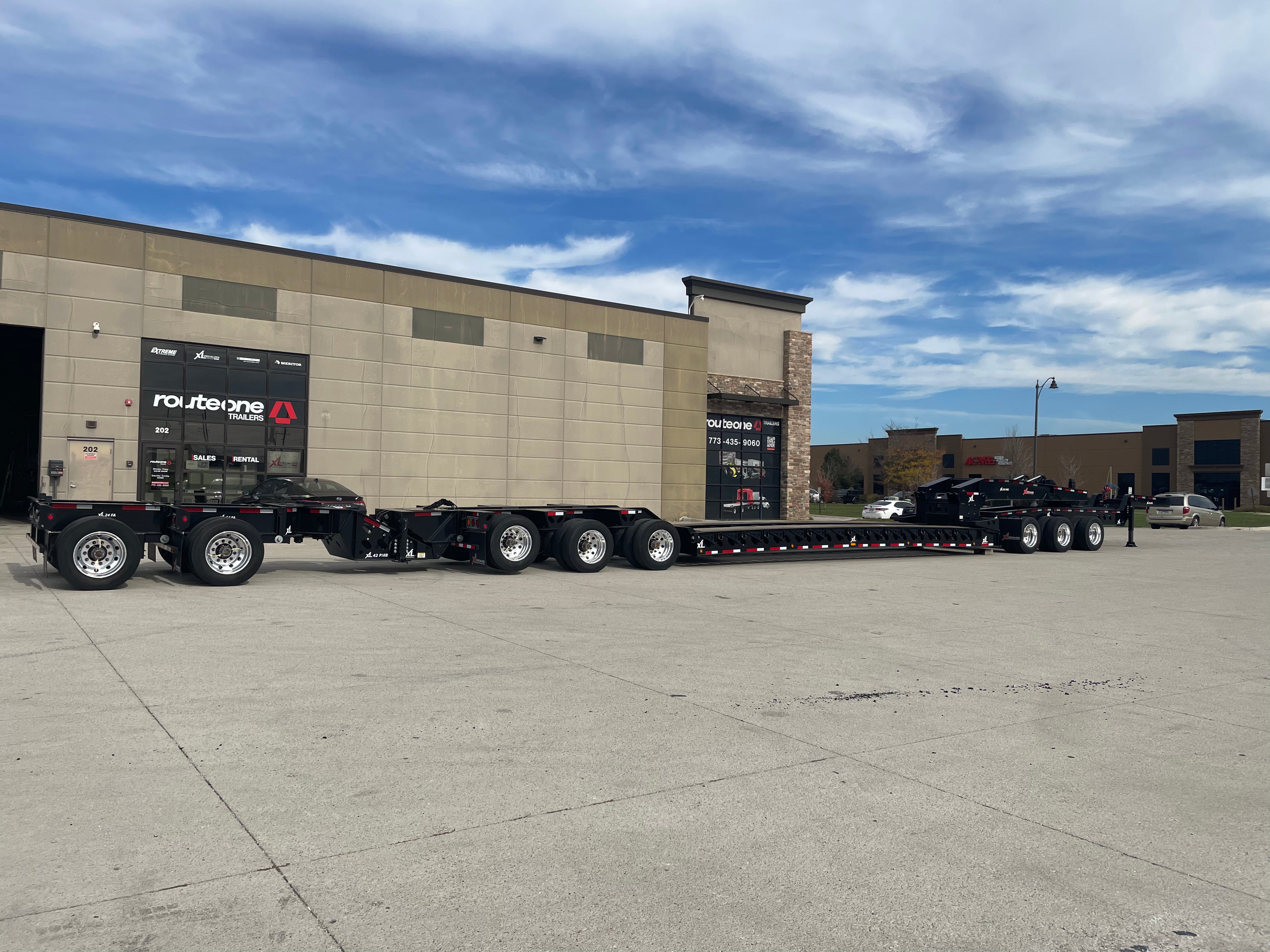

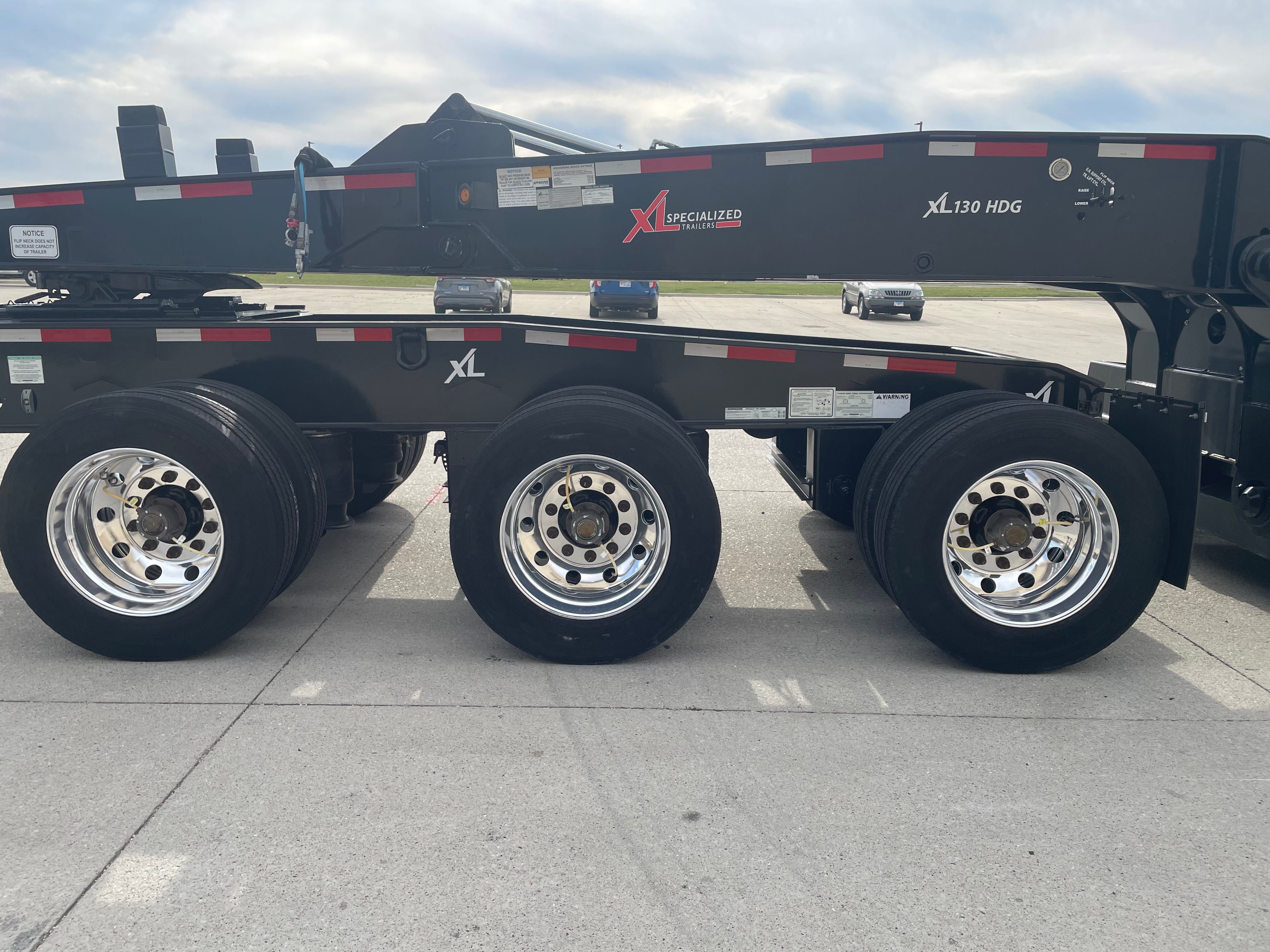

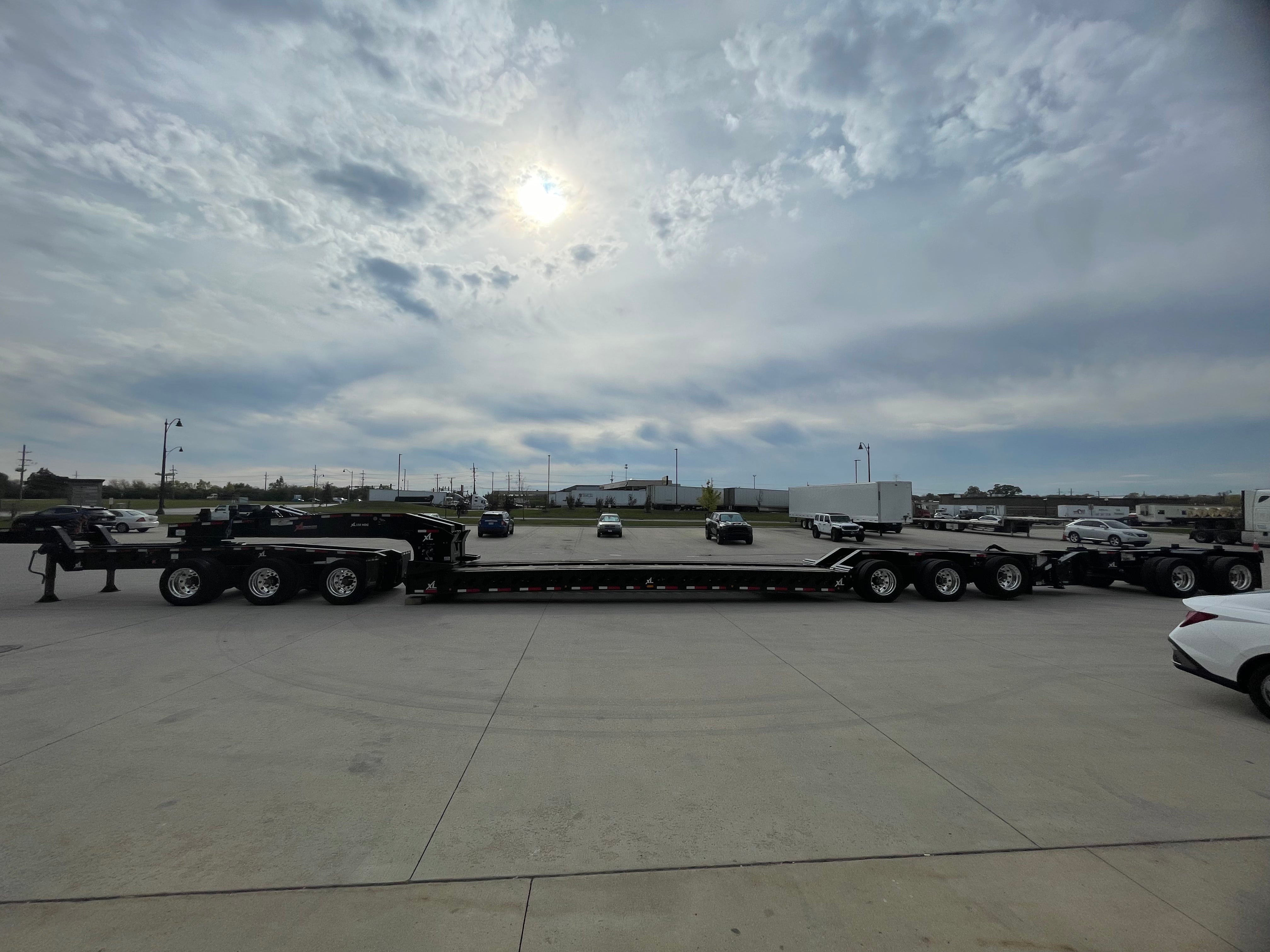

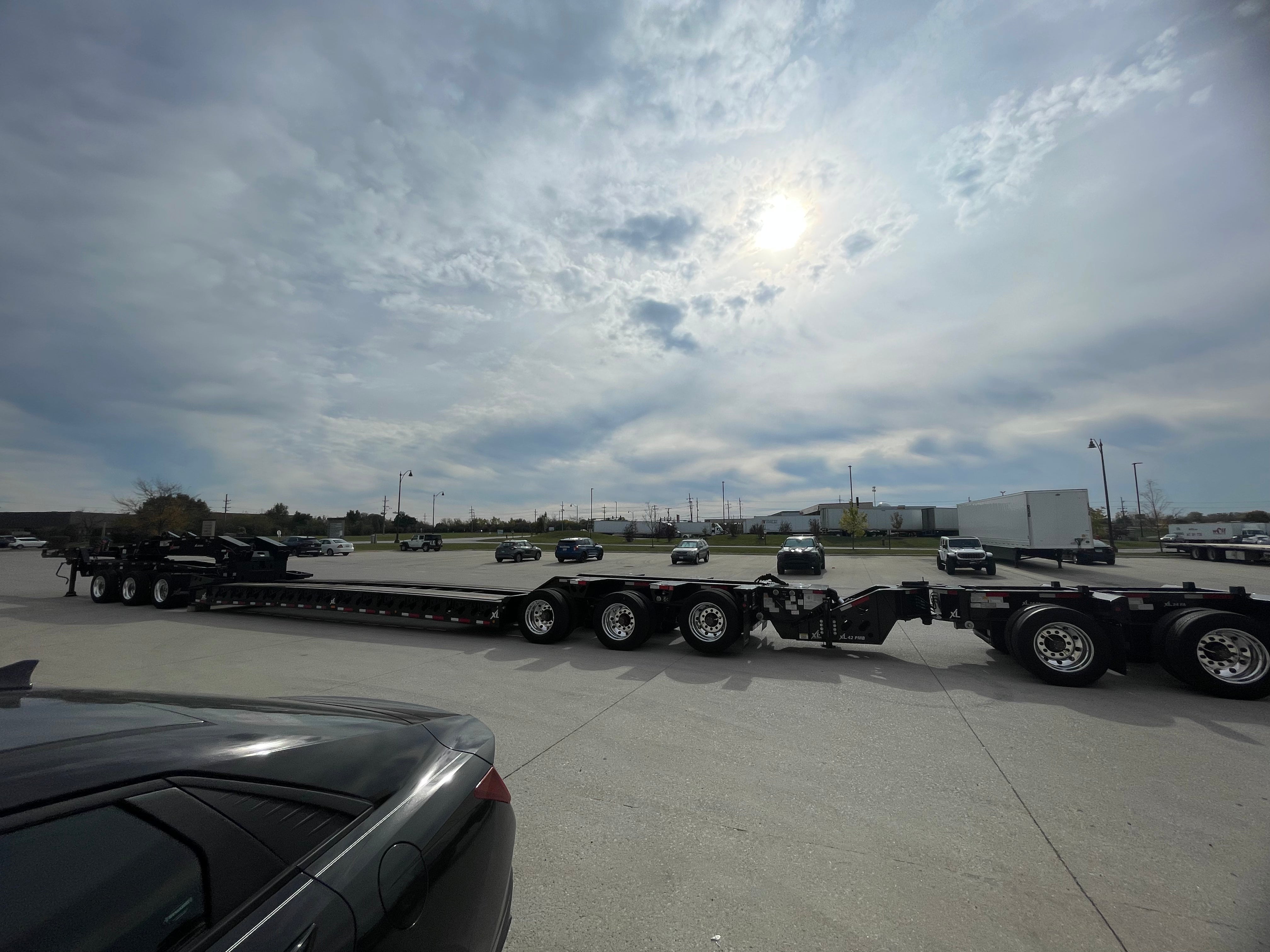

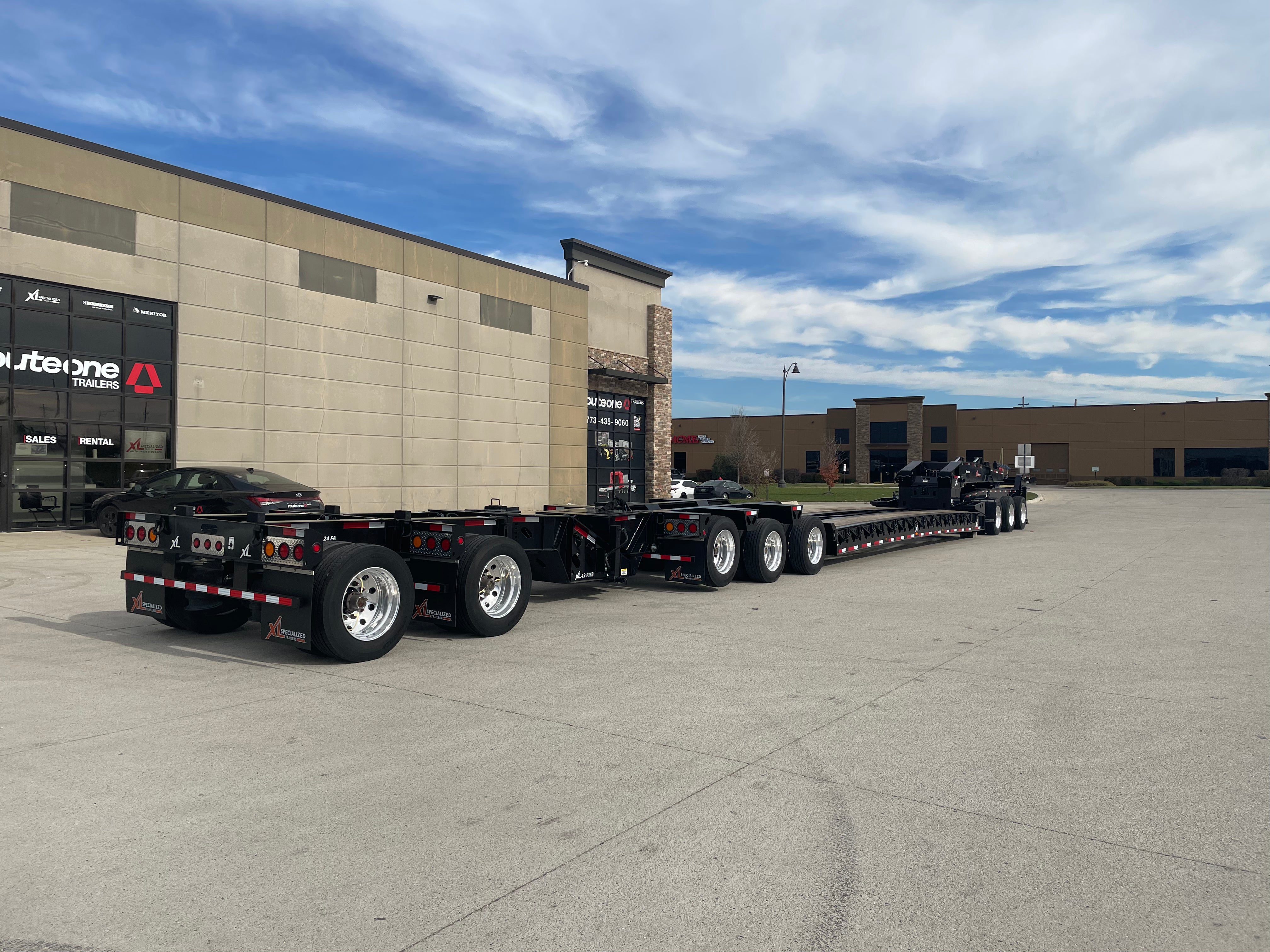

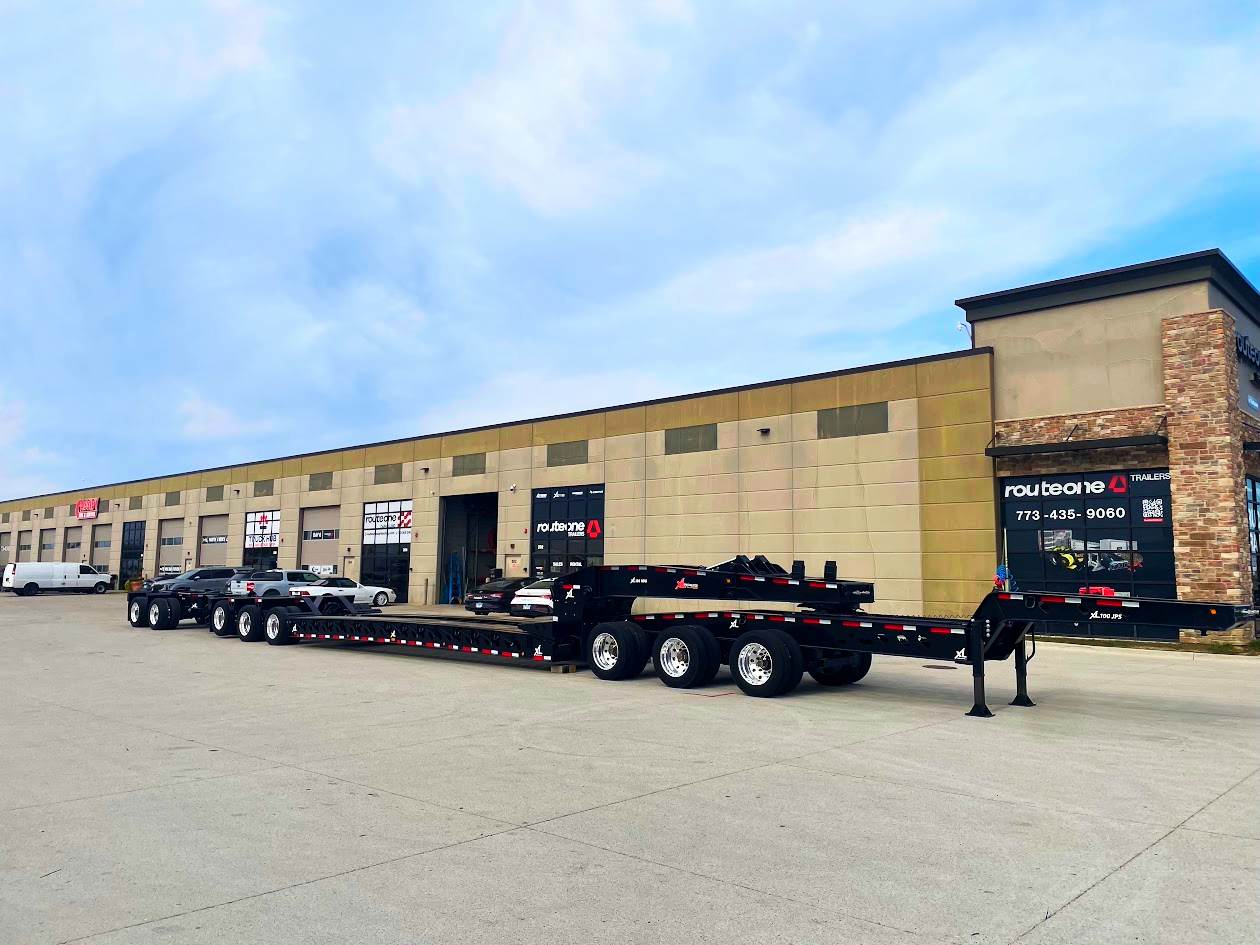

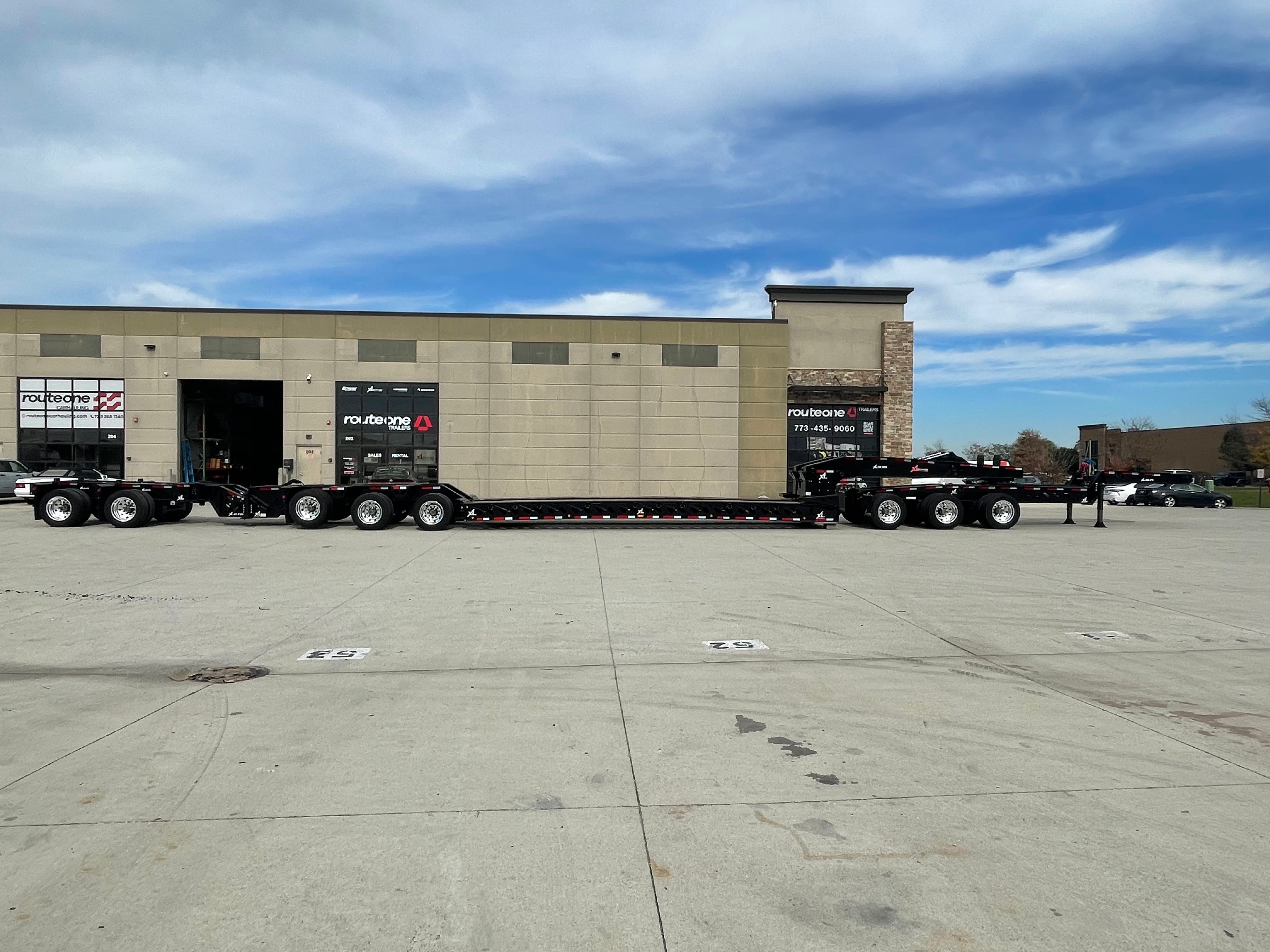

2021 XL 130 HDG w/ XL 100 JPS, XL 42 PMB, and 2 XL 24 FAs

3-2-2 Axles Setup

Trailer built in 2021 but never used!

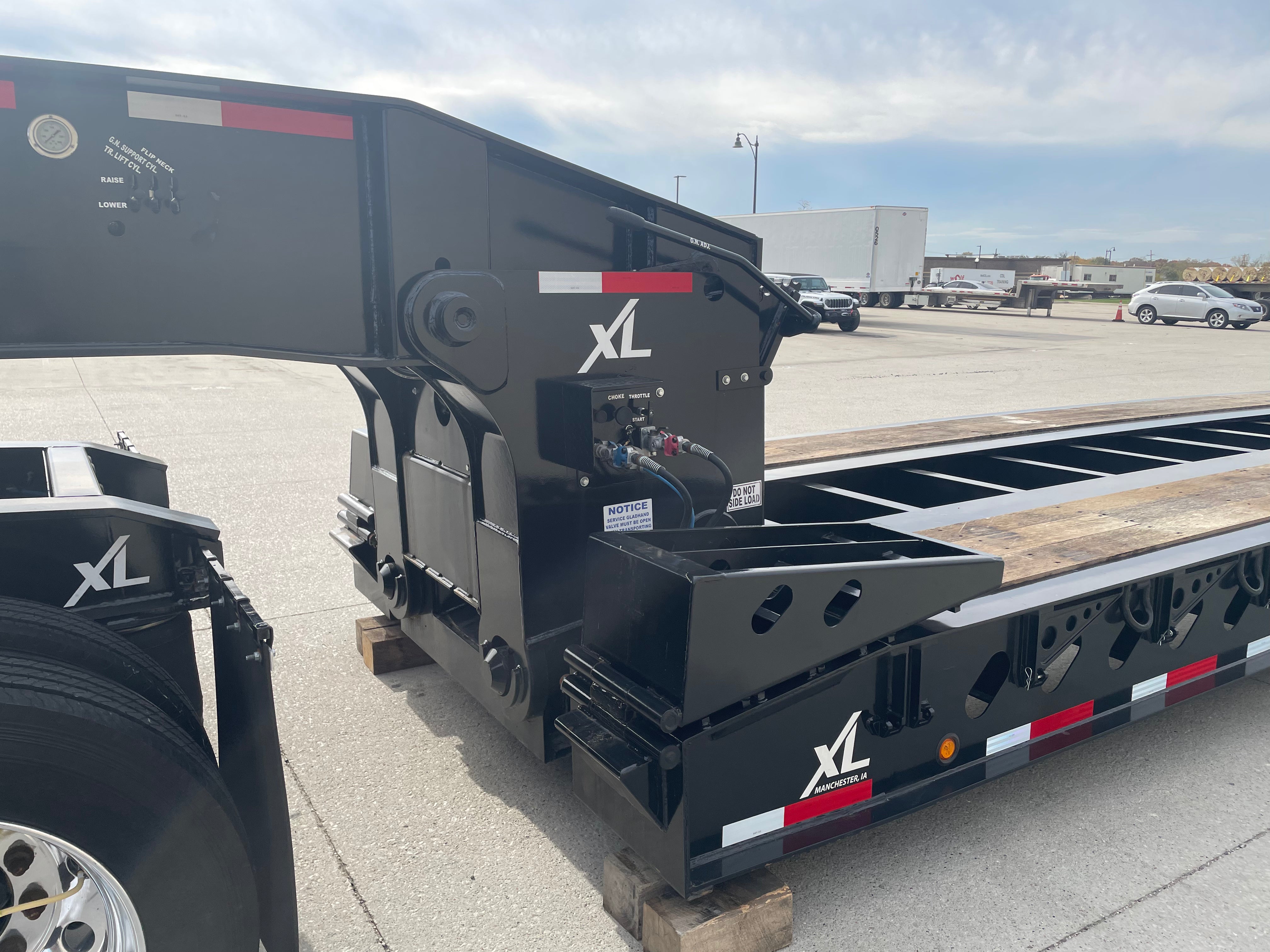

XL 130 HDG

Gooseneck
Gooseneck Length: 13' 10" scraper neck
King Pin Setting: 16" & 33"
Swing Clearance: 117" & 88"
5th Wheel Height: 51" with 5 variable ride height positions
Hydraulics: 13 HP Honda unit
Flip Neck: Frame reinforcement, air, electric & brackets for 72" flip neck extension
72" Flip Neck Extension: Tapered hydraulic-assist flip neck

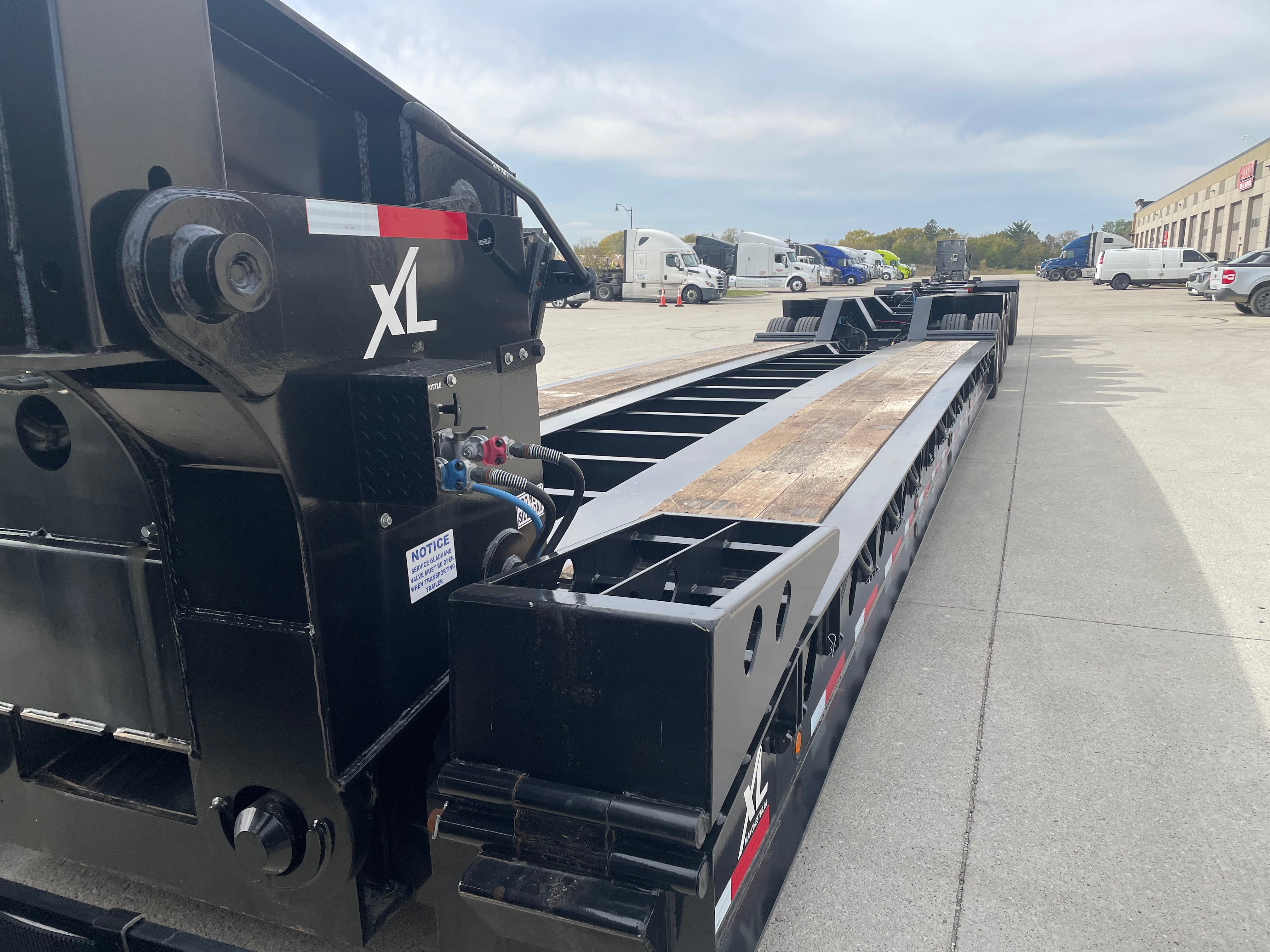

Main Deck
Length: 29' 11 3/8"
Loaded Deck Height: 24" with 6" ground clearance
Decking: 1 3/4" Apitong decking (raised, open center)
Crossmembers: 12" & 4" Jr. I-beam, 12" alternating centers
Side Beams: 4 beams, 18"
Outriggers: Cast swing-out
D-Rings: 10 bent D-rings per side (20 total)
Additional D-Rings: 10 bent D-rings inside each main beam
Ramps: 42" front tapered ramps
Bucket Well: 5' bucket well in rear, recessed rear header with steel plated bottom

Rear Deck
Length: 15'
Loaded Deck Height: 43"

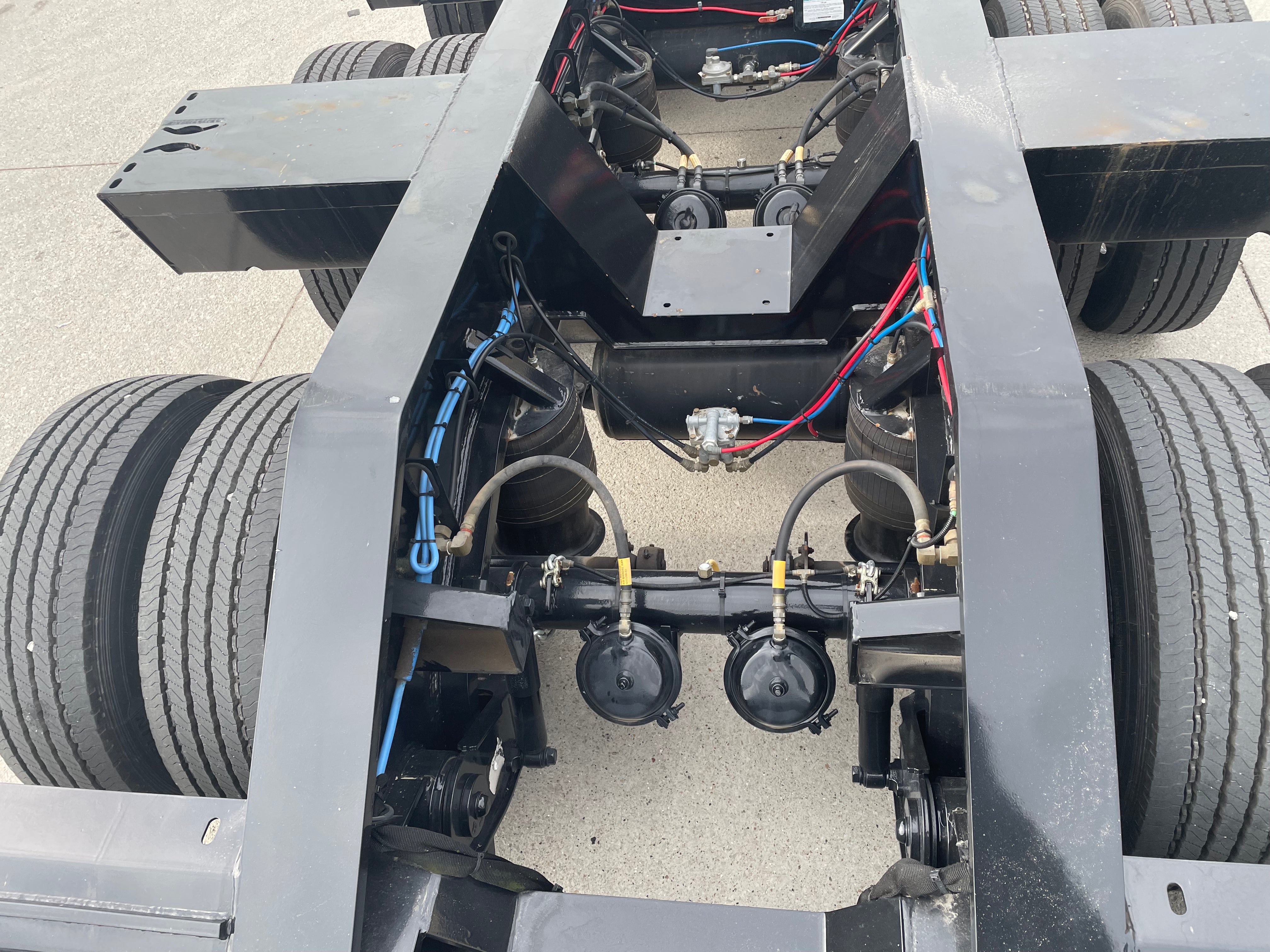

Axles: (3) 25,000 lb nominal, 77 1/2" tracking
Suspension: Ridewell / 25,000 lb capacity / air
Axle Spacing: 60"
ABS: Spring brakes on 1 axle
Tires: 275/70R/22.5 Michelin
Wheels: 8.25 x 22.5, all aluminum
Brakes: 16 1/2" x 7"
Drums: Centrifuge

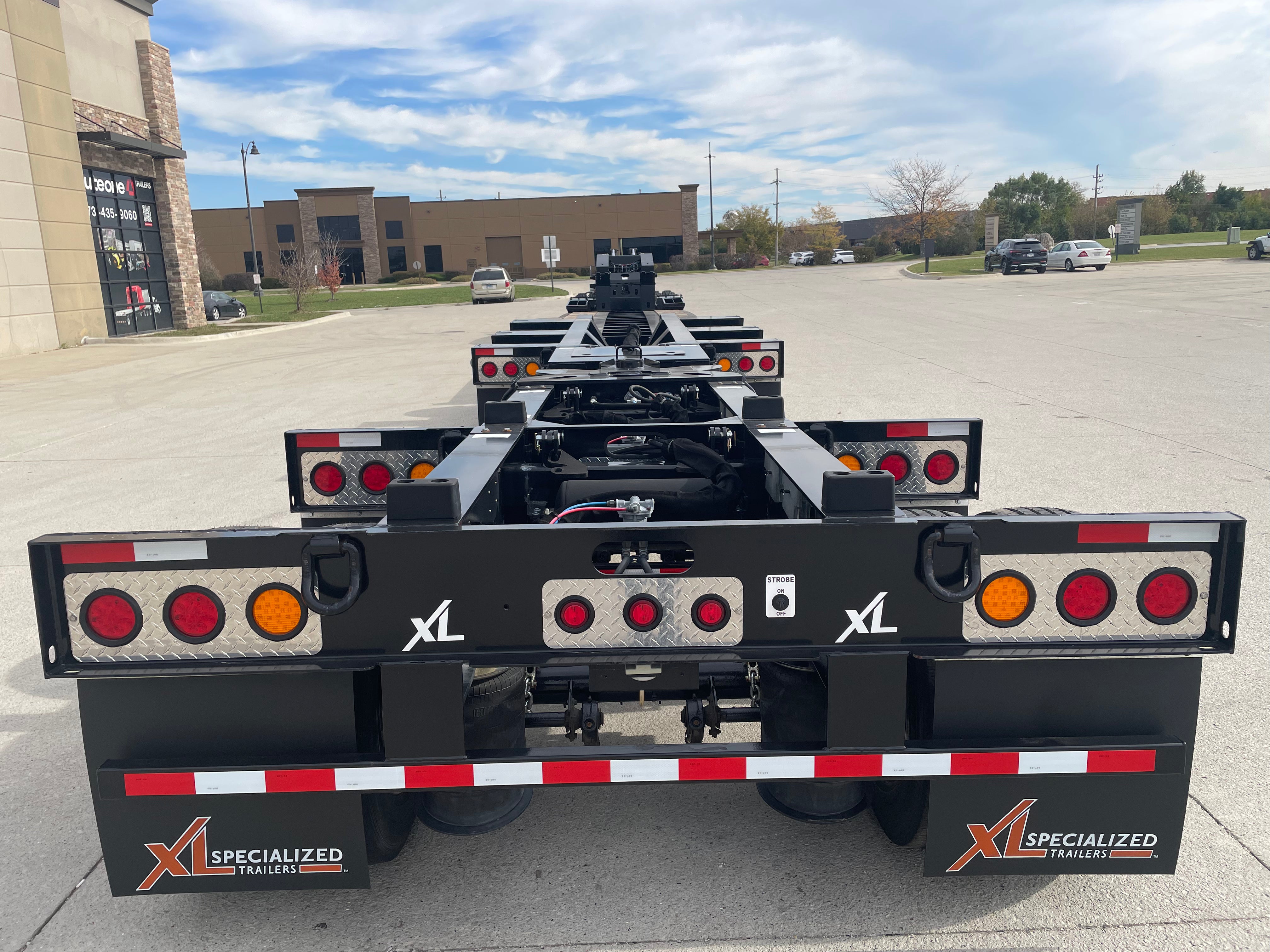

Electrical: 12V sealed Grote system with 3+5+3 tail light aluminum package
Lighting: 4" amber strobe with switch to make 3 STT
Decking: Open wheels bolster style with open boom trough; 24" wide bolsters
Chain Drops: 2 on each bolster
D-Rings: 2 bent D-rings in tail channel
Additional: Liquid-filled air gauge
Paint: Black urethane with 2-part epoxy primer
Frame Reinforcement: For 2-axle power booster with air, electric, and brackets

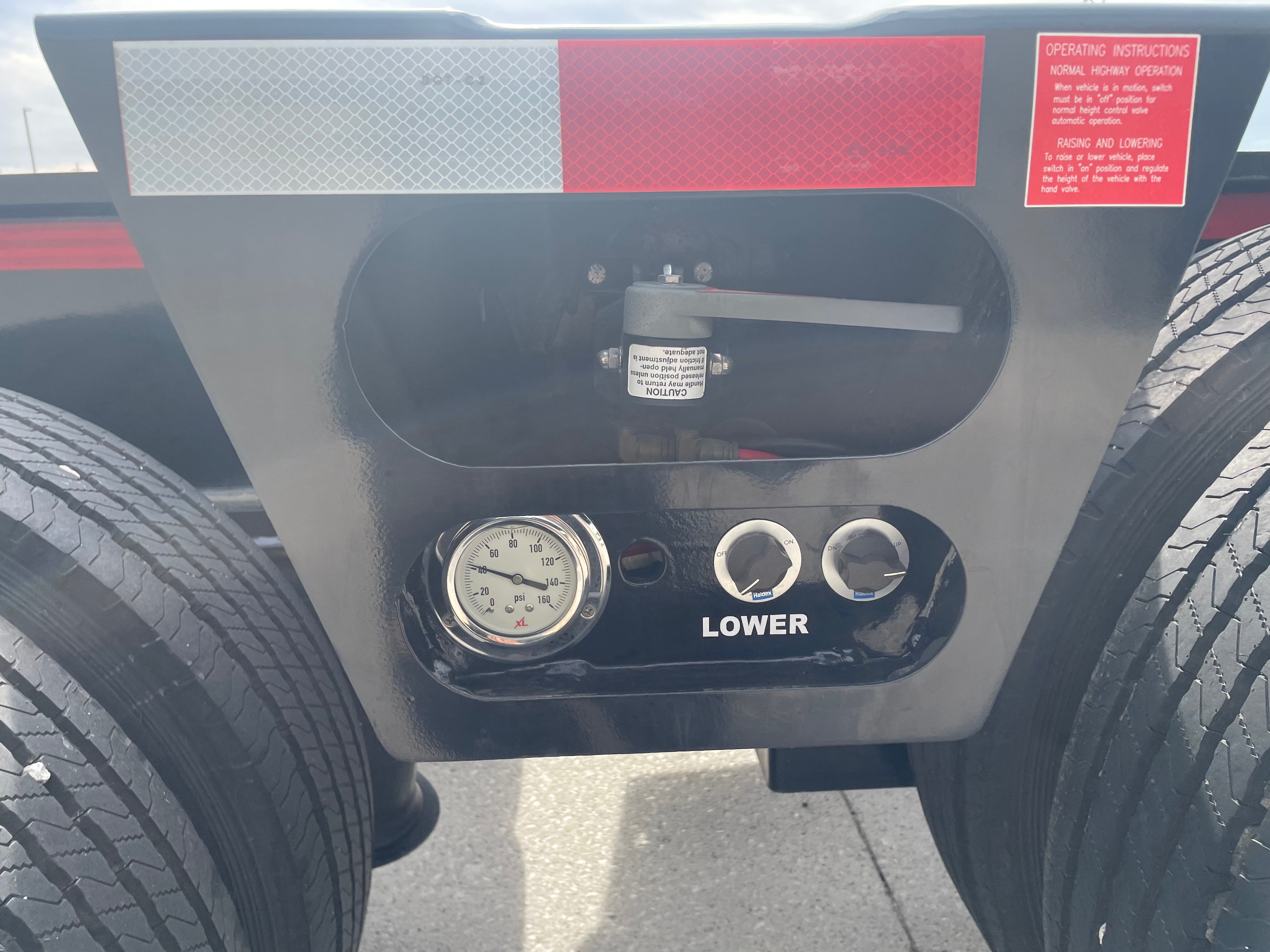

Raise & Lower Valve
Additional Lighting: 4 extra clearance lights per side on main deck
Manual Ride Height Control
Air Lift: On 3rd axle
Detachable Wheel Area: Horizontal manual pins with deleted half front bolsters
Tire Inflation: Hendrickson TireMaxx system

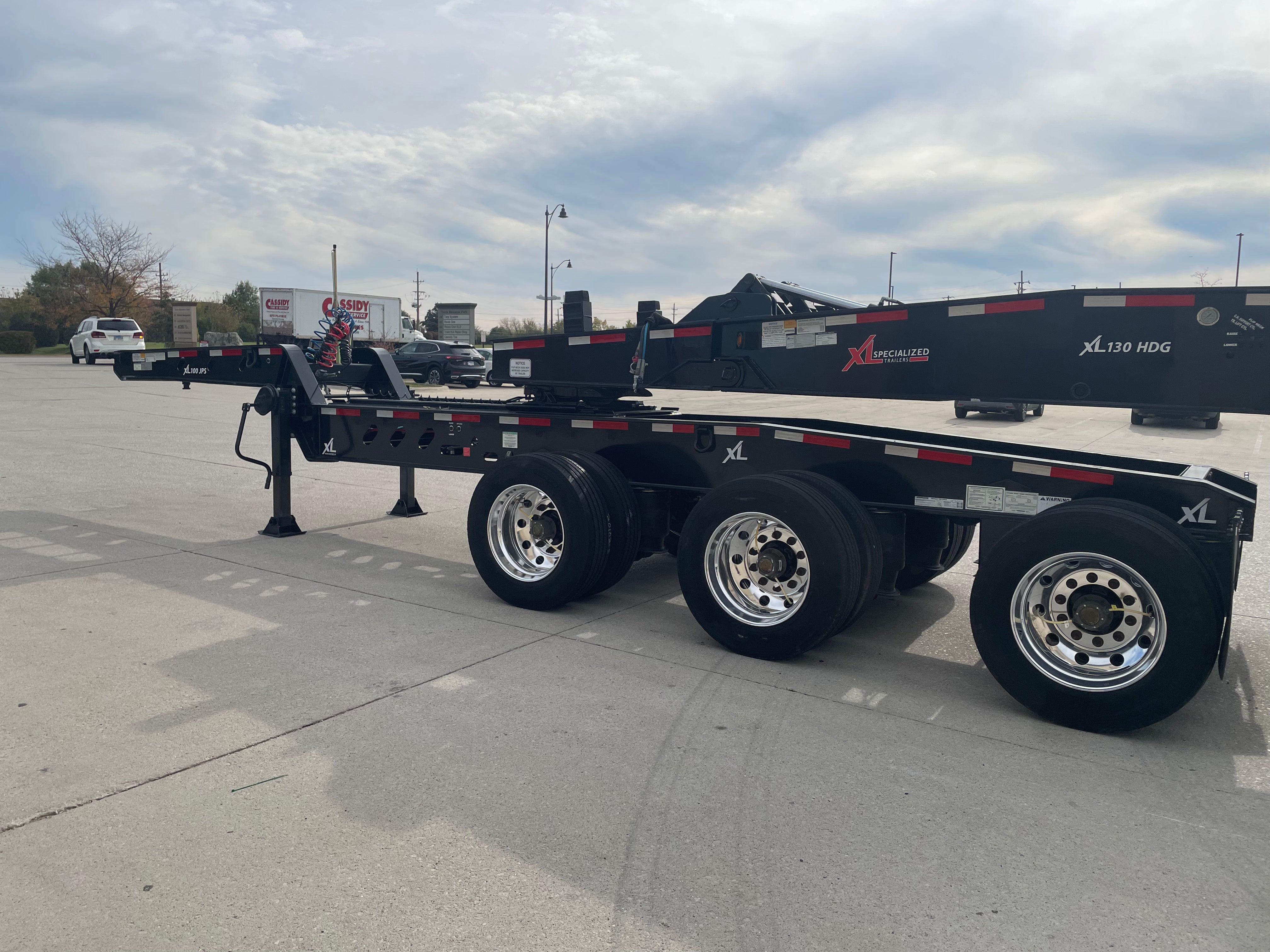

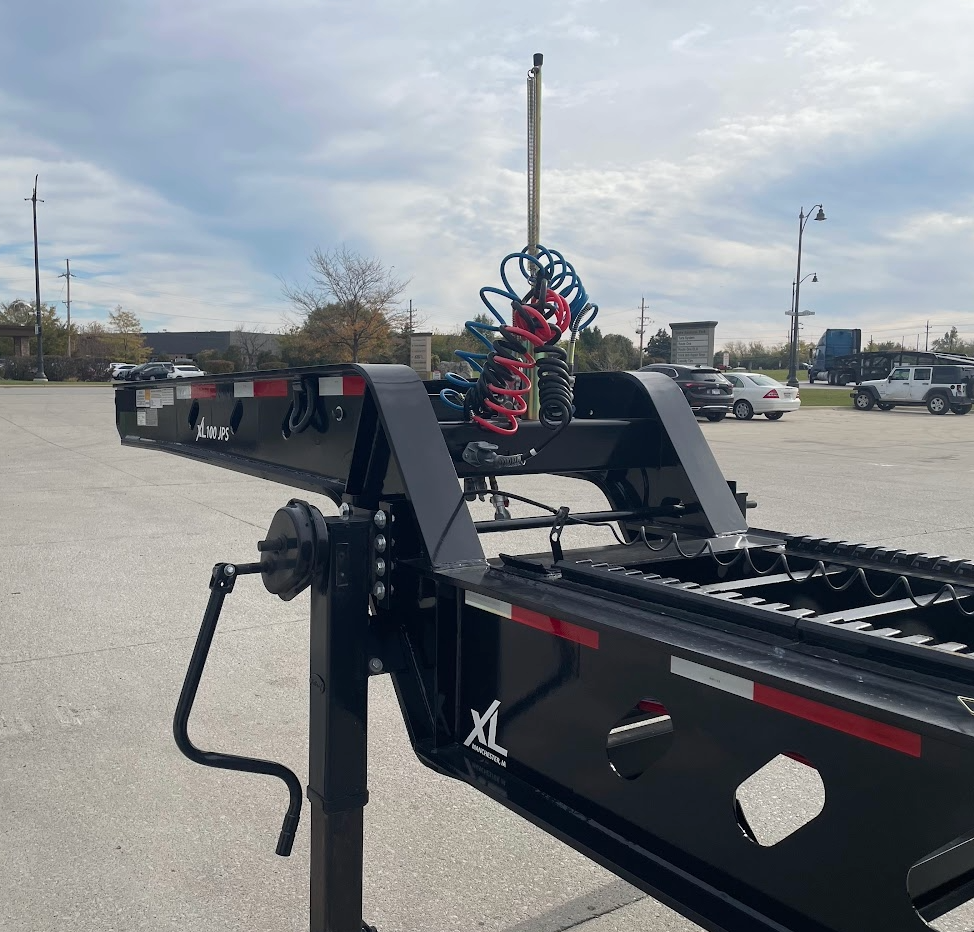

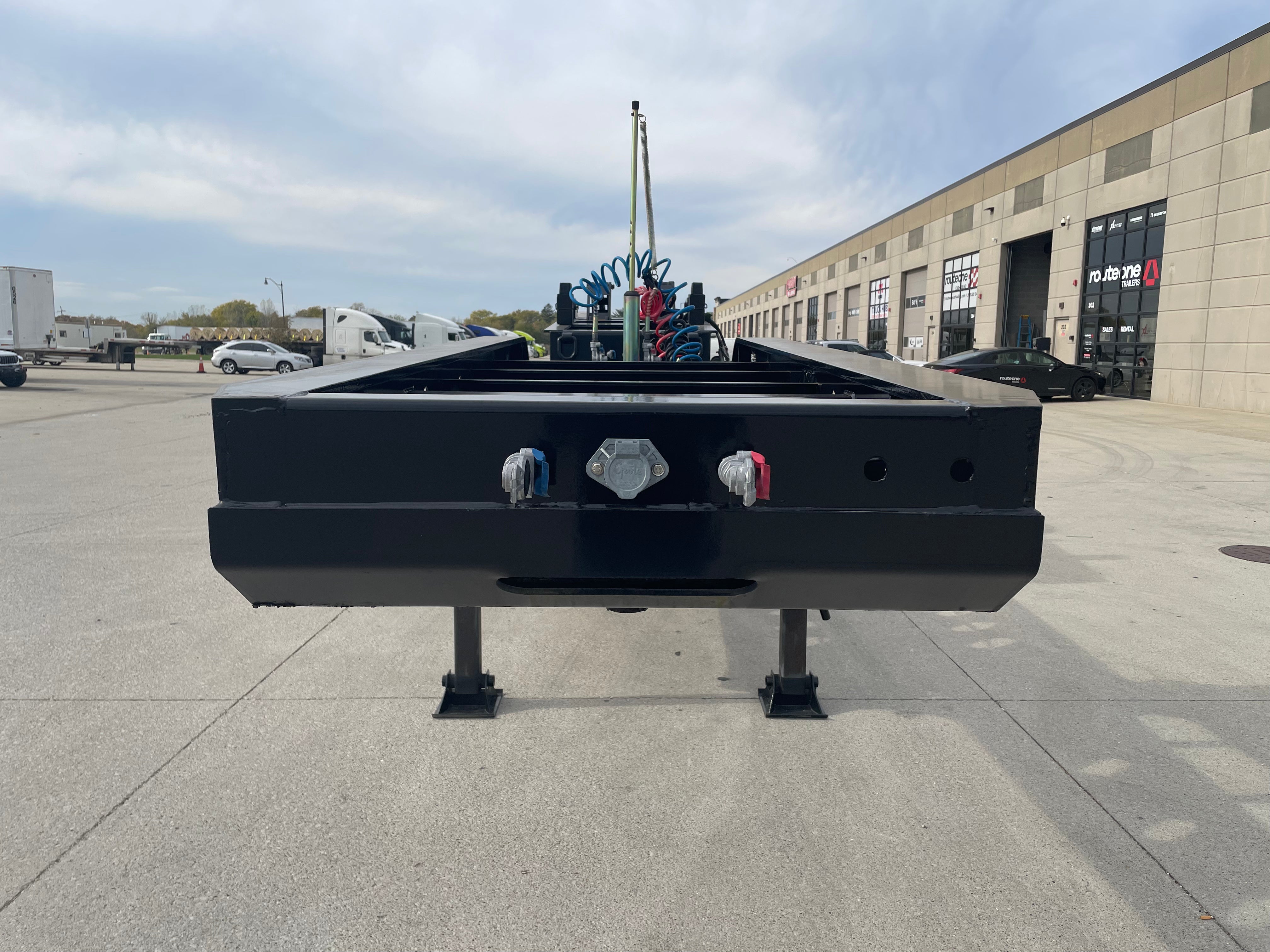

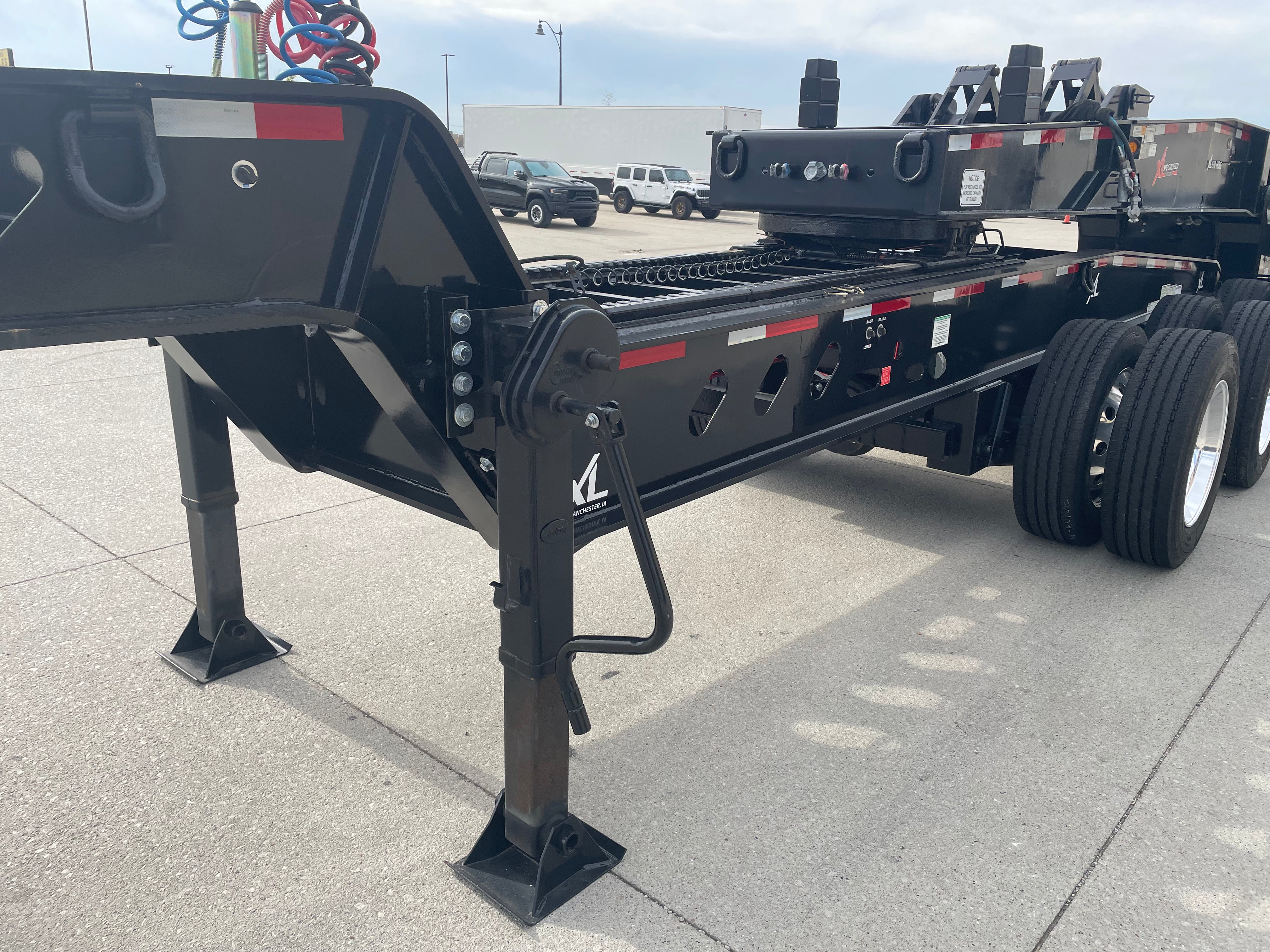

XL 100 JPS

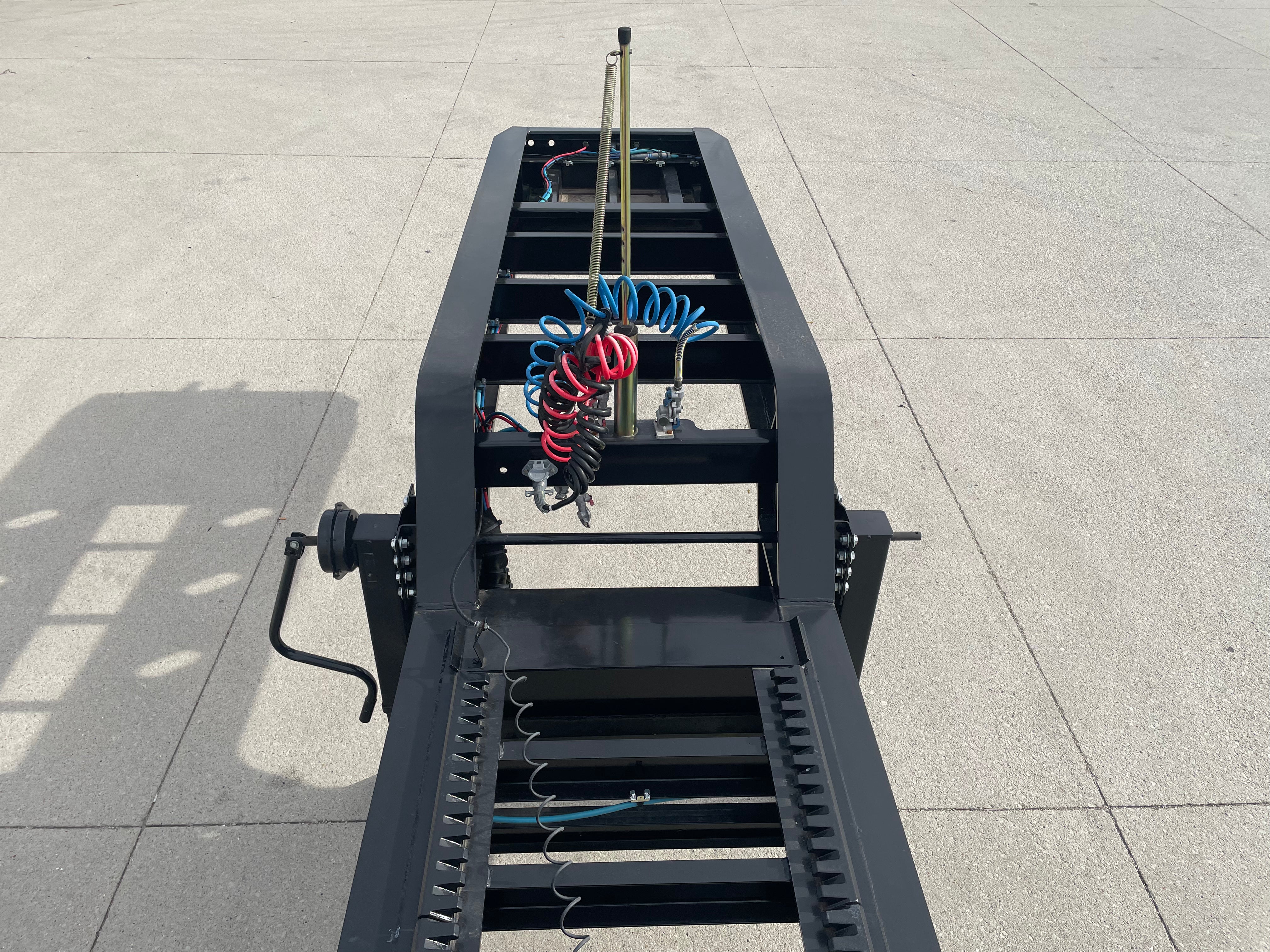

Gooseneck
Length: 9' 10"
King Pin Setting: 16"
Swing Clearance: 86"
5th Wheel Height: 49"
D-Rings: 1 pair of bent D-rings
Landing Gear: 2-speed landing gear, handle on driver side

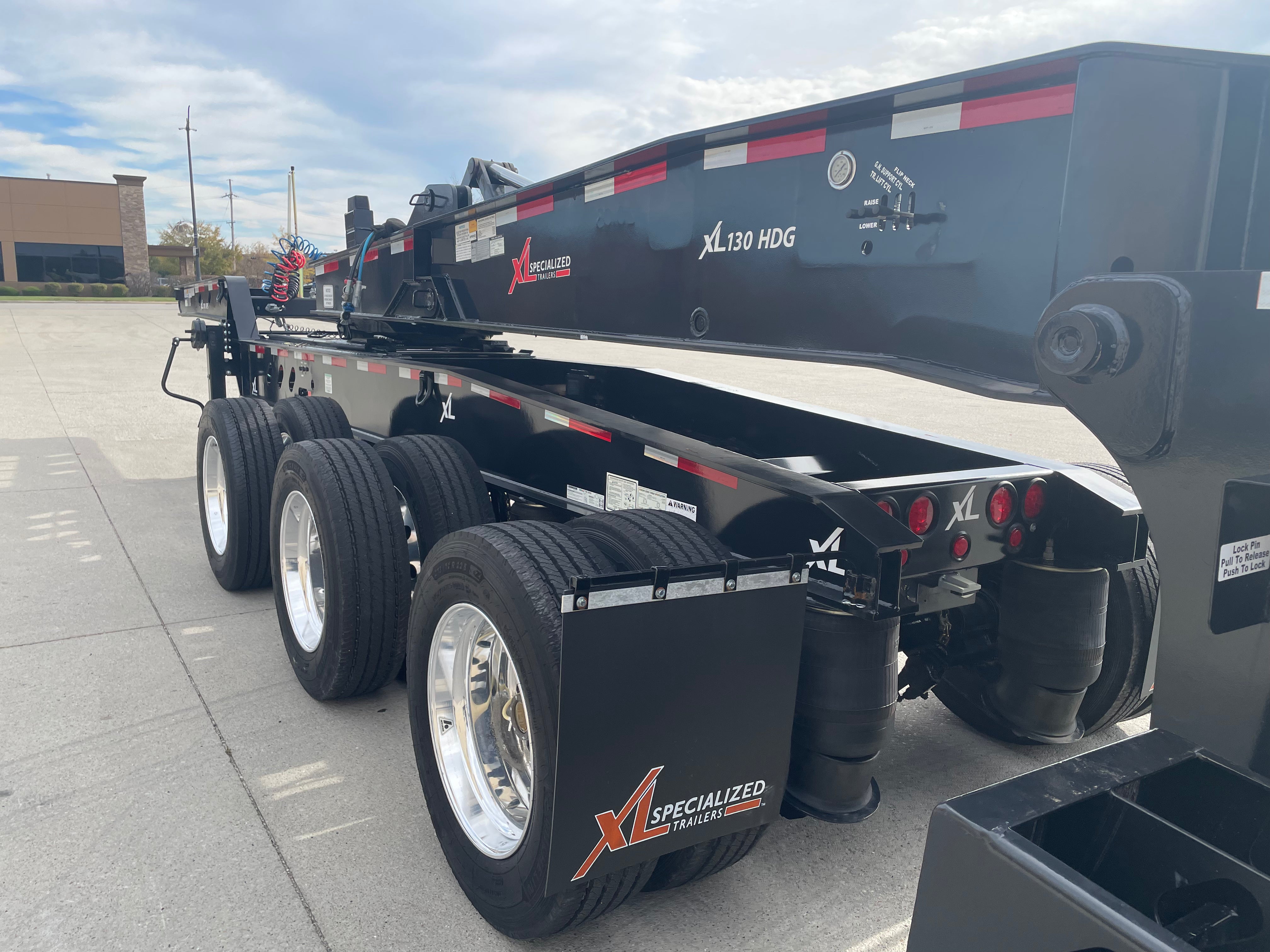

Rear Deck

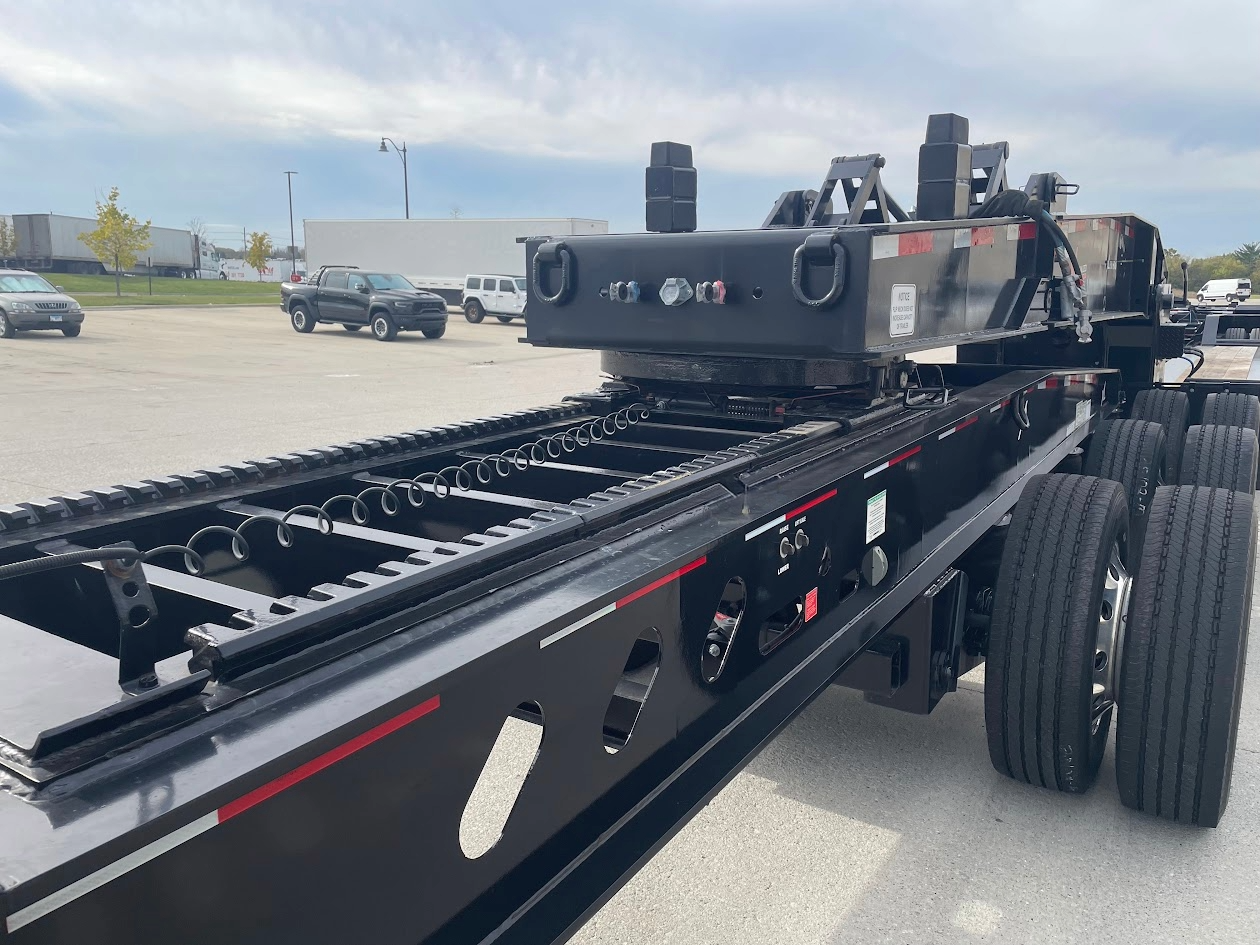

5th Wheel: 24" slide 5th wheel
Loaded 5th Wheel Height: 50"
Axles: (3) 25,000 lb nominal, 77 1/2" tracking
Suspension: Ridewell / 25,000 lb air
Axle Spacing: 54"
Brakes: Spring brakes on 1 axle
Tires: 275/70R/22.5 Michelin
Wheels: 8.25 x 22.5, all aluminum
Brakes: 16 1/2" x 7"
Drums: Centrifuge
Electrical: 12V sealed Grote system with 2 tail light package
D-Rings: 1 pair of bent D-rings
Raise & Lower Valve

Additional
Paint: Black with 2-part epoxy primer
Manual Ride Height Control
Tire Inflation: Hendrickson TireMaxx system
Air Lift: On front axle

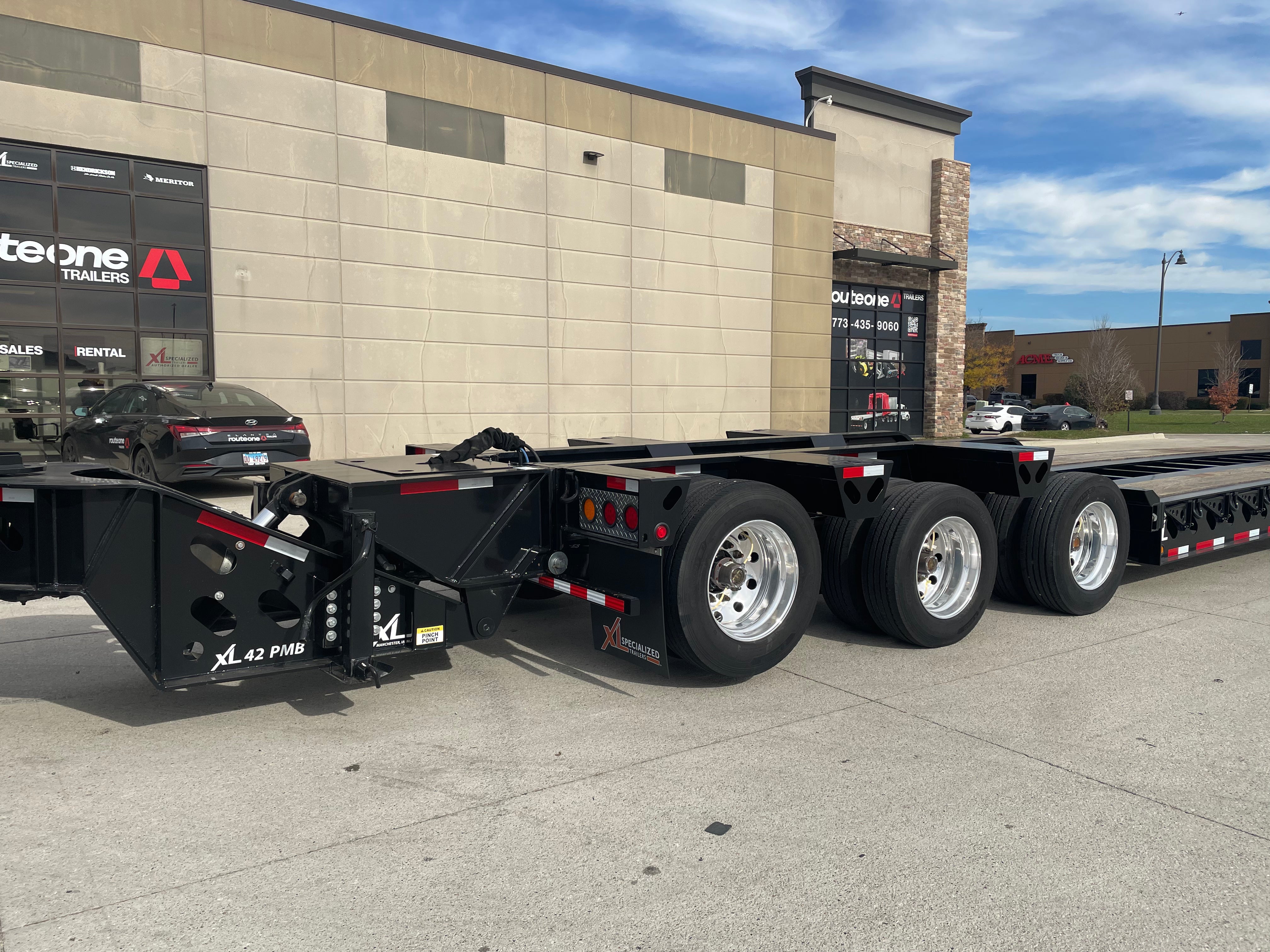

Nitro Spreader Bar
Length: 14' 1" spread from last axle on trailer to first axle on booster
Loaded Deck Height: 41"
Electrical: Single-speed drop leg
Paint: Black urethane with 2-part epoxy primer

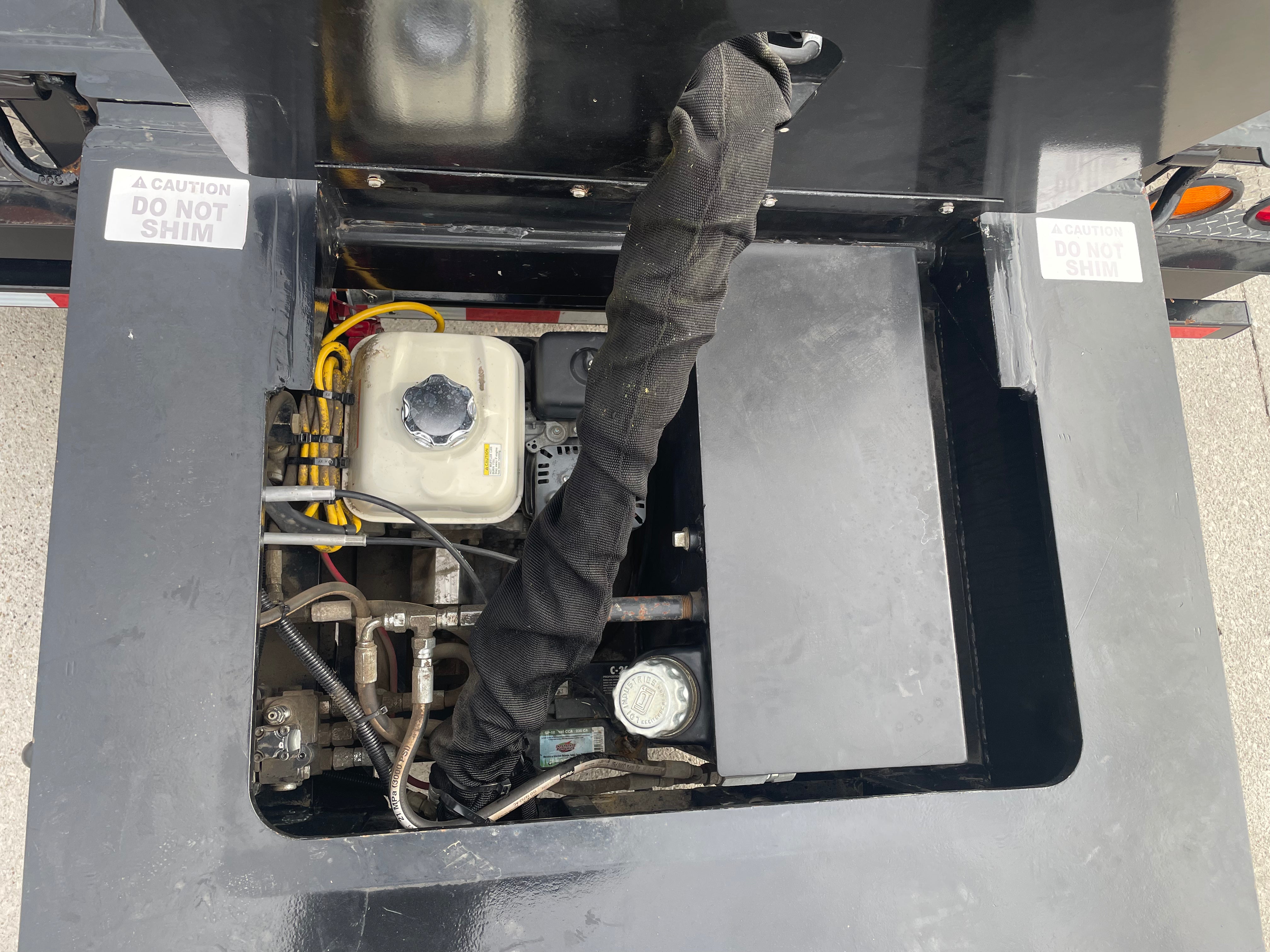

Power Unit: 5.5 HP Honda self-contained unit
Prepped for PSI

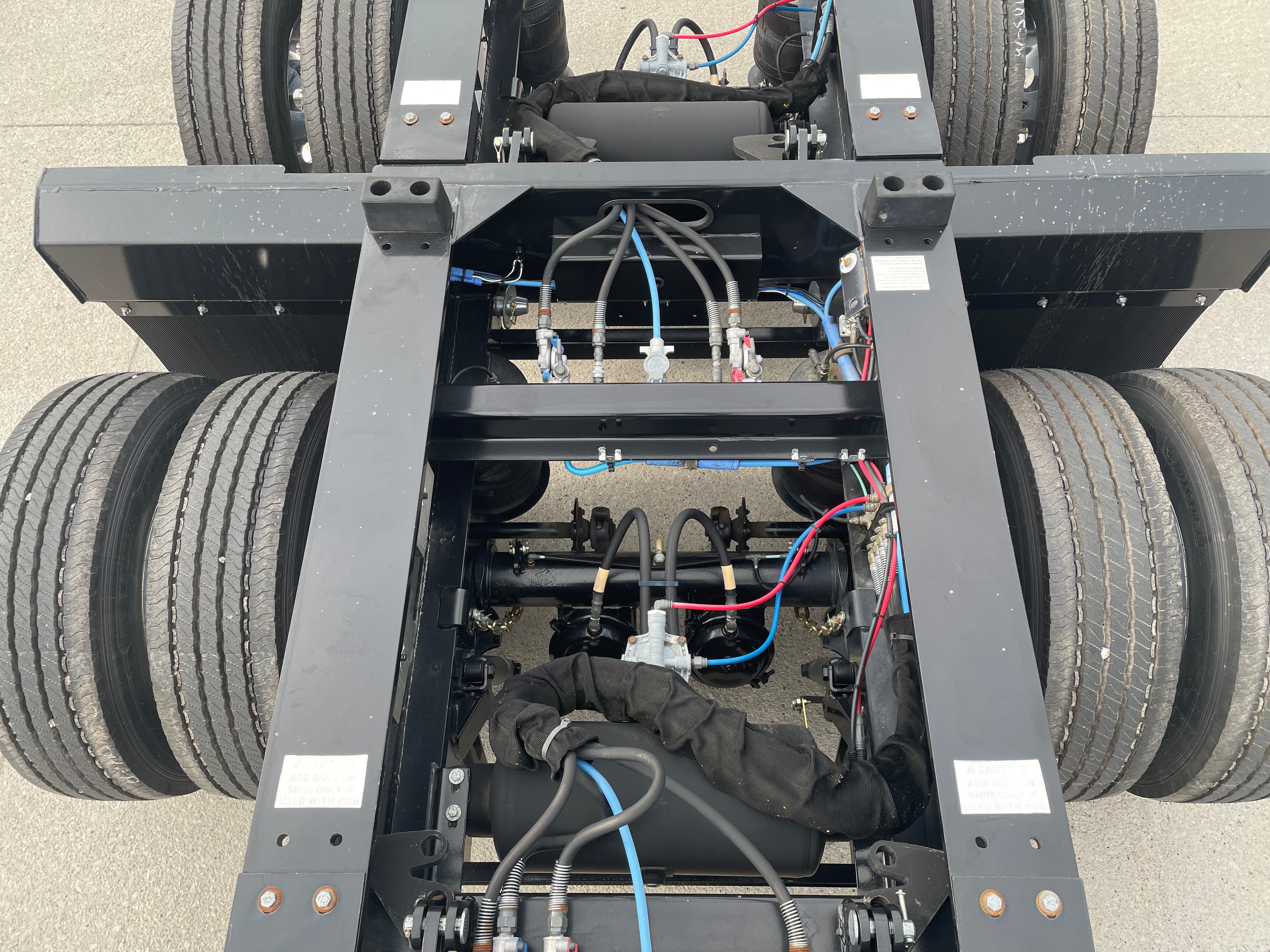

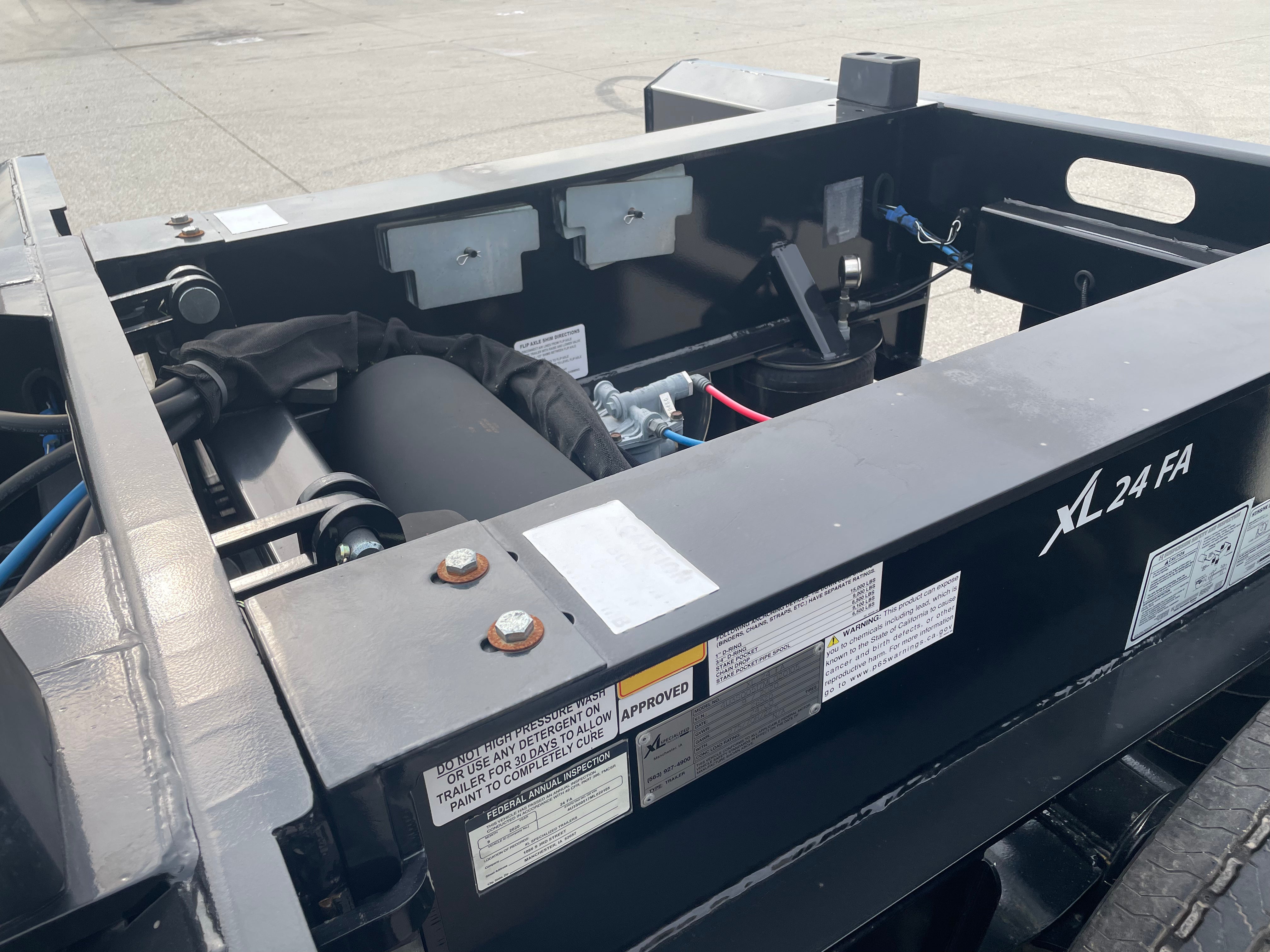

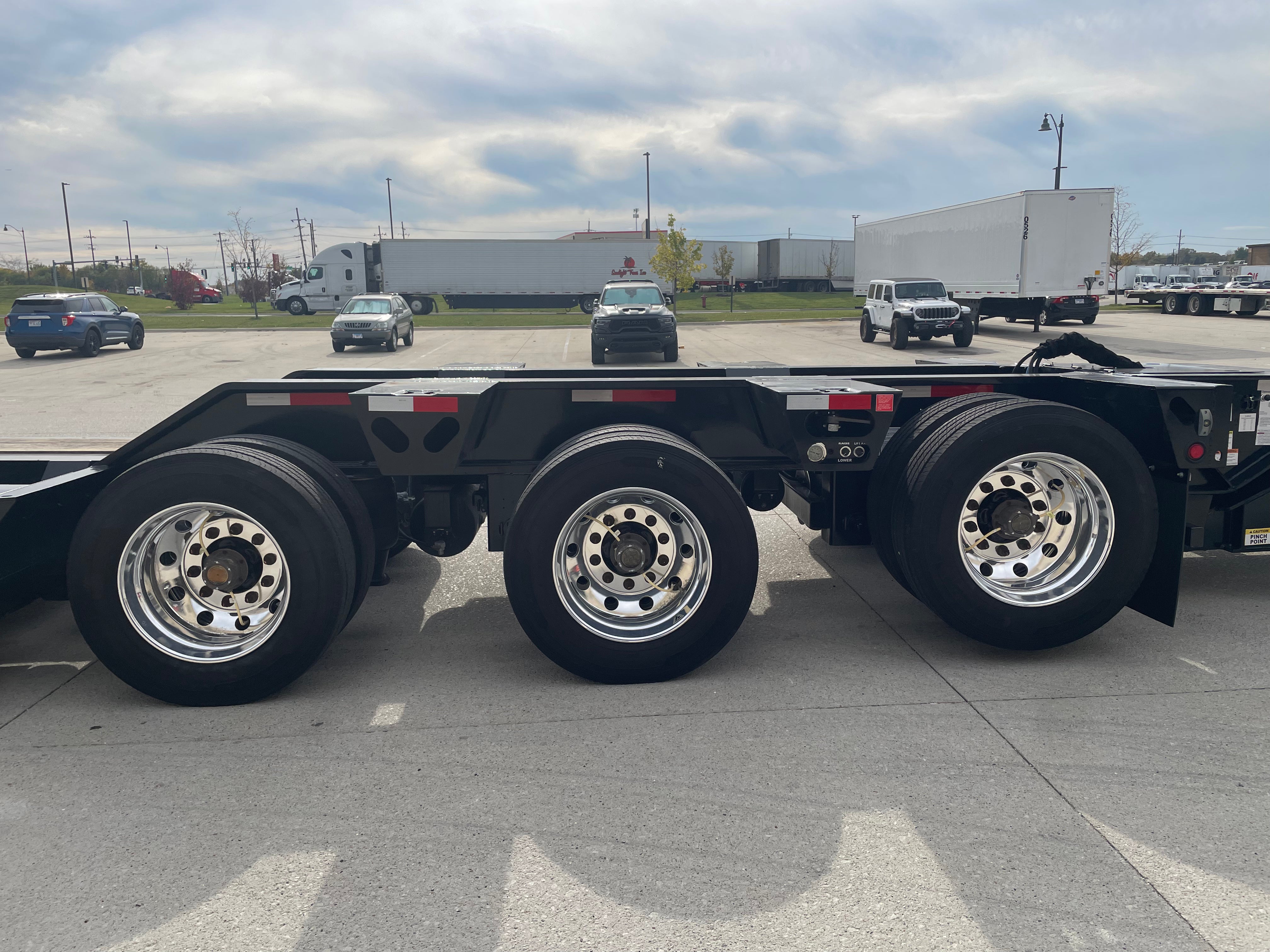

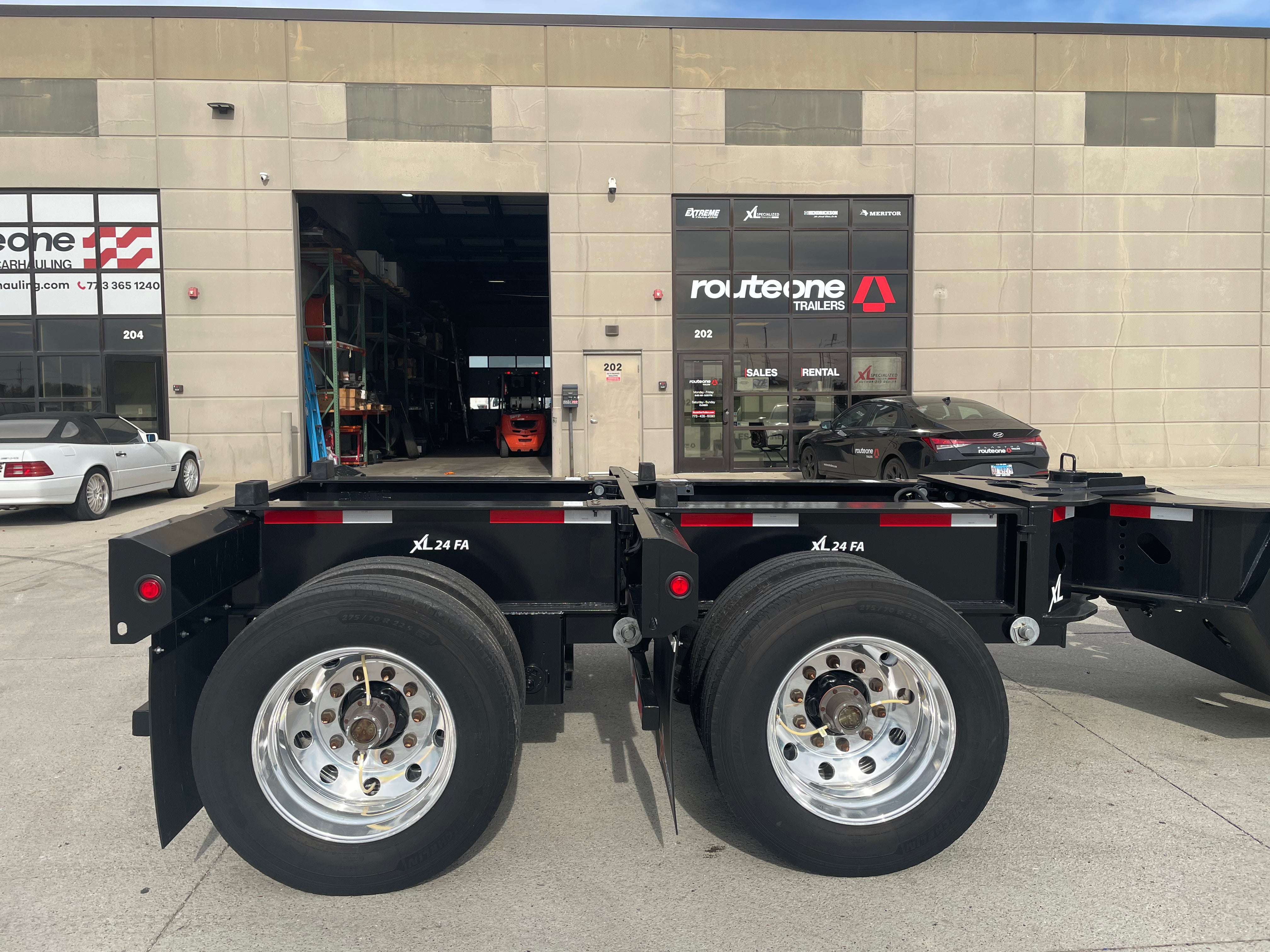

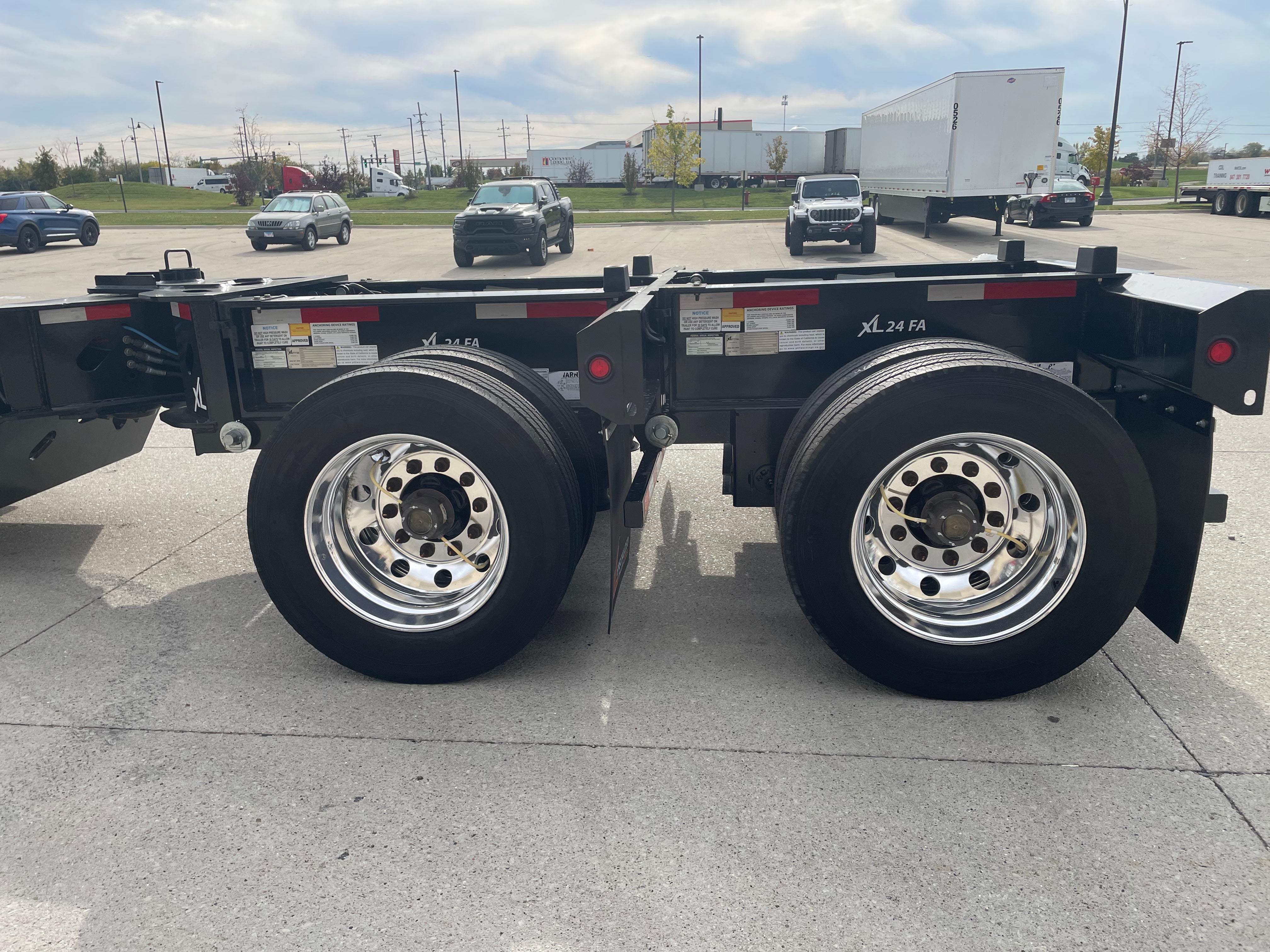

Flip Axles

Length: 60"
Loaded Deck Height: 41"
Axles: (1) 25,000 lb nominal, 77 1/2" tracking
Suspension: Hend-Turner / 25,000 lb air
Axle Spacing: 60"
Tires: 275/70R/22.5 Michelin
Wheels: 8.25 x 22.5, all aluminum
Brakes: 16 1/2" x 7"
Drums: Centrifuge
Electrical: 12V sealed Grote system with 3+5+3 tail light aluminum package
Lighting: 4" amber strobe with switch to make 3 STT
Decking: Open wheels, open center
Accessories: One pair of flag holders, 2 stake pockets in tail channel
Paint: Black
Liquid-Filled Air Gauge
Frame Reinforcement: Air, electric, and brackets for an additional axle
Tire Inflation: Hendrickson TireMaxx system
Compatibility: To be used with power booster

Price Includes FET
Financing Avilable
Located in East Dundee, IL
Call Ross 224-335-7786
