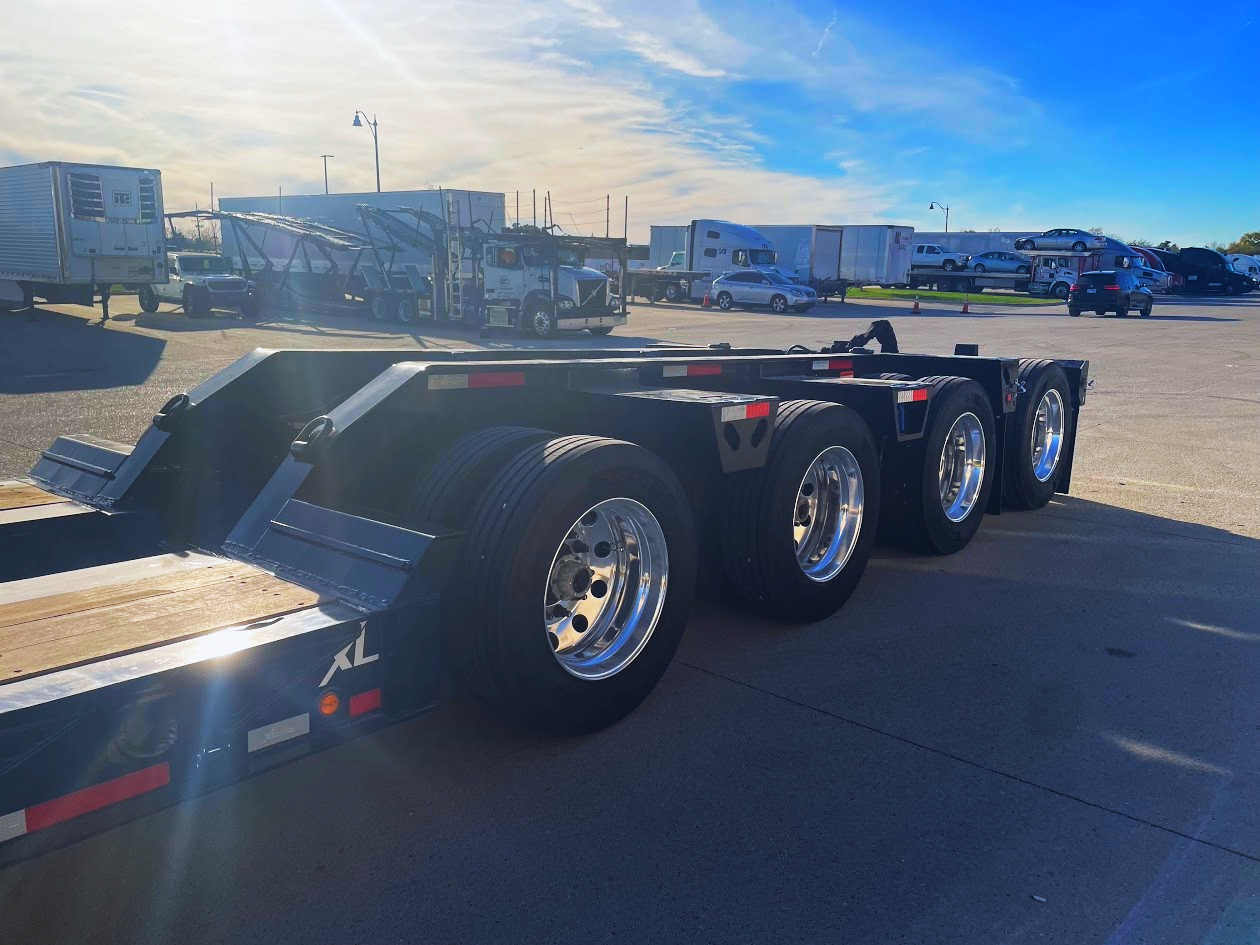

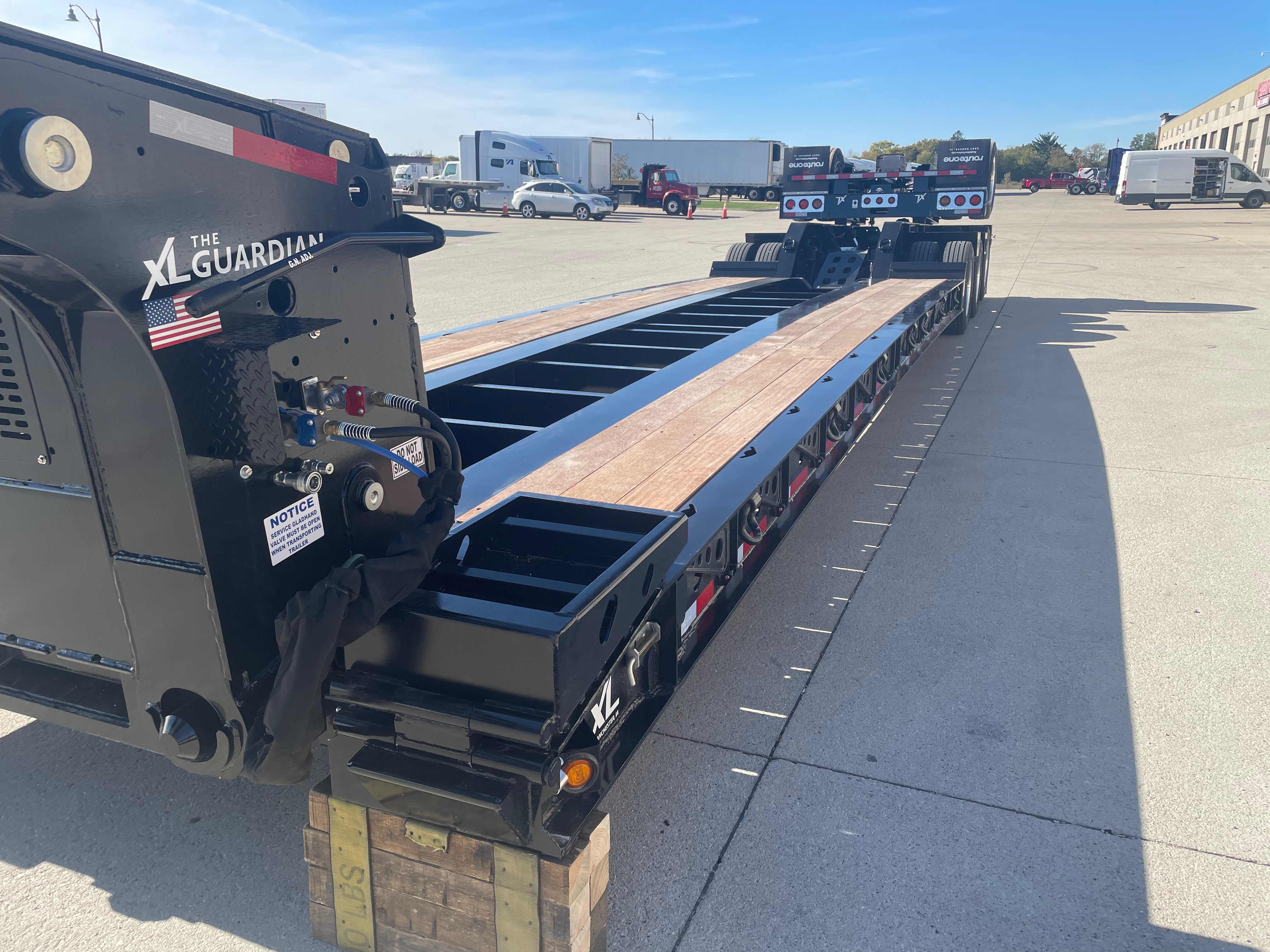

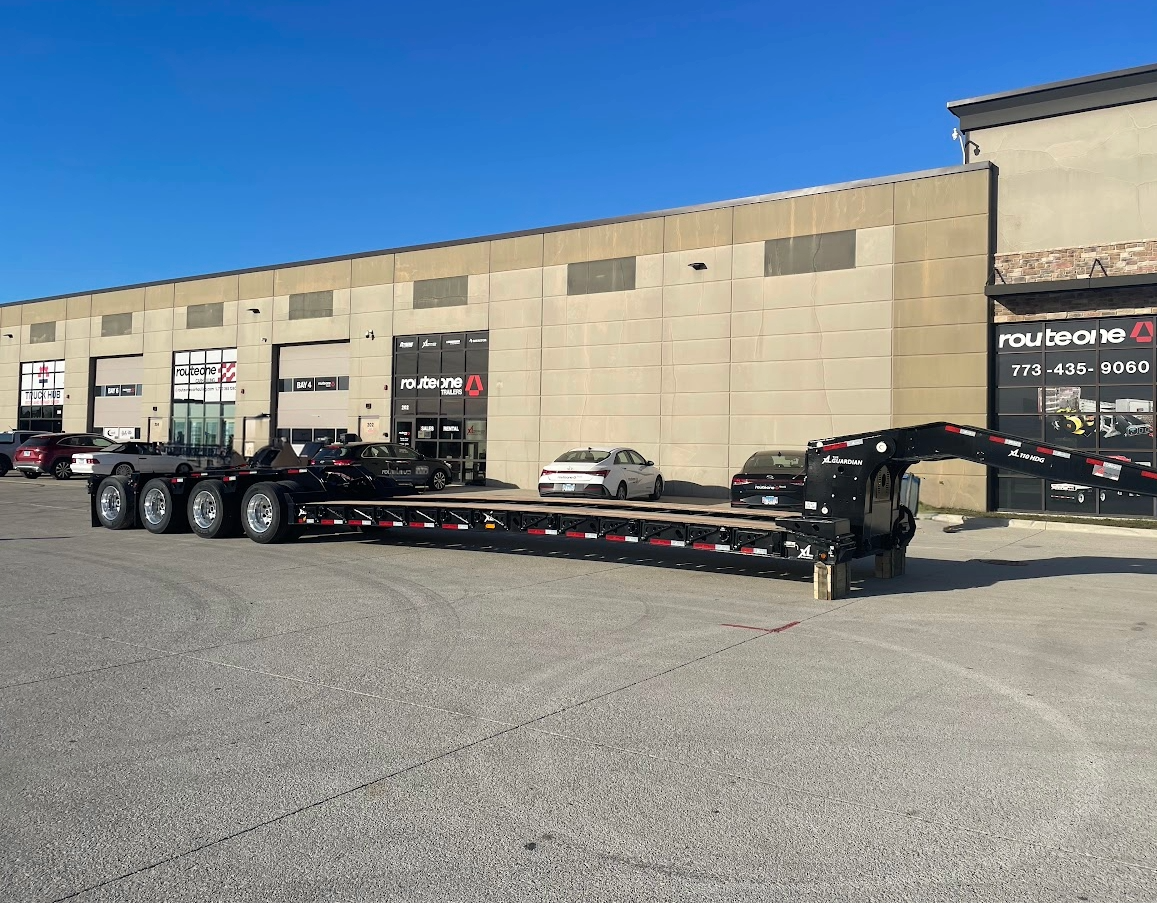

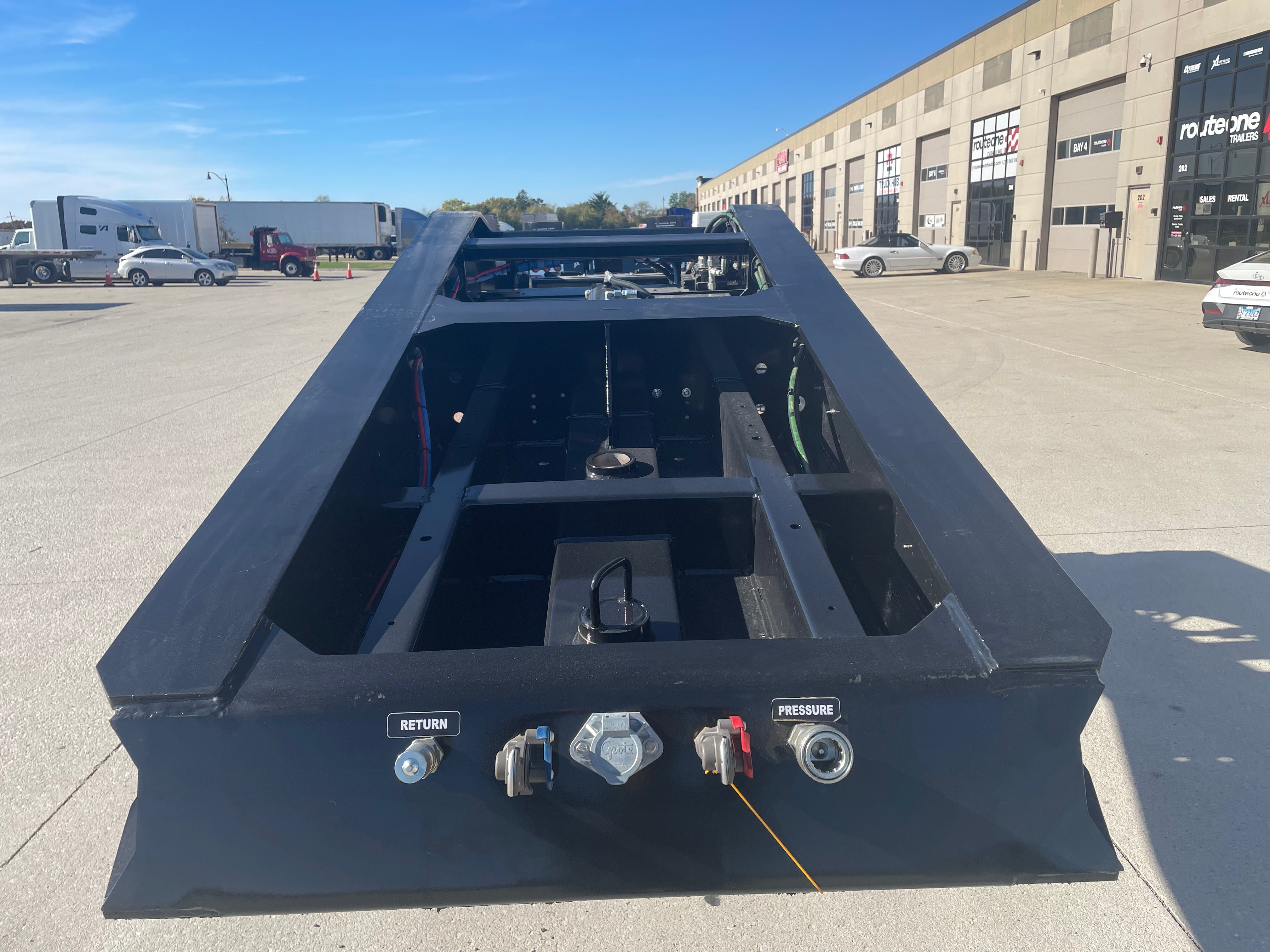

2026 XL 110 HDGS Guardian

53’ L x 102” W
Low-Profile Scraper Neck
Capacity - 110,000 lbs, 110,000 in 12”
Trailer weight - 22,470 lbs.

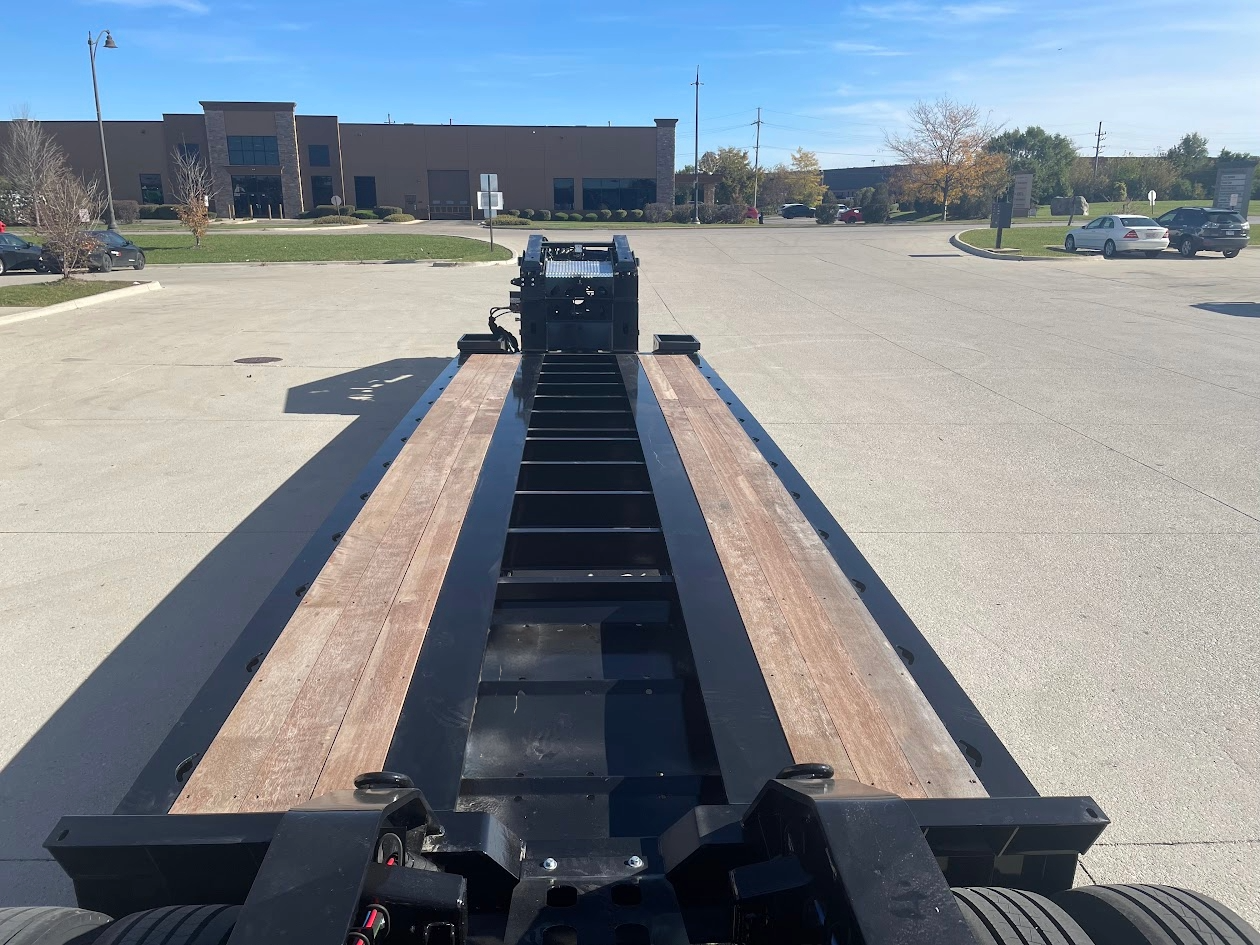

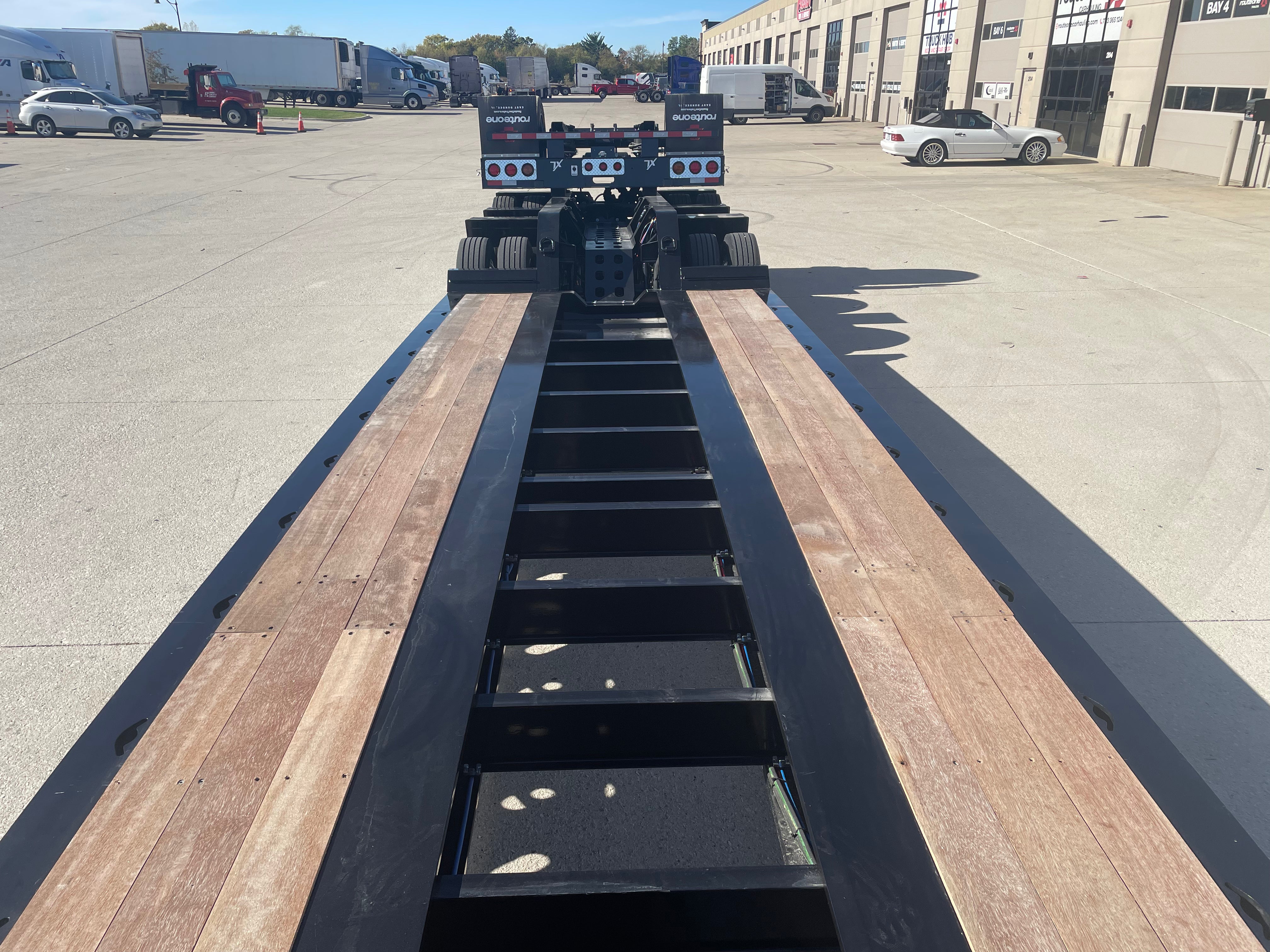

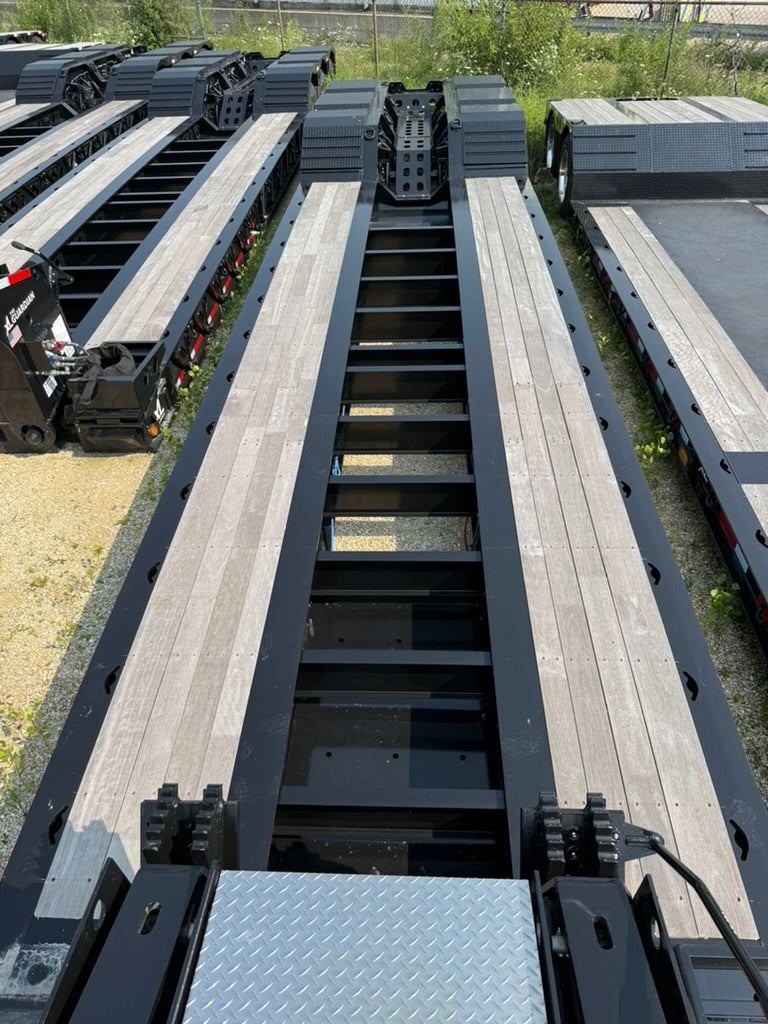

Main Deck Length -  26’
Loaded Deck Height - 18”  w/ 6” Ground Clearance

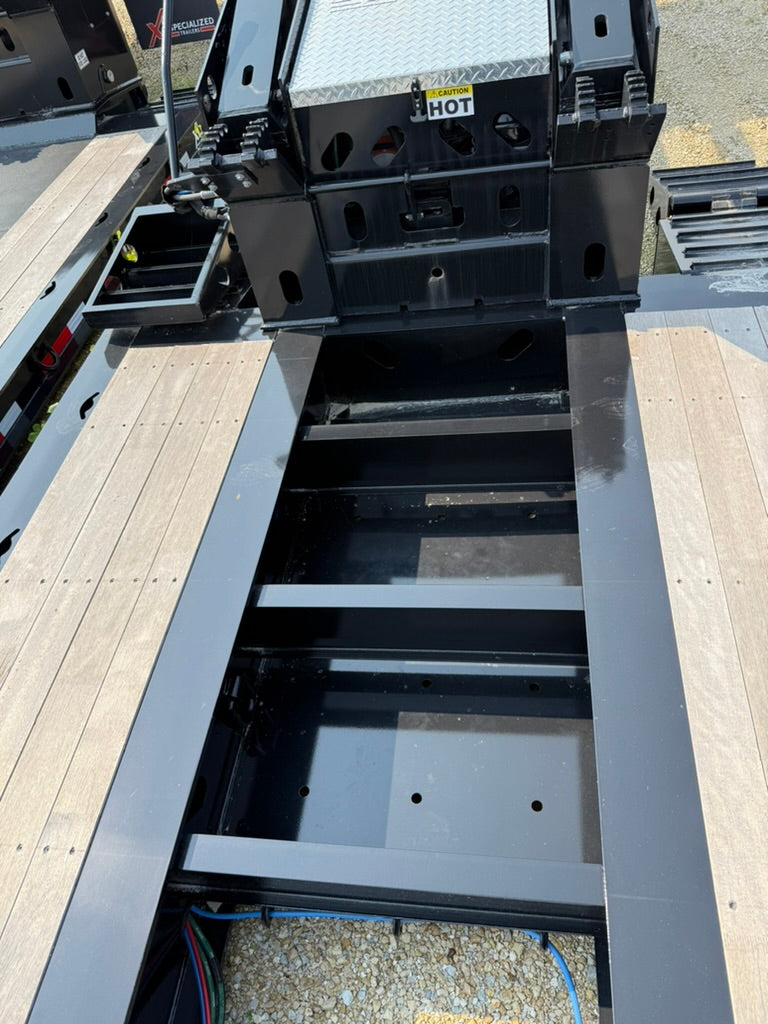

1 - Toolbox in Front of Main Deck
4 - Flat D-Rings On Front & On Back
7 - Bent D-Rings Per Side

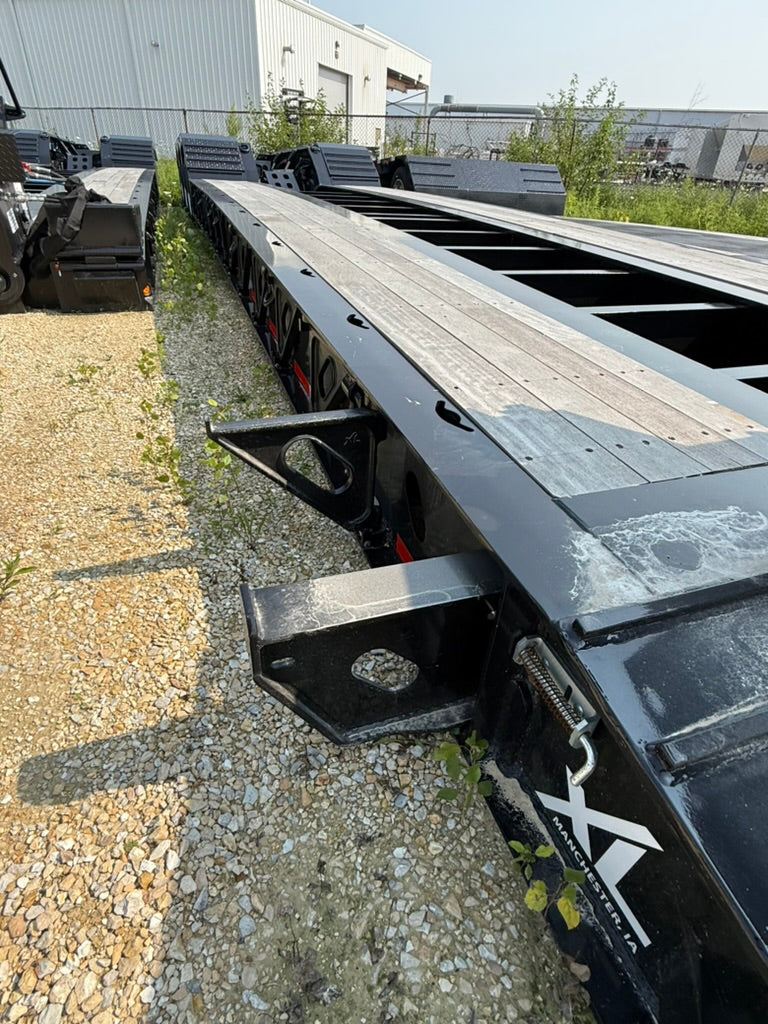

Swing out Outriggers - 24” O/C (Center Swings Together)
Pullout HD Outriggers
Chain Drops On 24” Centers Per Side Outside Main Beam

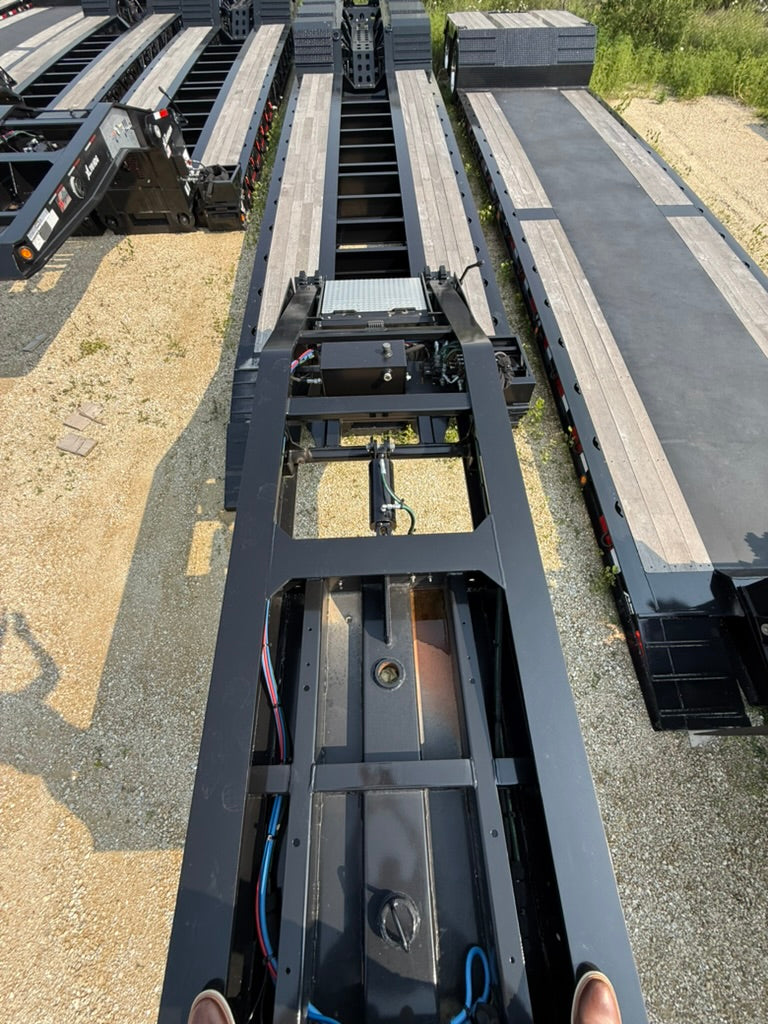

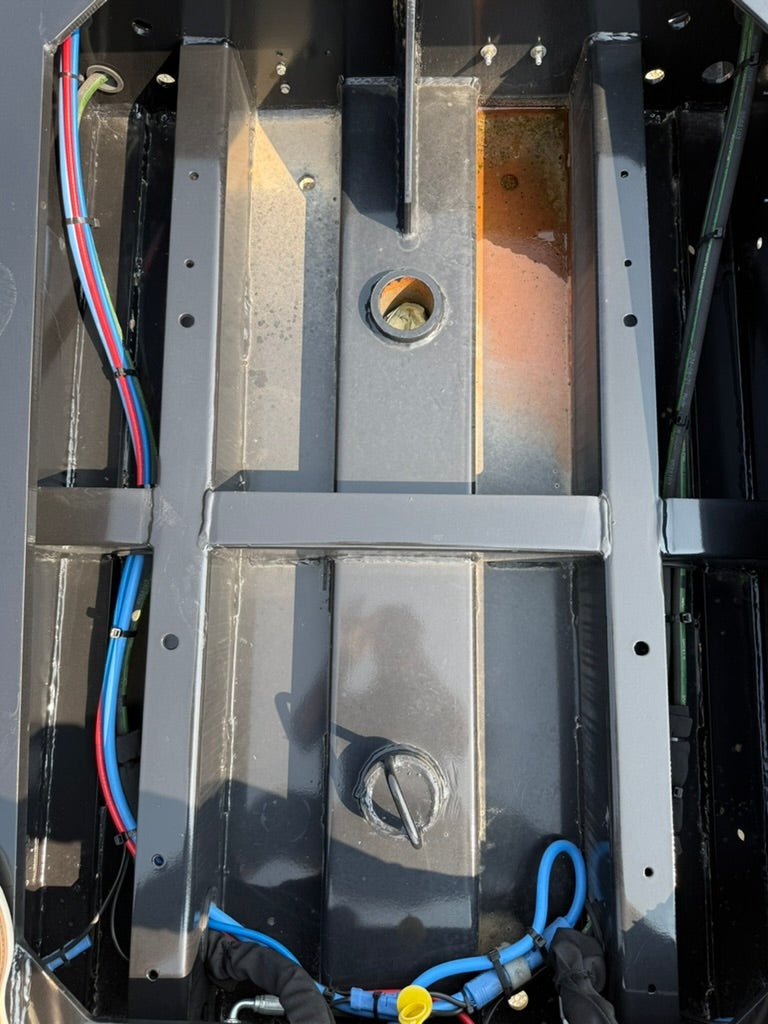

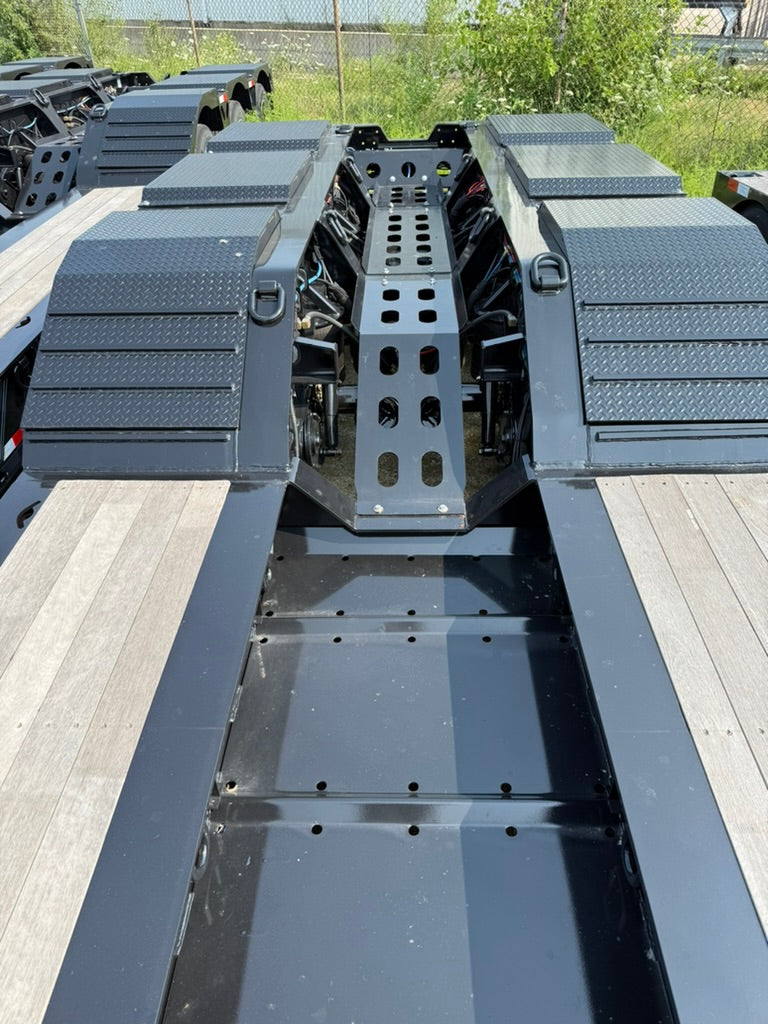

Bucket Well at Rear of Main Deck w/ Plate On Bottom

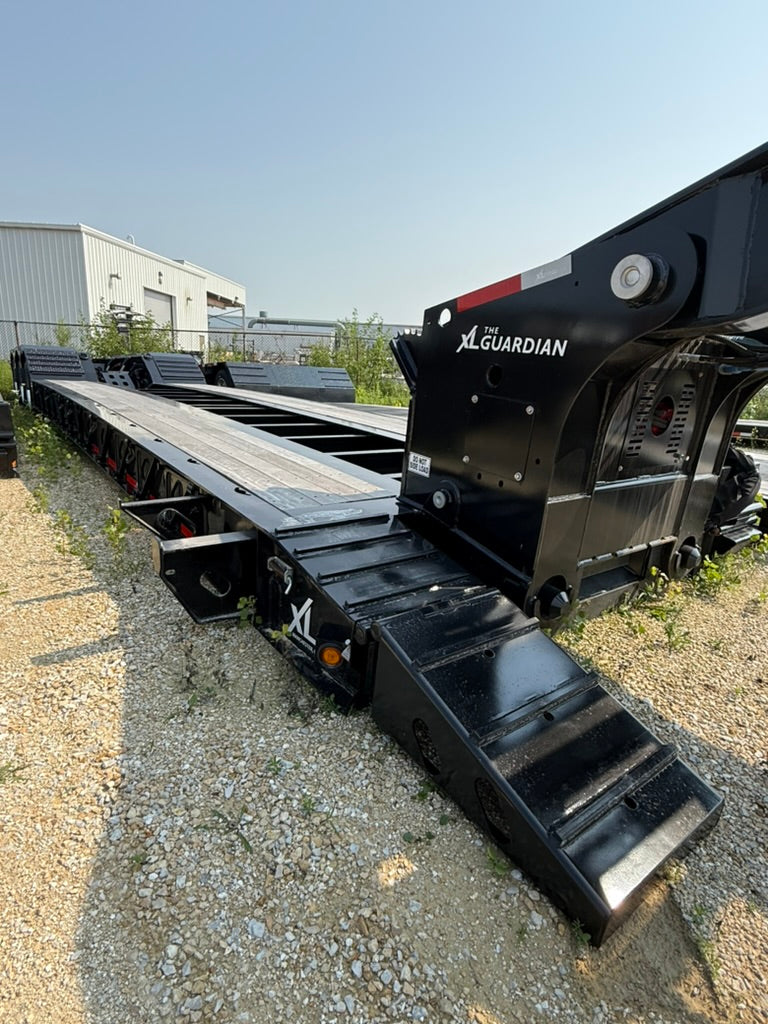

31” Front Flip Ramps

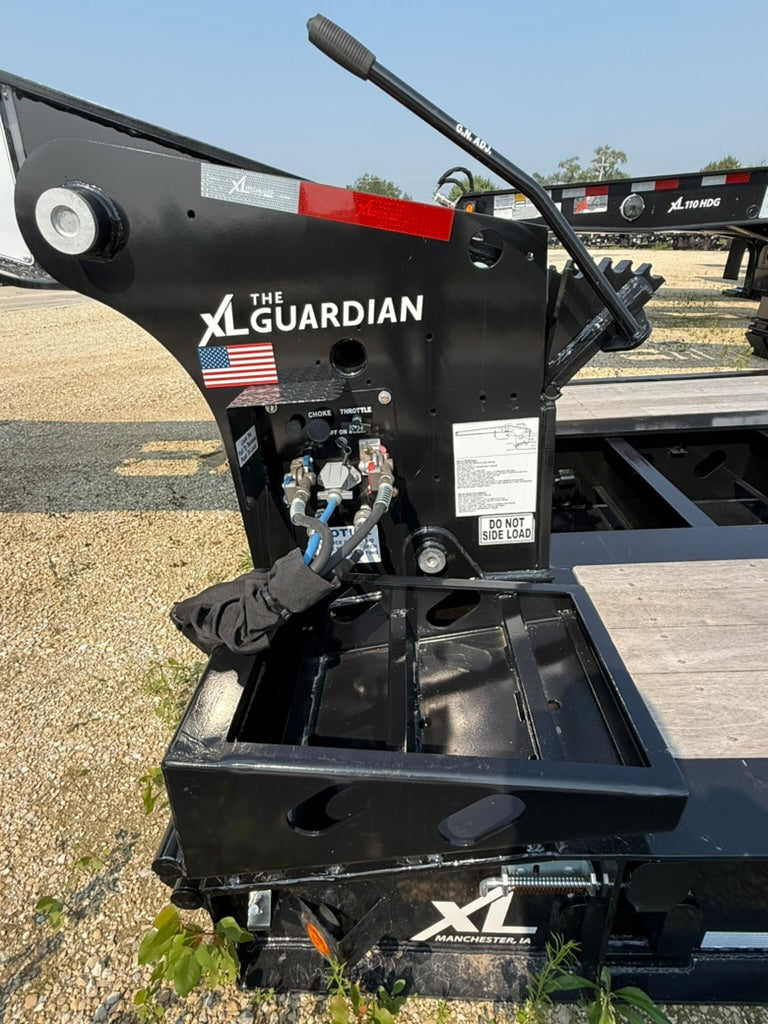

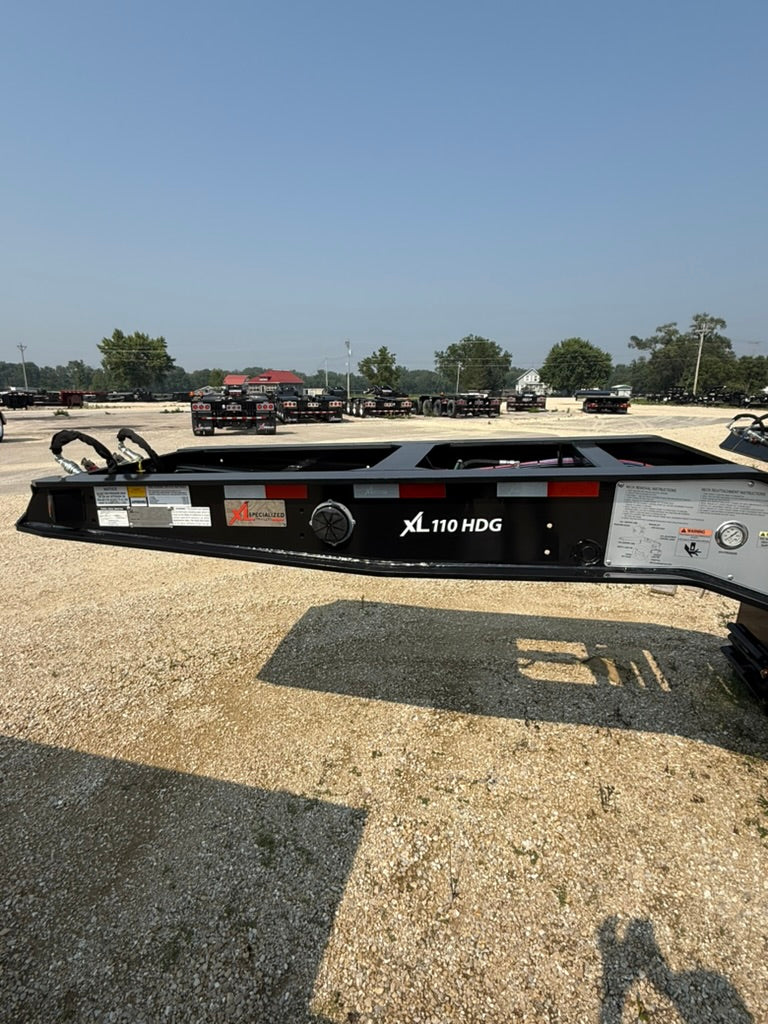

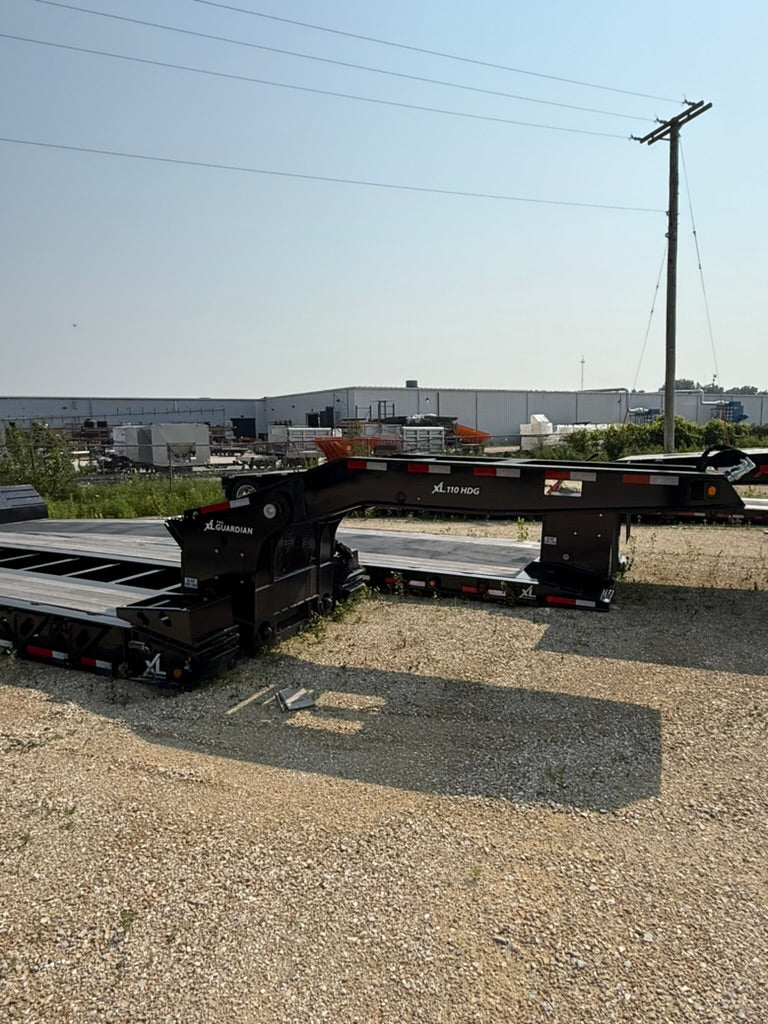

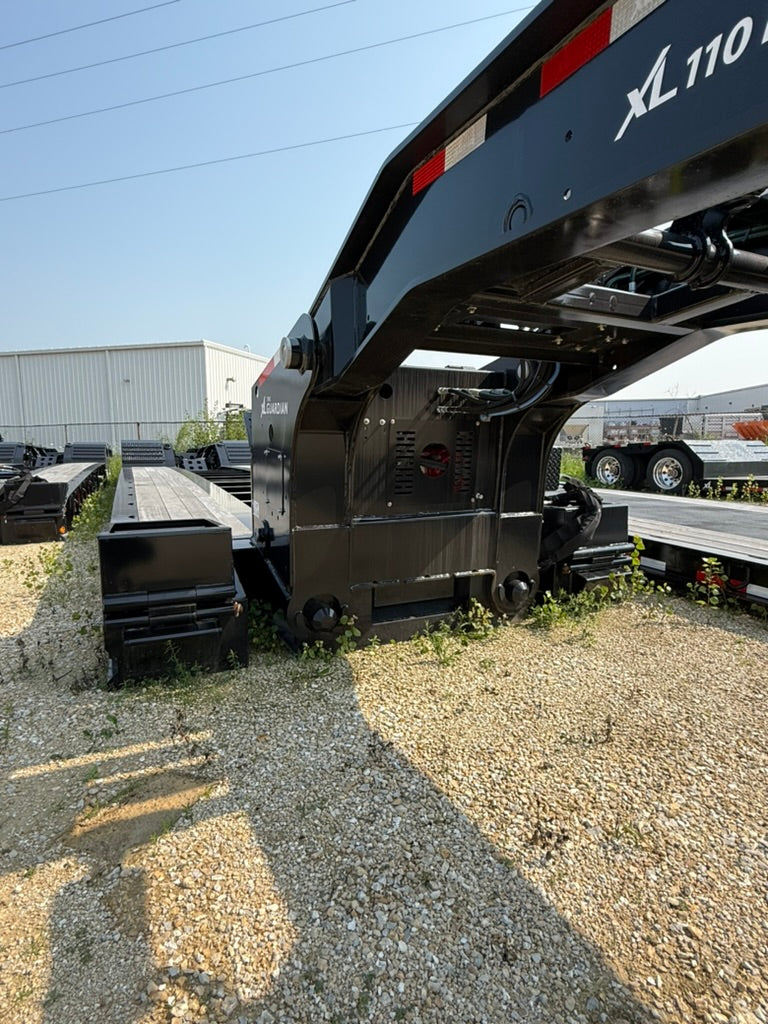

Gooseneck Length - 13’
King Pin Setting - 16” & 42”
5th Wheel Height - 51” w/ 5 Variable Ride height Positions
Gooseneck Swing Clearance - 110” & 84”
Grote Trilliant Work Light

Rear Deck Length - 14’
Rear Deck Loaded Height - 41”

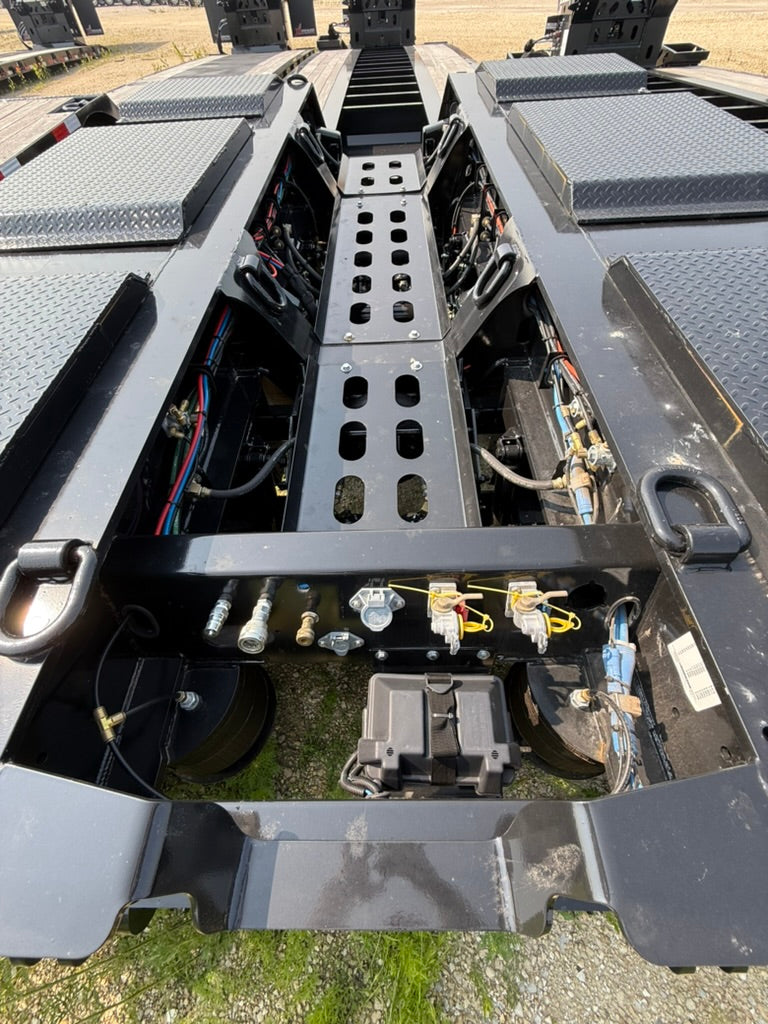

1 - Pair Flat D-Rings On Main Beams At Front
1 - Pair Flat D-Rings On Main Beams At Rear
2 - Pair Flat D-Rings In Boom Trough
2 - Chain Drops Per Full-Width Bolster
2 - Stake Pockets at Rear

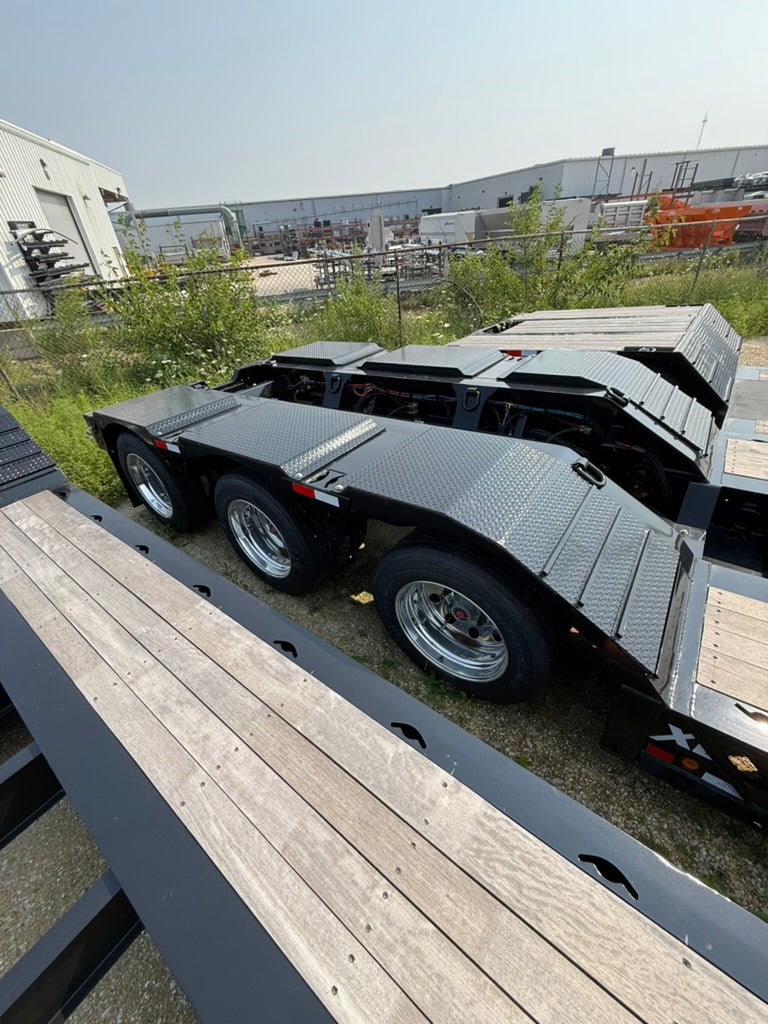

Prepped For Single Axle Booster

Manual Ride Height Control
Air Lift On Rear Axle
275/70R22.5 Tires

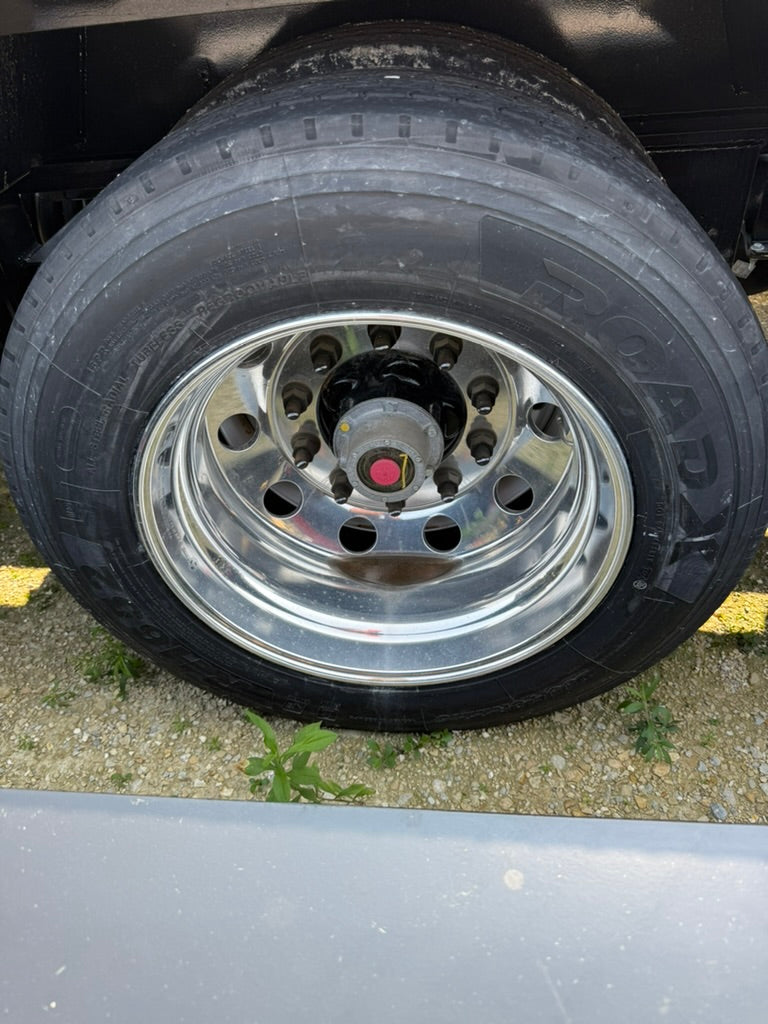

Outer Aluminum Wheels

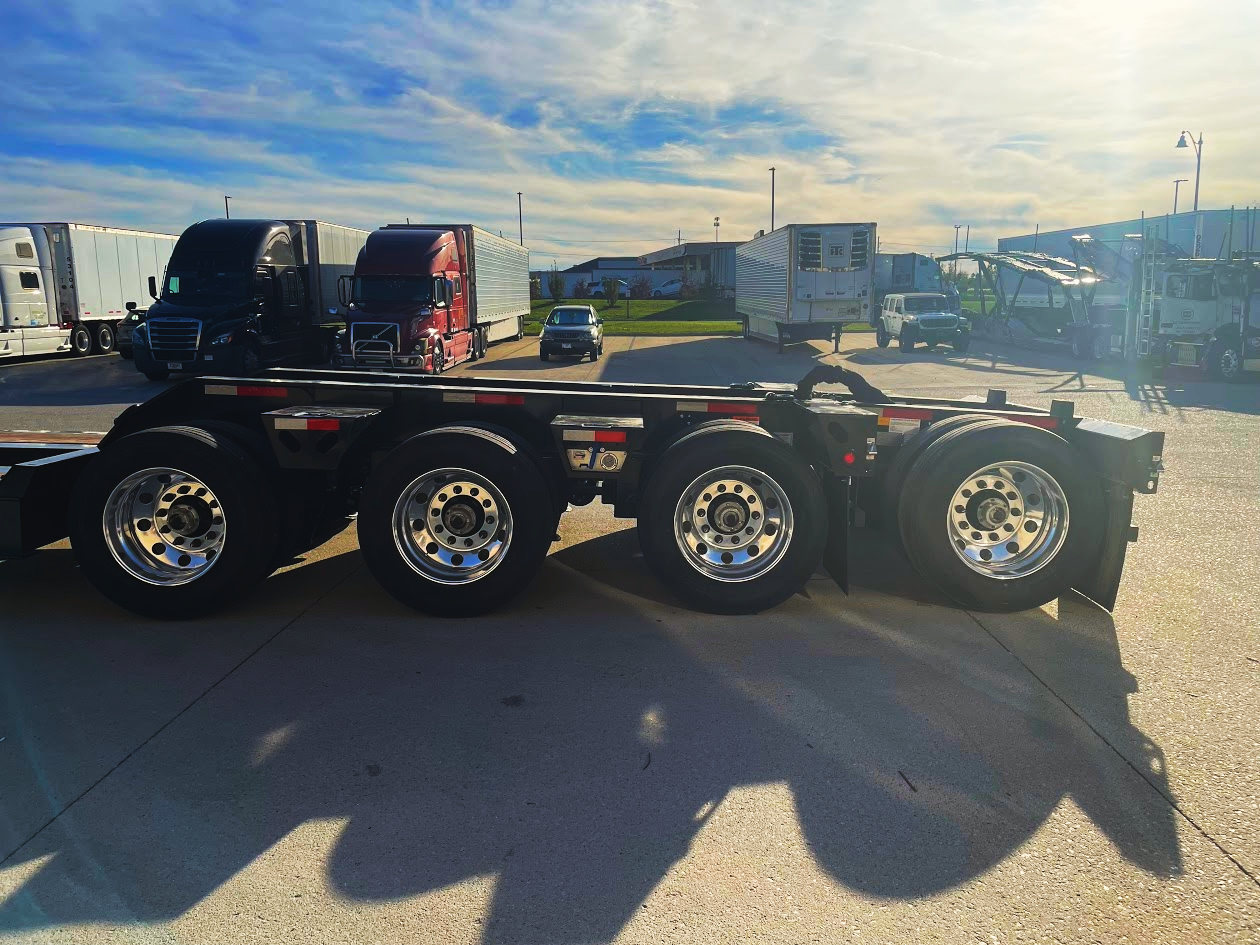

Hendrickson Air Ride Suspension

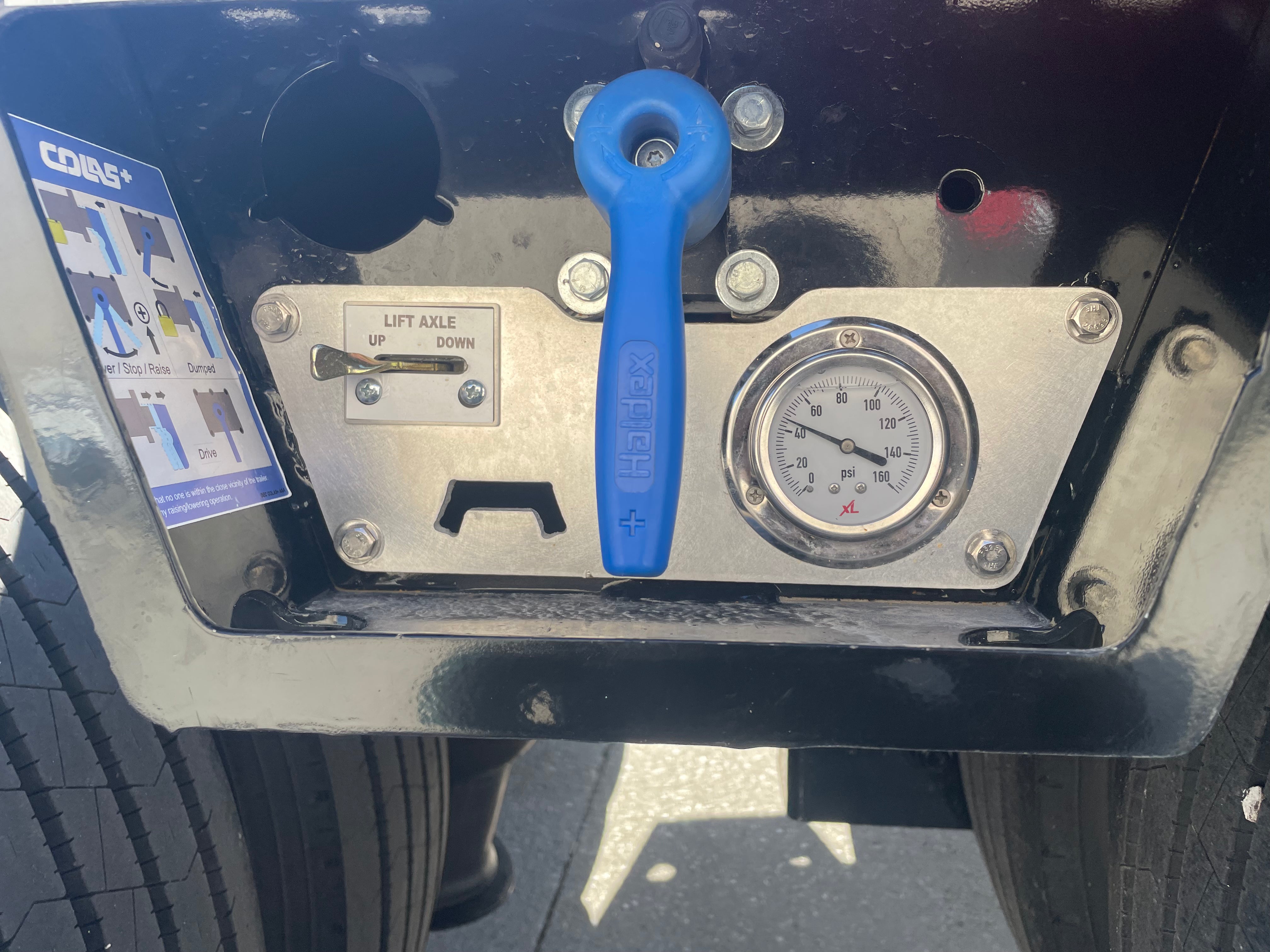

Colas+ Raise & Lower Valves
Battery Backup w/ 4-Way Plug
12V Sealed Grote Harness

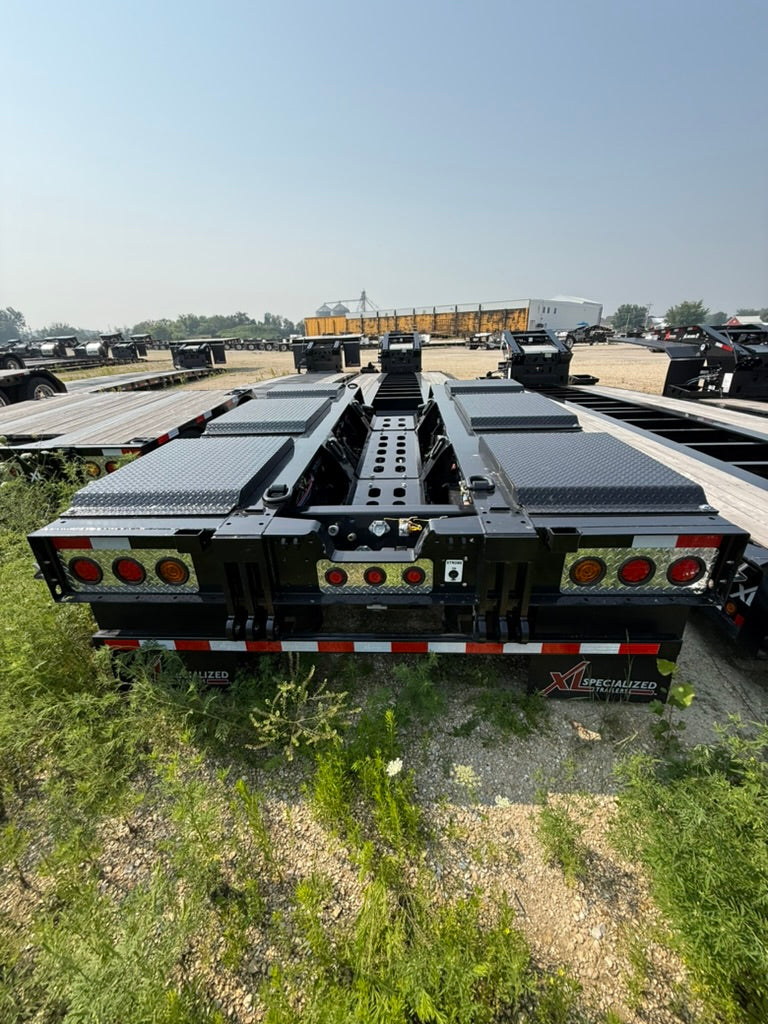

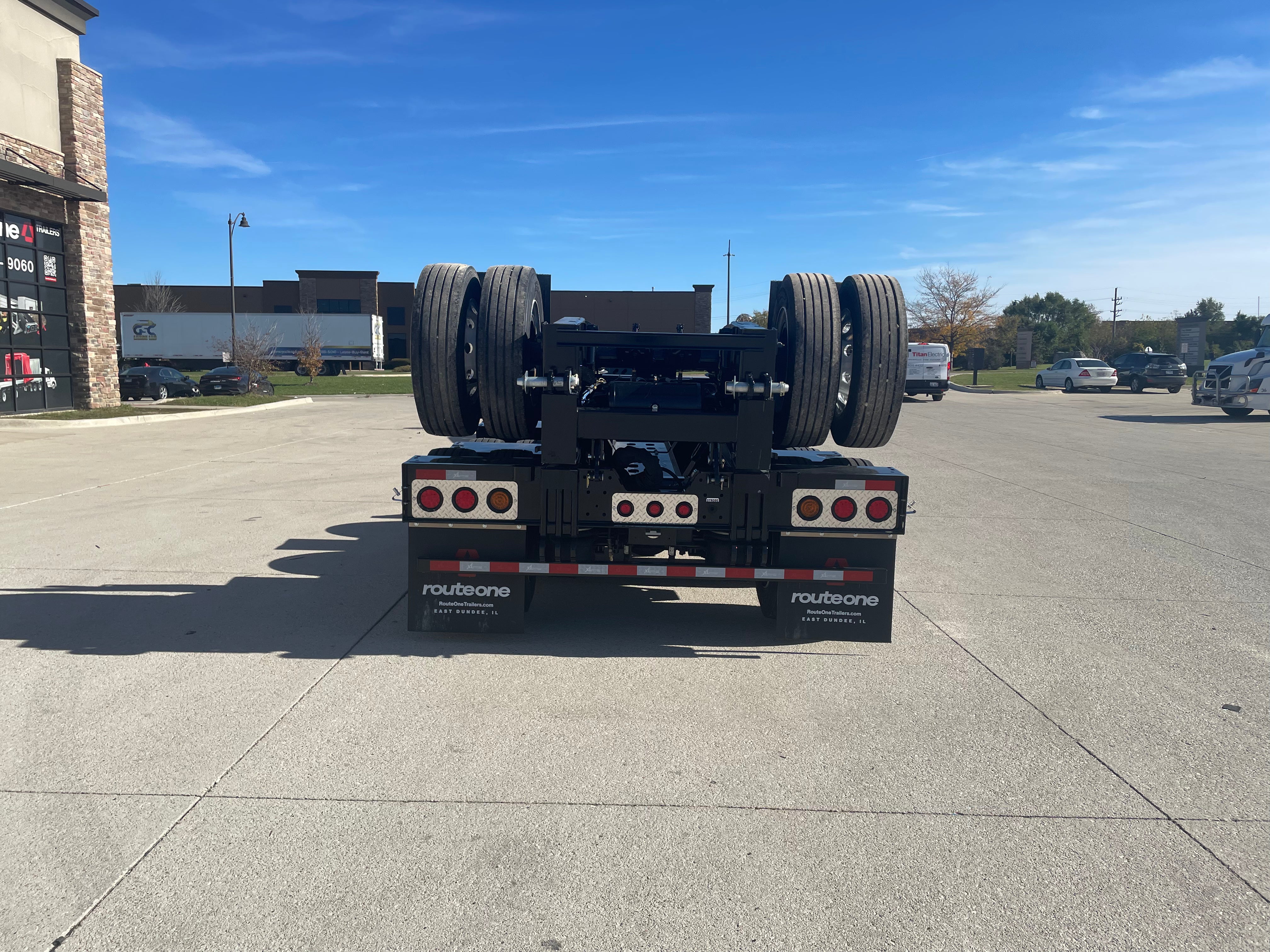

3 Tail Light Package w/ Aluminum Cover
4” Amber Strobe as 3rd Tail Light
Prepped for a Flip Axle and Single Axle Booster
2 - Pair EZ Mount Flag Holders

5 Year Structural Warranty
3 Year Paint Warranty
1 Year Parts & Components Warranty

Financing Available
Pick up in East Dundee IL or Manchester IA
Call Ross 224-335-7786
