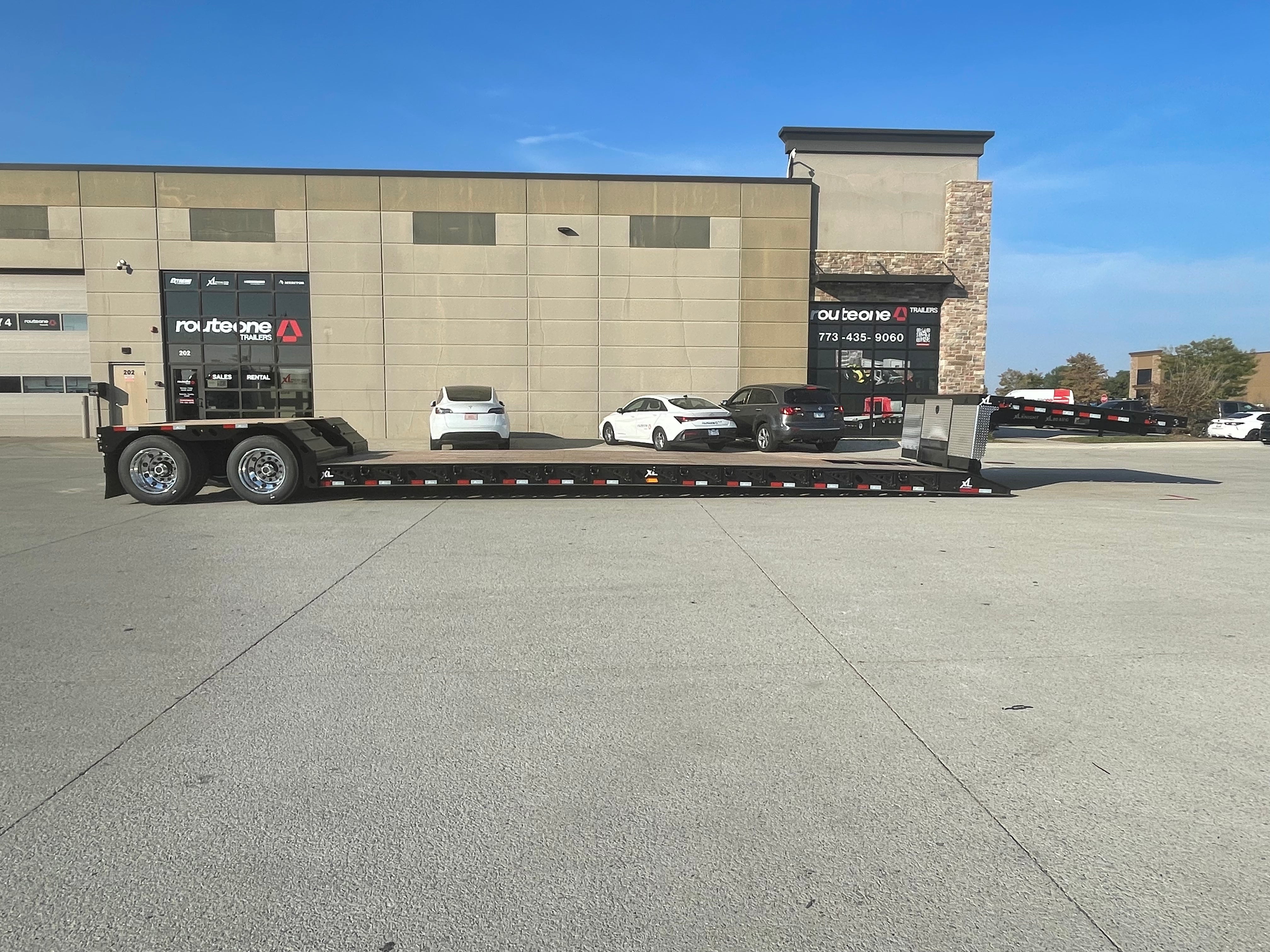

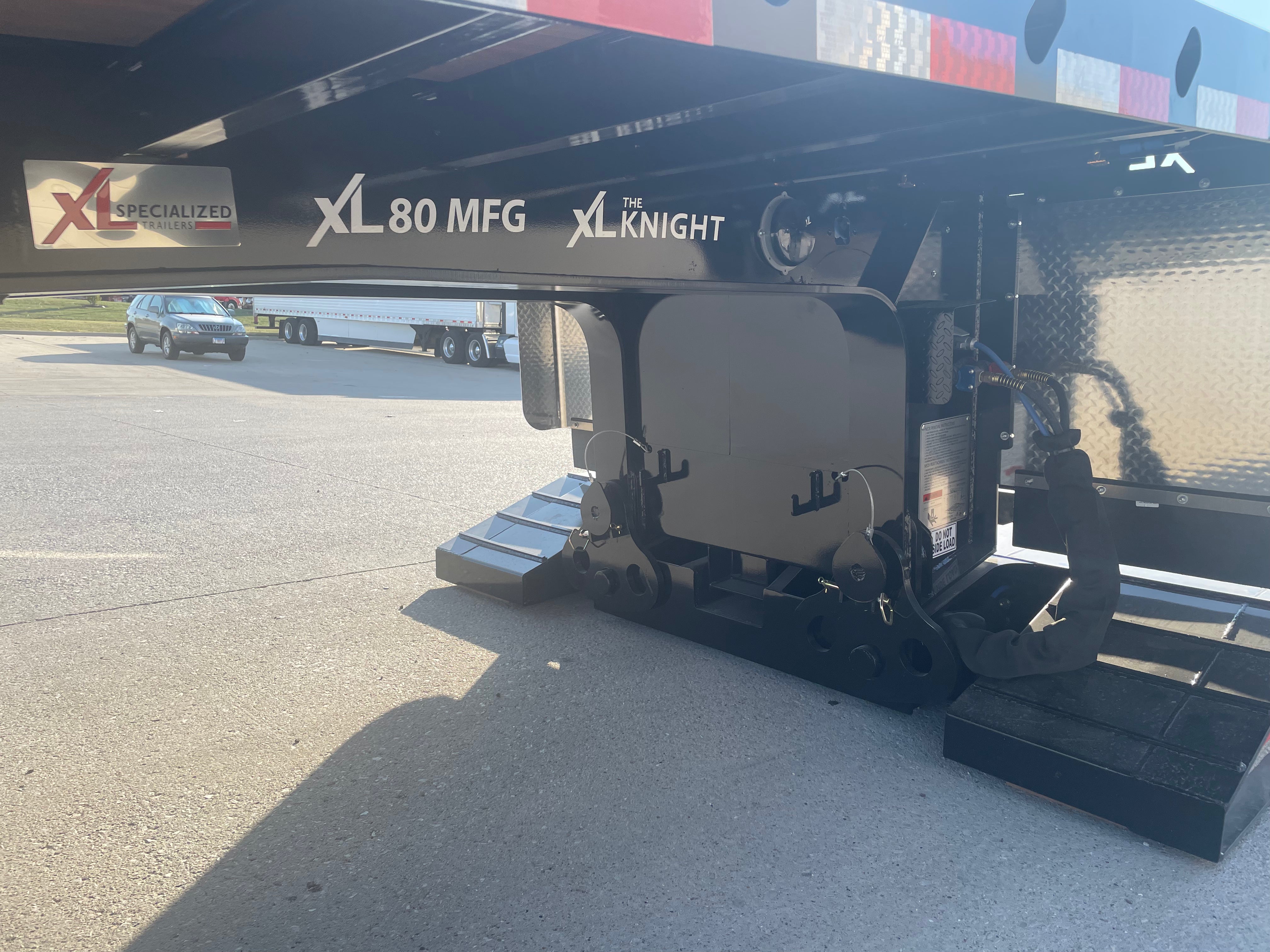

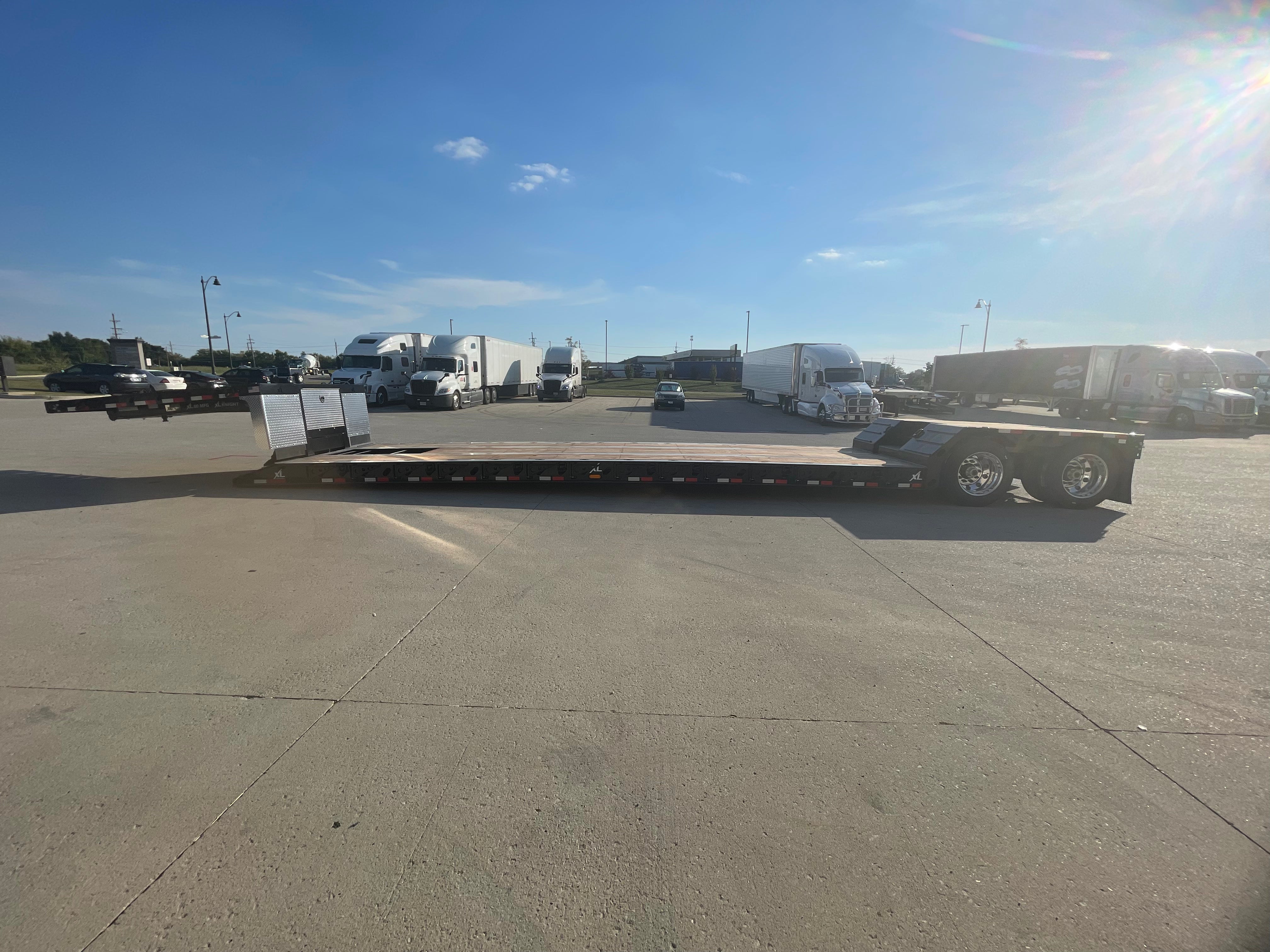

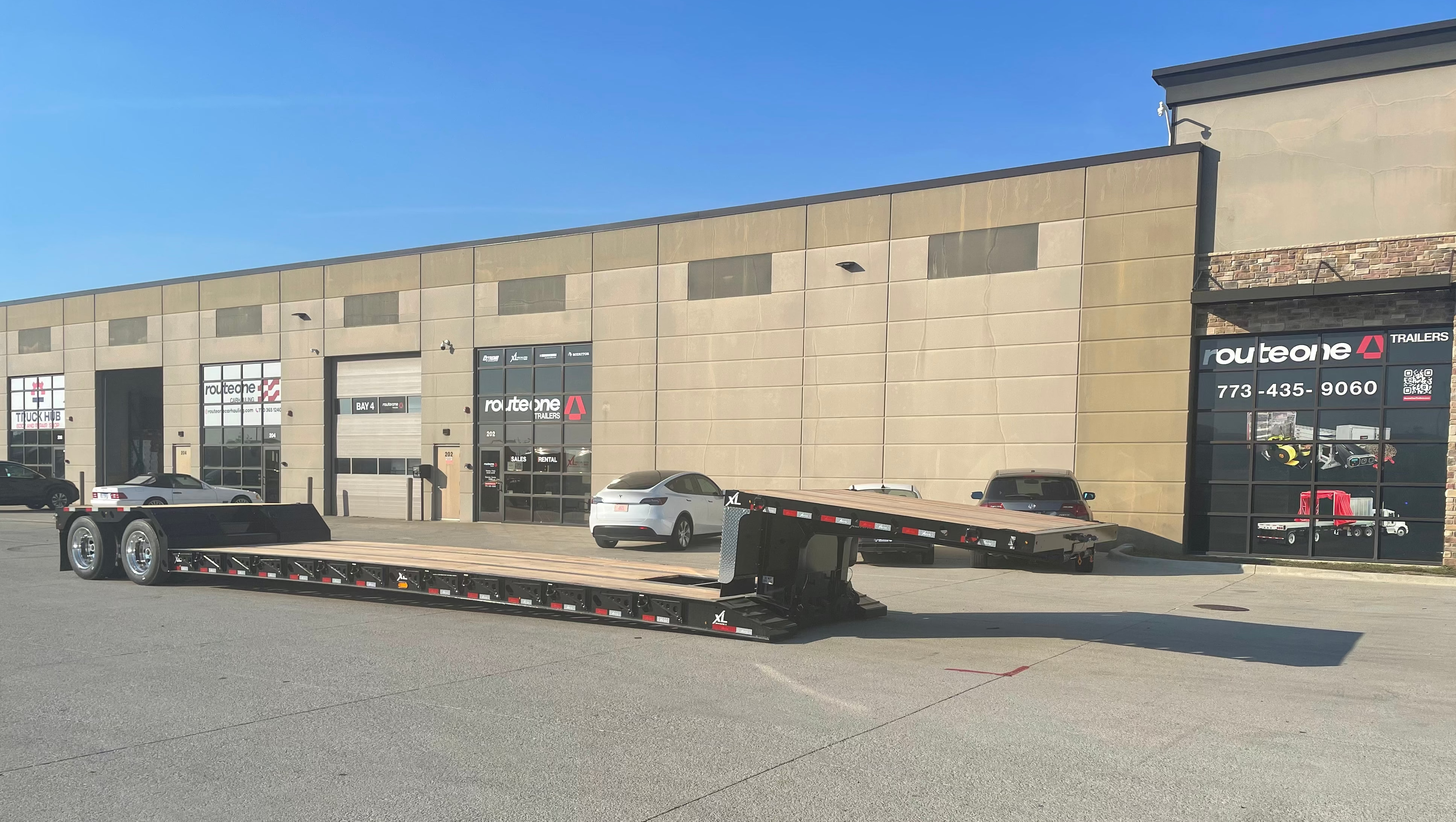

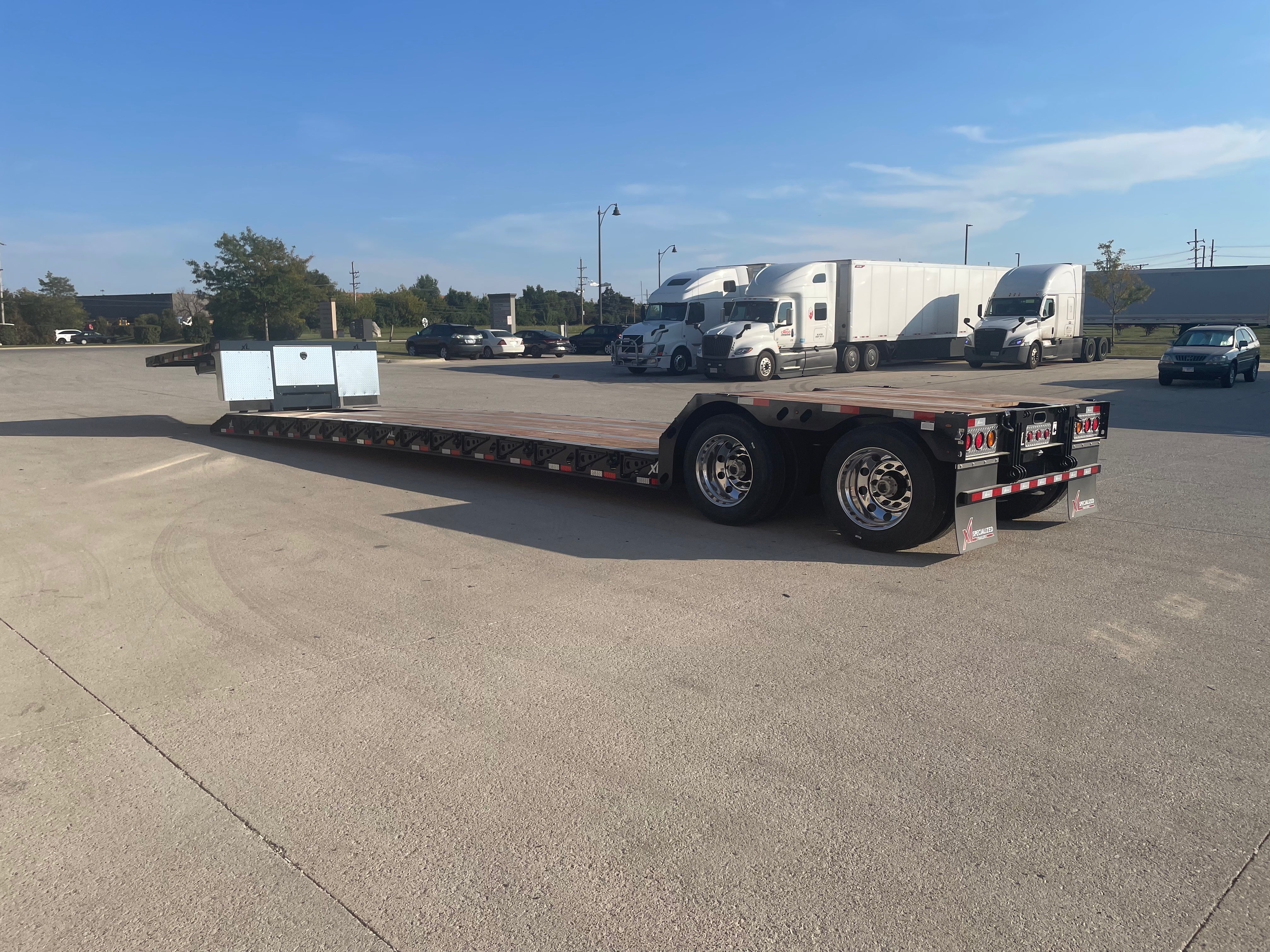

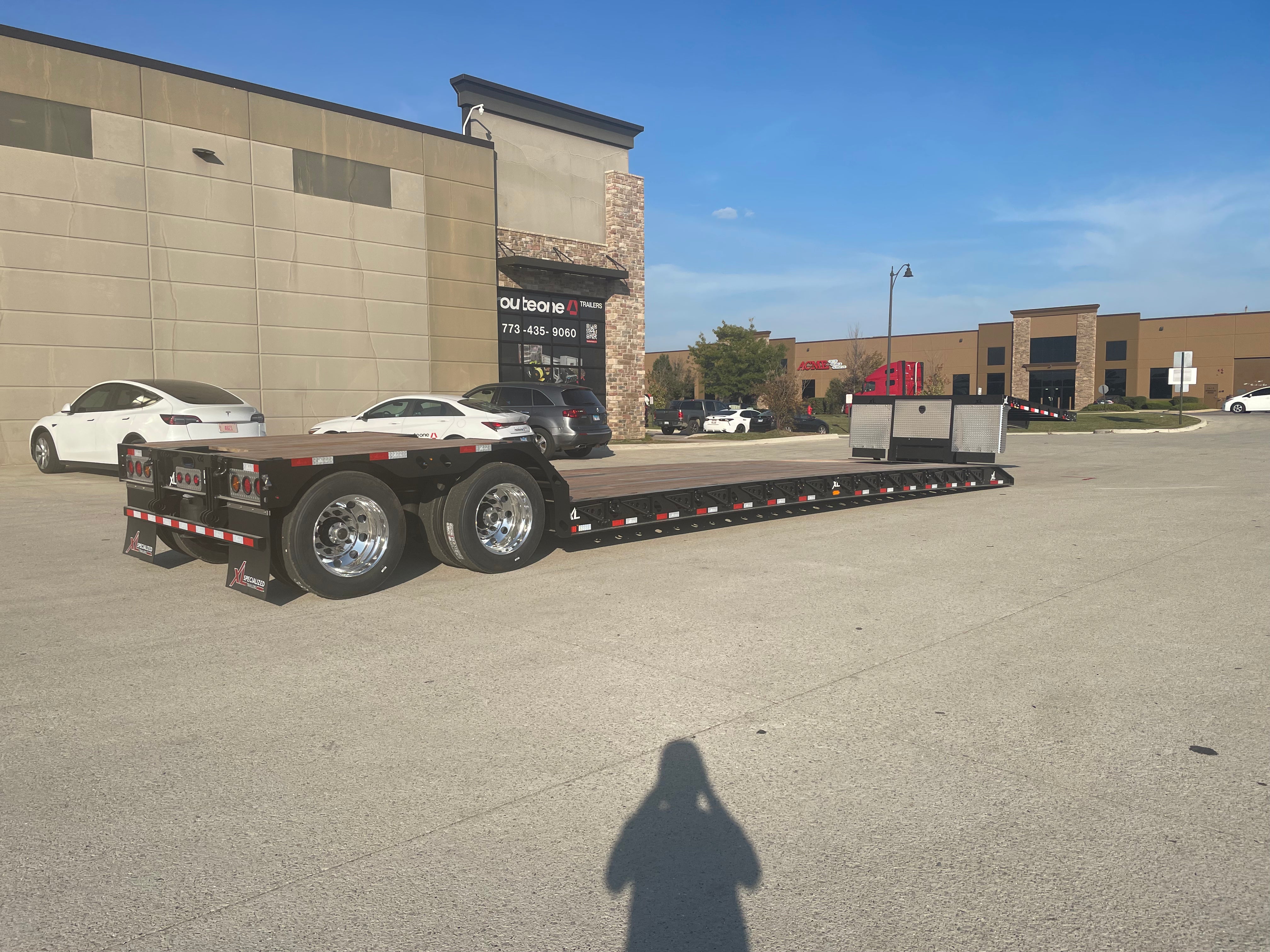

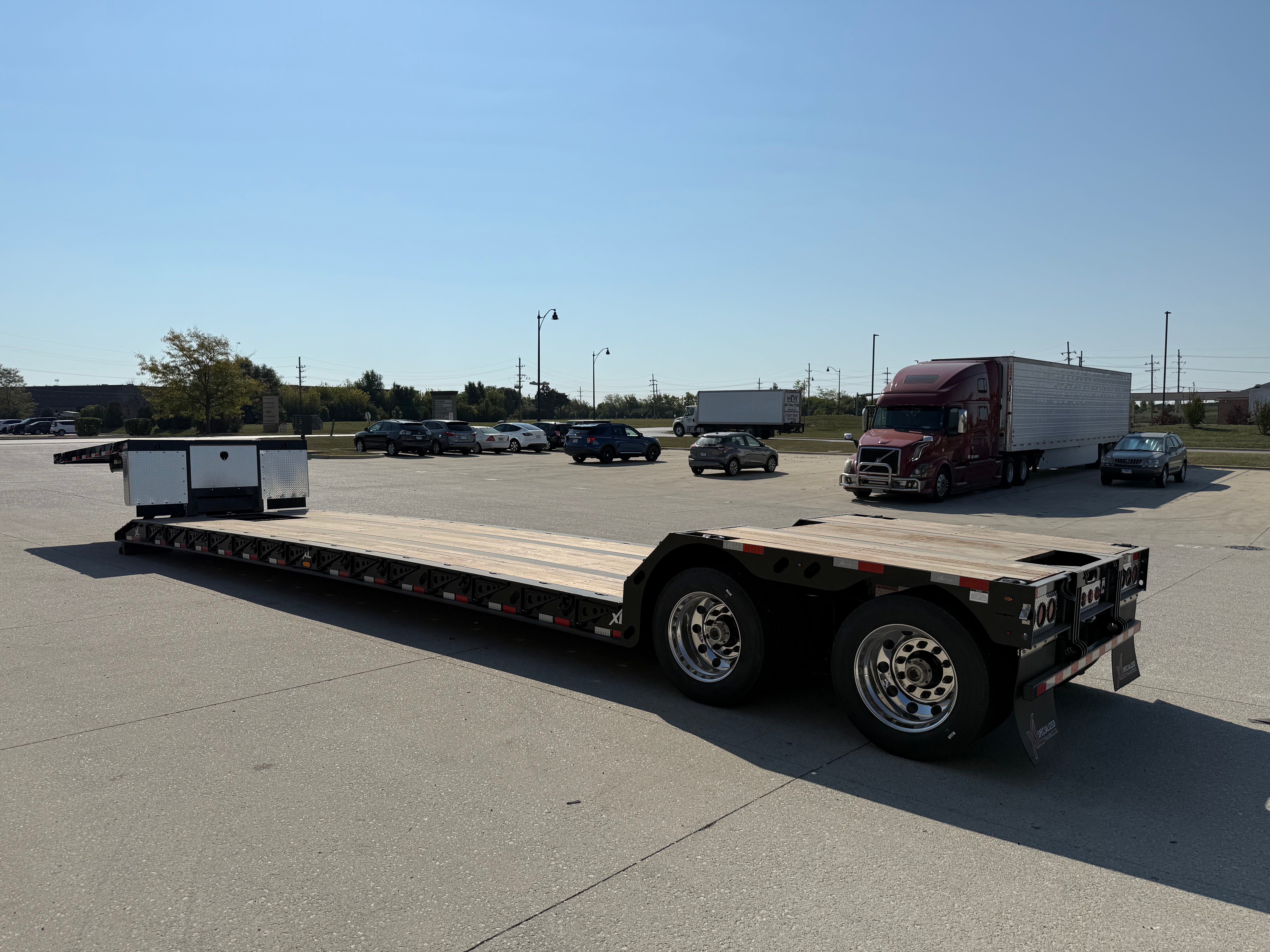

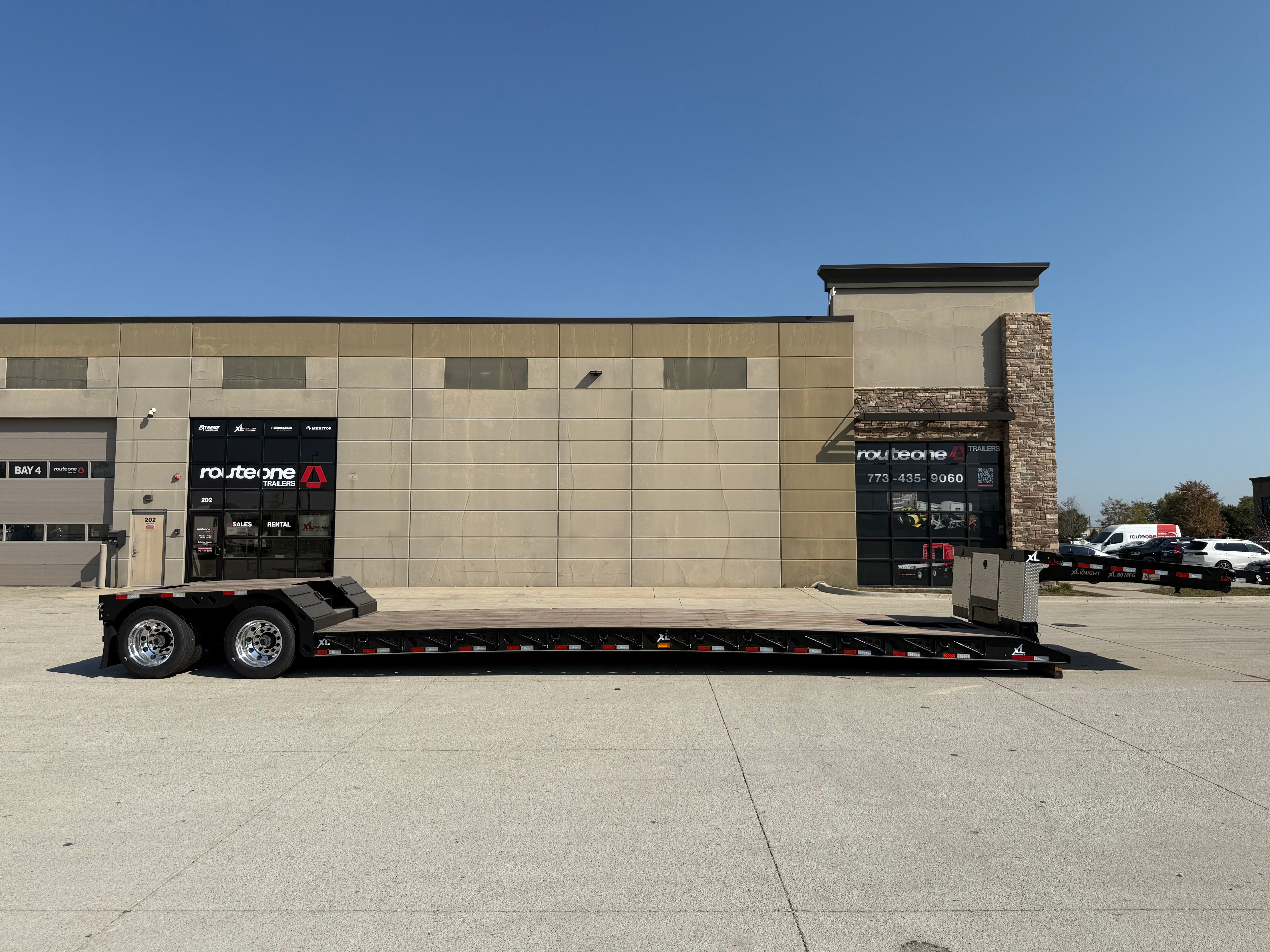

2026 XL 80 MFG Knight

48’ L x 102” W

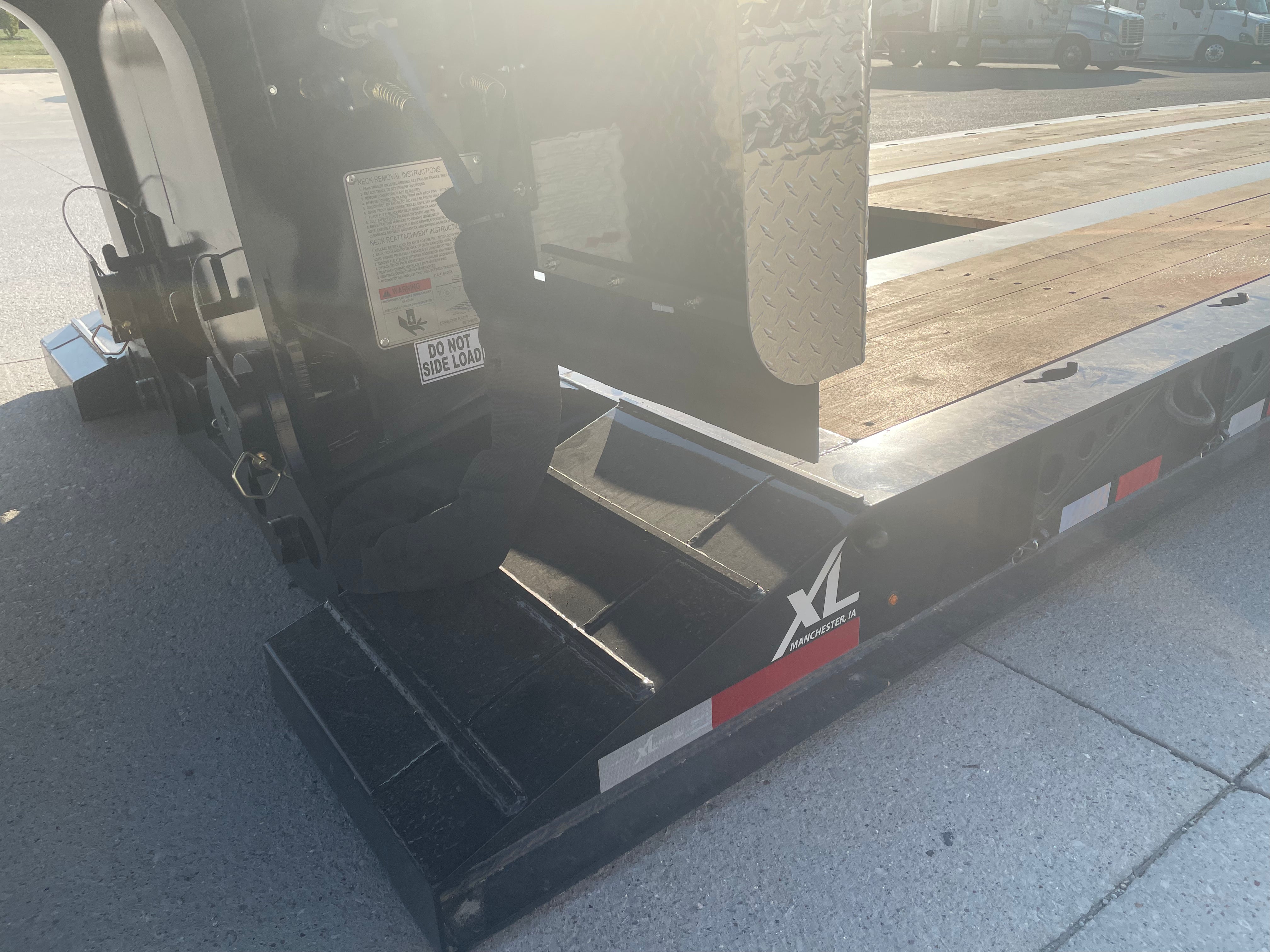

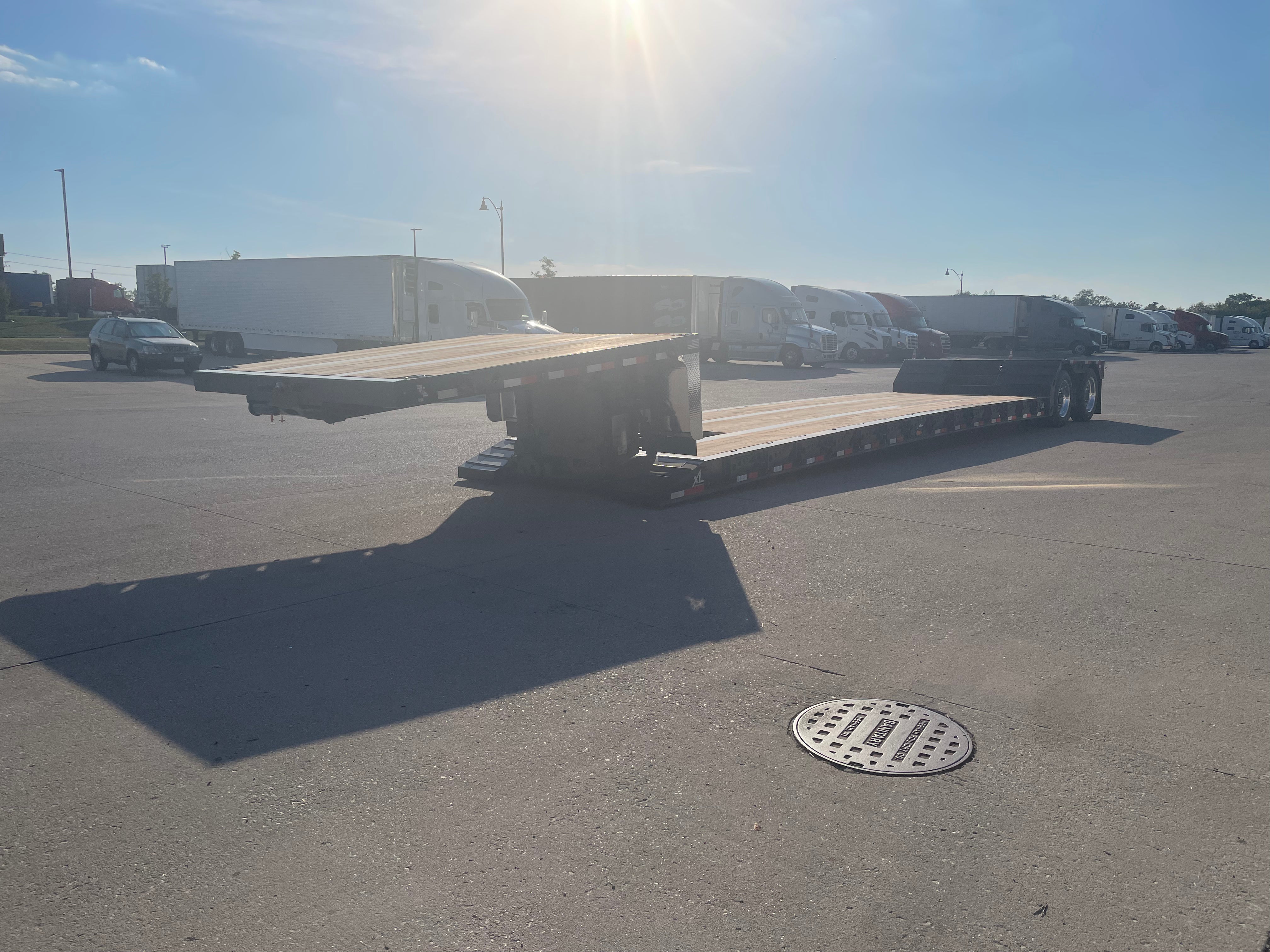

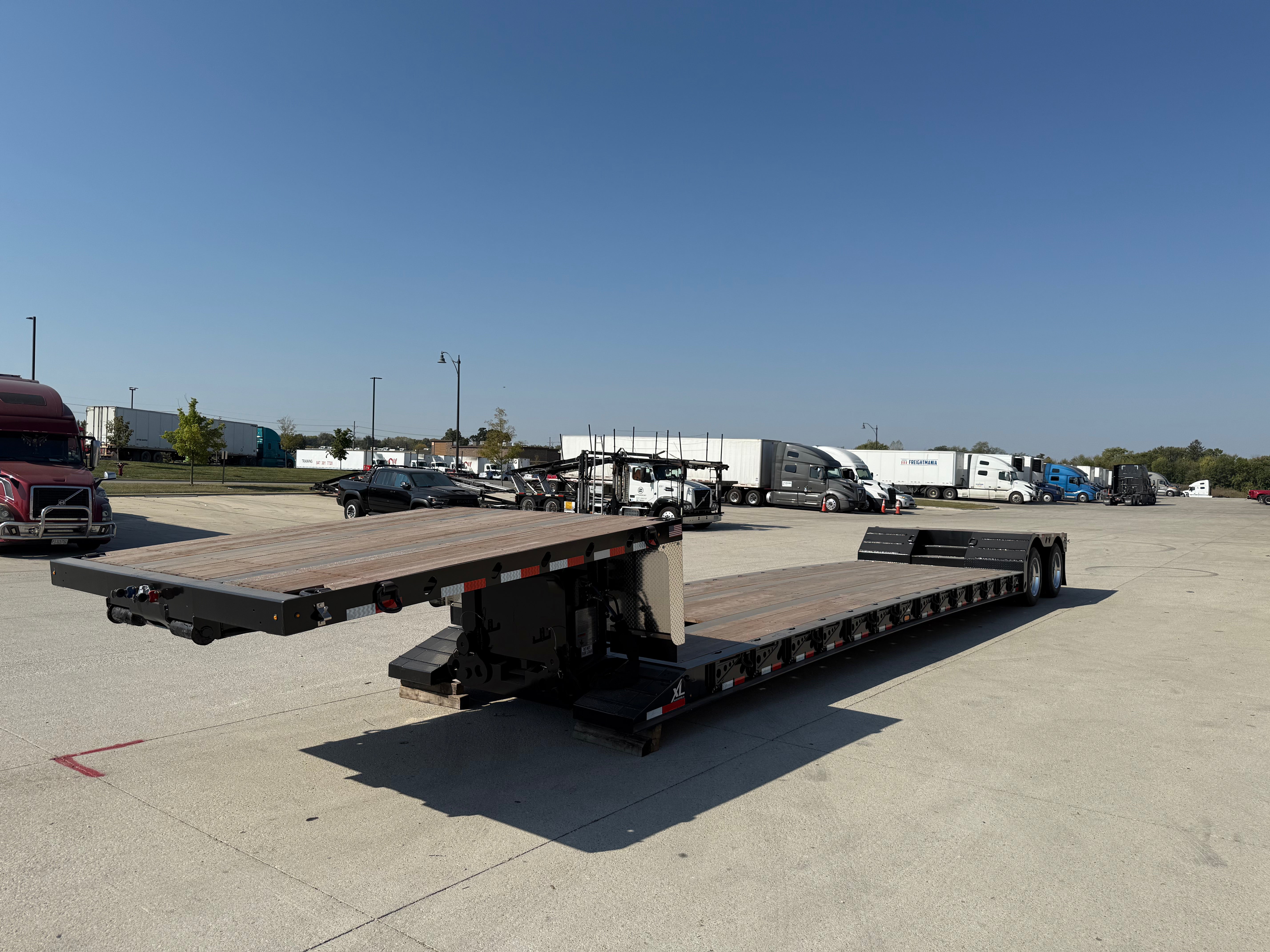

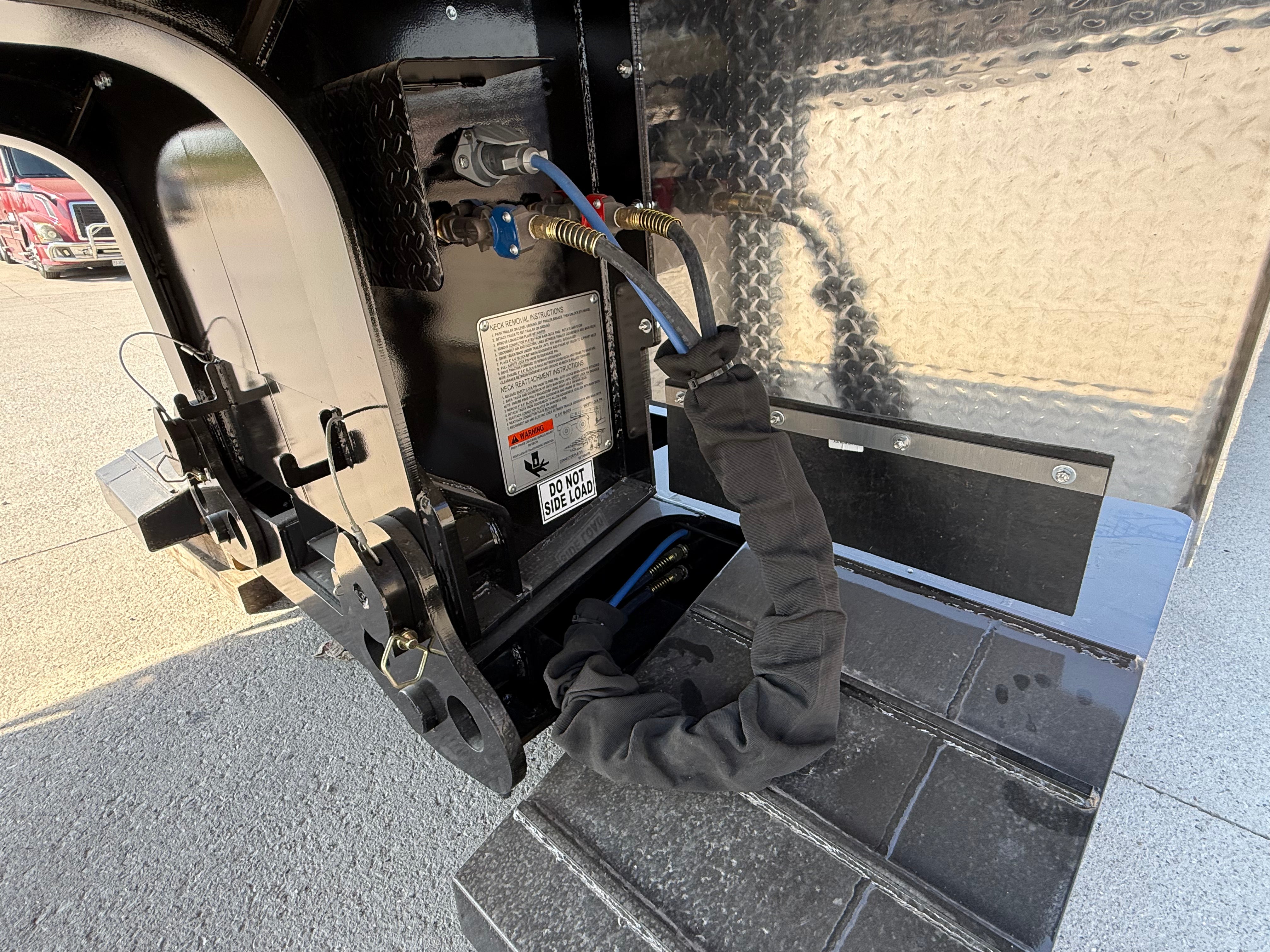

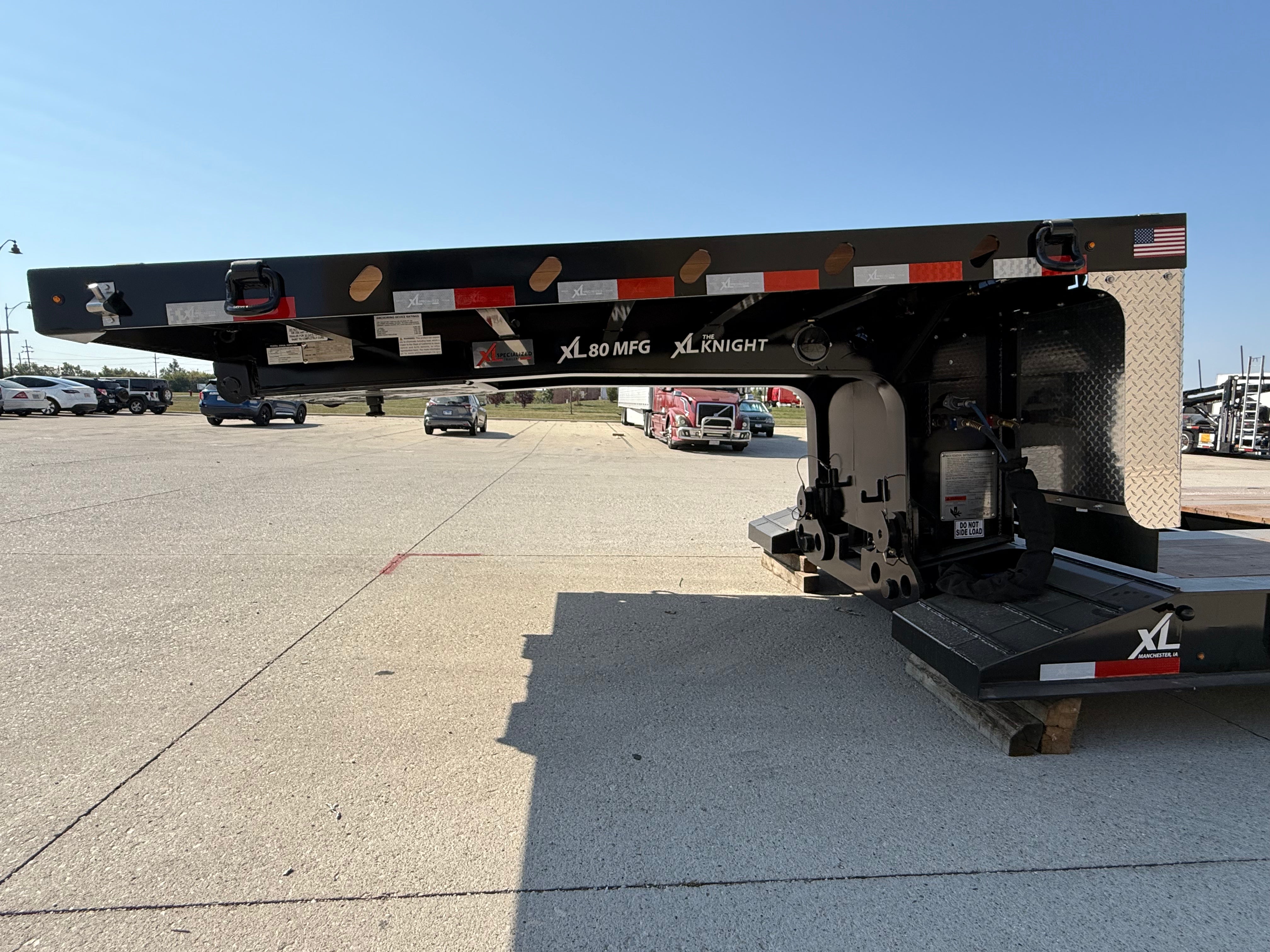

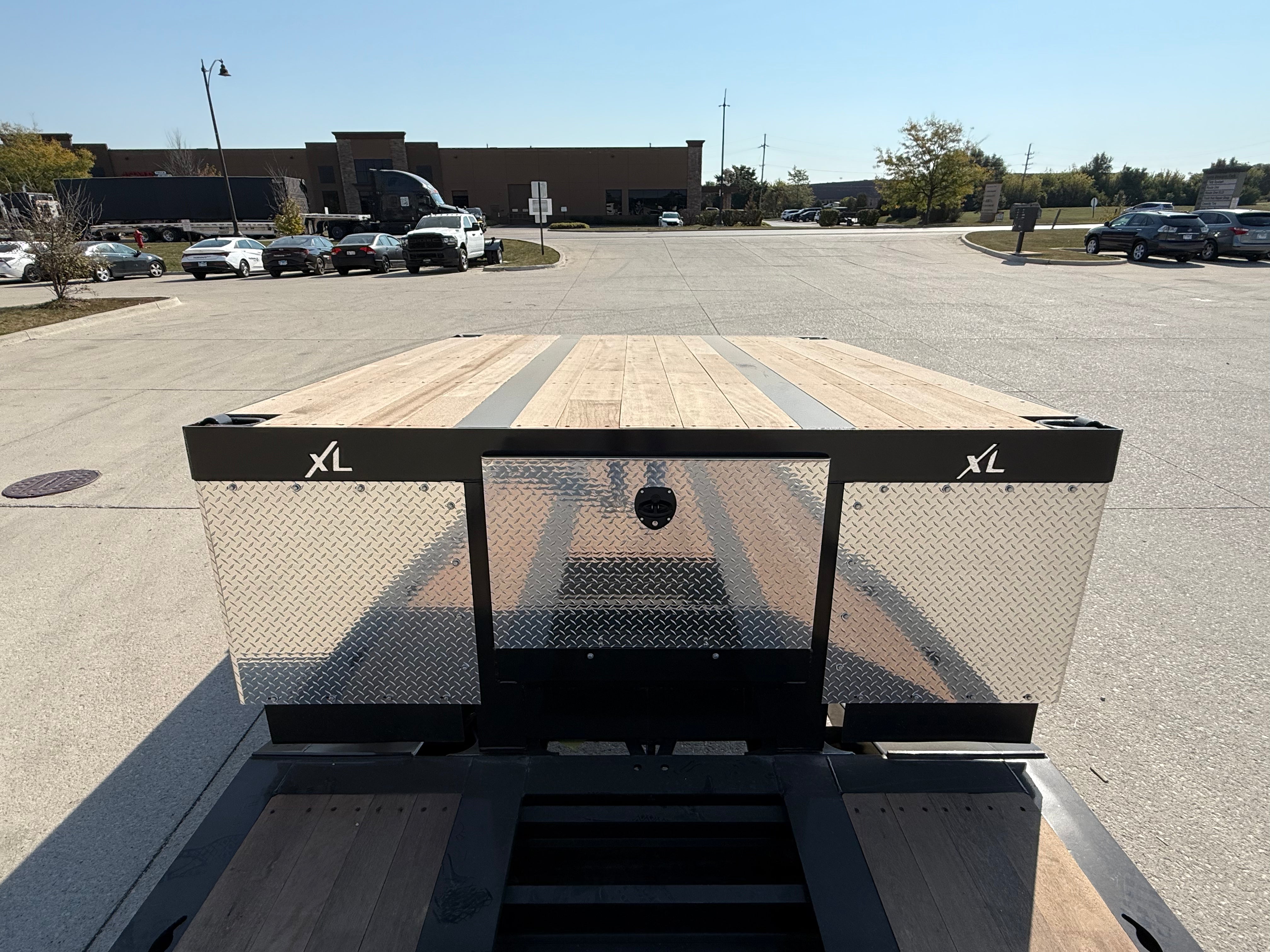

Mechanical Detachable Full-Width Gooseneck
Capacity - 80,000 lbs (70,000lbs in 16’)
Trailer weight 15,732

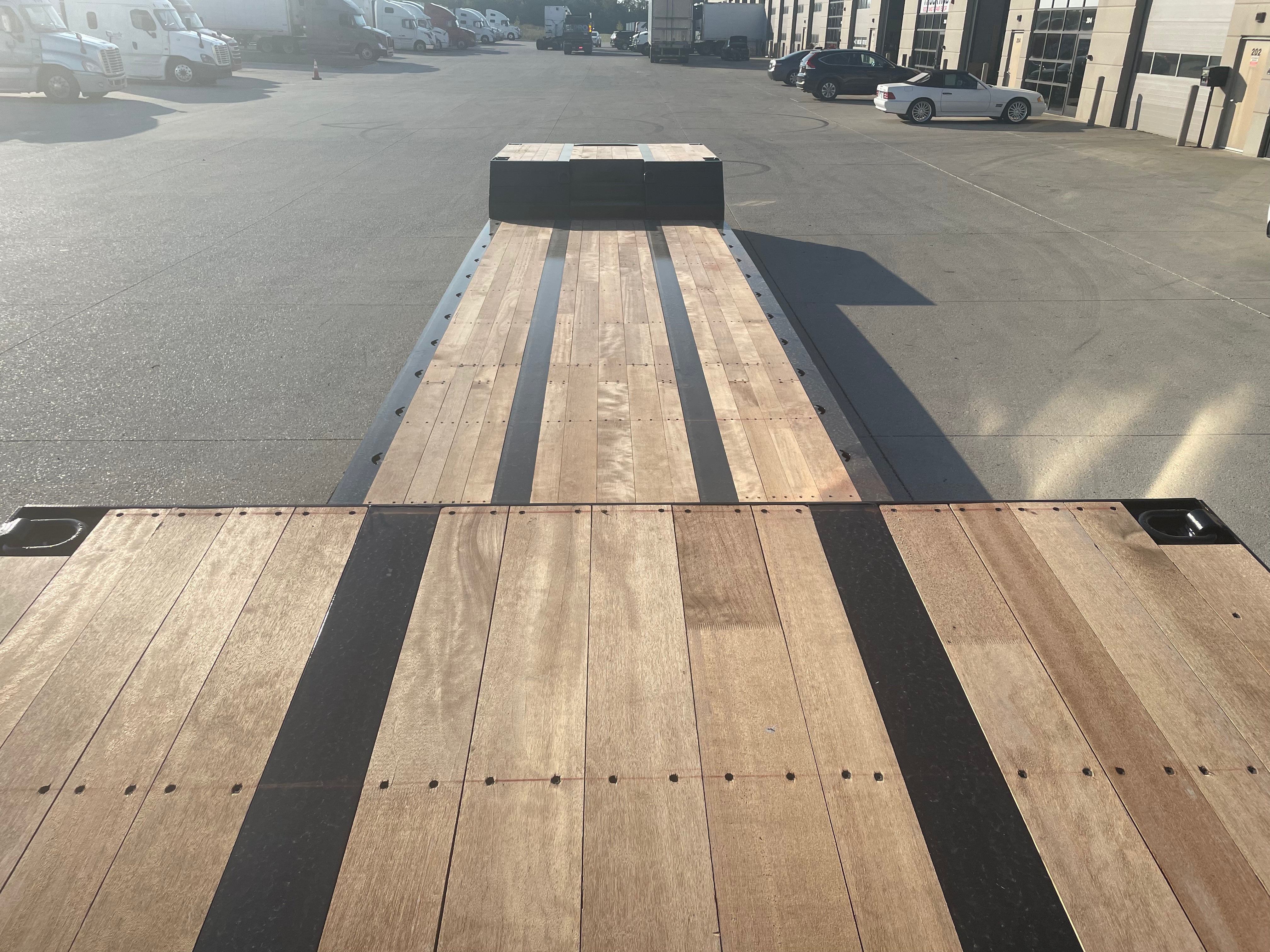

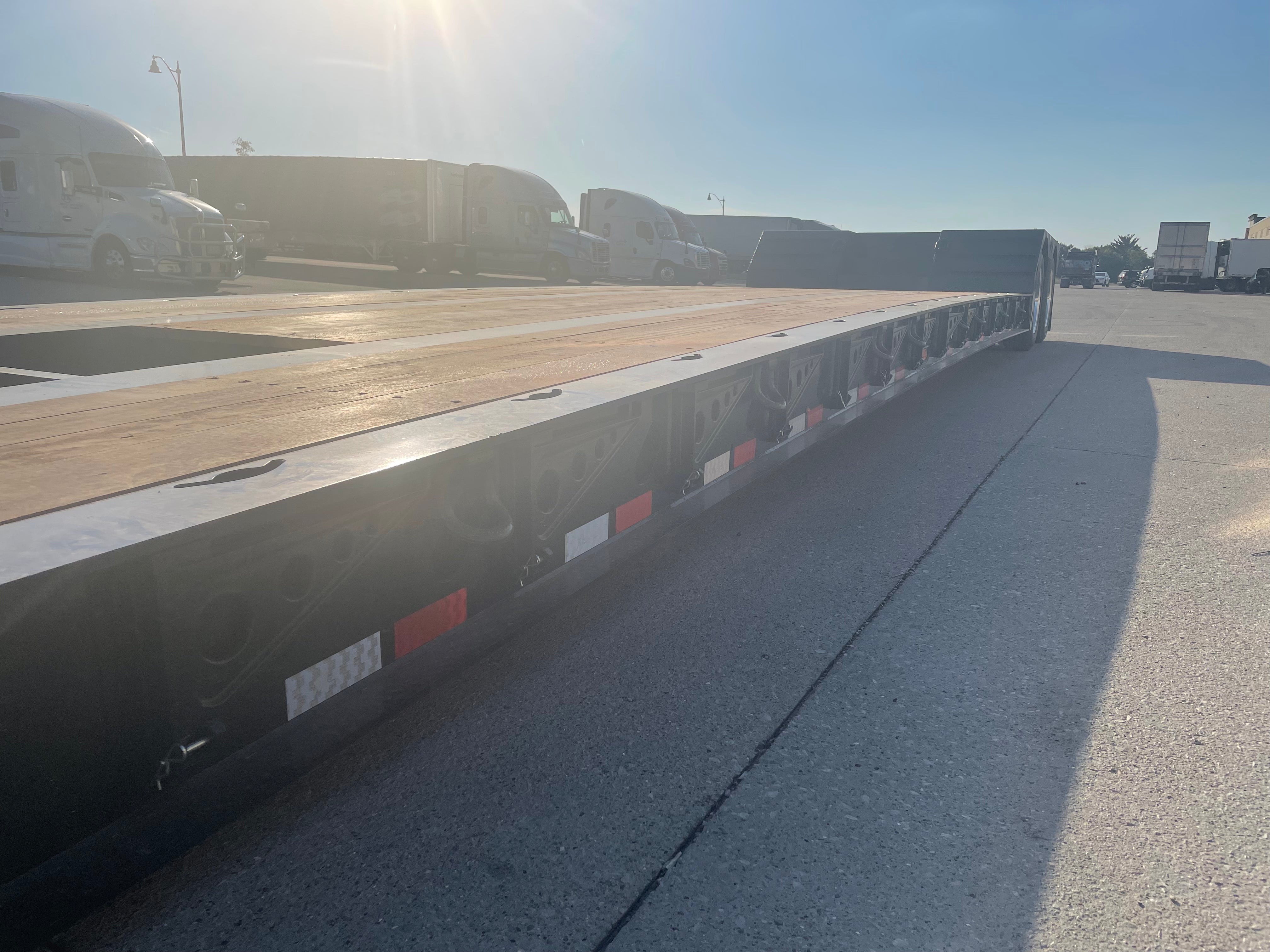

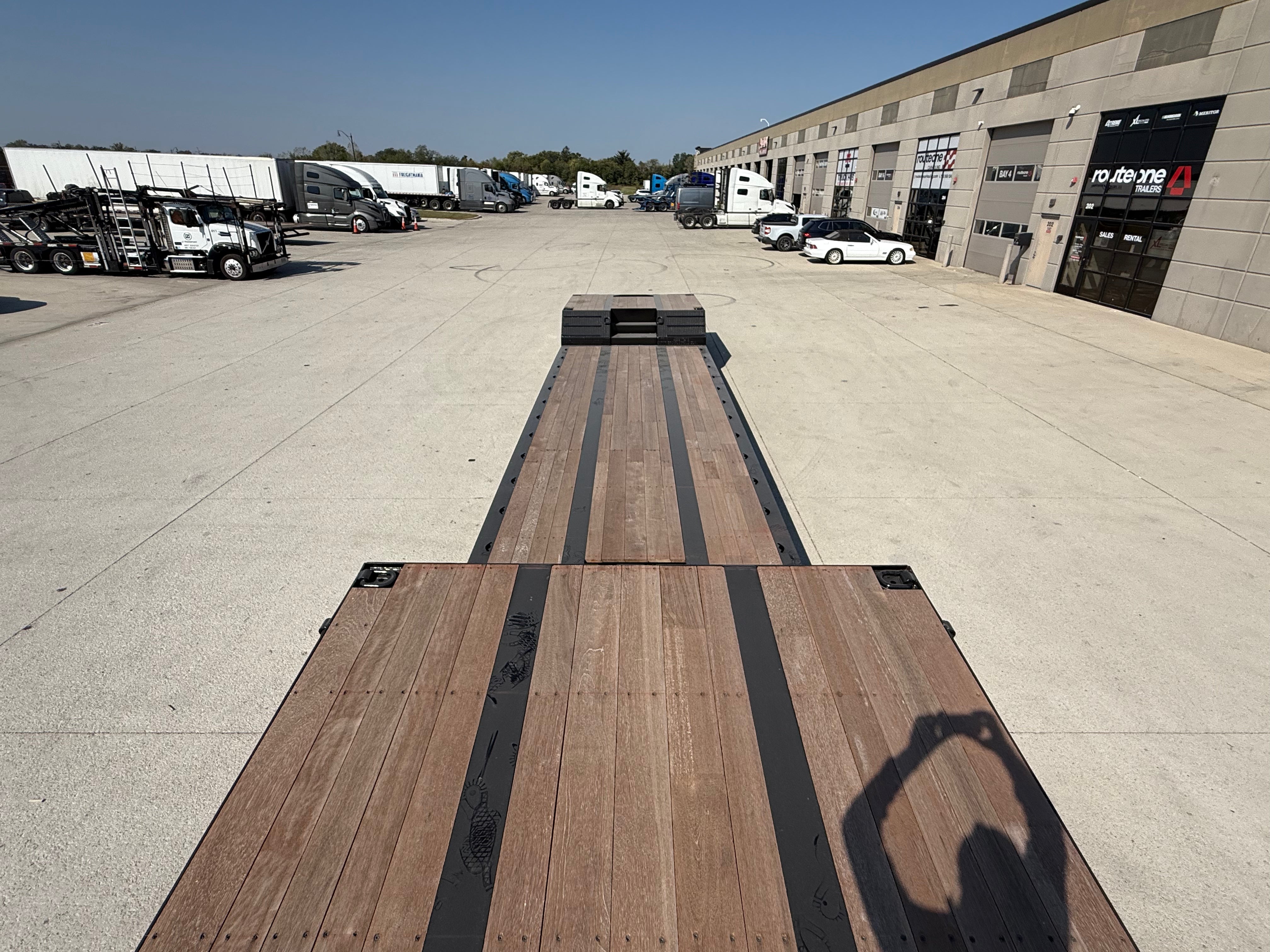

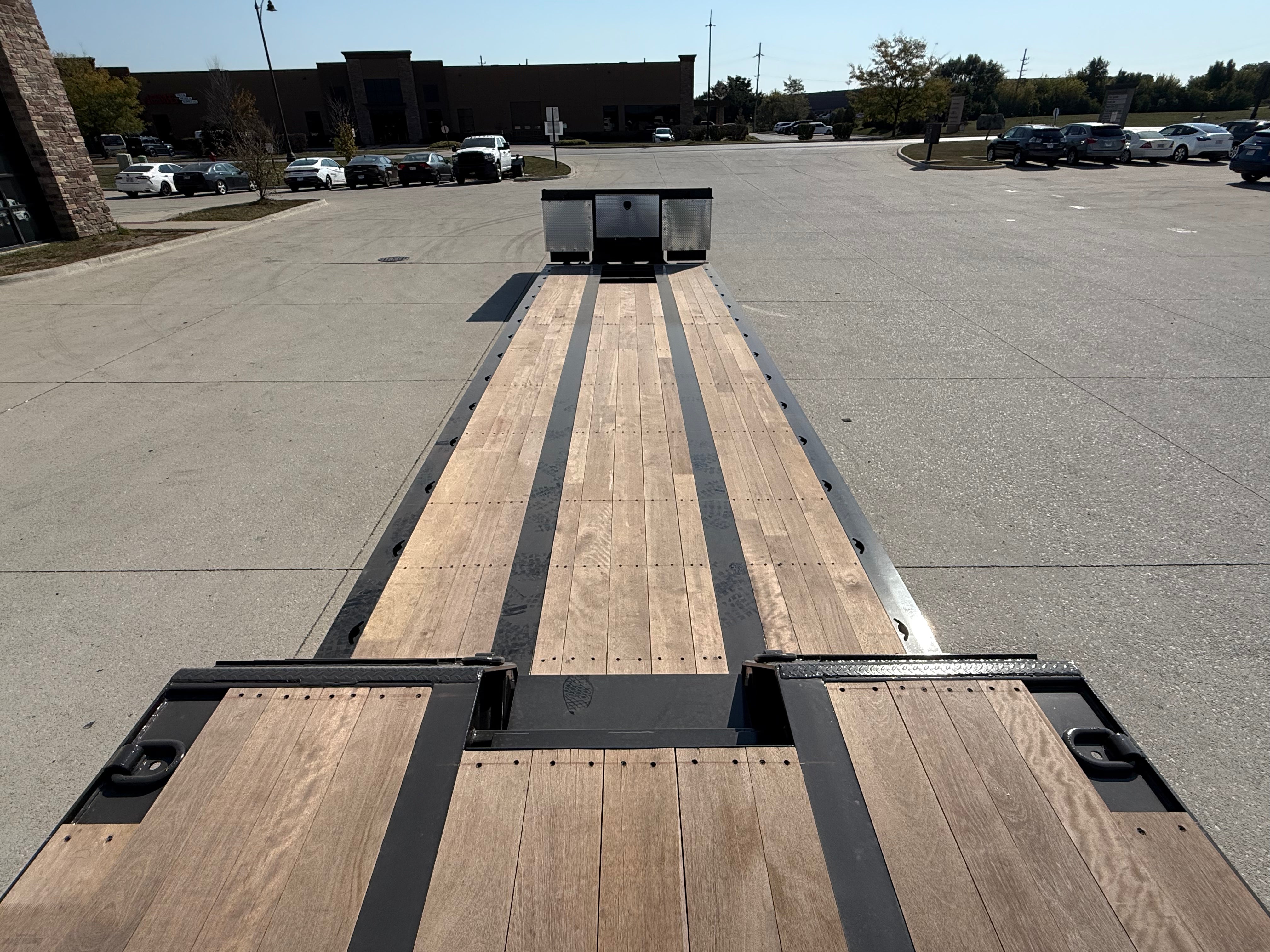

1-⅛” Apitong Flush Decking Throughout

Main Deck Length -  29’
Loaded Deck Height - 18”
Ground Clearance - 6”

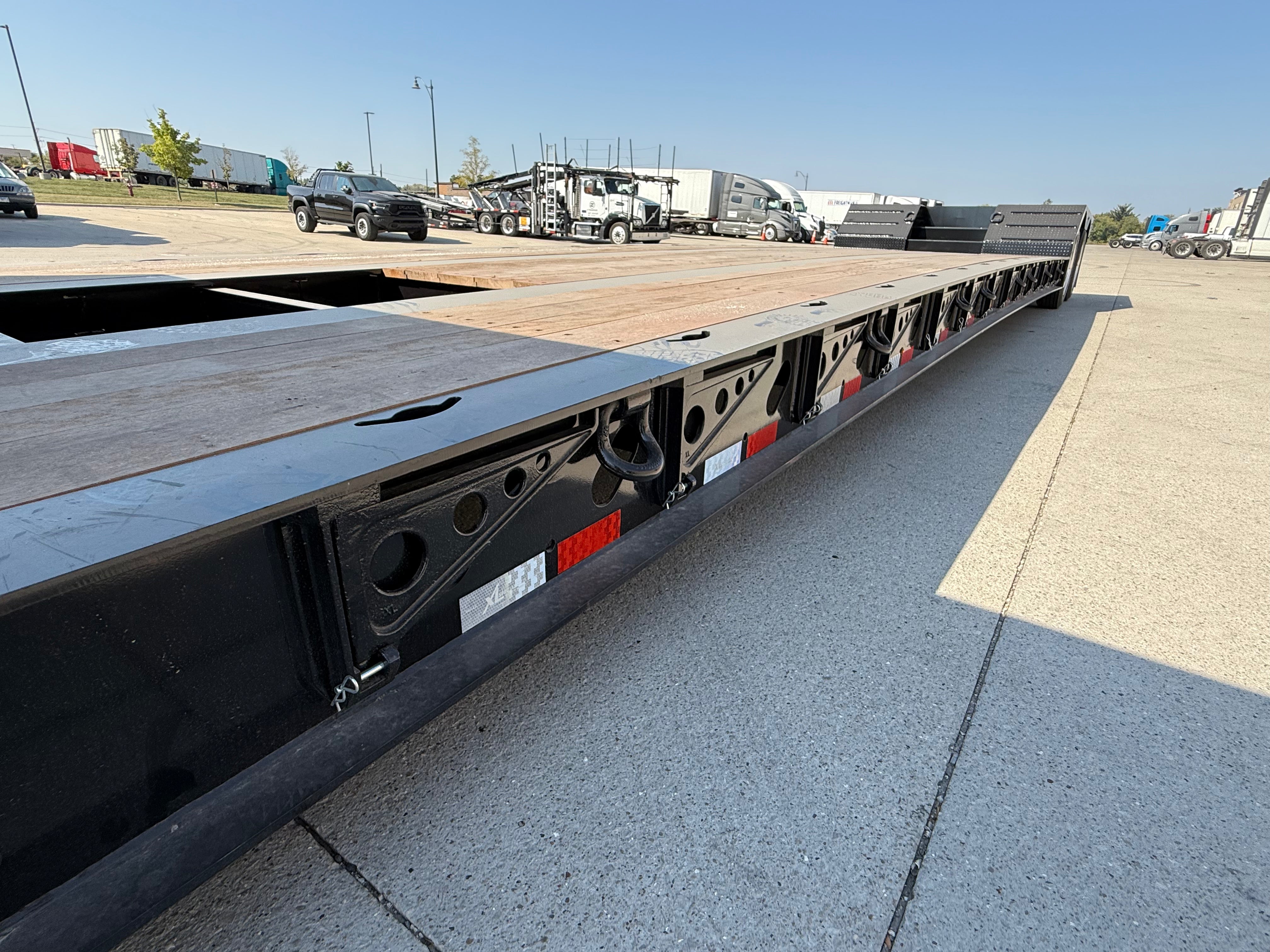

8 - Bend D-Rings Per Side On Main Deck
Chain Drops On 24” Centers Outside Main Beam

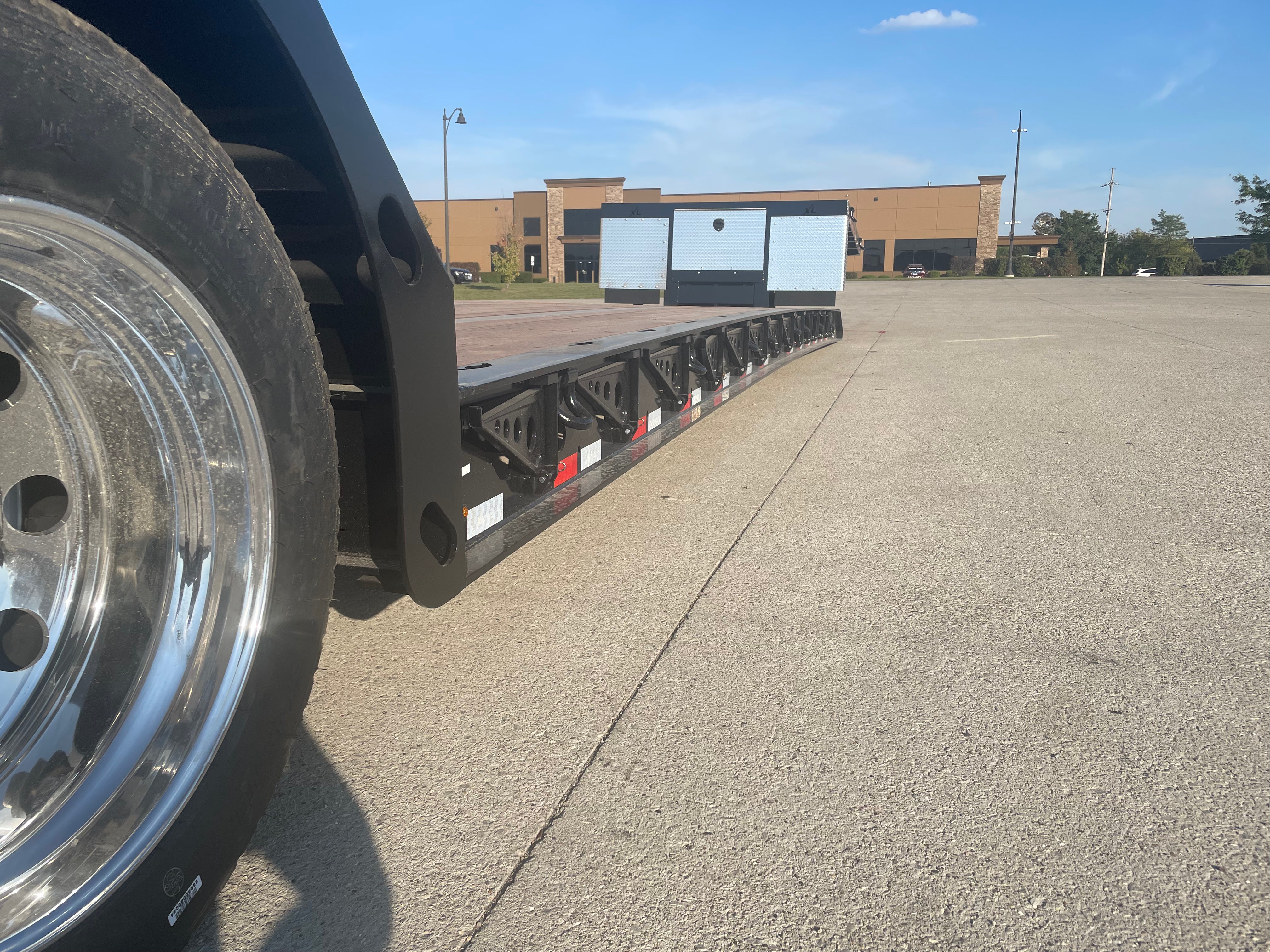

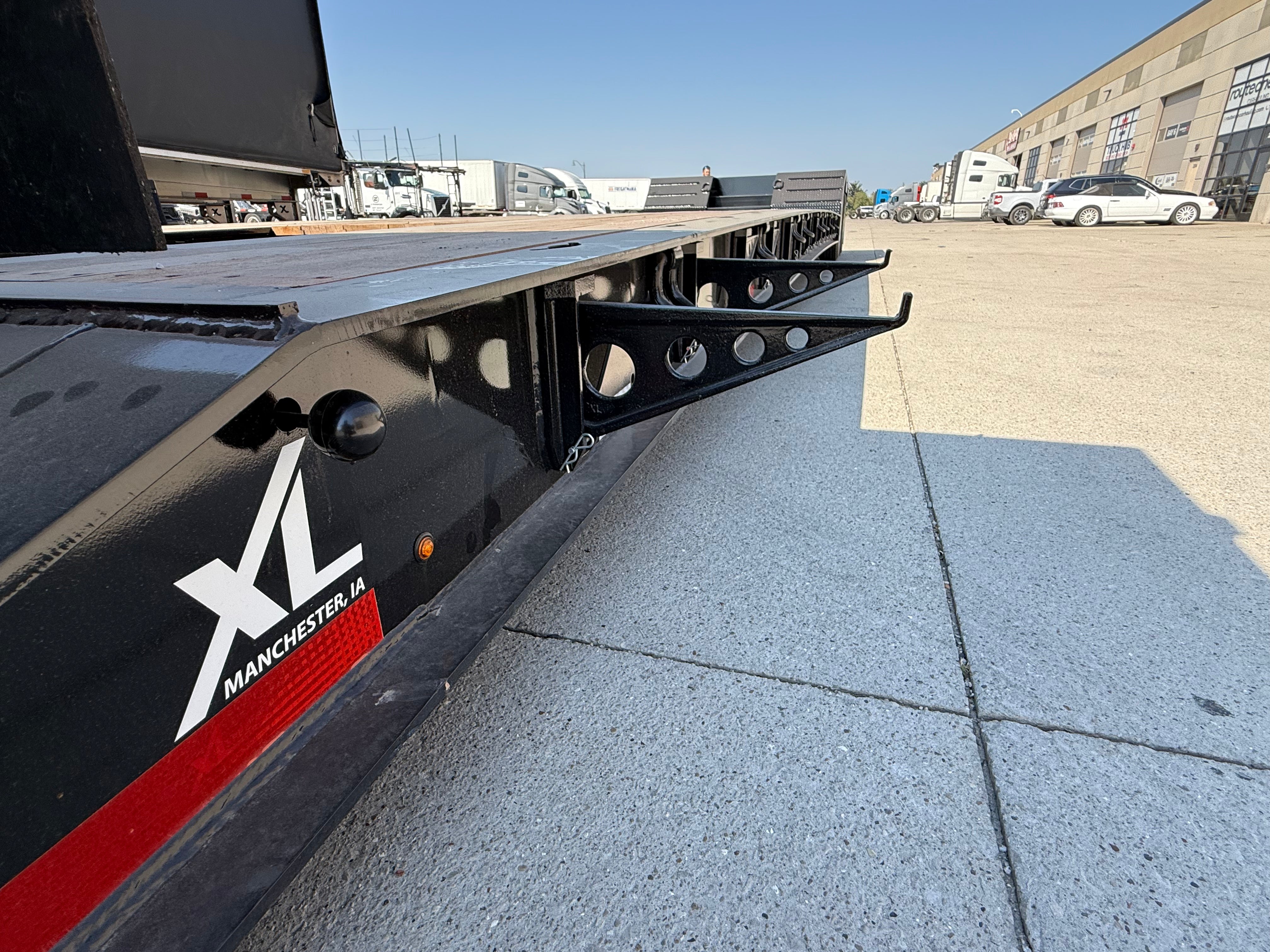

14 - Removable Swing Out Outriggers Per Side

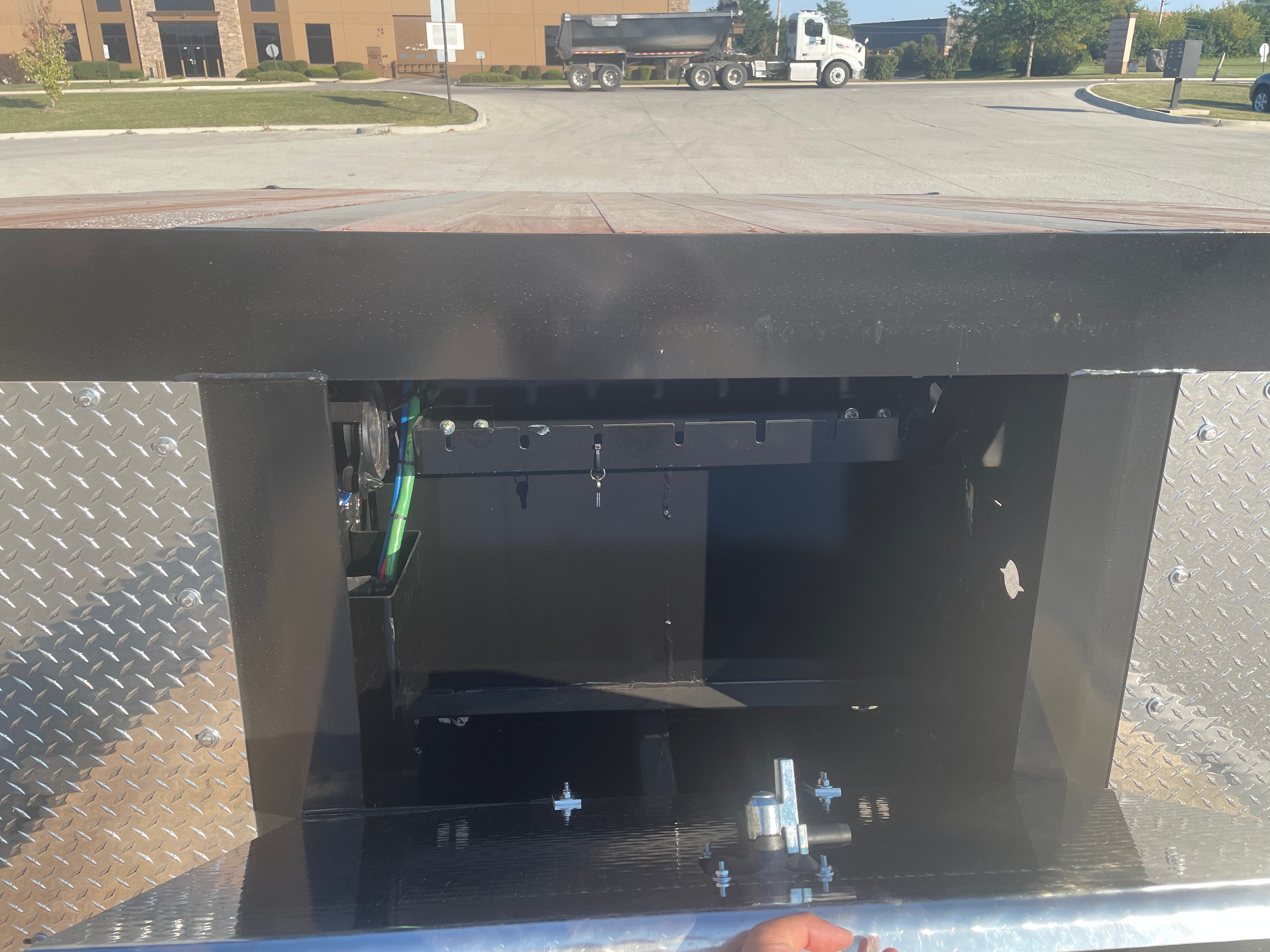

Storage Compartments at Front of Main Deck

Gooseneck Length - 10’
King Pin Setting - 16”
5th Wheel Height - 49”
Gooseneck Swing Clearance - 84”
2 - Bent D-Rings Per Side on Gooseneck
1 - Pan Style D-Rings Per Side (On Corners) On Gooseneck

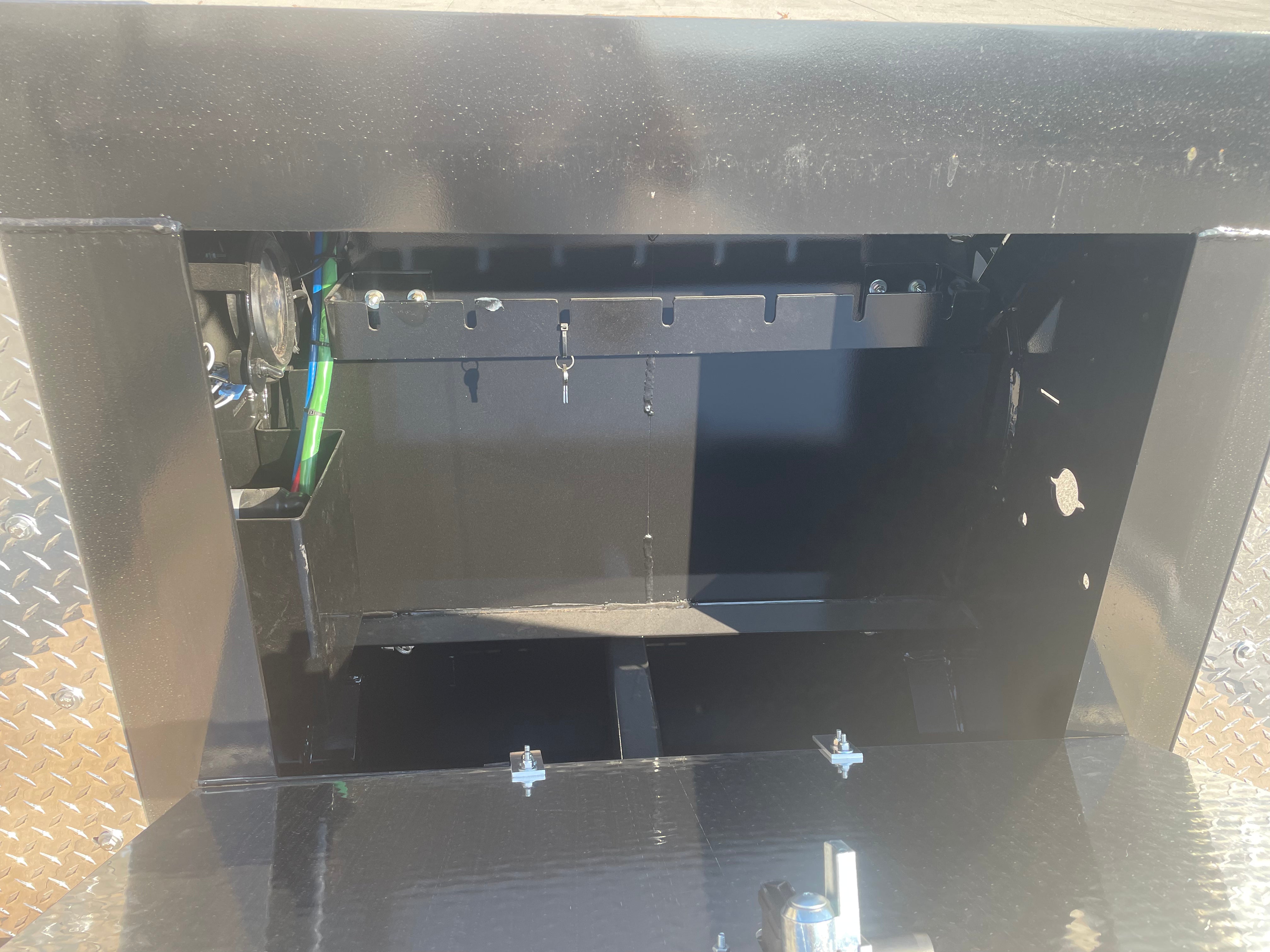

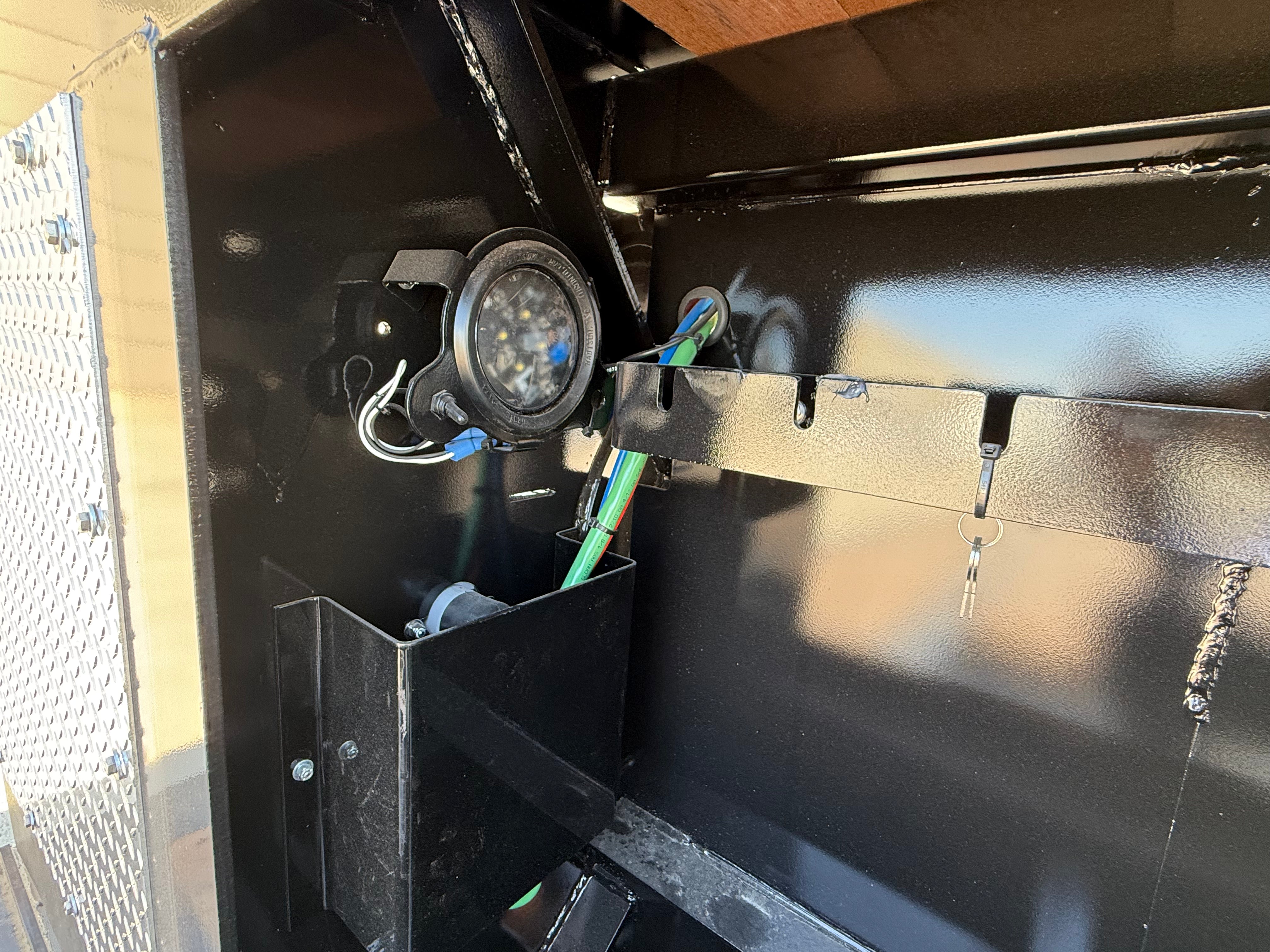

1 - Toolbox In Gooseneck w/ Chain Rack & Work Light
Aluminum Mudflaps

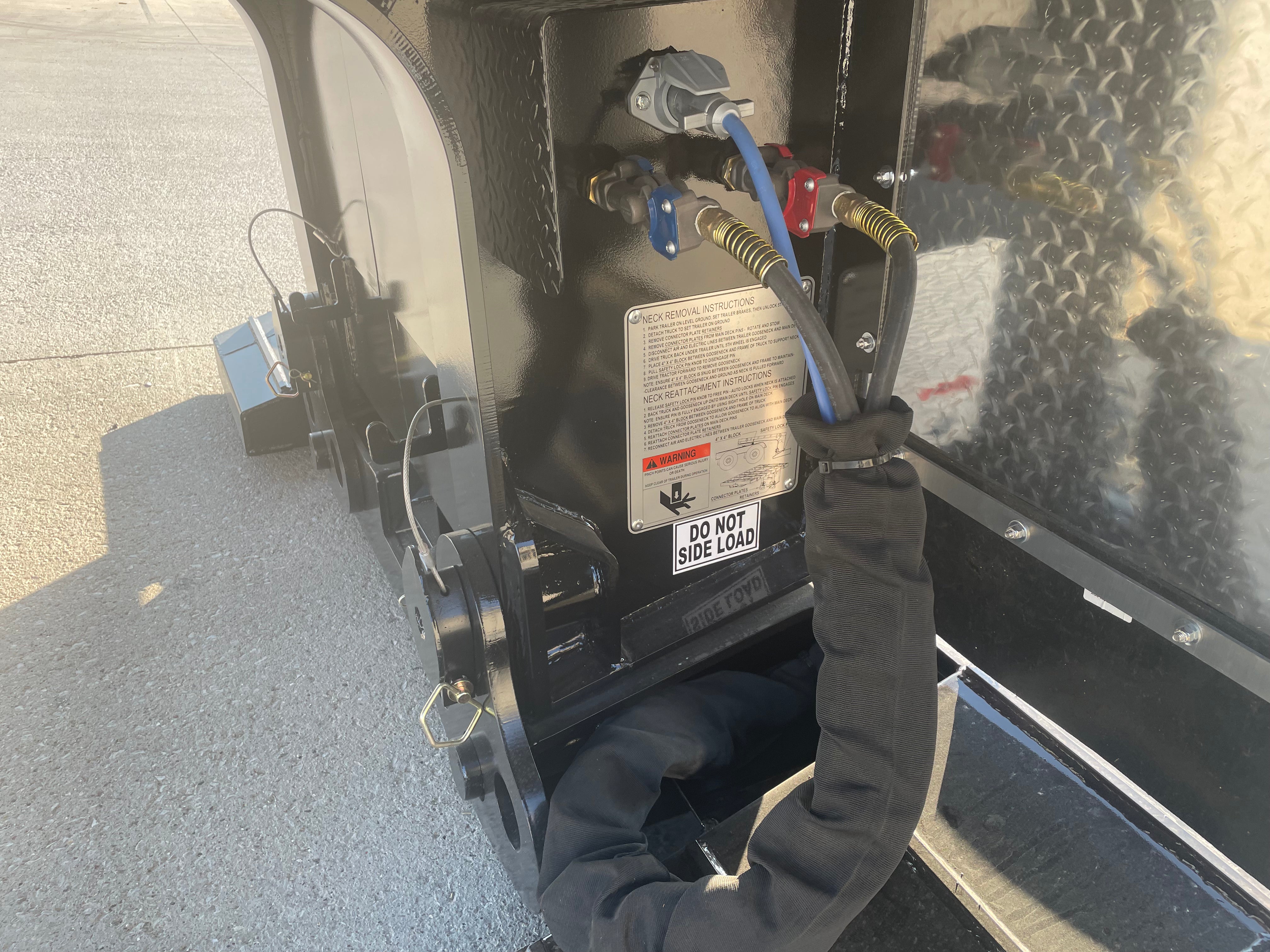

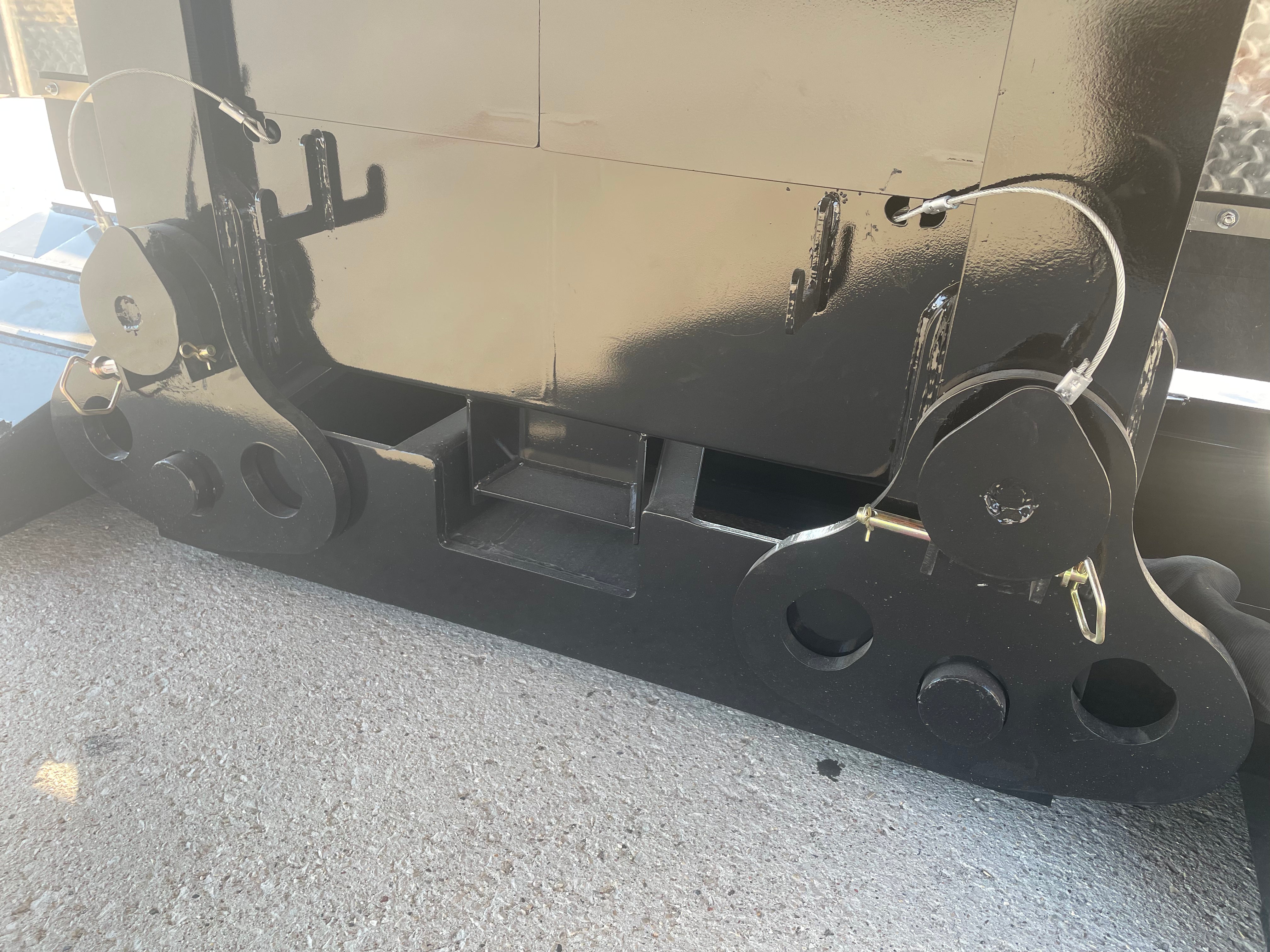

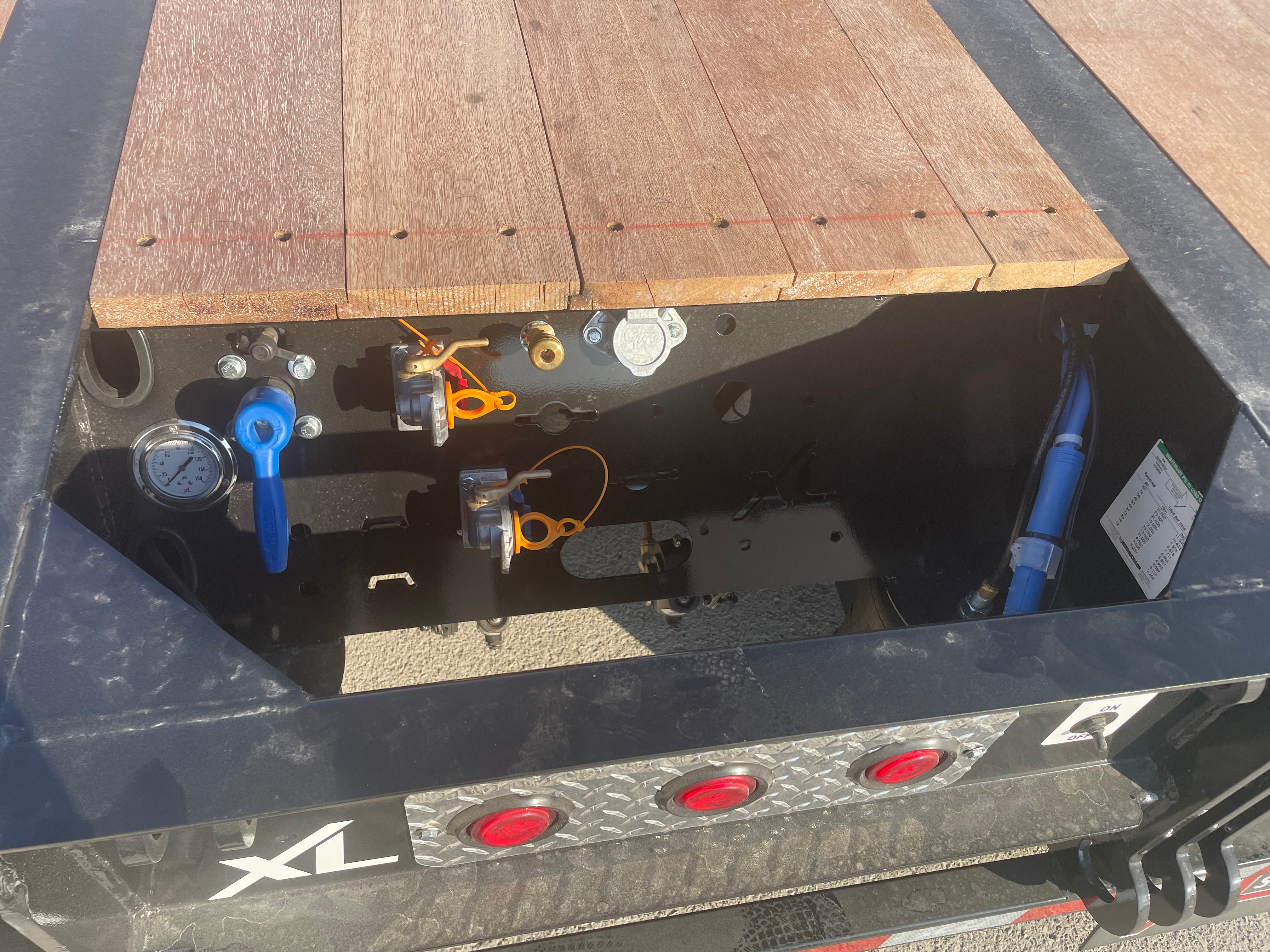

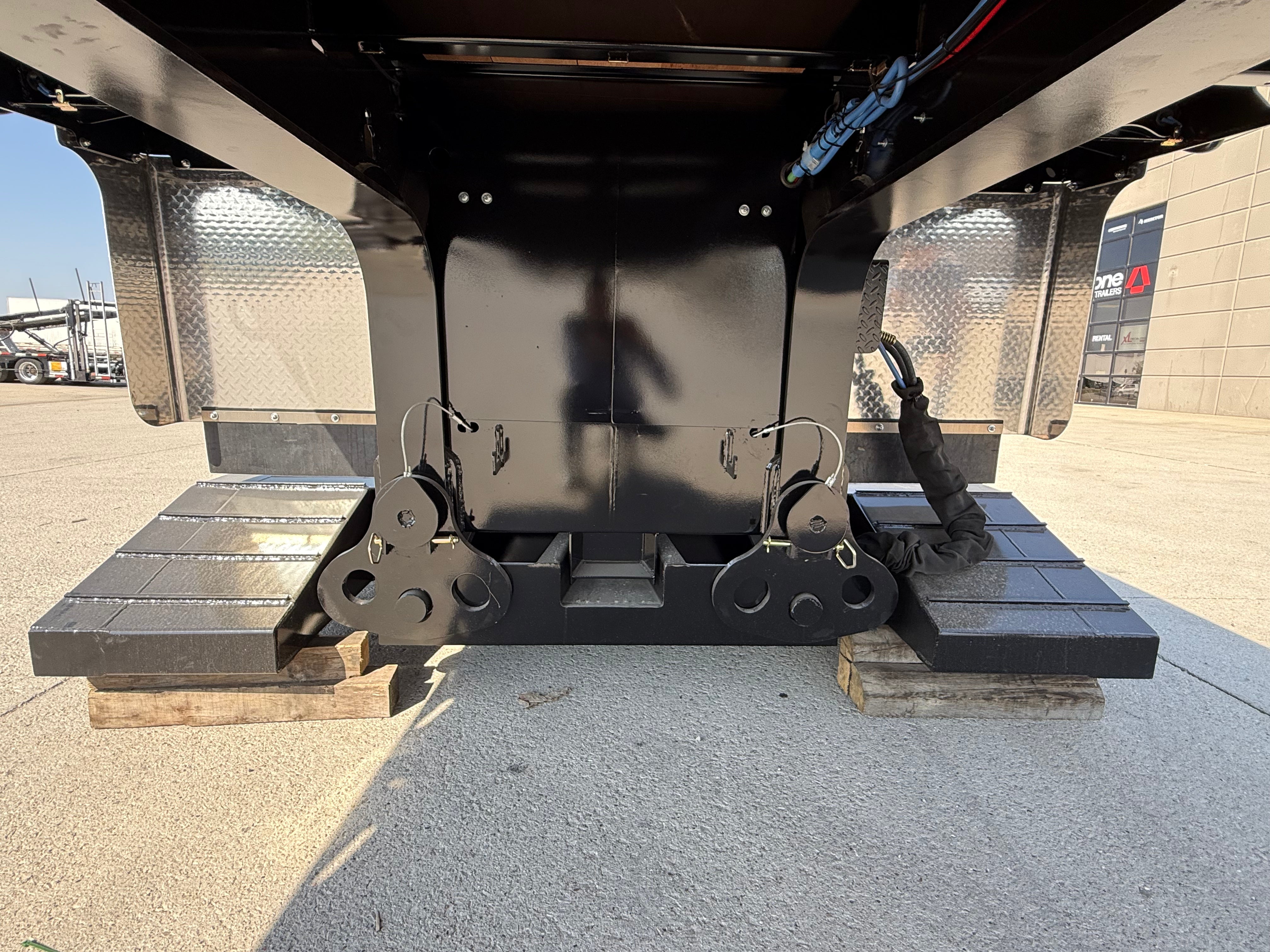

3 Height Setting Front Connector Plate

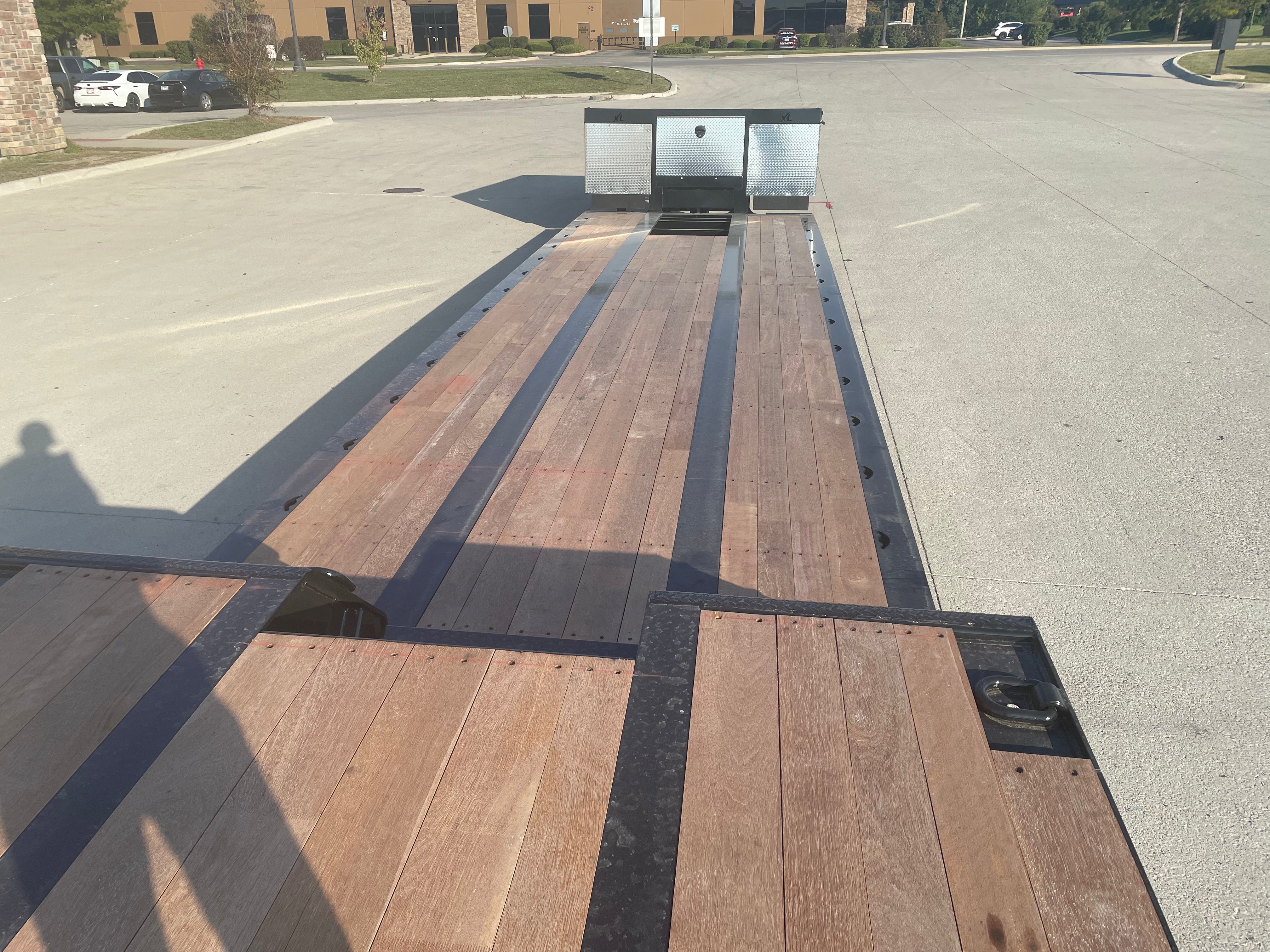

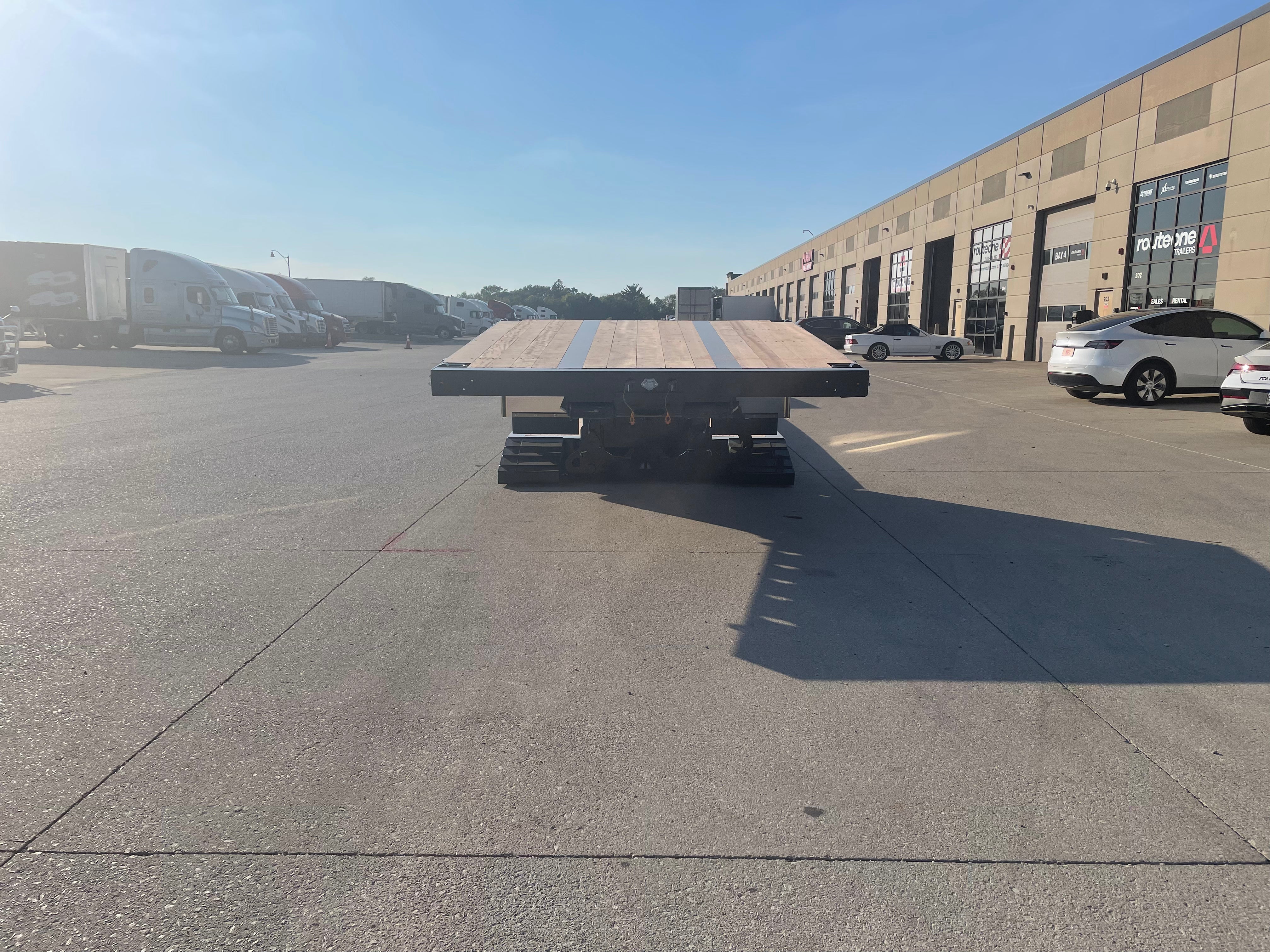

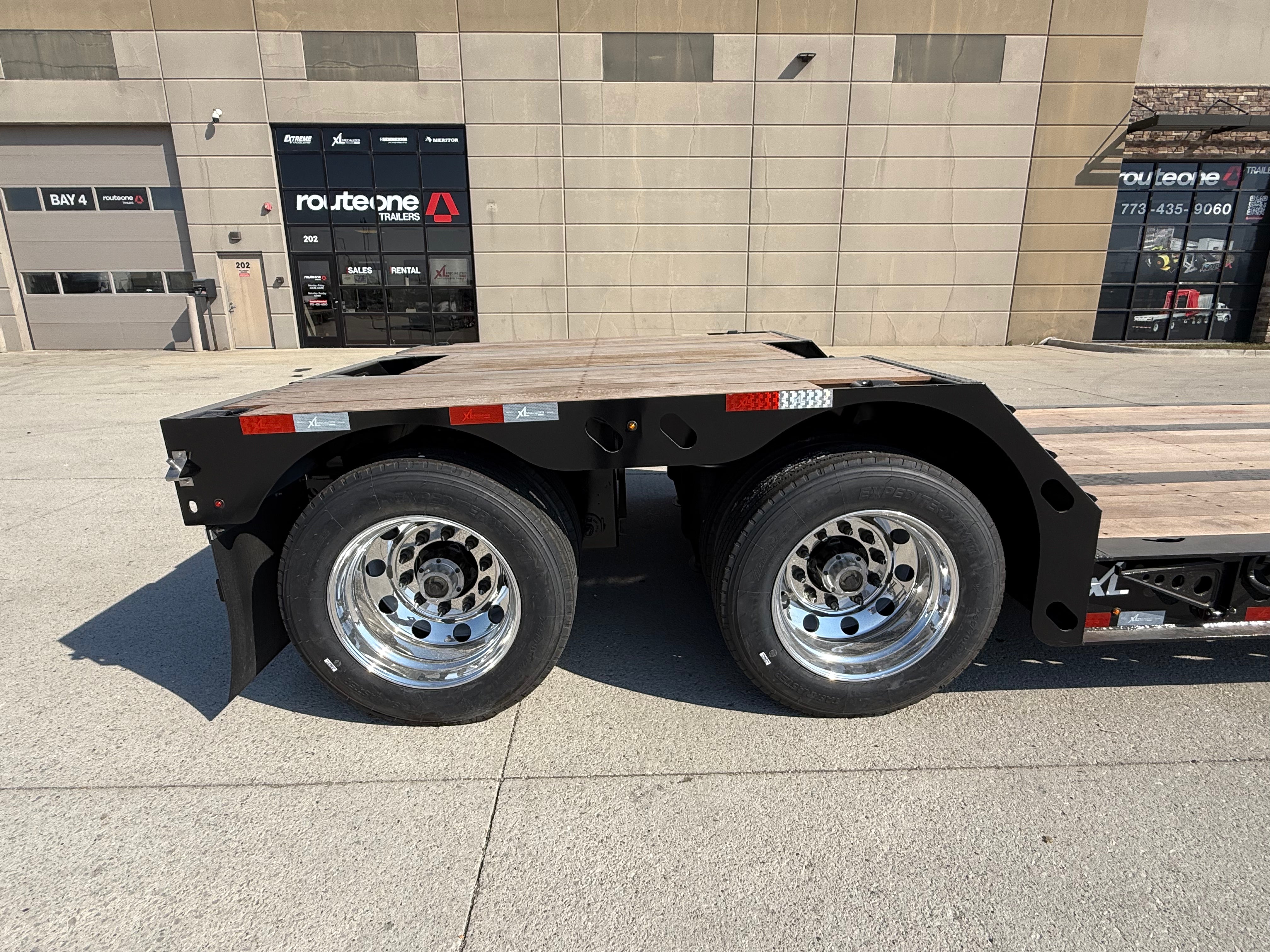

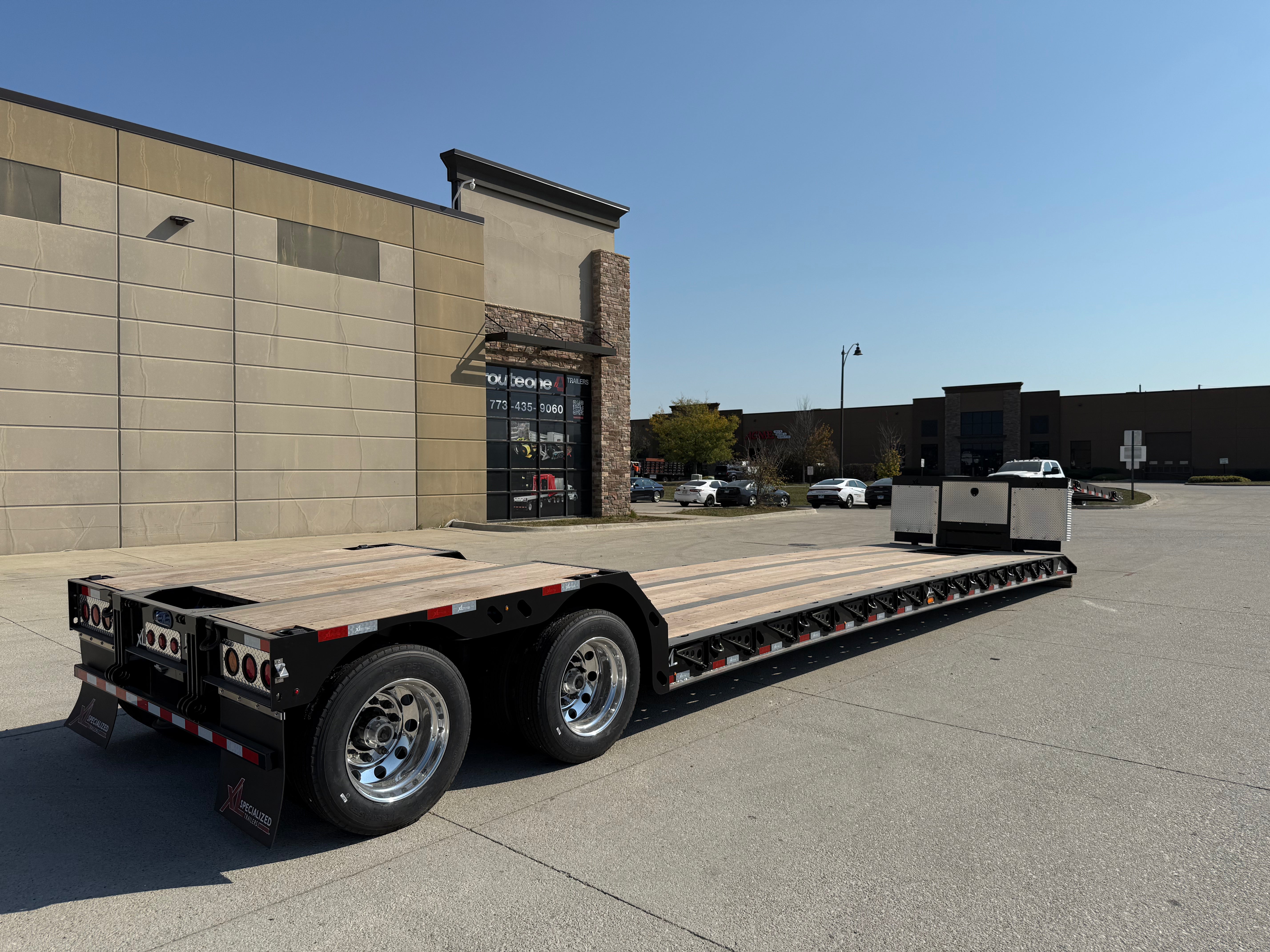

Rear Deck Length - 9’
Rear Deck Loaded Height - 40”

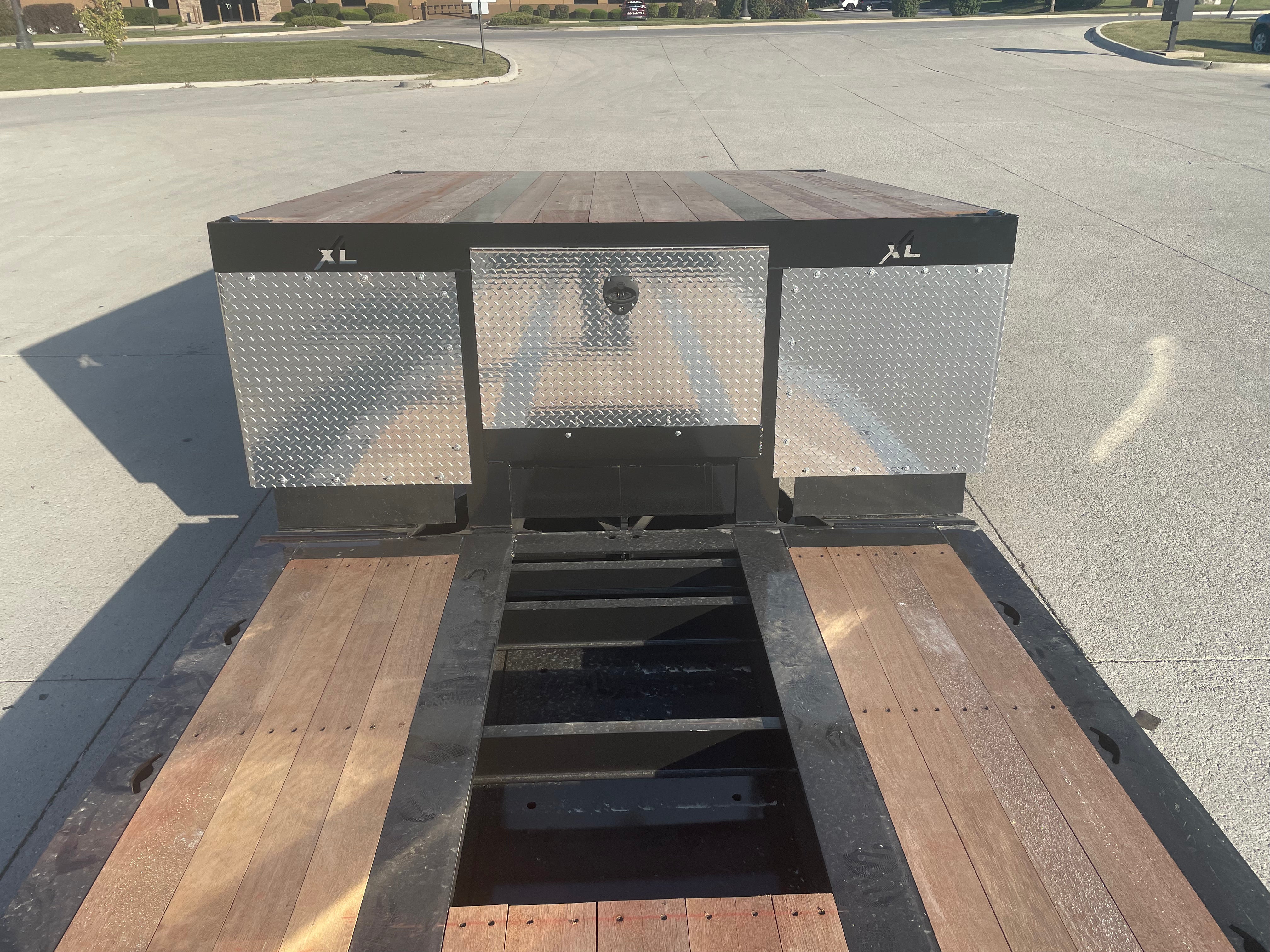

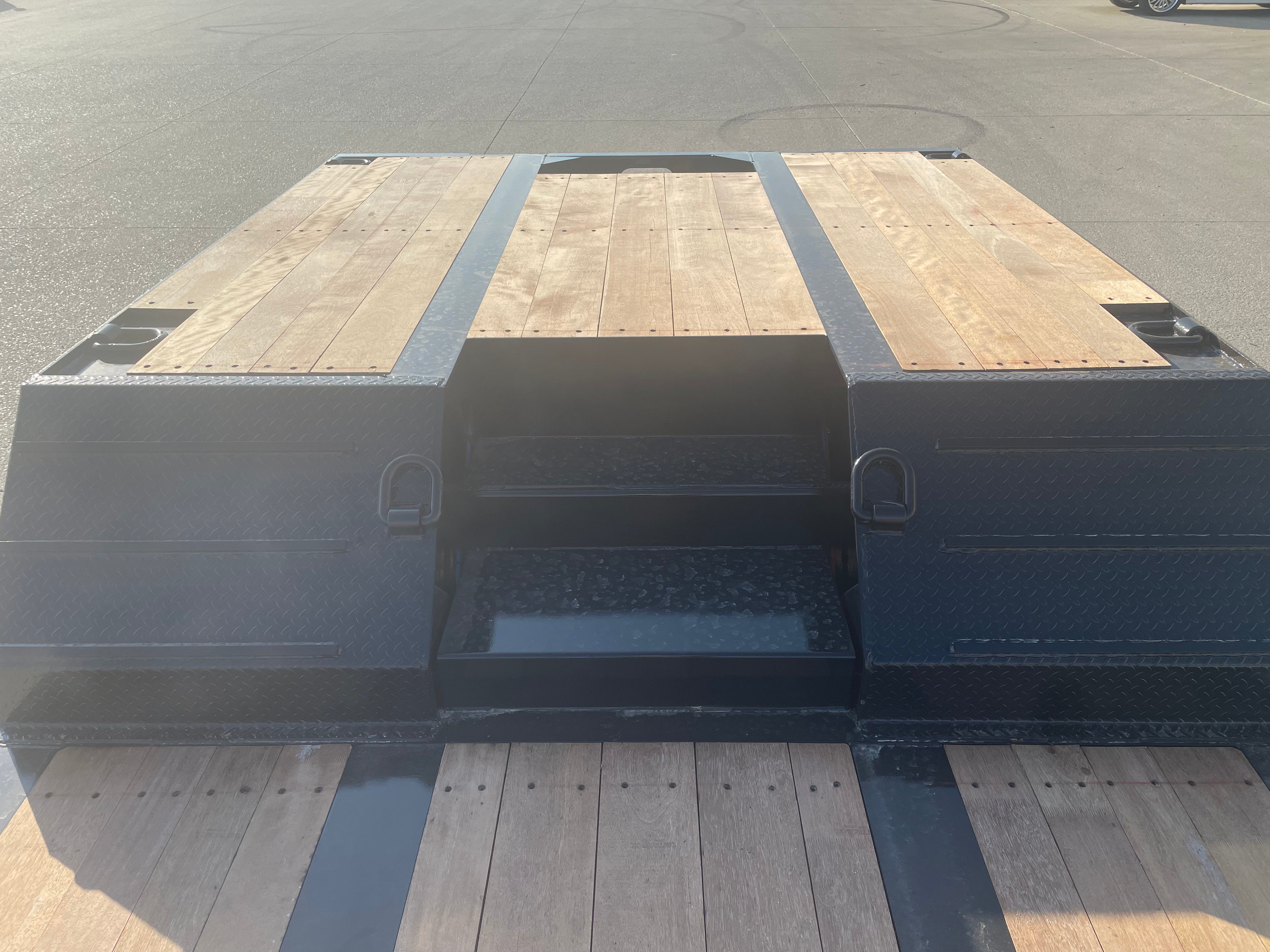

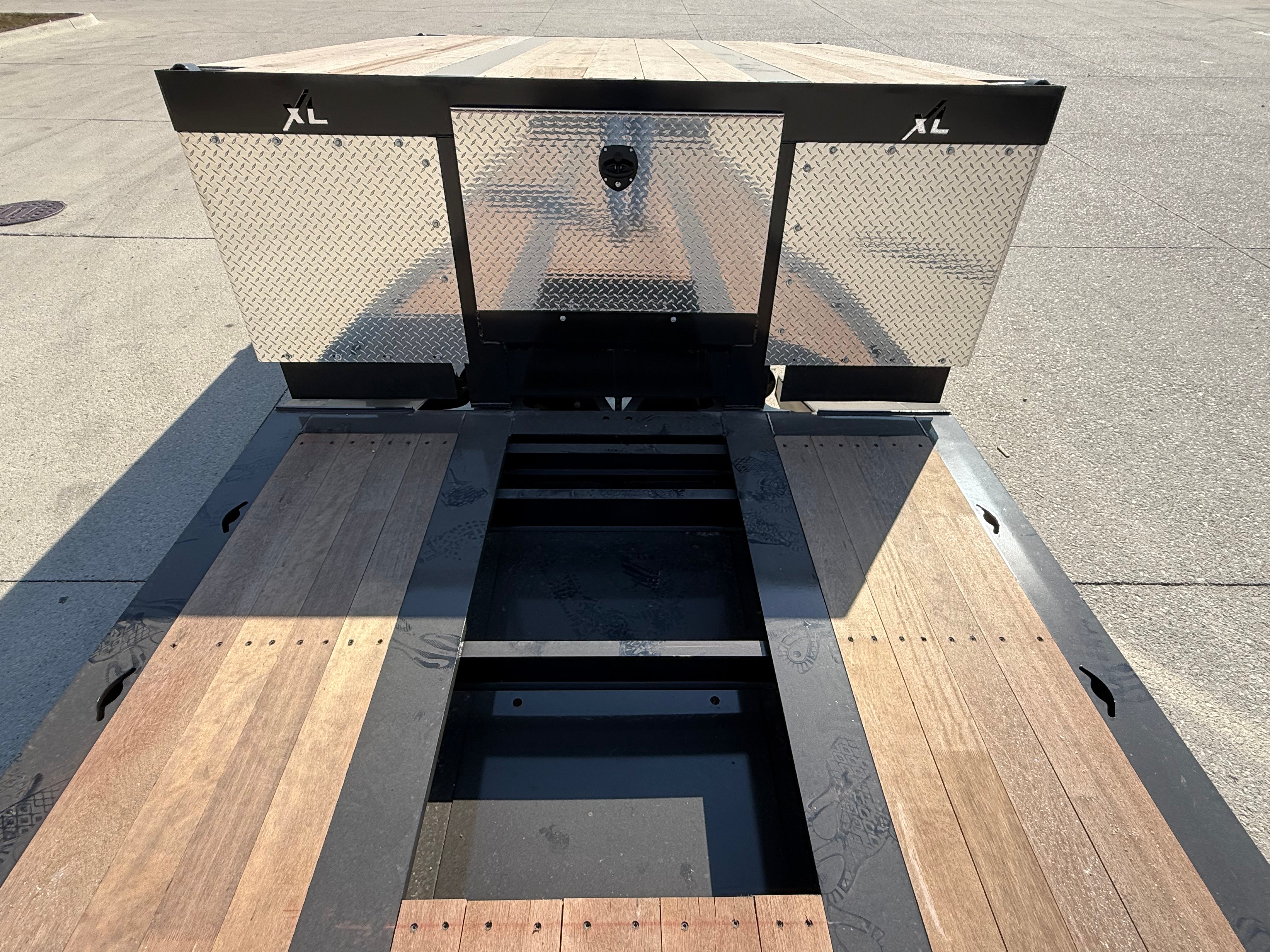

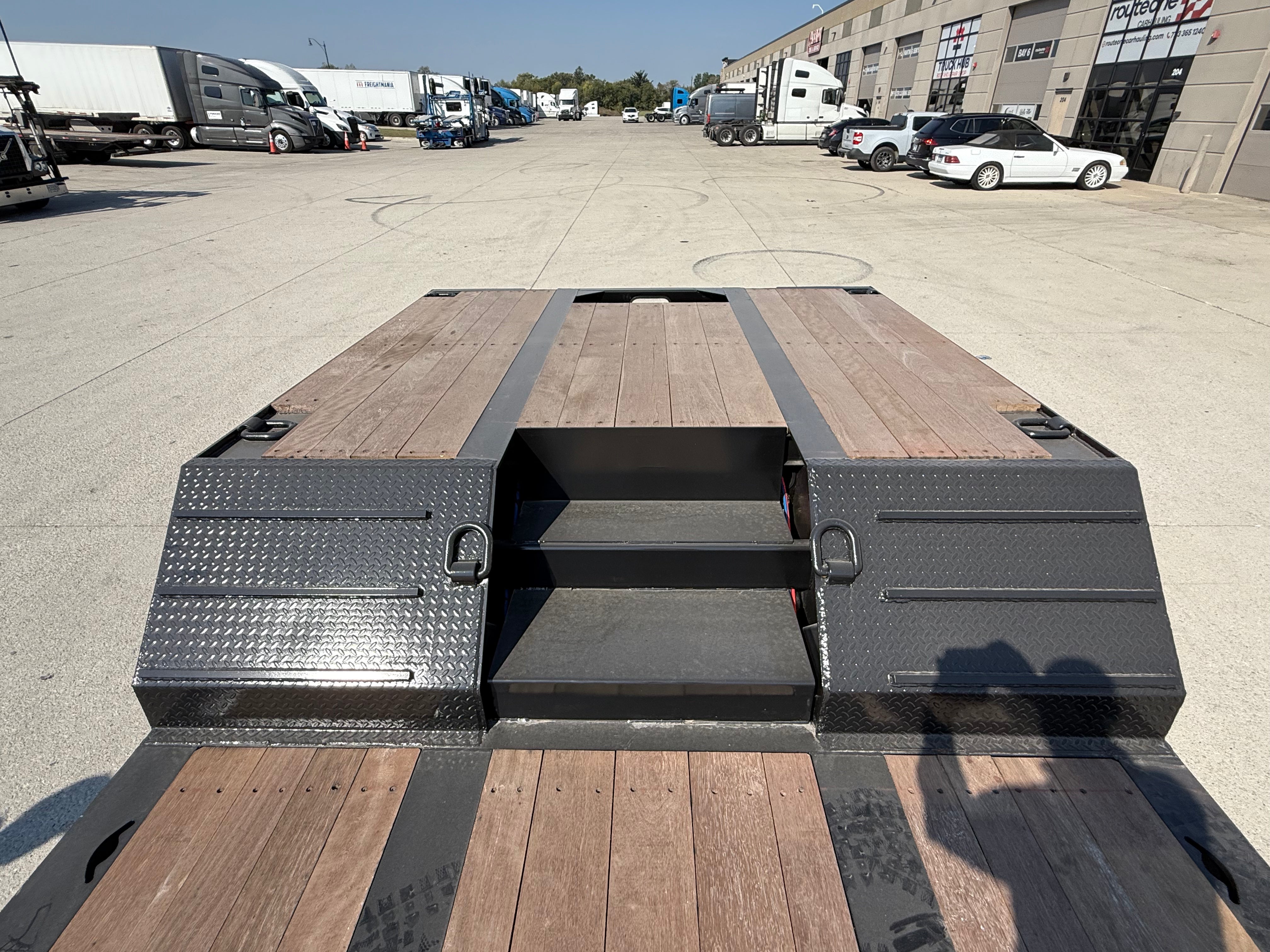

2’ x 2’ Cut Out In Rear Transition
2 - Flag Holders On Rear Deck
1 -  Pair Flat D-Rings On Rear Transition
1 - Pan Style D-Rings Per Side (On Corners) On Rear Deck

1 - Pair Pullout Lights at Front & Back
Manual Ride Height Control

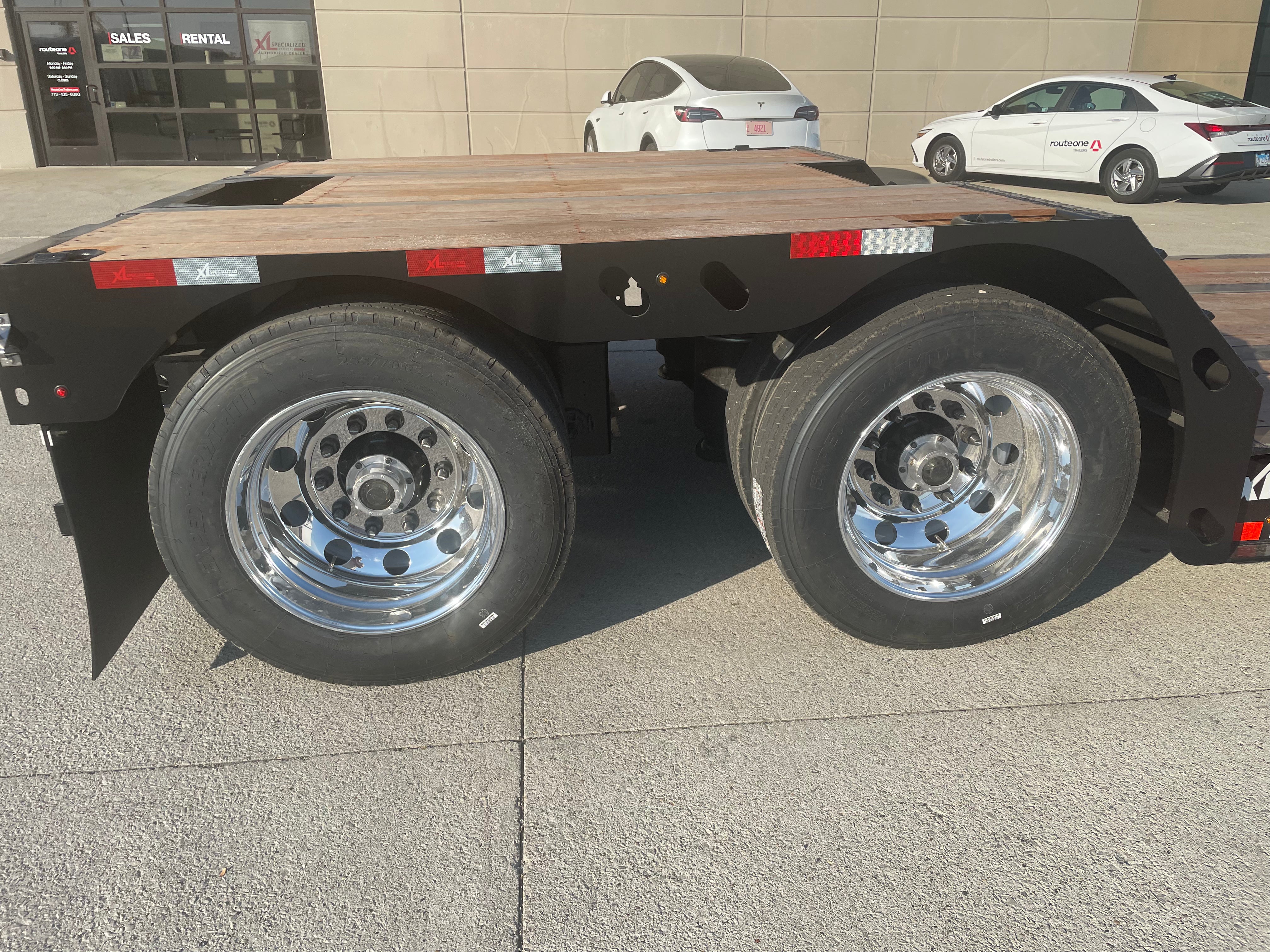

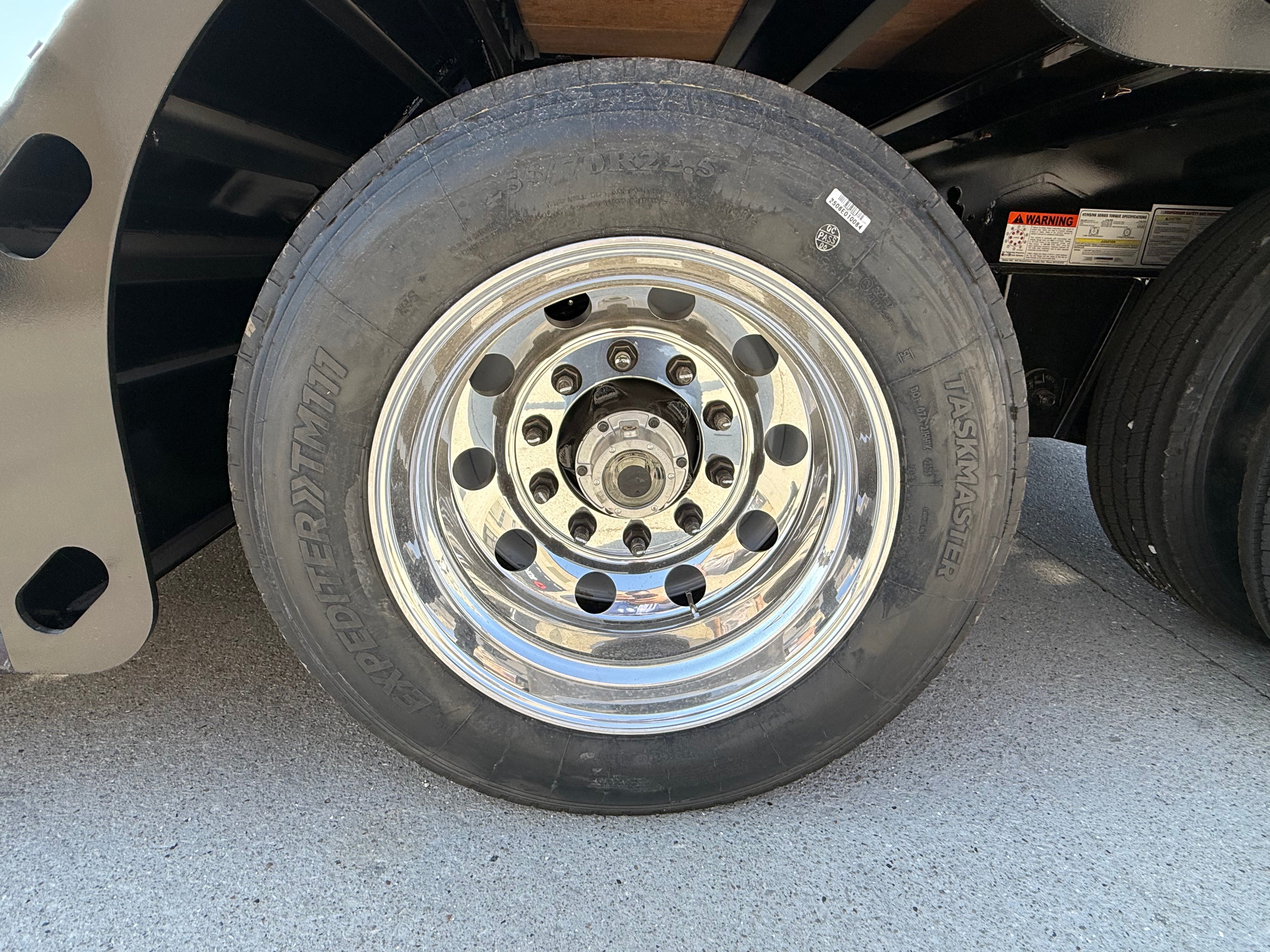

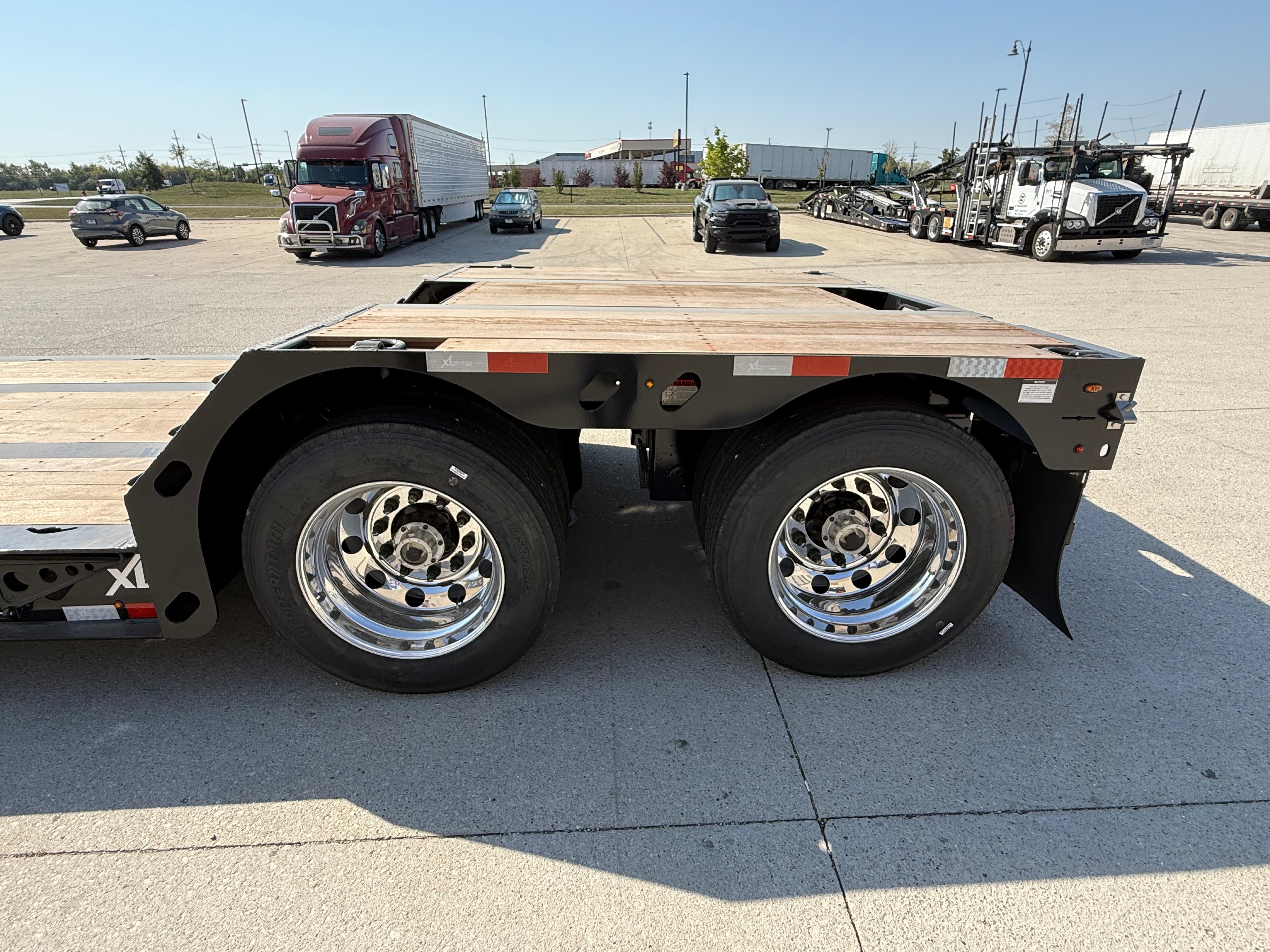

255/70R22.5 Tires
Outer Aluminum Wheels

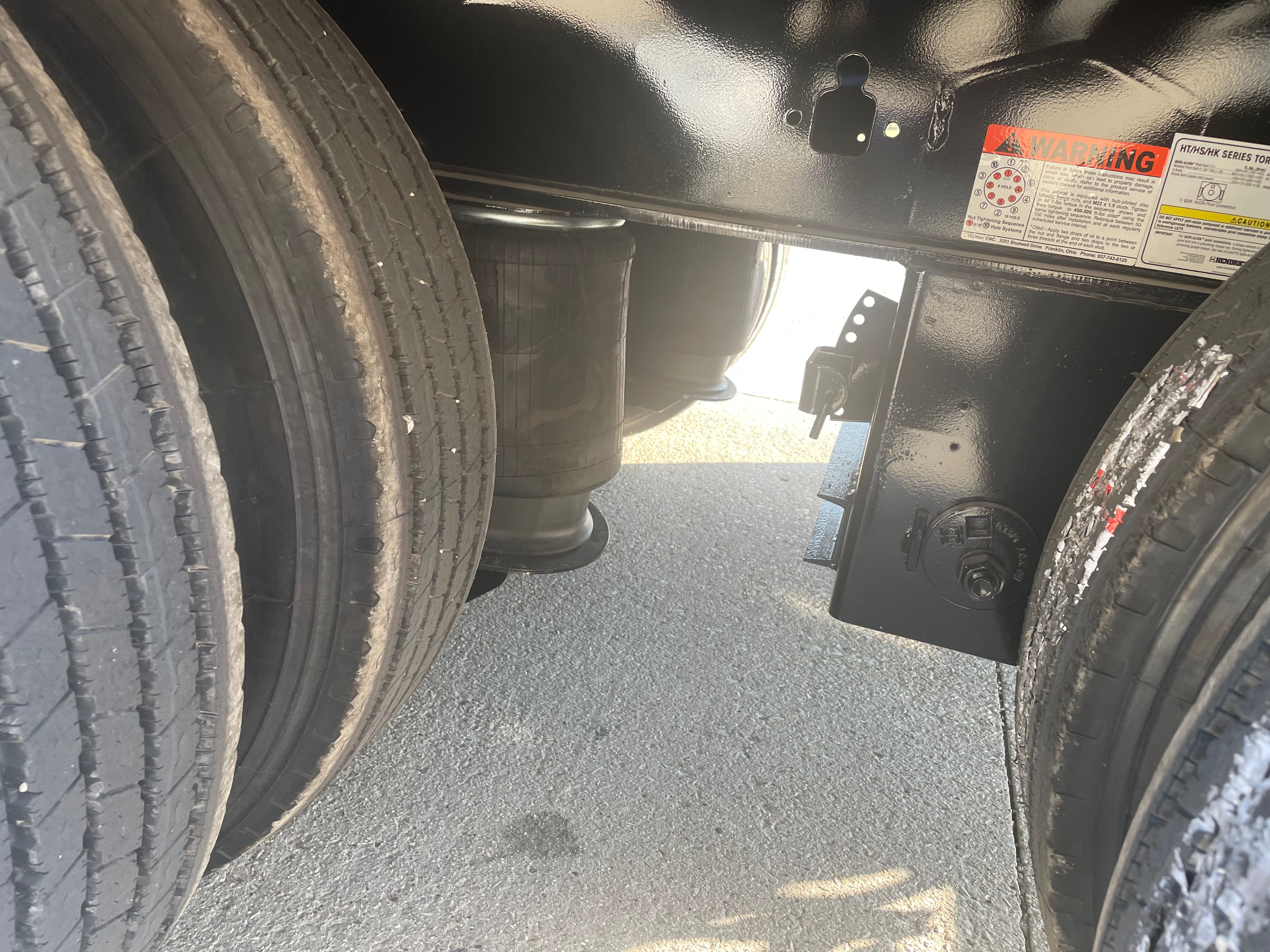

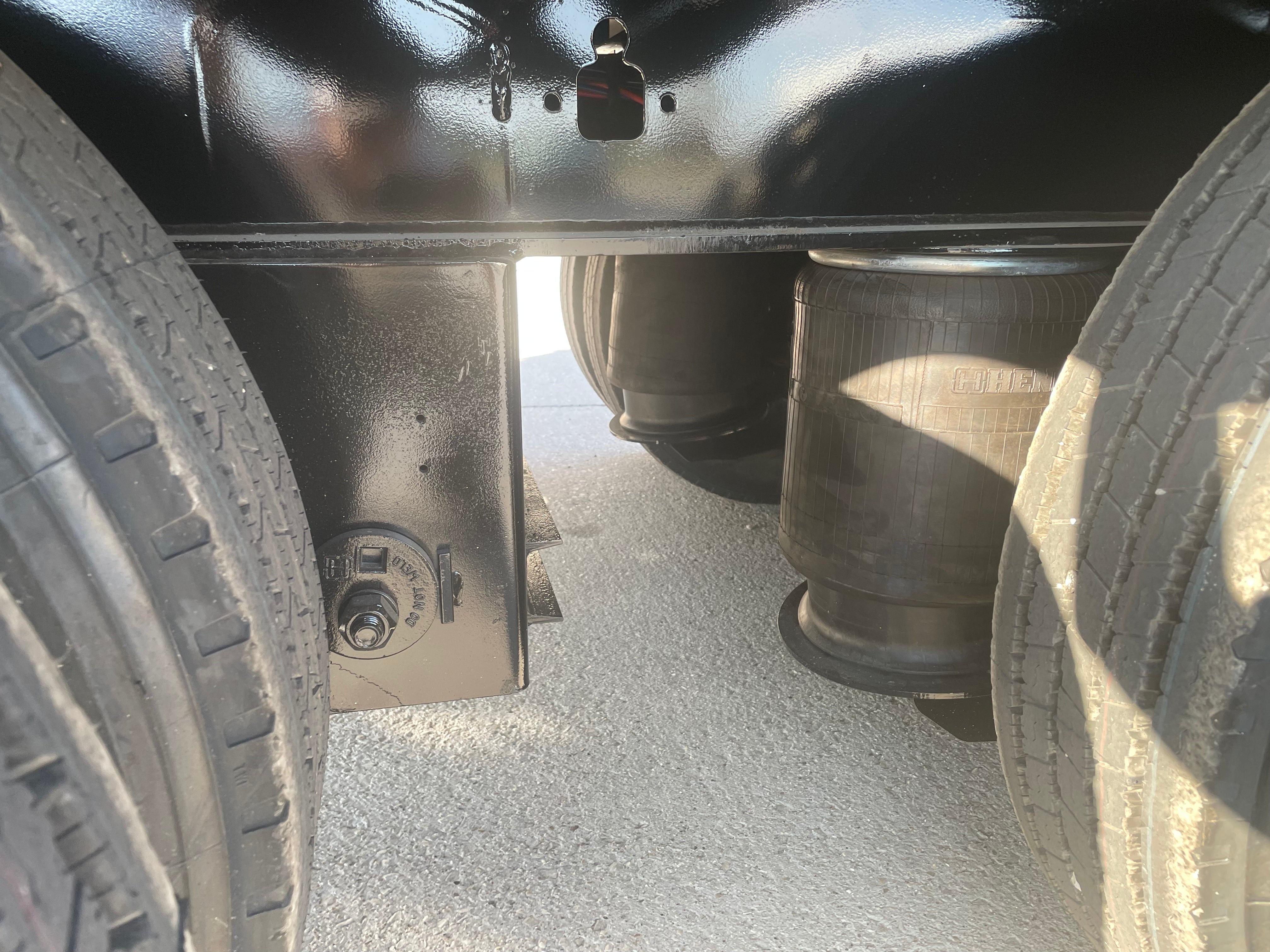

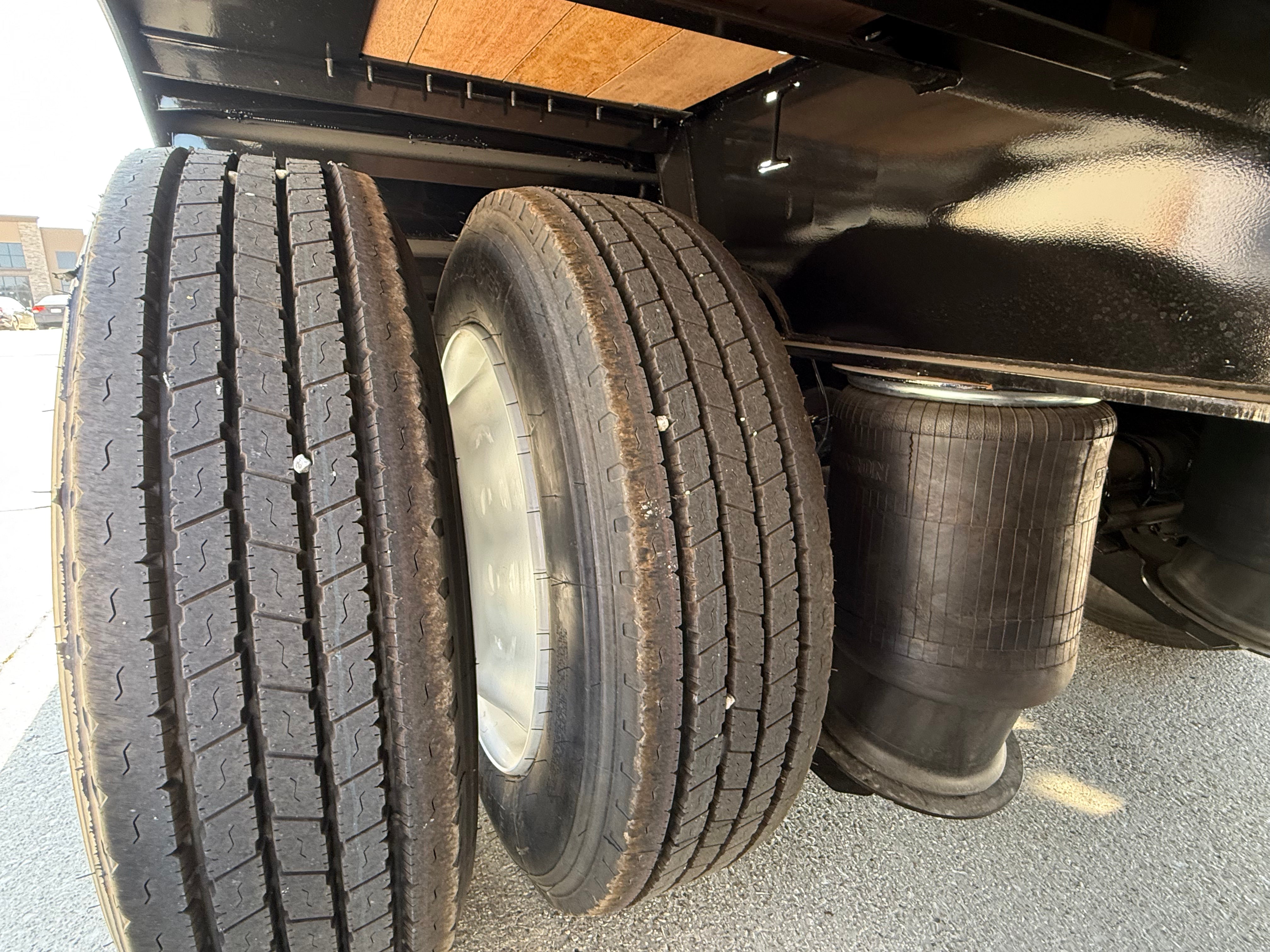

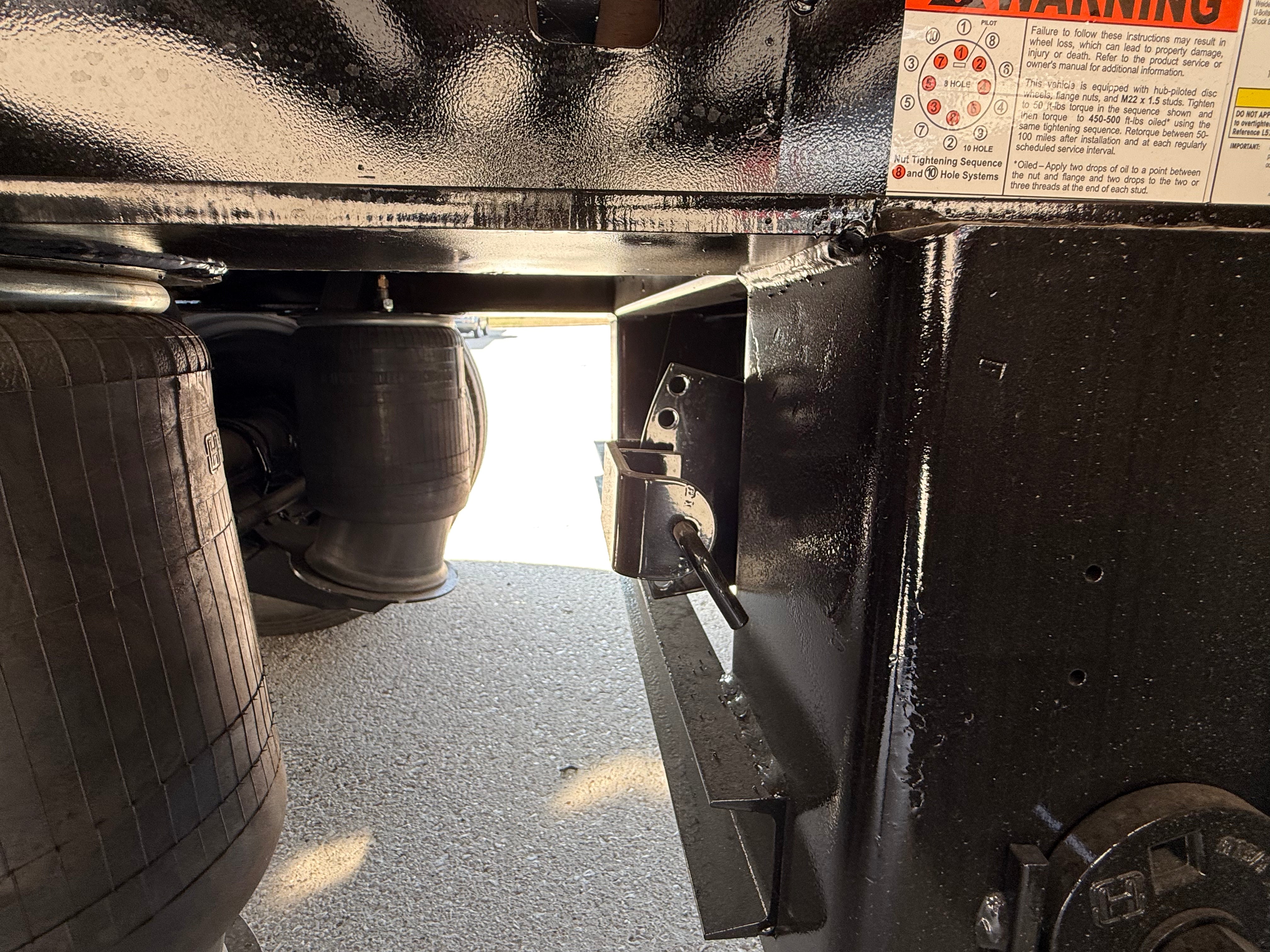

Hendrickson Air Ride Suspension

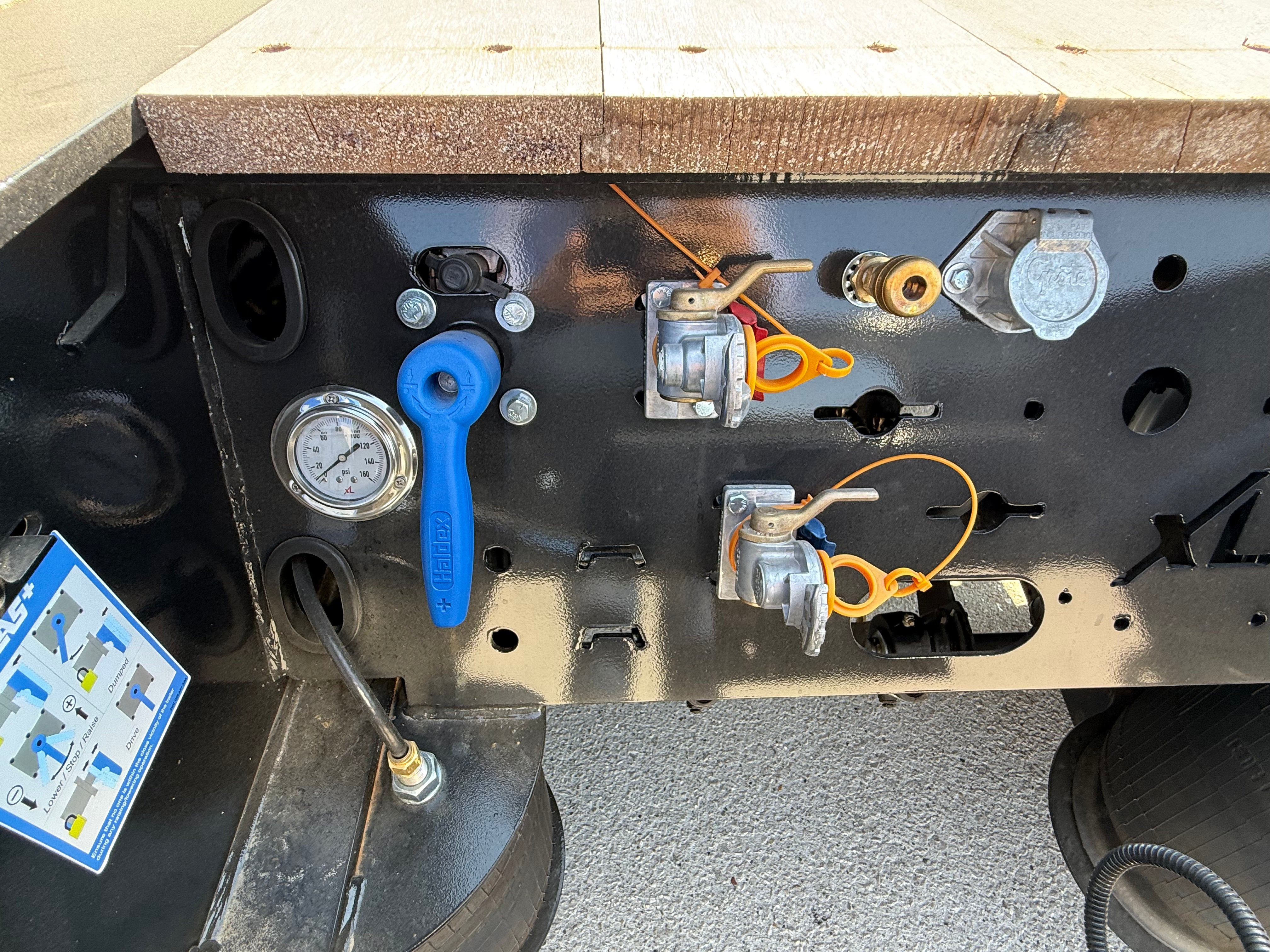

Raise & Lower Valves

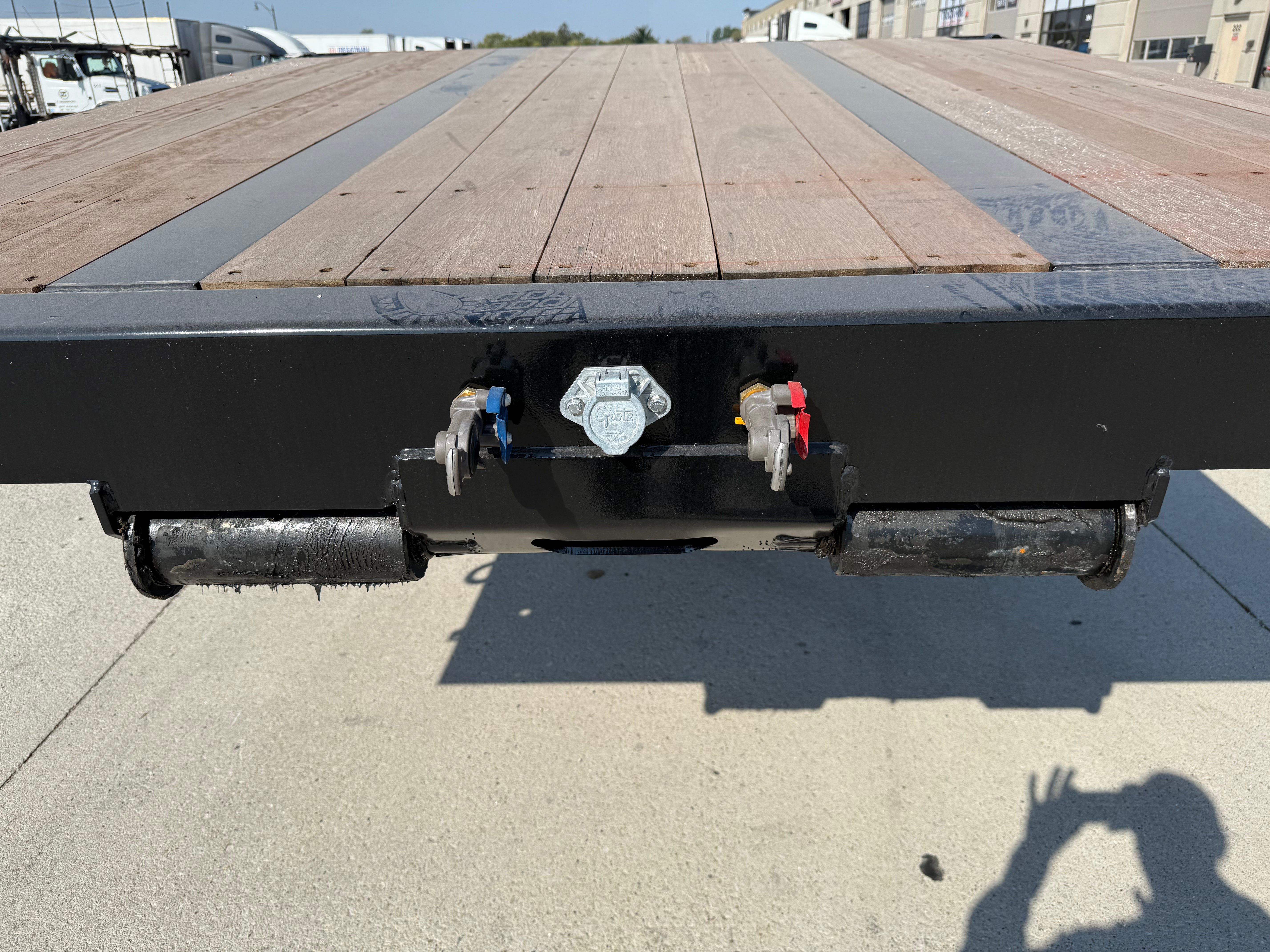

4-Way Plug w/ battery Backup
12V Sealed Grote Harness

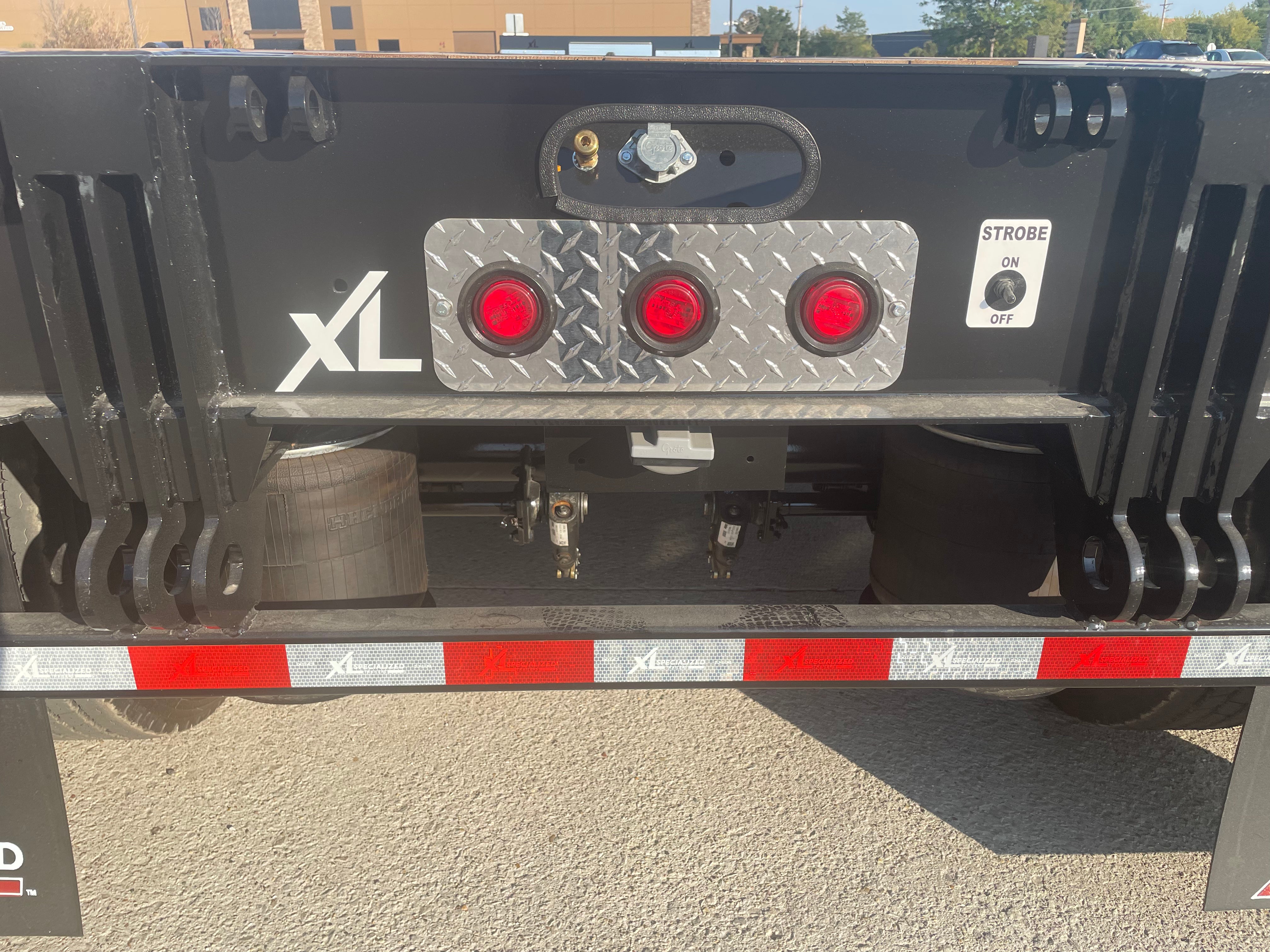

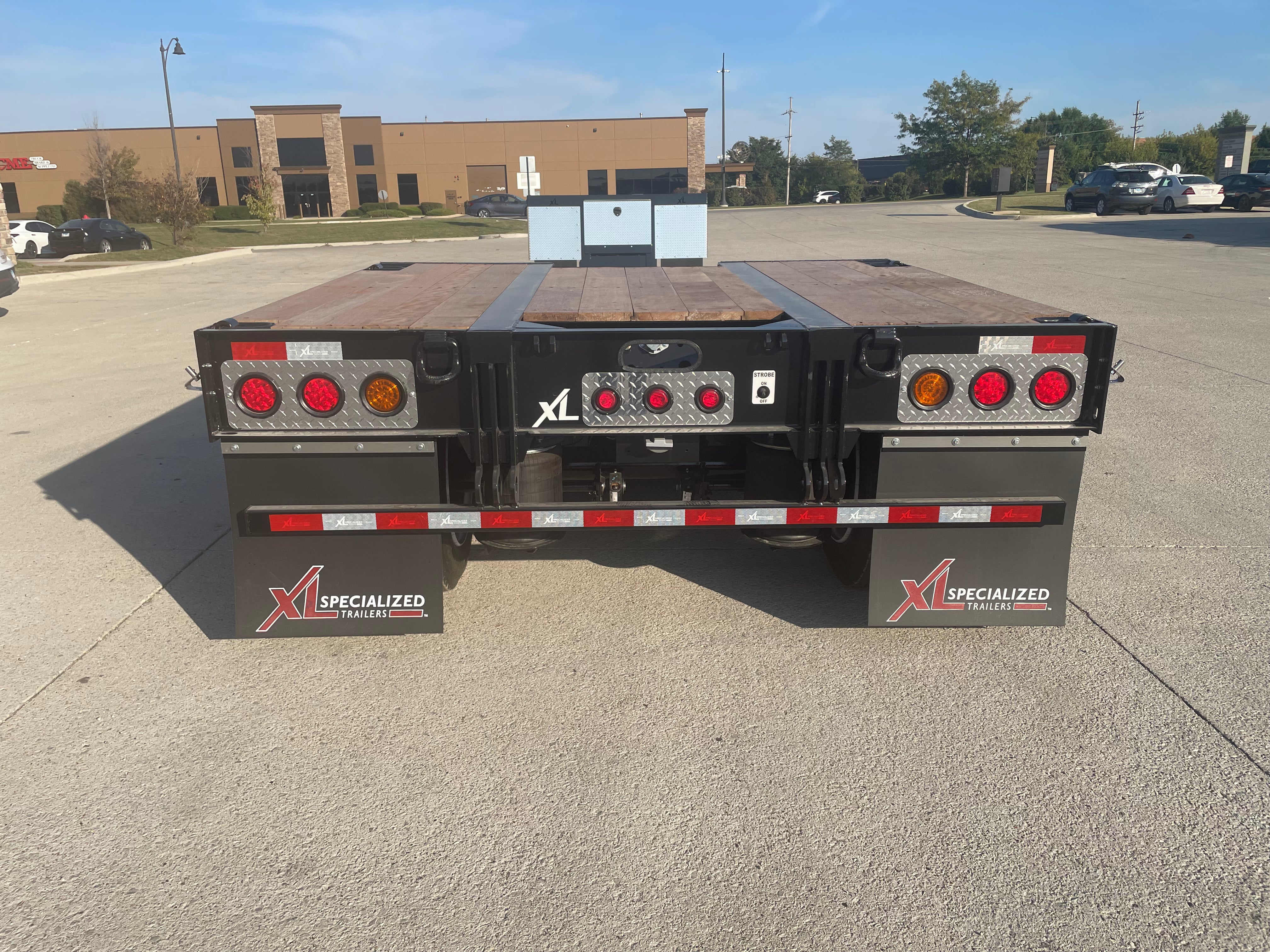

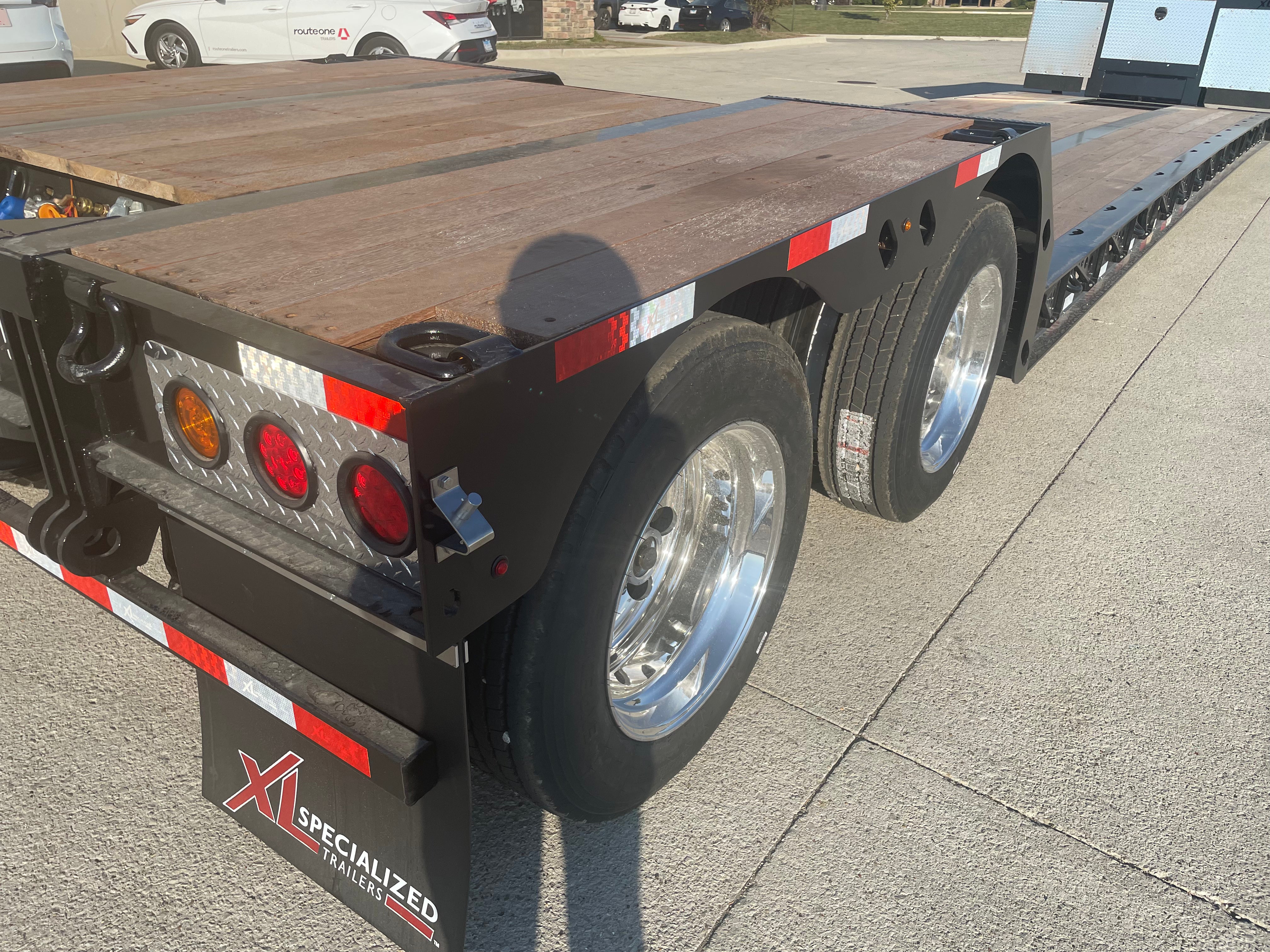

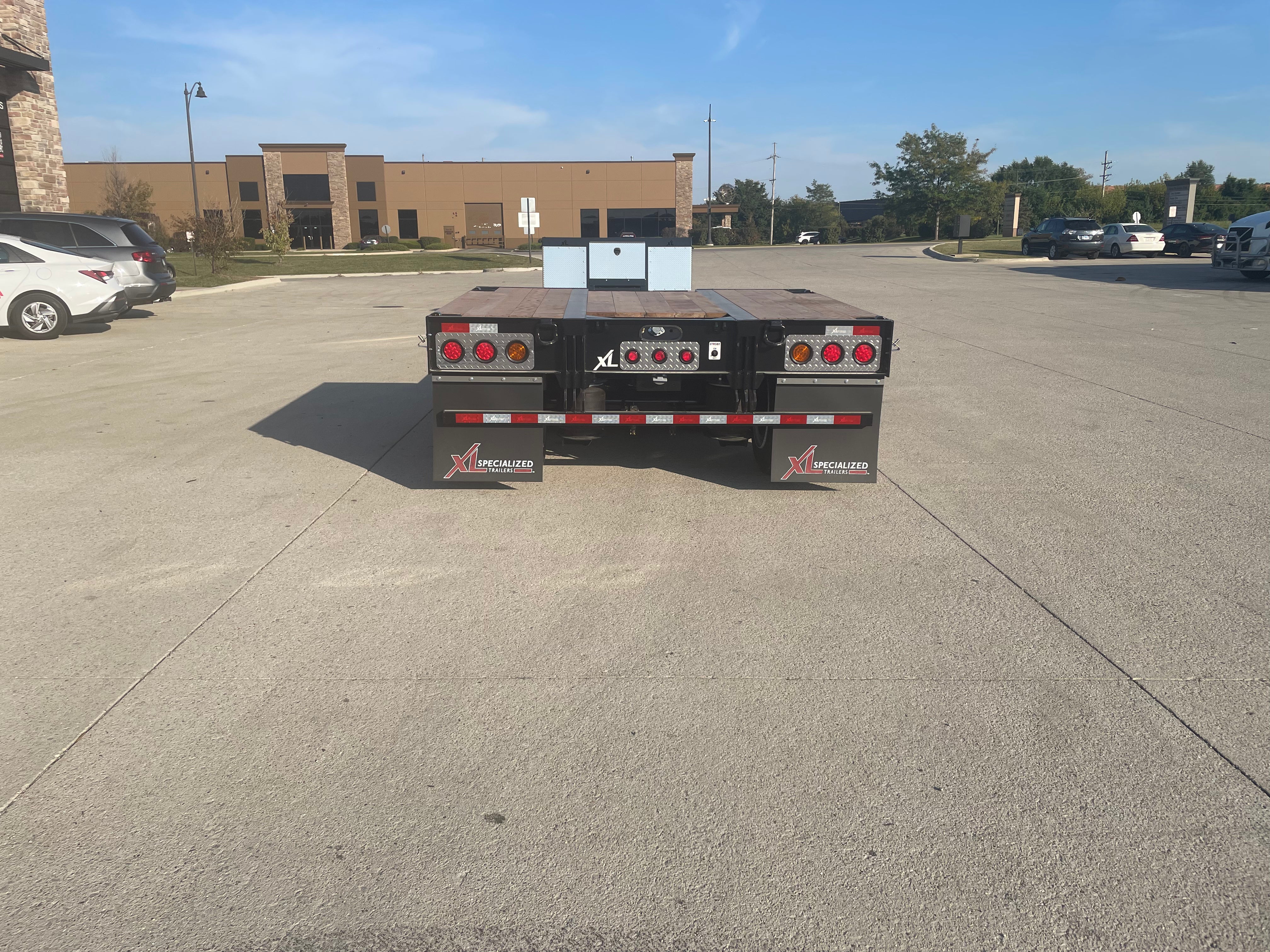

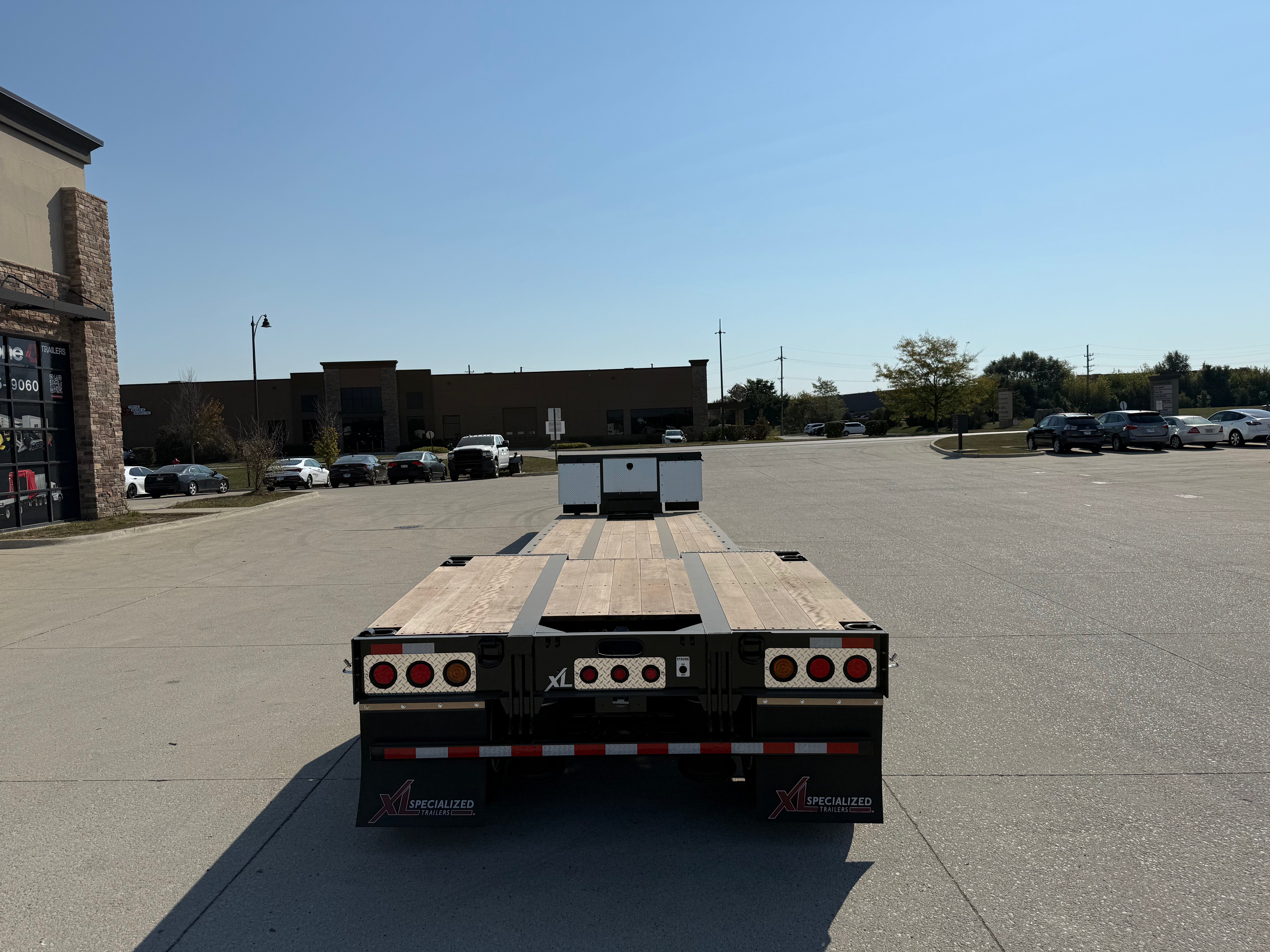

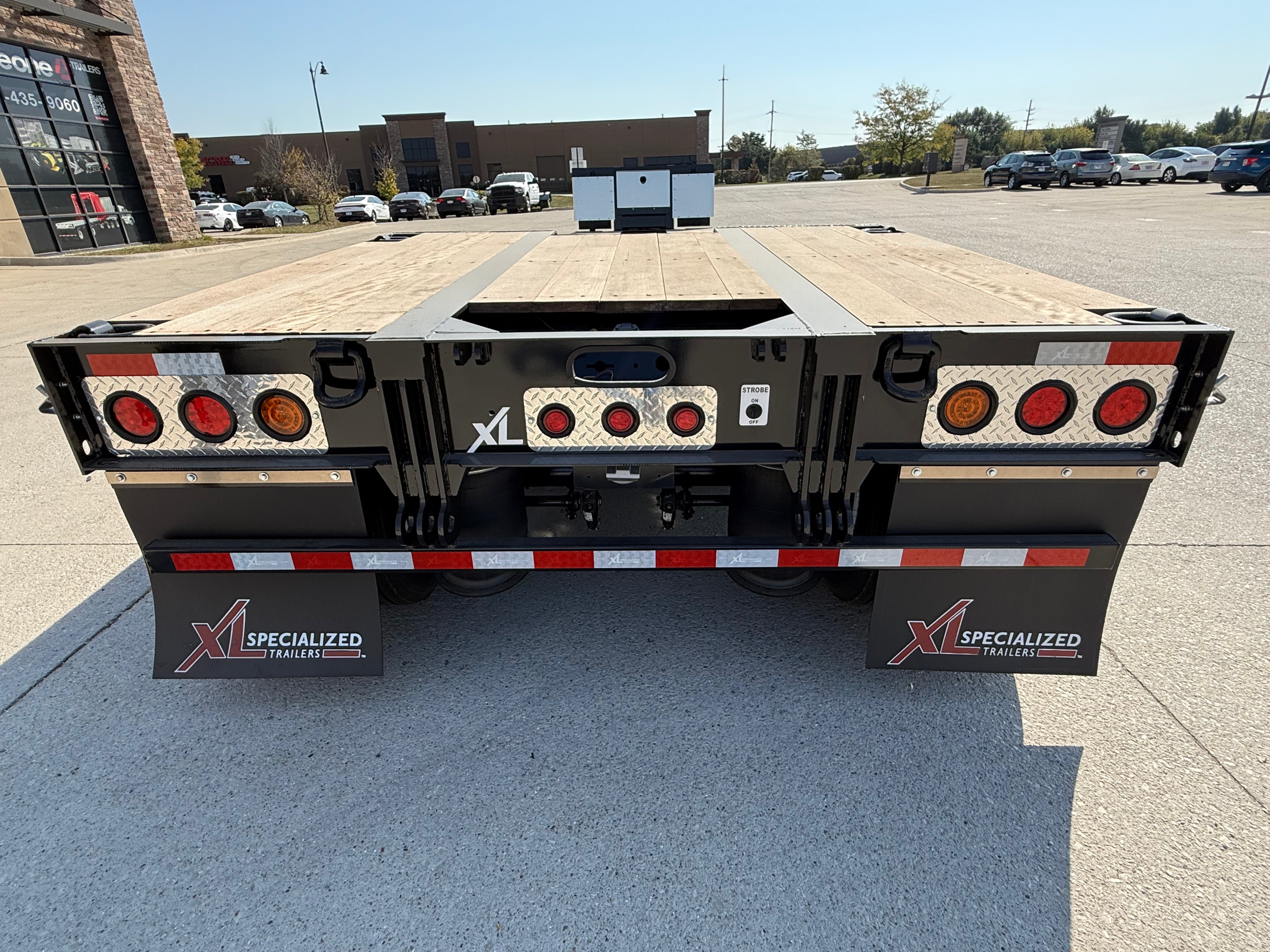

3 Tail Light Package w/ Aluminum Cover
4” Amber Strobe as 3rd Tail Light
Prepped for a Flip Axle

5 Year Structural Warranty
3 Year Paint Warranty
1 Year Parts & Components Warranty

Pick up in Manchester IA or East Dundee, IL
Financing Available
Coming in Late September
Call Ross 224-335-7786
