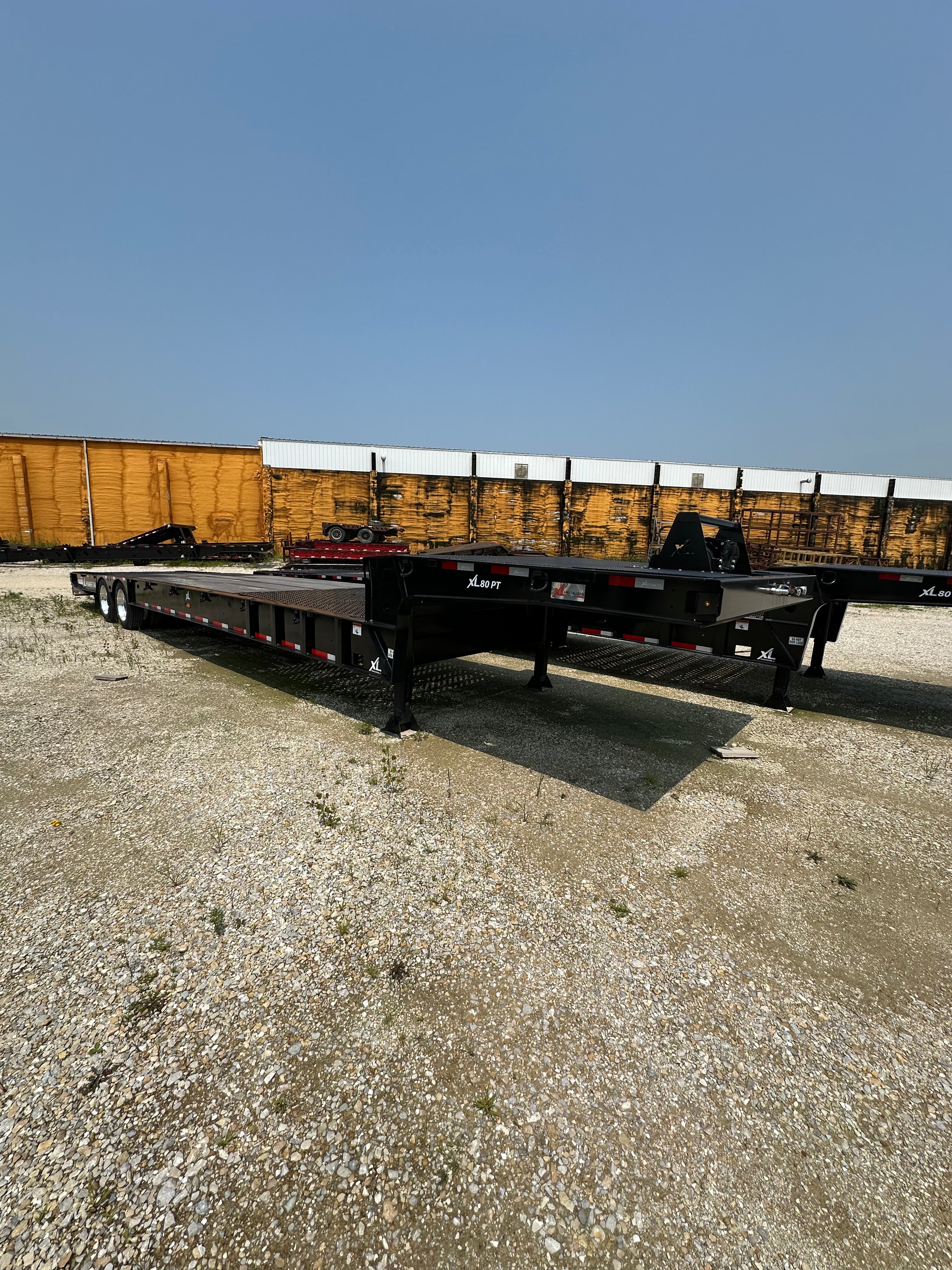

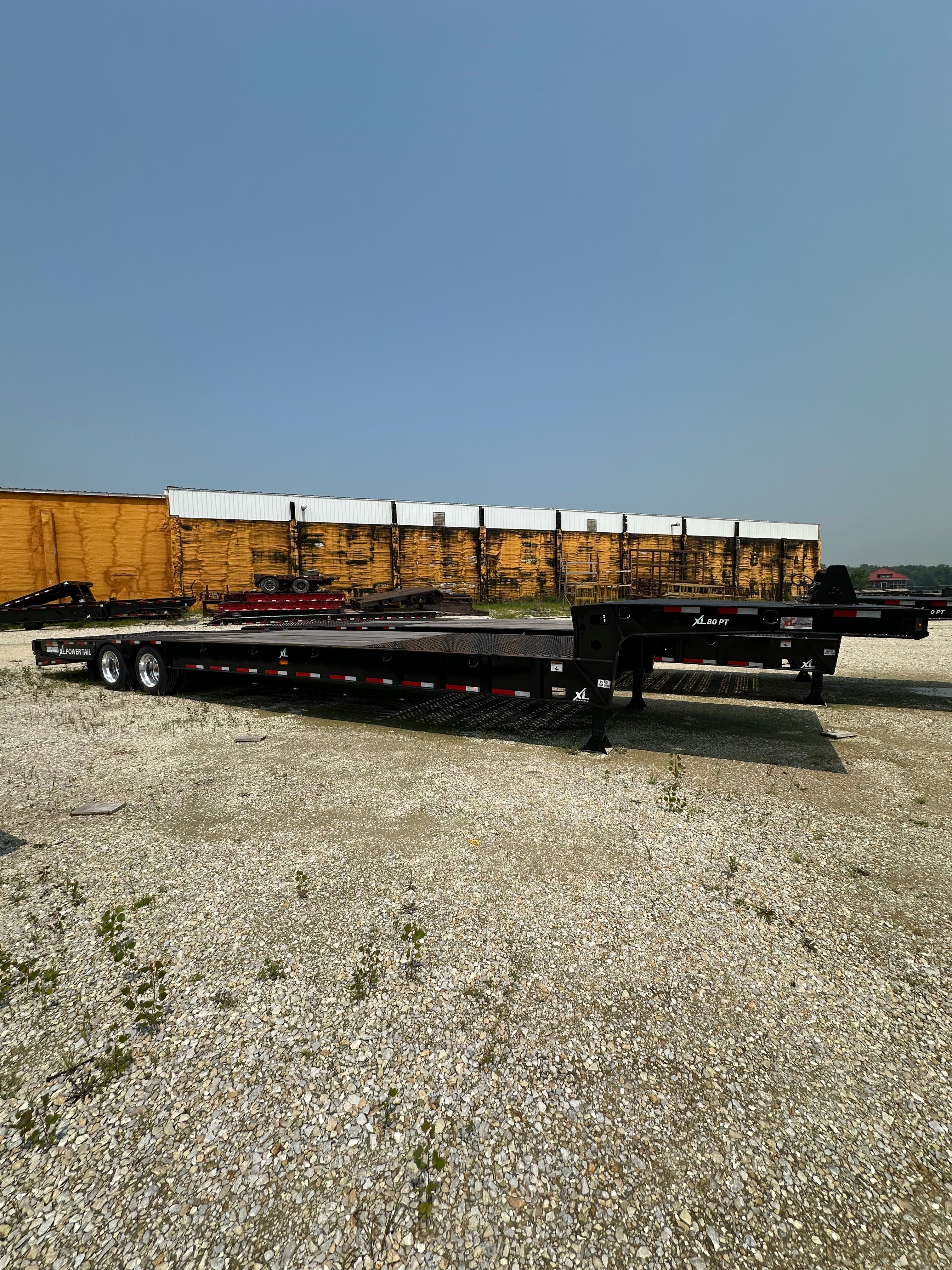

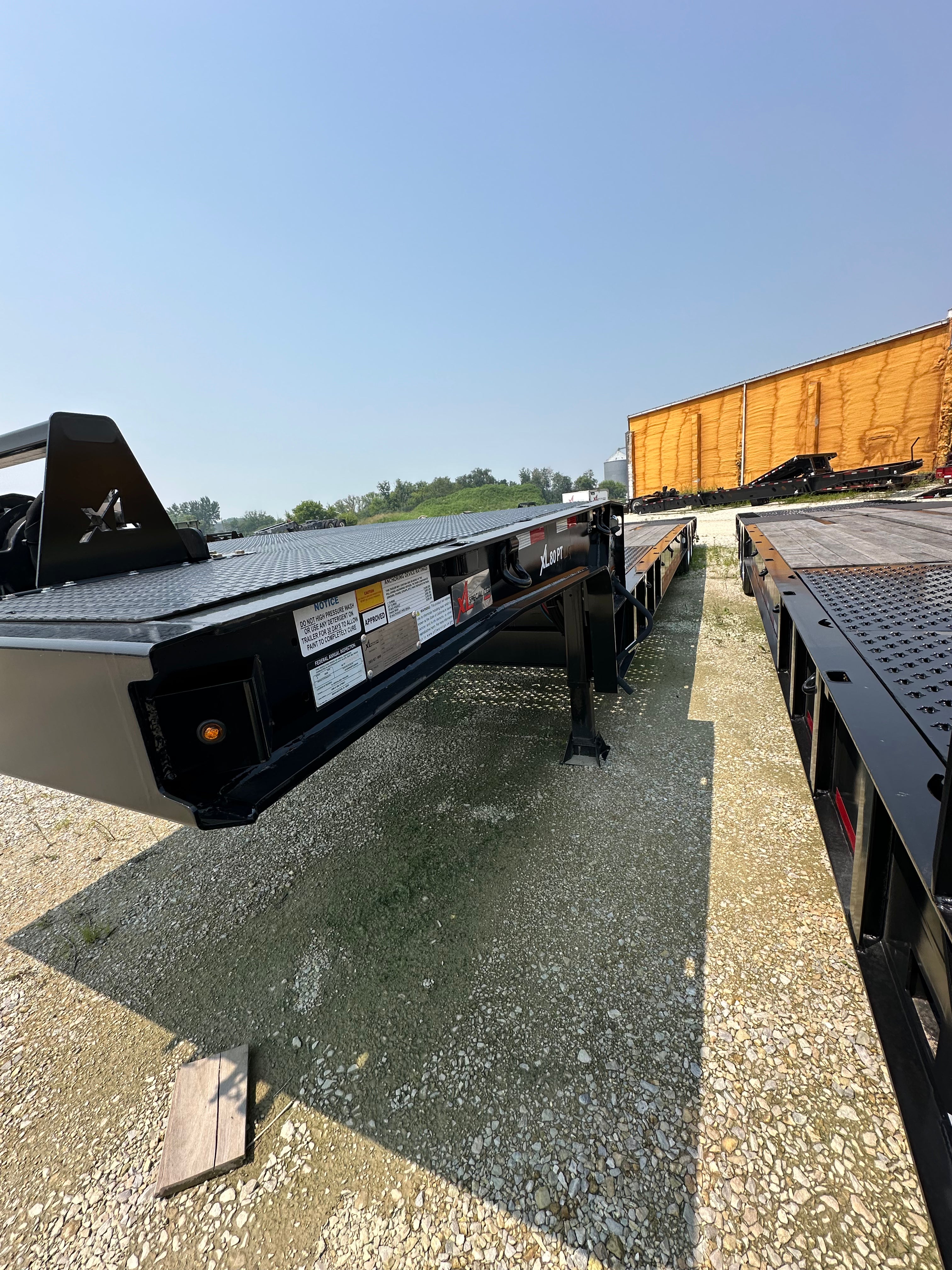

2026 XL 80 PT
48’ X 102”
Total Capacity 80,000 lbs. - 50,000 lbs. In 10’
Weight - 18,687 lbs

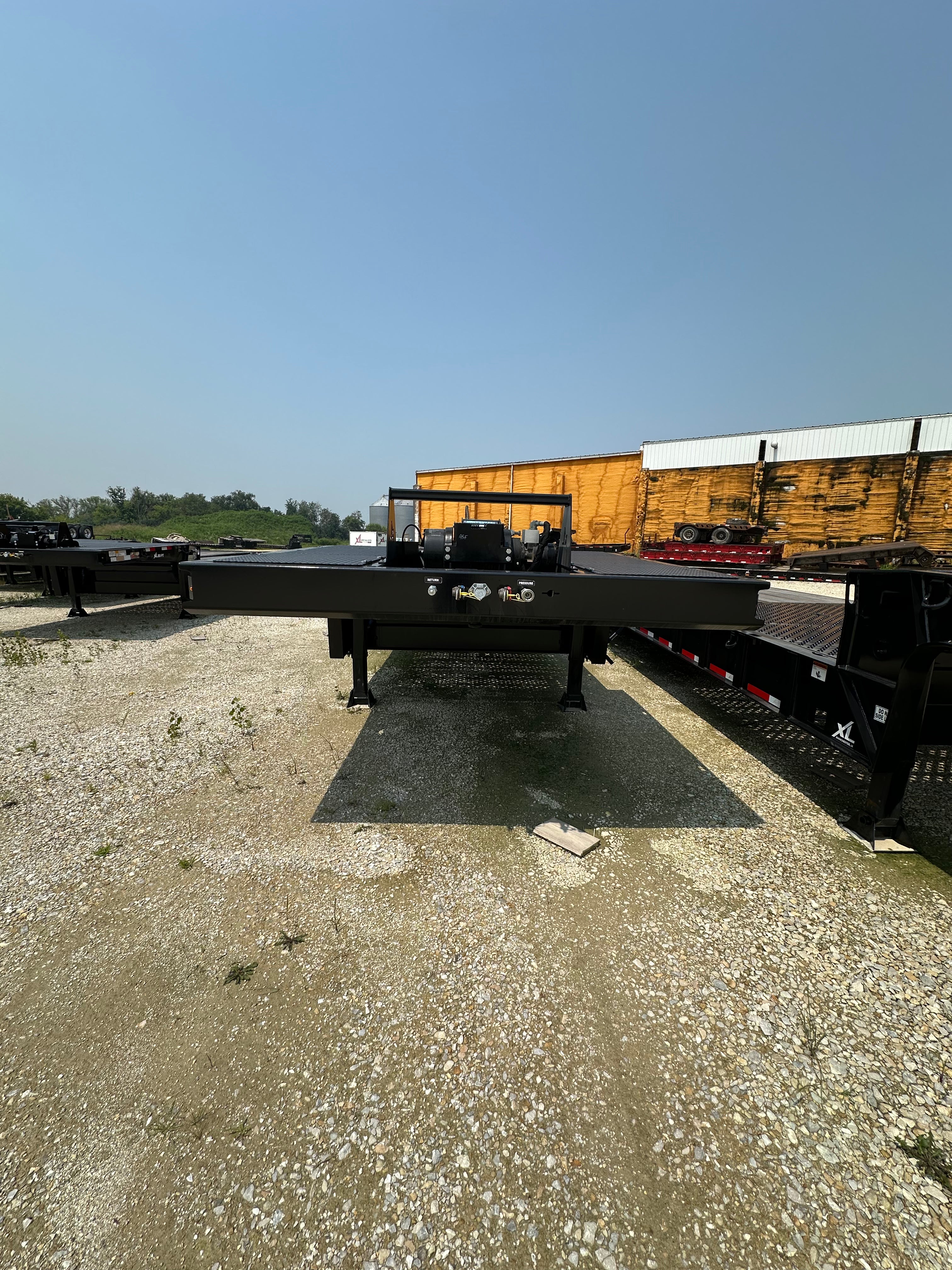

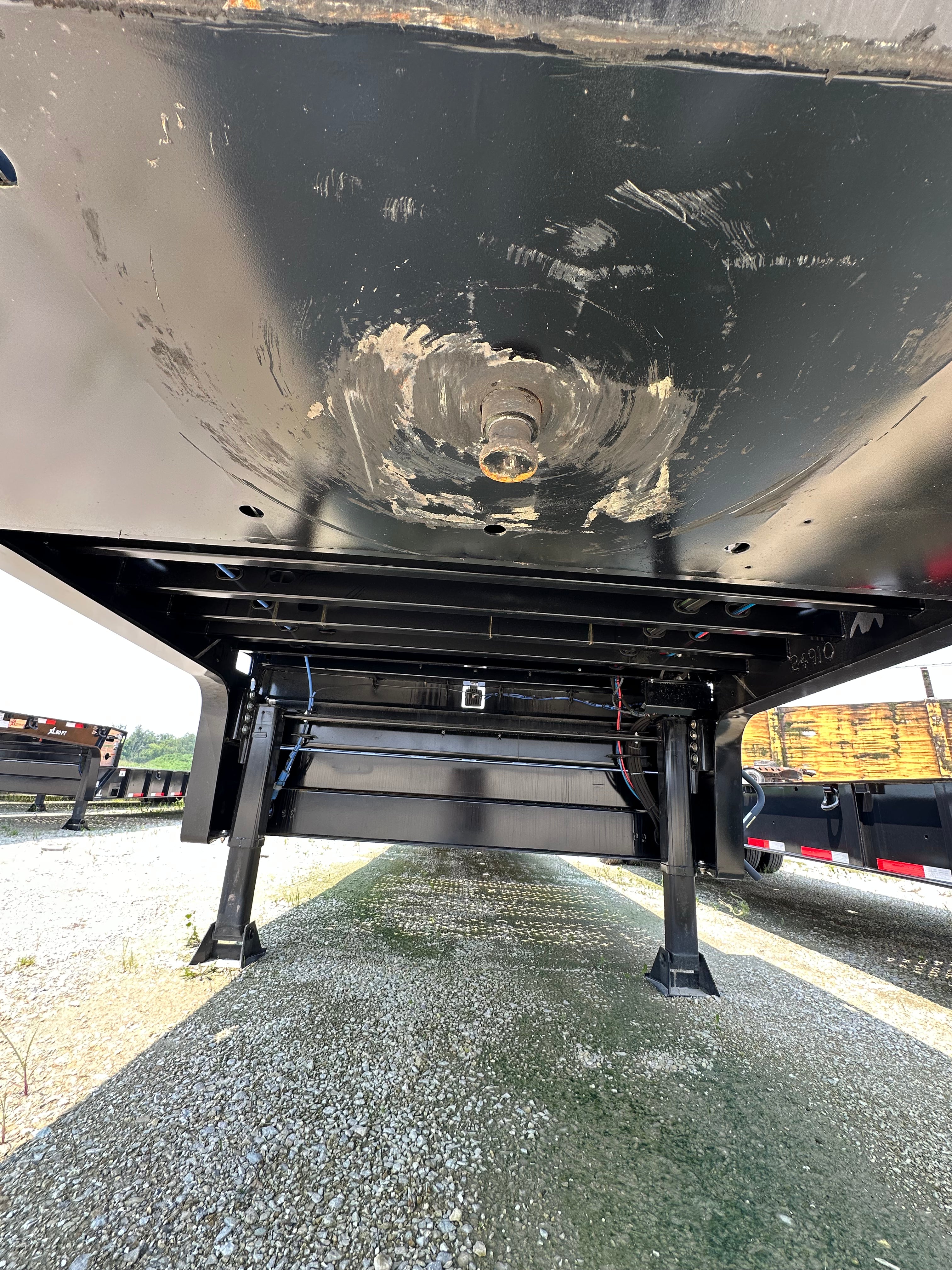

Full-Width Gooseneck
Neck Length - 9’ w/ 90° Slope
Kingpin Setting - 16”
Swing Clearance - 86”
5th Wheel Height - 49”

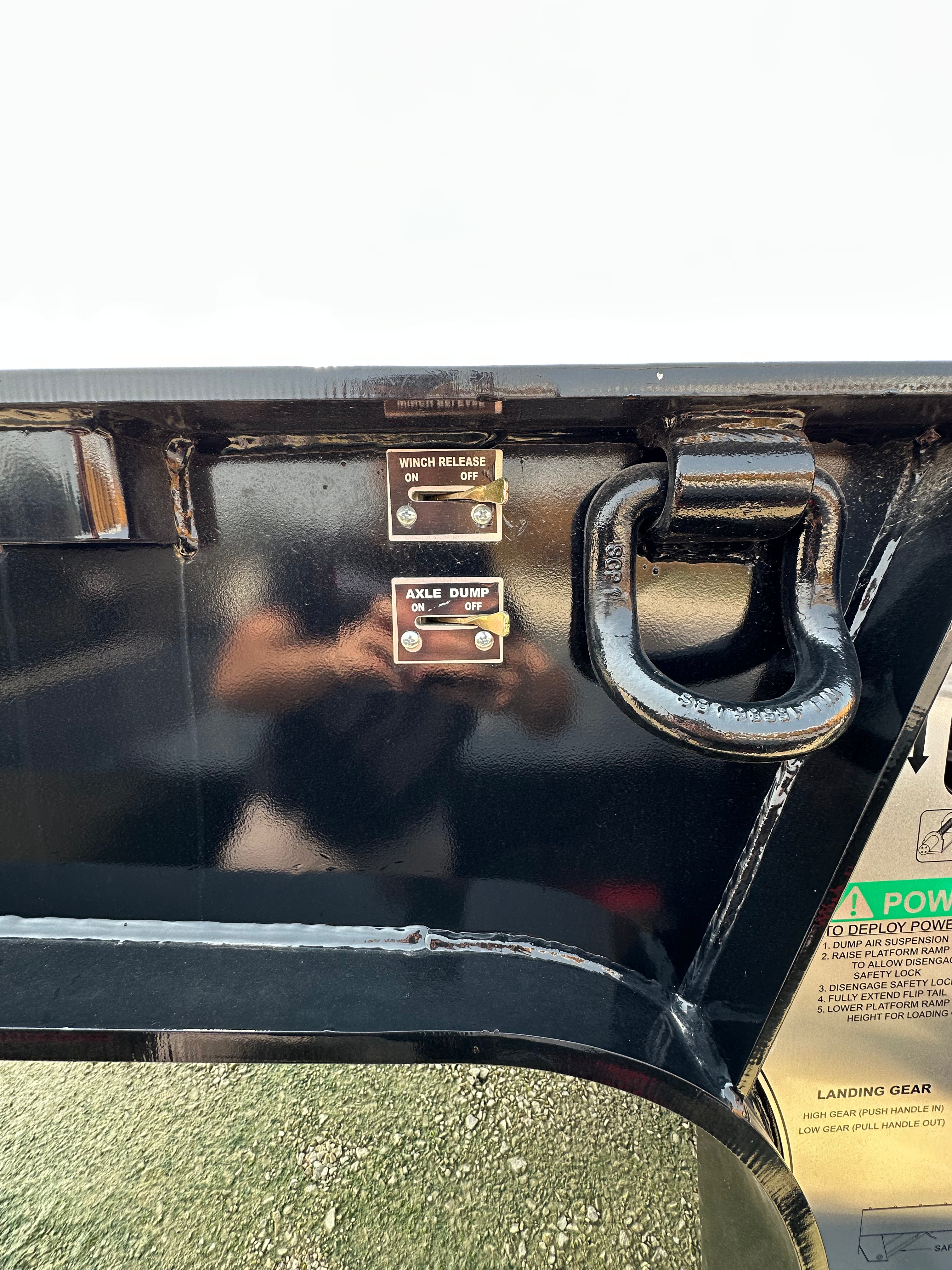

2 - Bent D-Rings Per Side
Chain Drops on 24” Centers Alternating Outside beams
Stake Pockets on 24” Centers Alternating Outside Beams

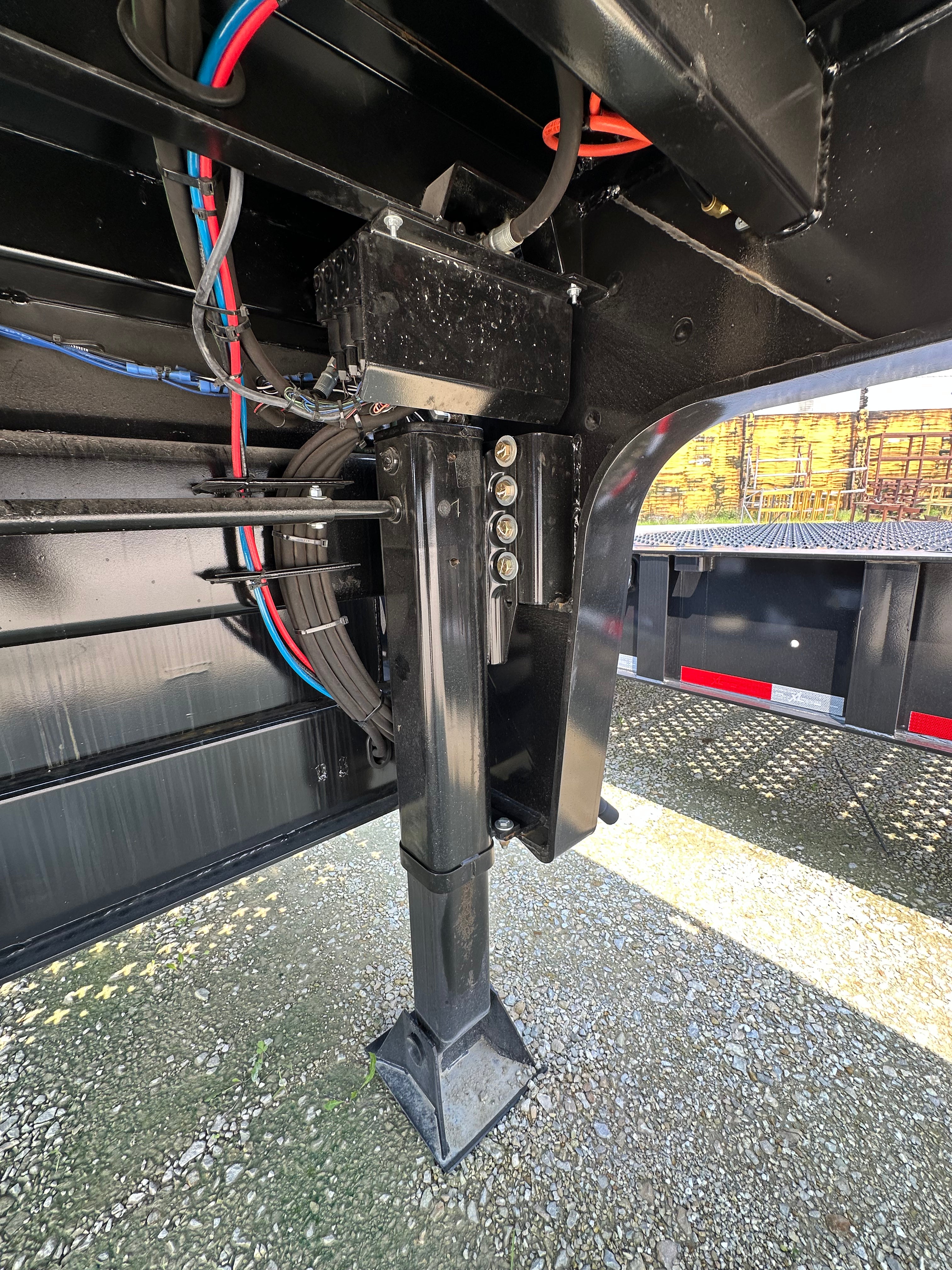

2-Speed Landing Gear
1 - Recessed Cable Roller On Rear of Gooseneck

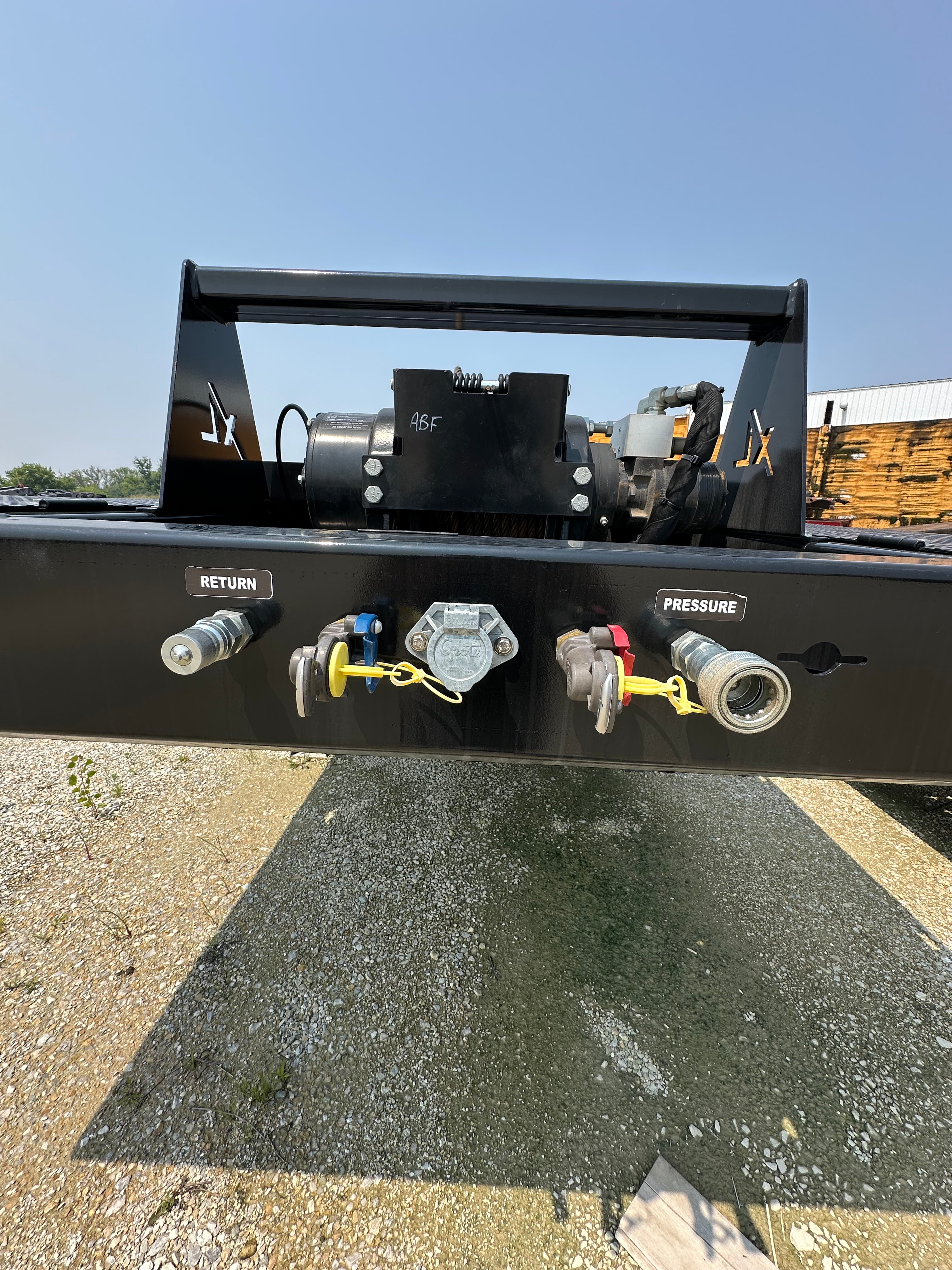

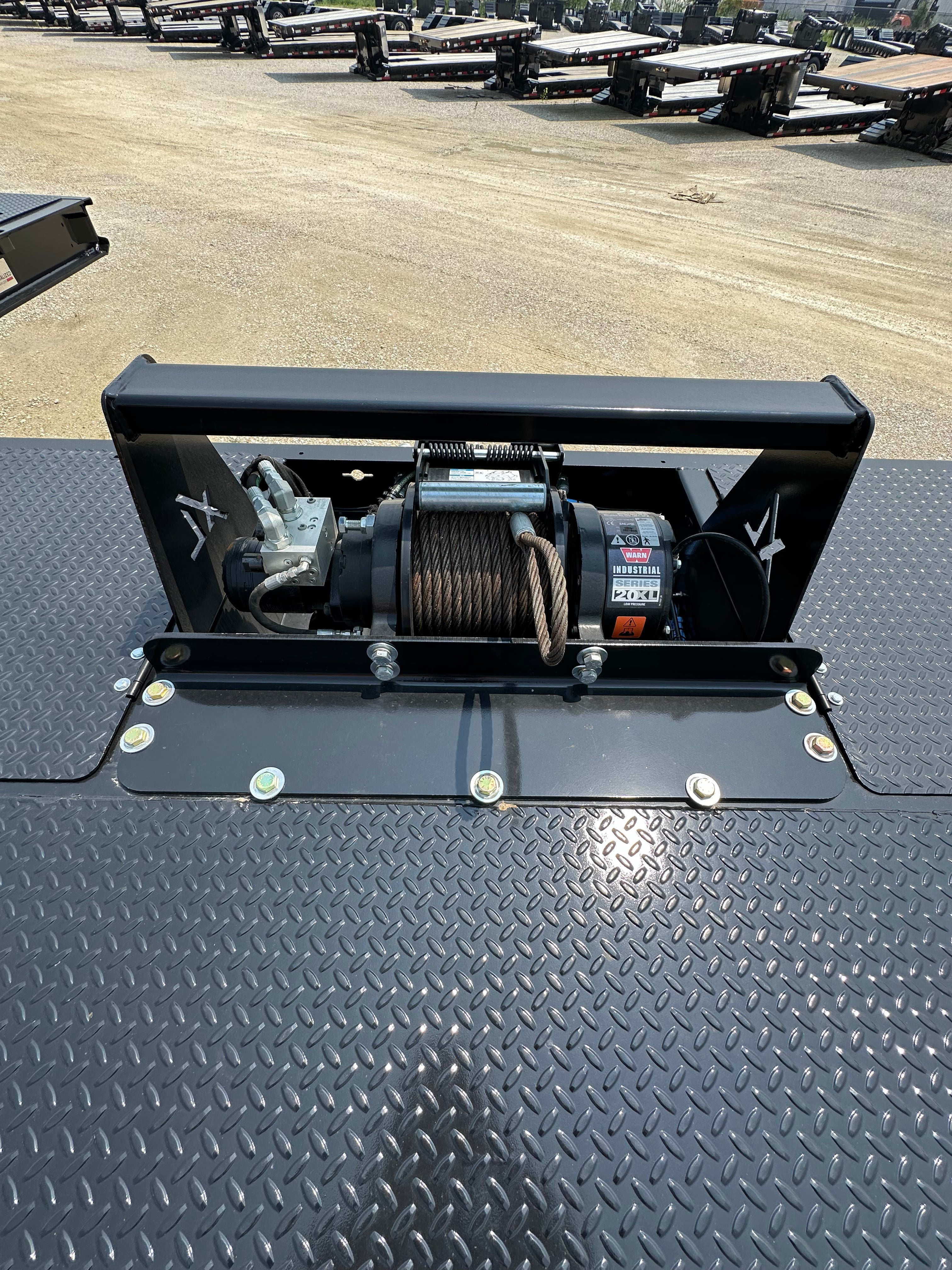

20,000lb.s Hydrolic Winch w/ 100’ of 9/16” Cable
Bolt-On Winch Guard

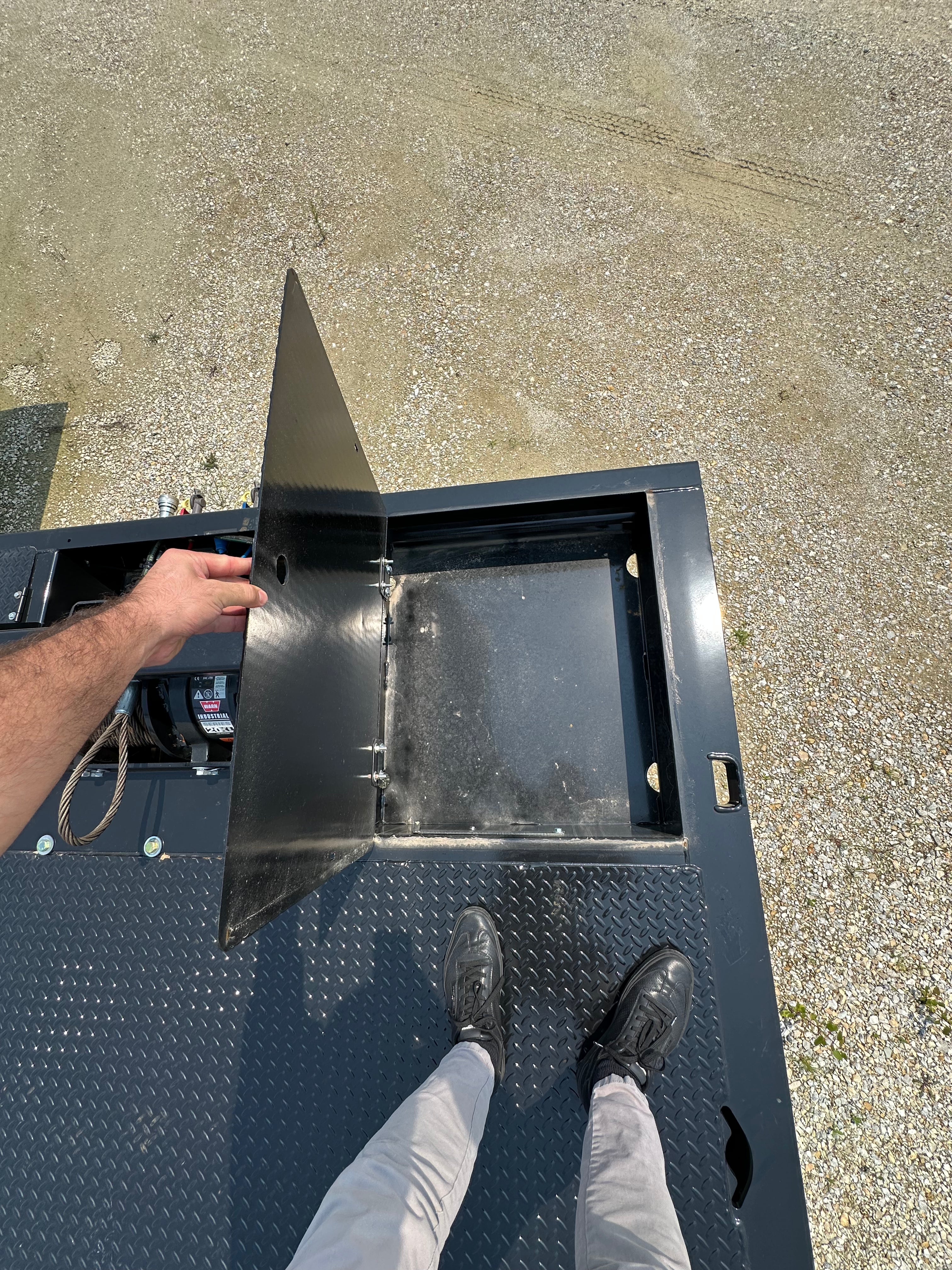

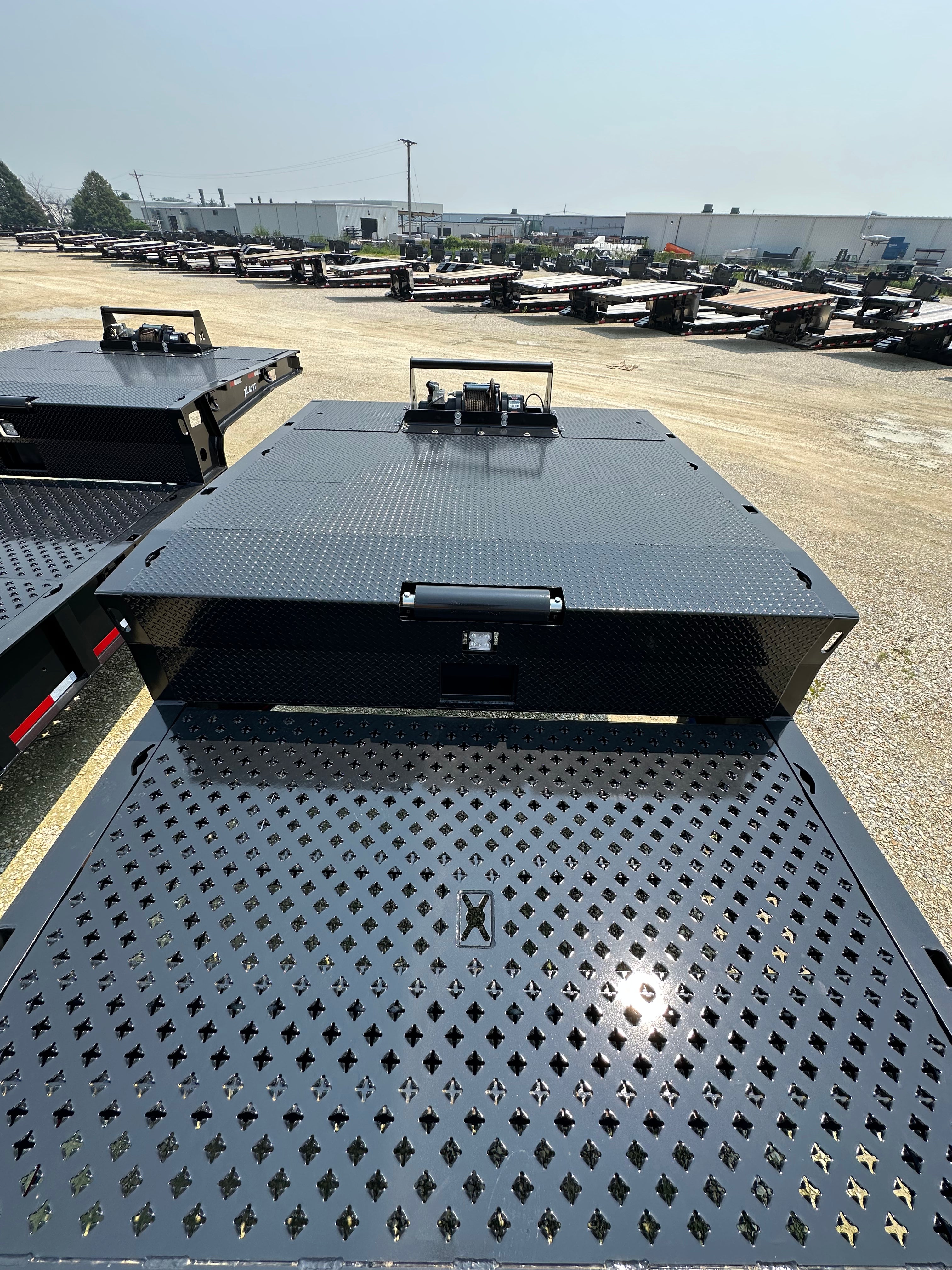

2 - Toolboxes Recessed at Top of Neck w/ Steel Lids
Bottom Deck Length - 30’ 4”
Loaded Deck Height - 39”

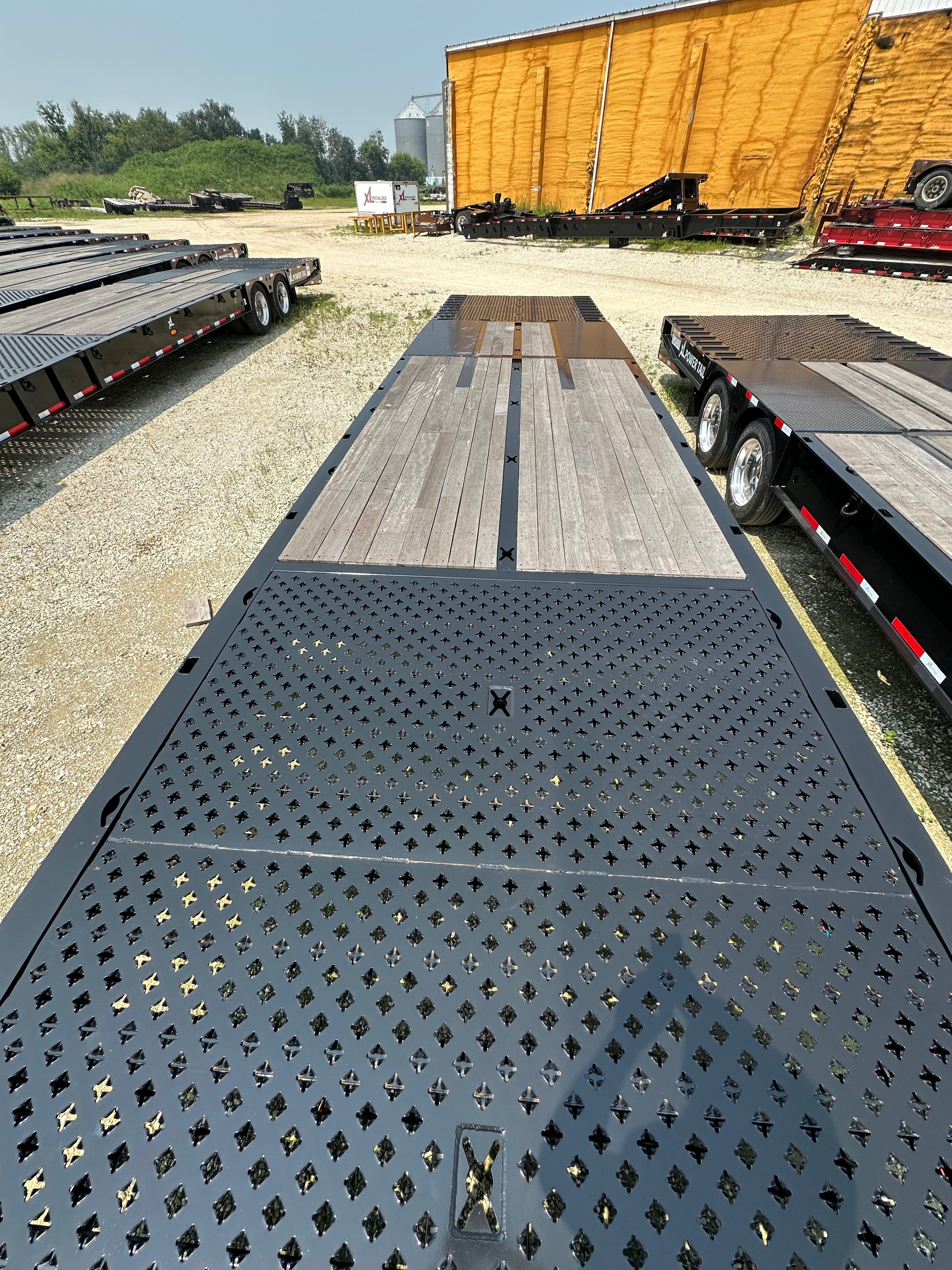

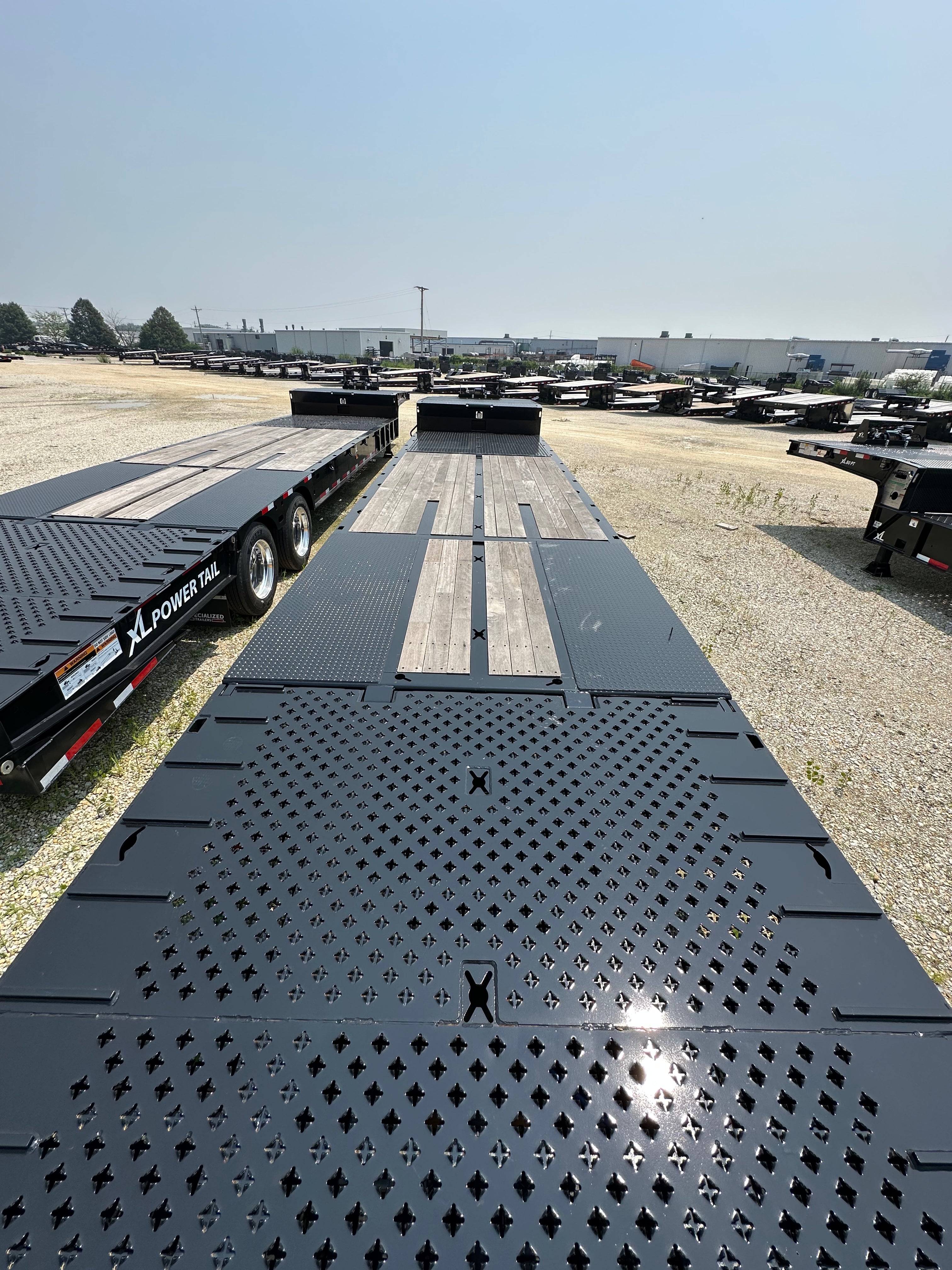

1-⅜” Apitong Decking
9’ Pop Up Ramp From Main Deck to Upper Deck
5 - Bent D-Rings Per Side
Chain Drops on 24” Centers Alternating Outside beams
Chain Drops on 48” Centers Down Center of Trailer
Stake Pockets on 24” Centers Alternating Outside Beams

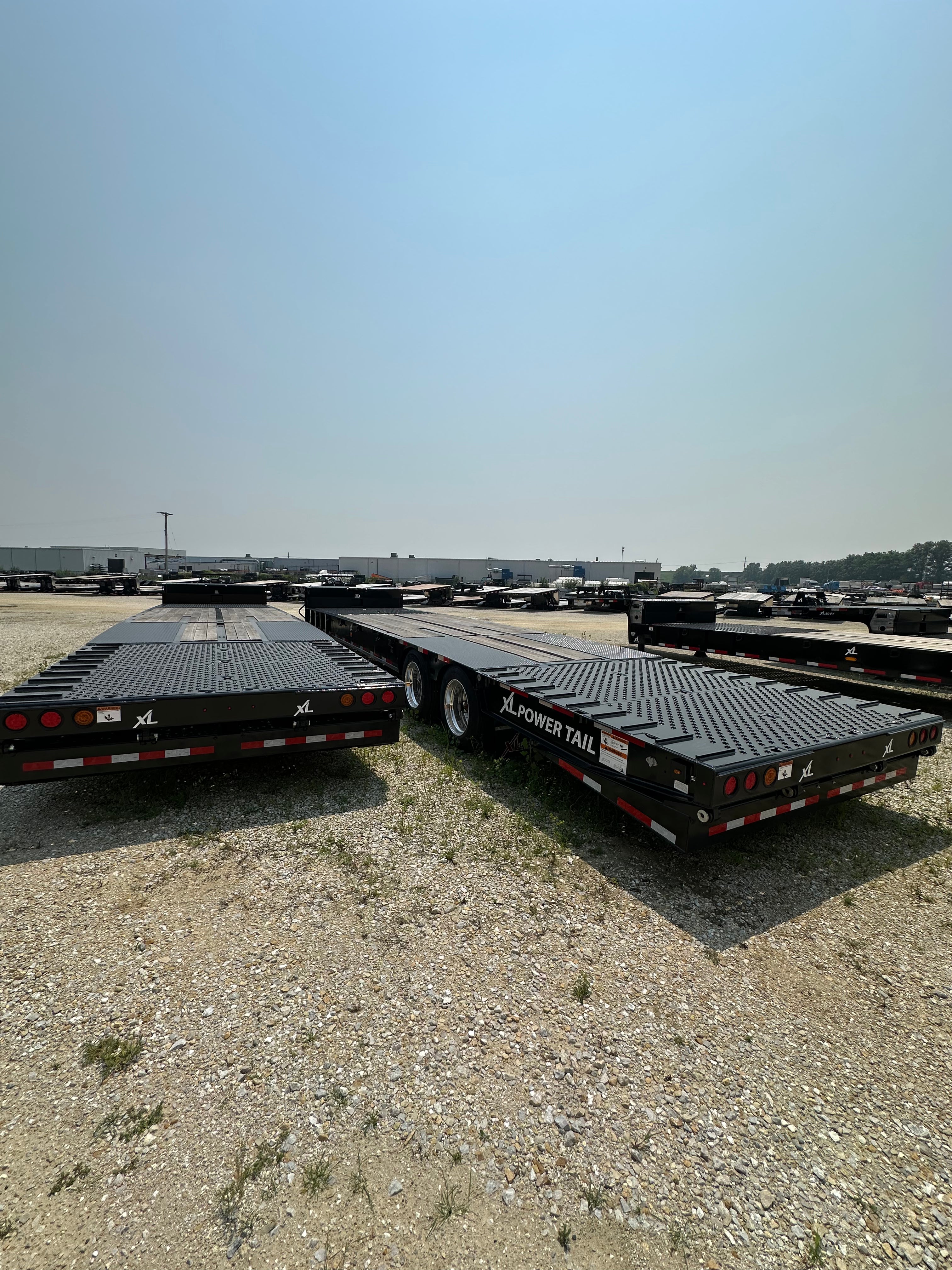

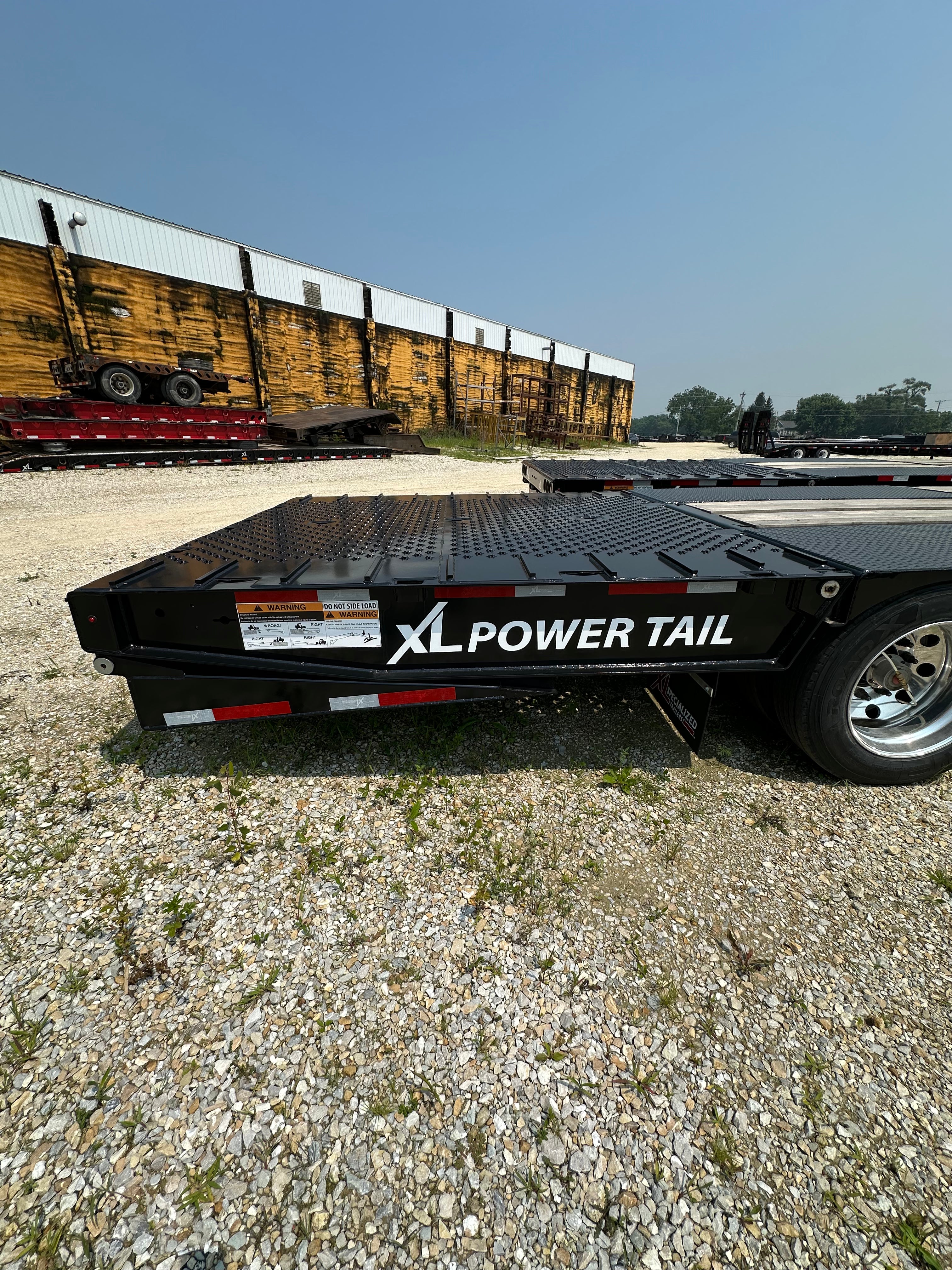

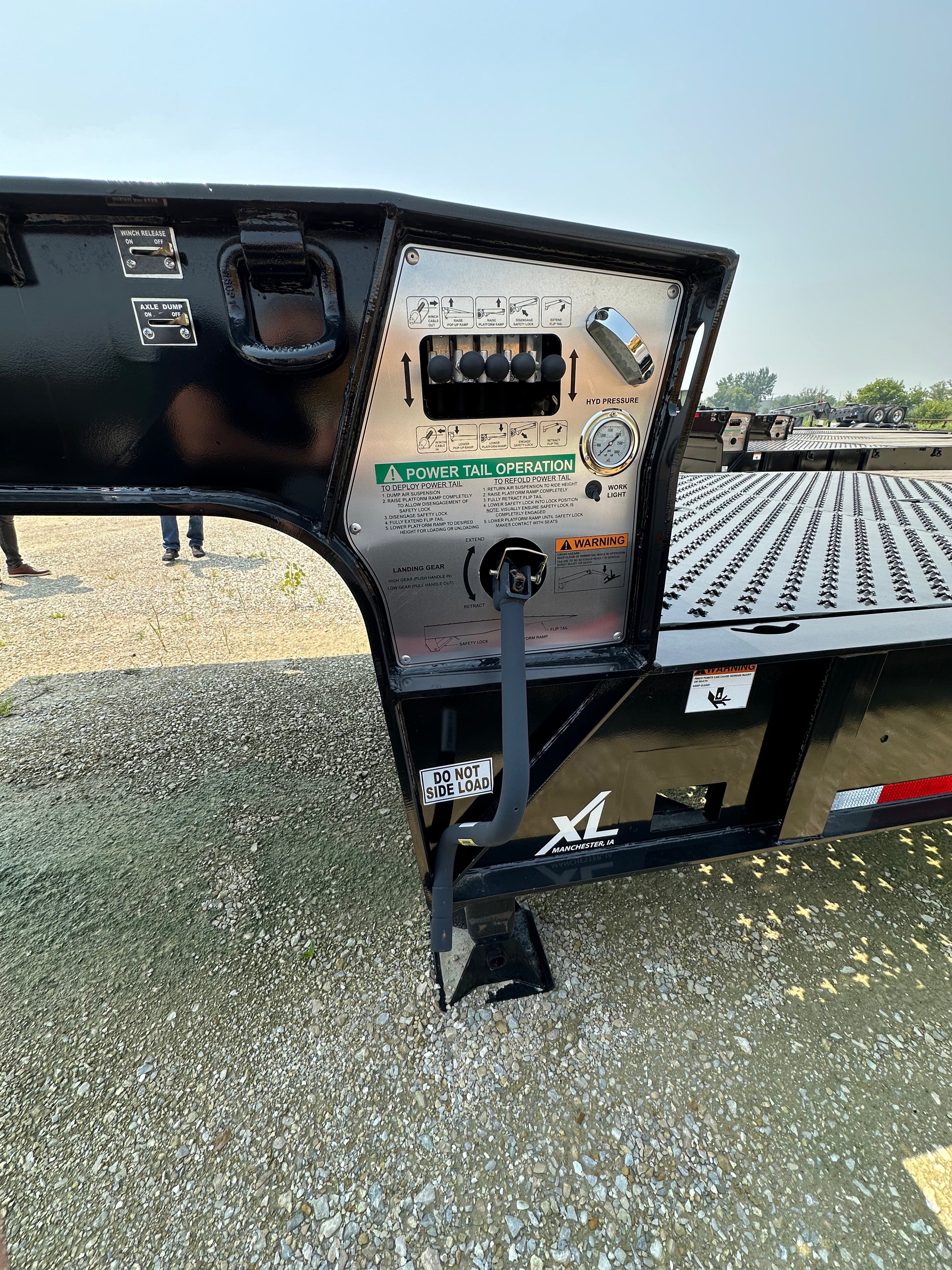

13’ 8” Hydraulic Tail w/ 60” Fold Under
8’ 8” Platform
Automatic Flip Tail Lock
Traction Aids
Star Traction Plate
Standard Counter Balance Hydraulic Valve For Protection
Tire Inflation System
Air Dump on All Axles
Liquid Filled Air Gauge

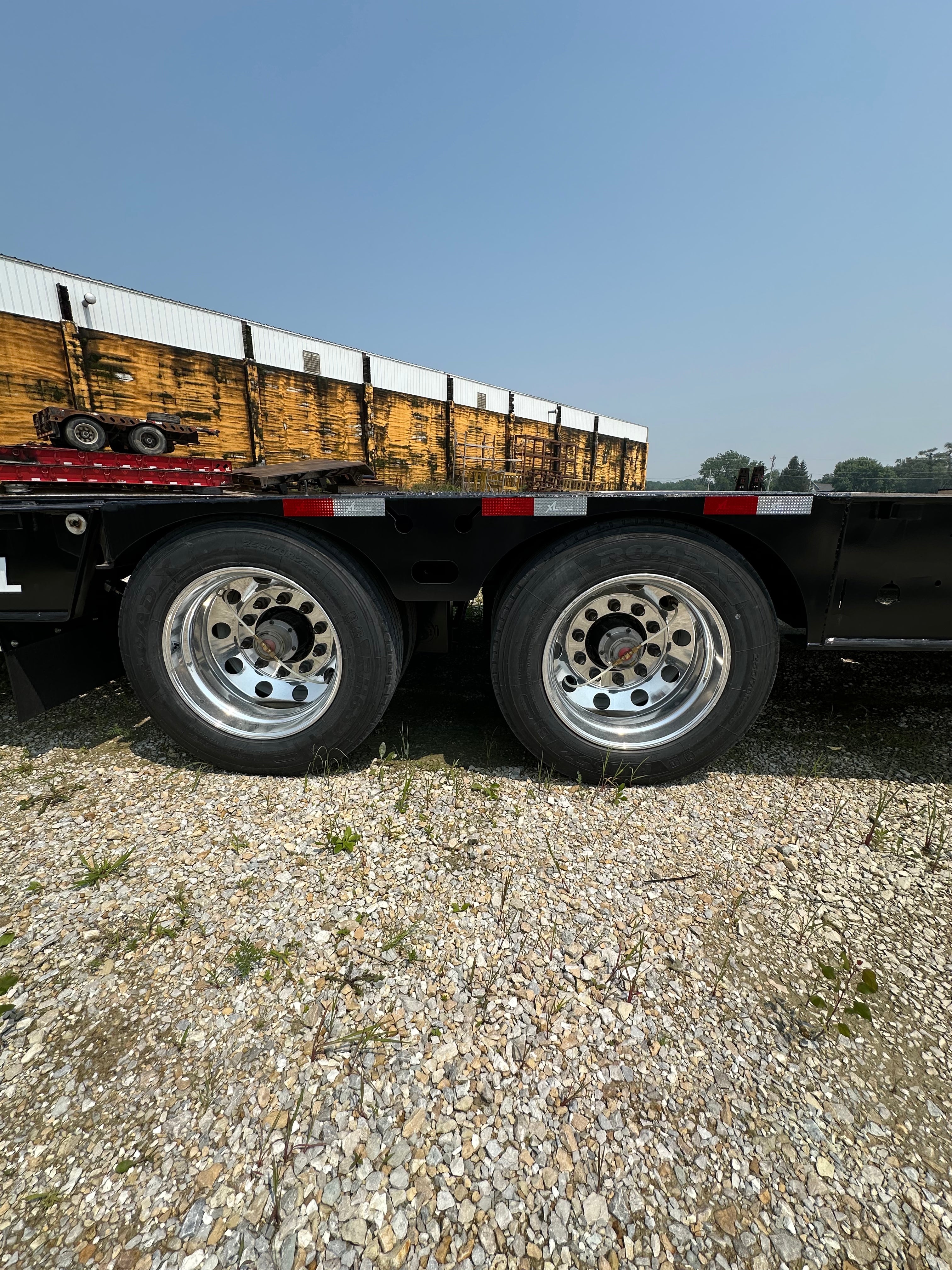

Hendrickson Suspension
Air Ride Suspension
Hubometer on D/S Rear Axle

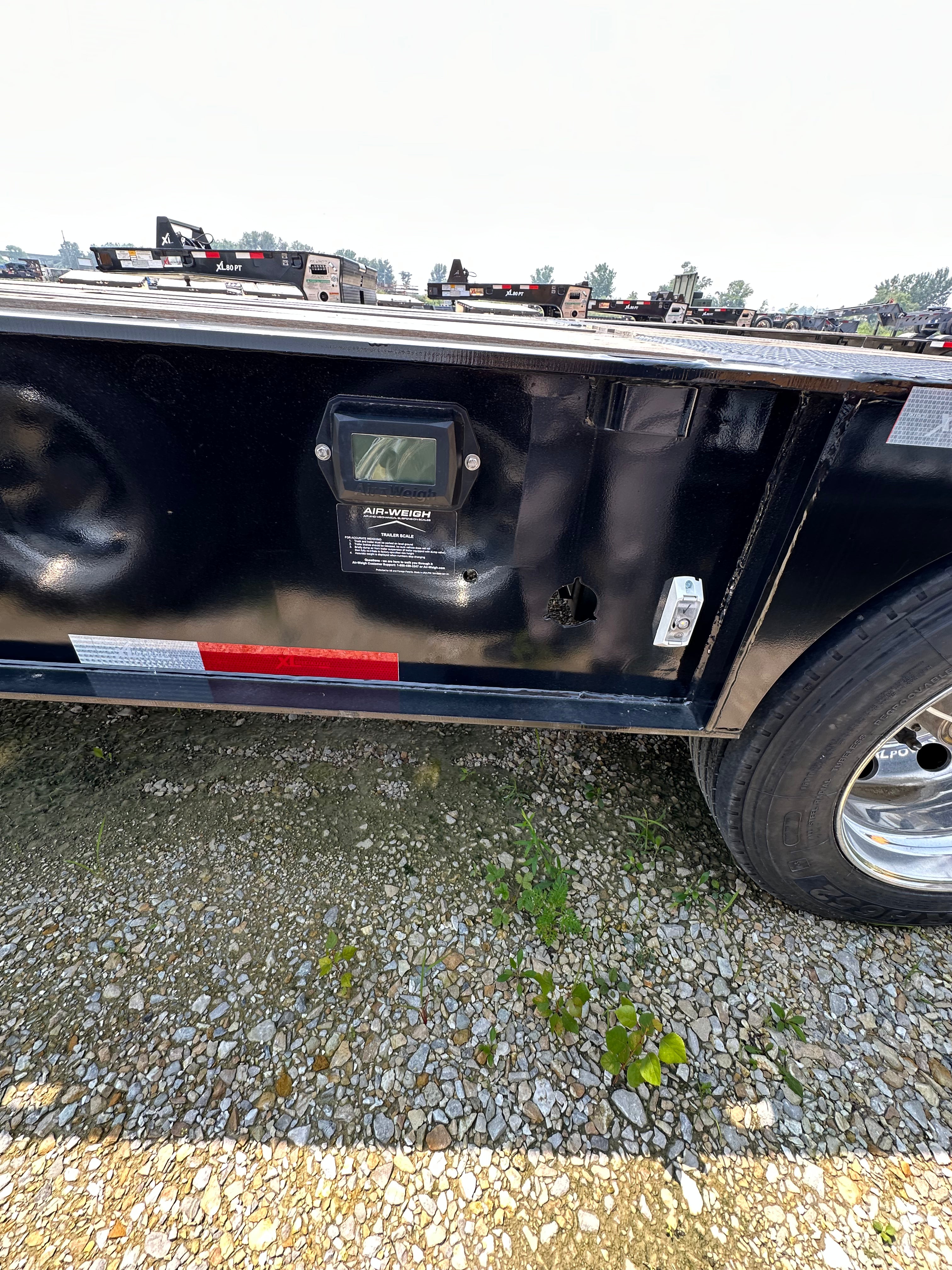

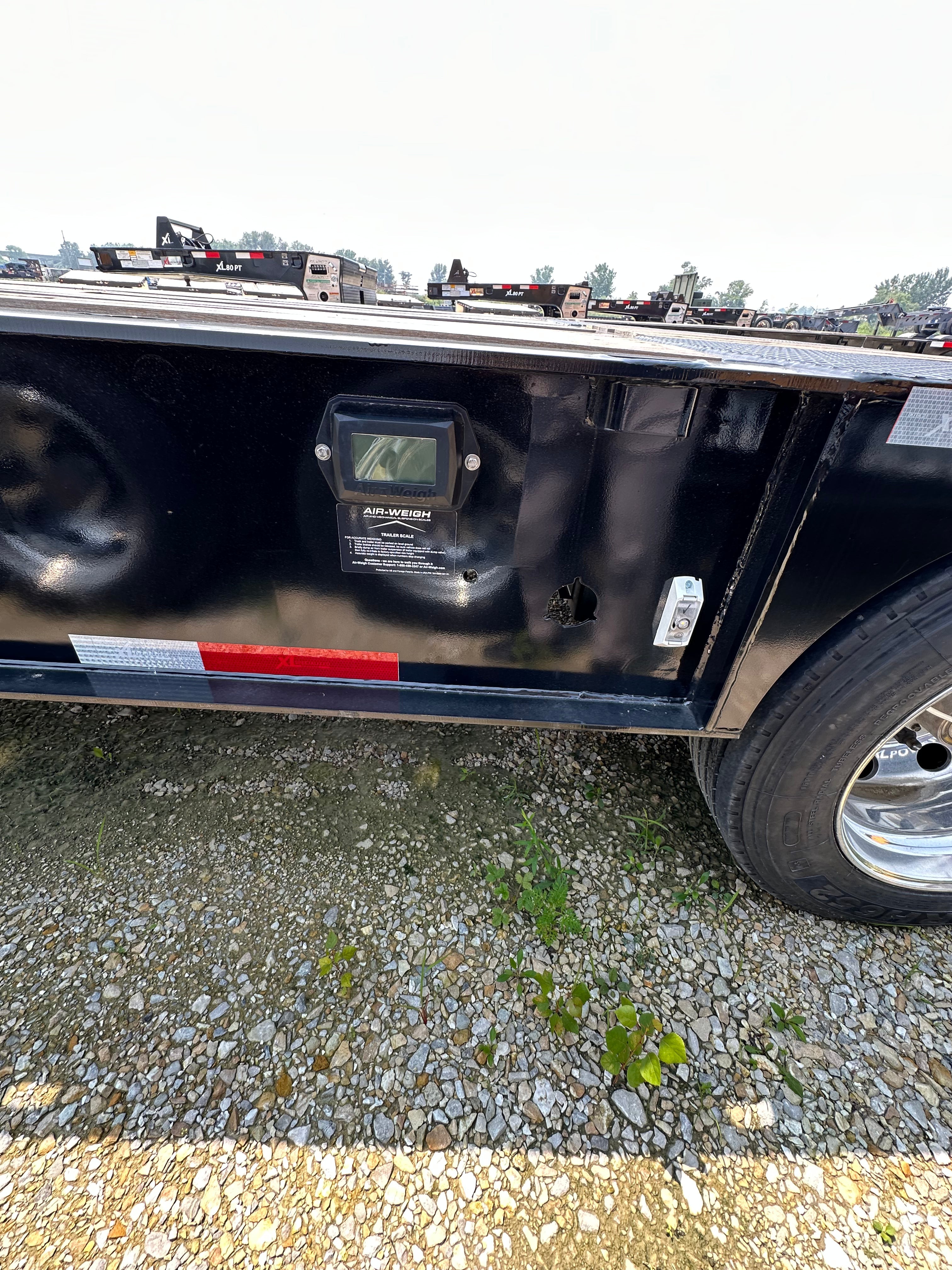

Air Weight Scale

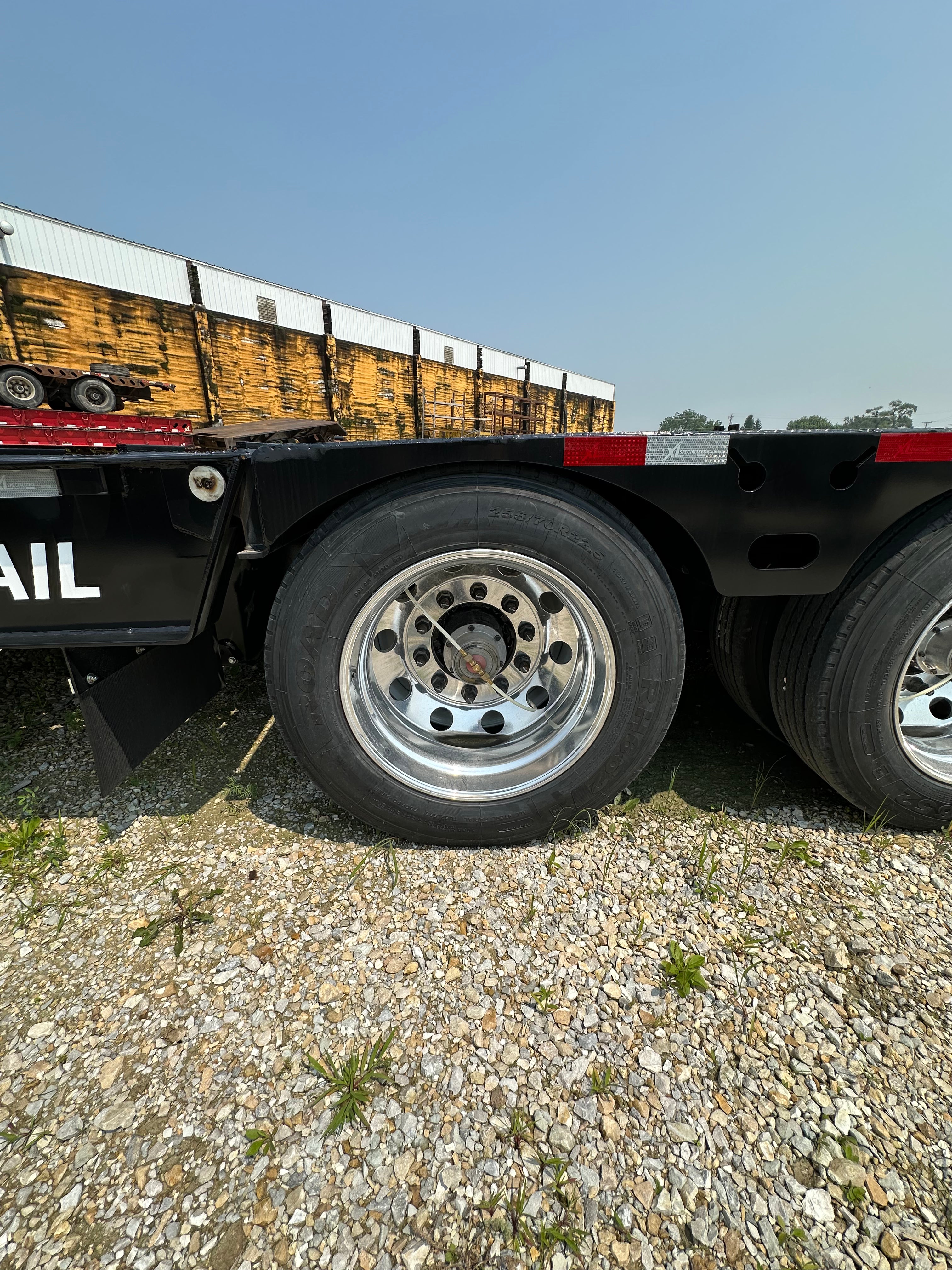

245/70R17.5 Tires
Outside Aluminum
12V Sealed Grote Harness

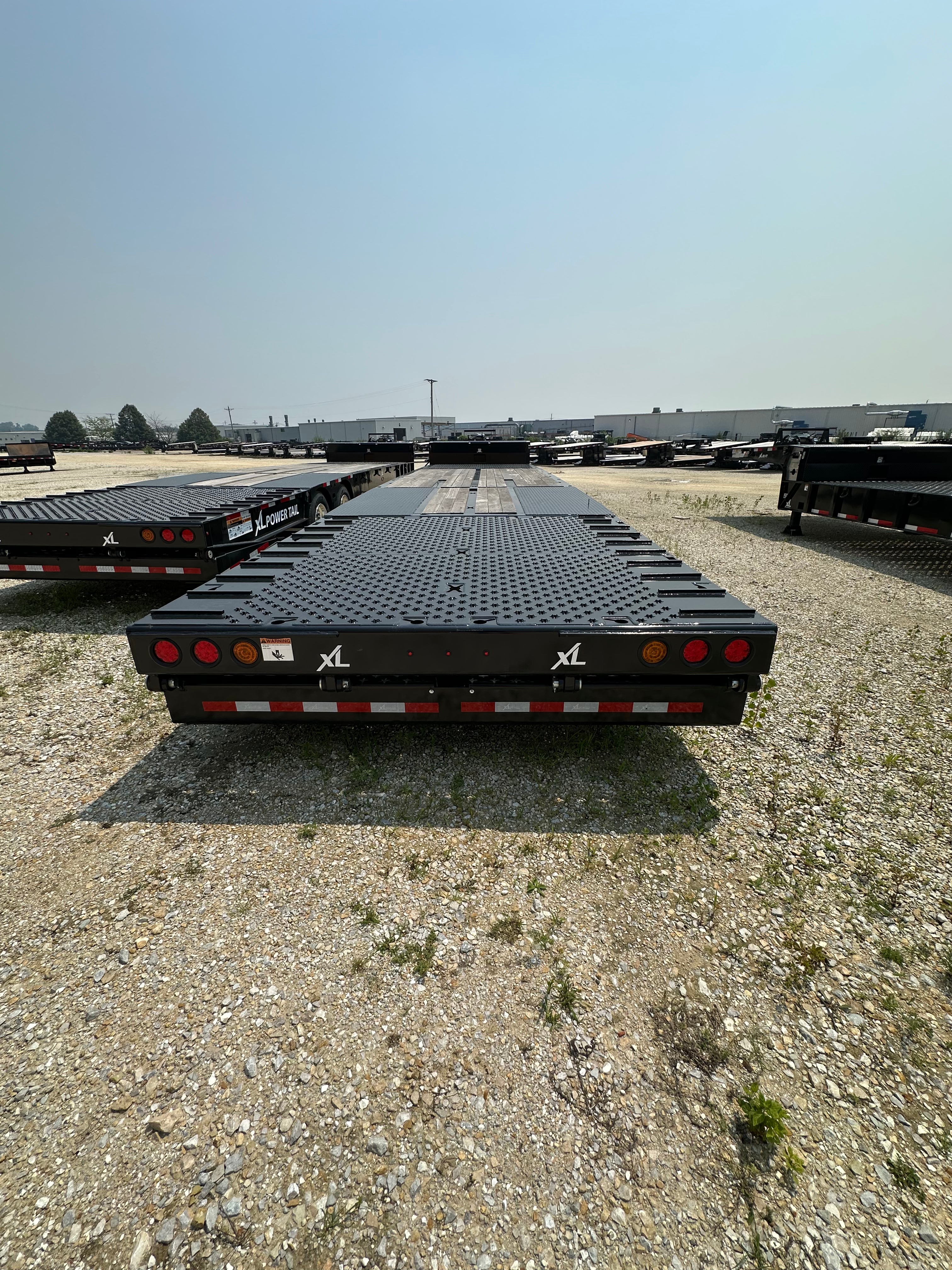

3 Tail Light Package w/ Aluminum Cover
Amber Strobe as 3rd Tail Light
Additional 4-Way Plug
10 Function Wireless Remote
5 Year Structural Warranty
3 Year Paint Warranty
1 Year Parts & Components Warranty
