2027 XL 70 HDGS - Mini Deck
- Condition: New
- Width: 102"
- Length: 53'
- Weight:
- Front wheels: Outside Aluminum
- Front tire size: 255/70 R22.5
- Suspension: Hendrickson
- Wheel type: Outside Aluminum
- Tire size: 255/70 R22.5
- Tire pressure system:
- Rear wheels: Outside Aluminum
- Lift axle: N/A
- Front axle:
- Rear axle:
- Toolbox:
- Gross weight: 80,000 lbs
Description
53’ L x 102” W
Capacity - 70,000 lbs.

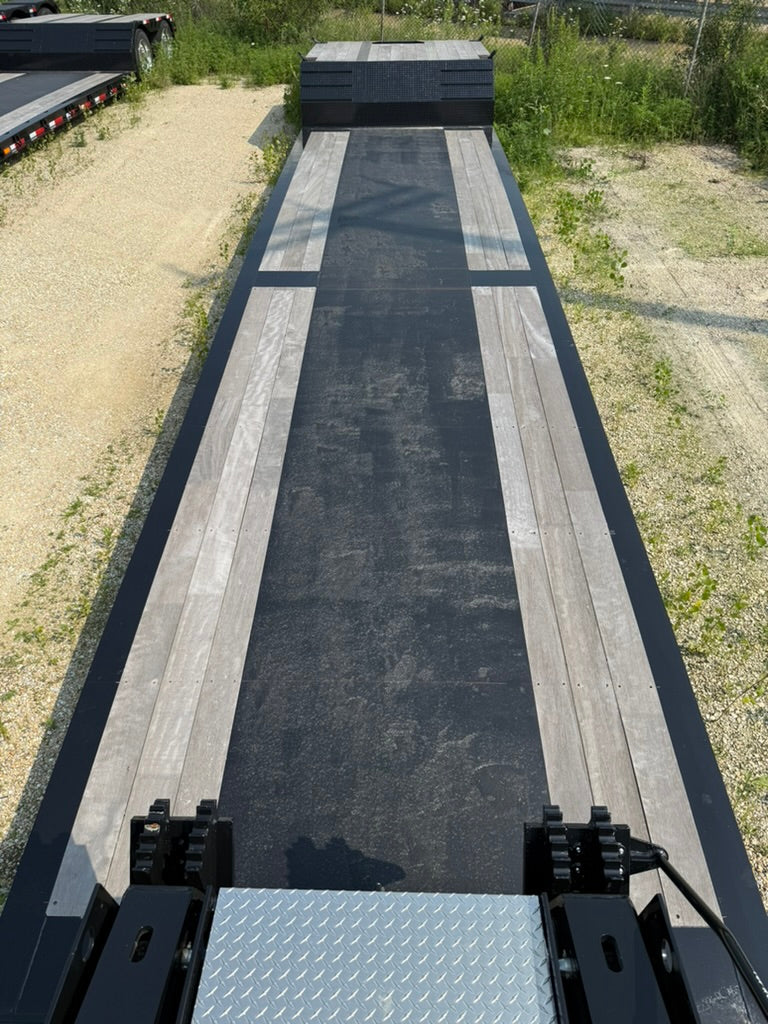

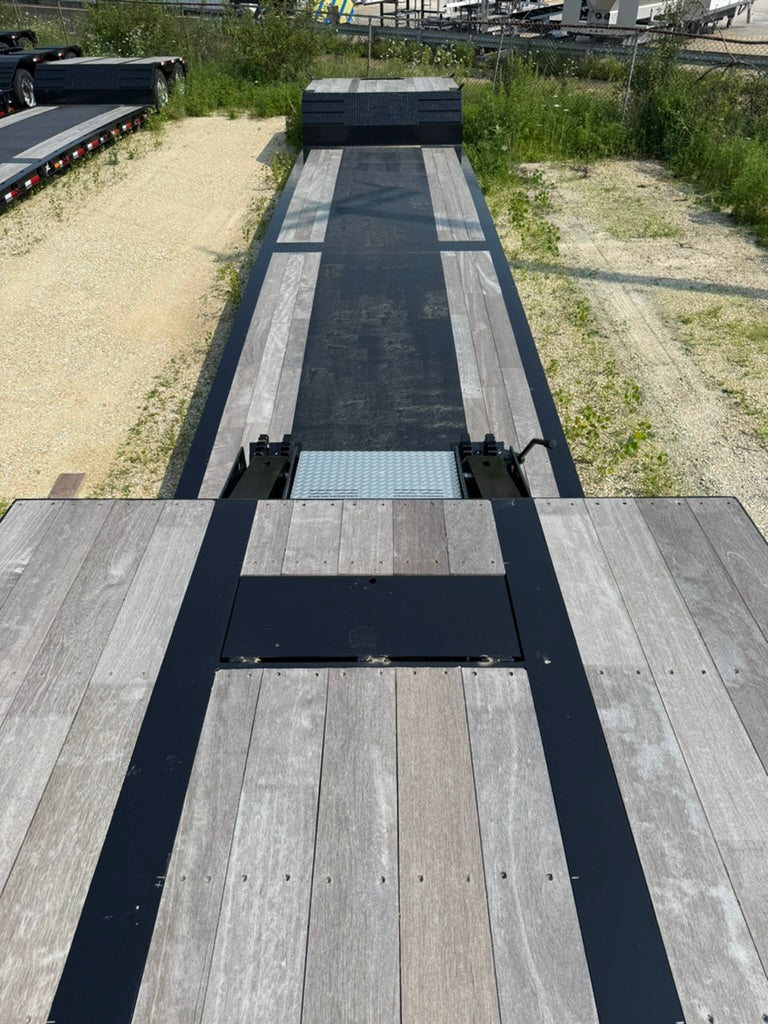

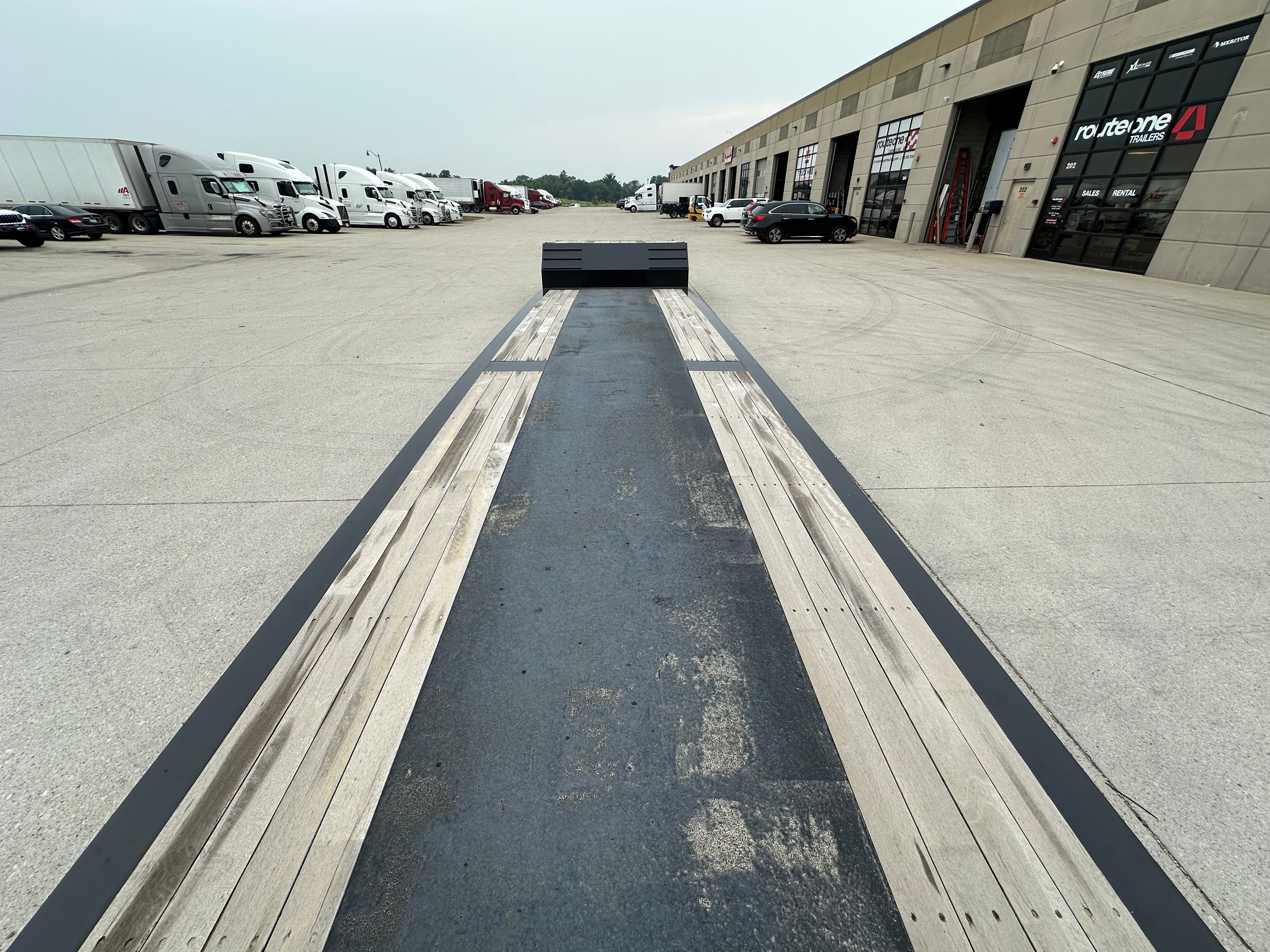

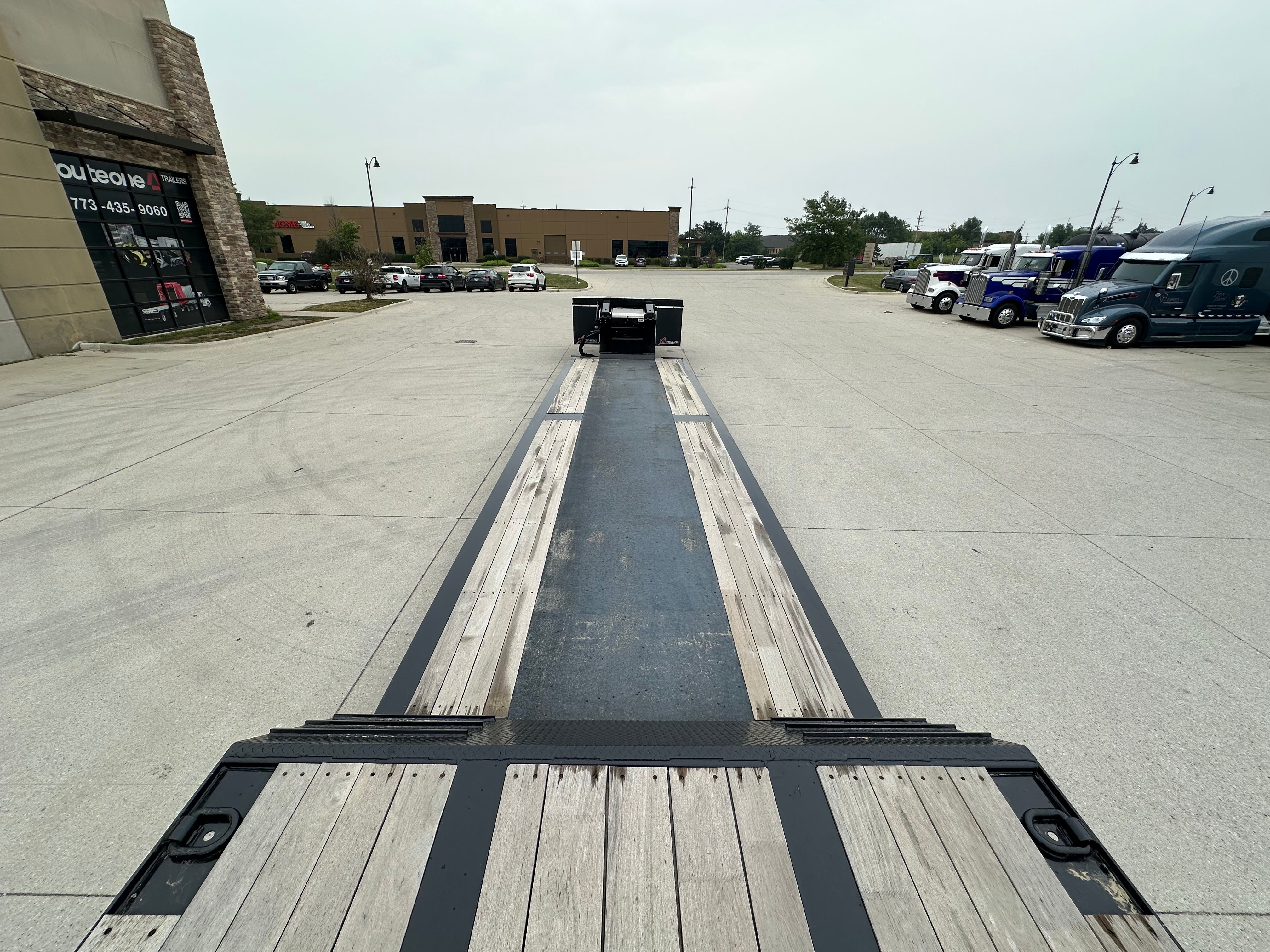

Main Deck Length - 33’ with 32’6” clear
Loaded Deck Height - 12” w/ 4” Ground Clearance
3 Beam Frame

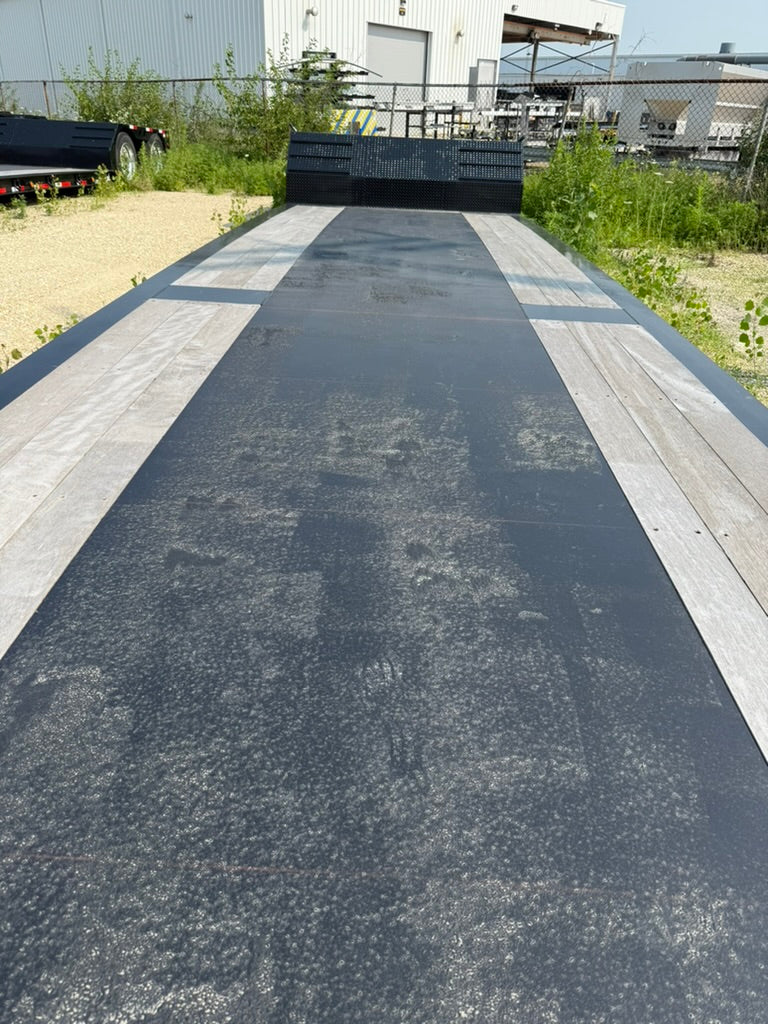

Steel Decking between main beams with Durabak

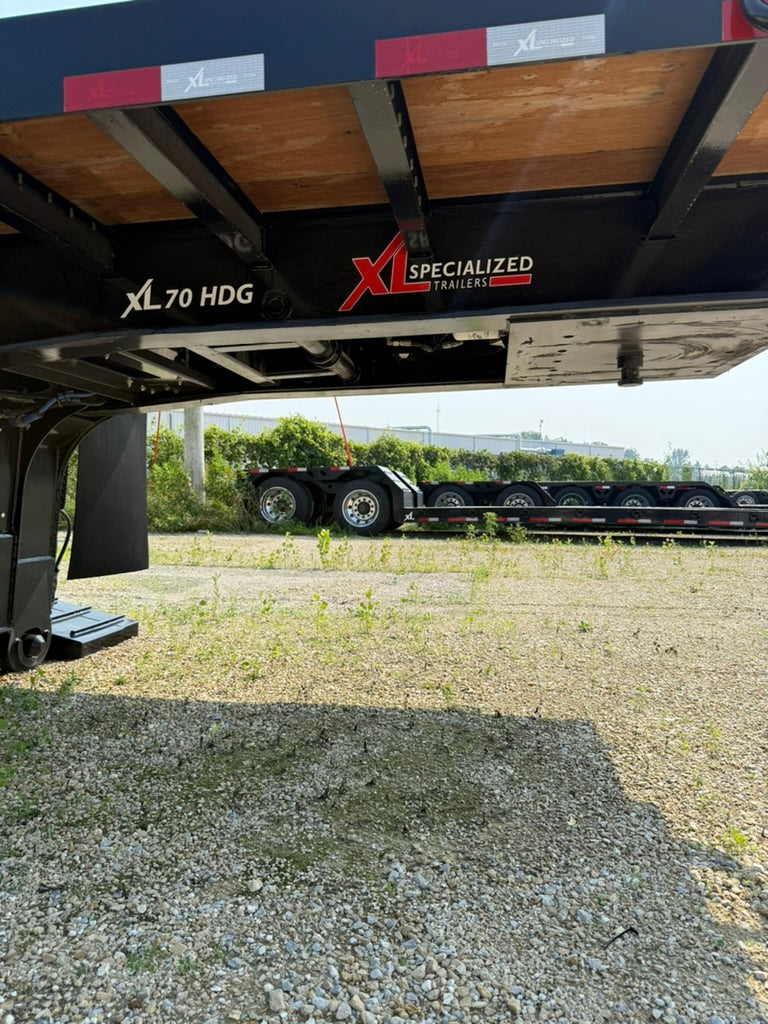

1 ⅛”Apritong flush between main beams and outer beams
Crossmembers spacing 18” with 4” between Junior Crossmembers

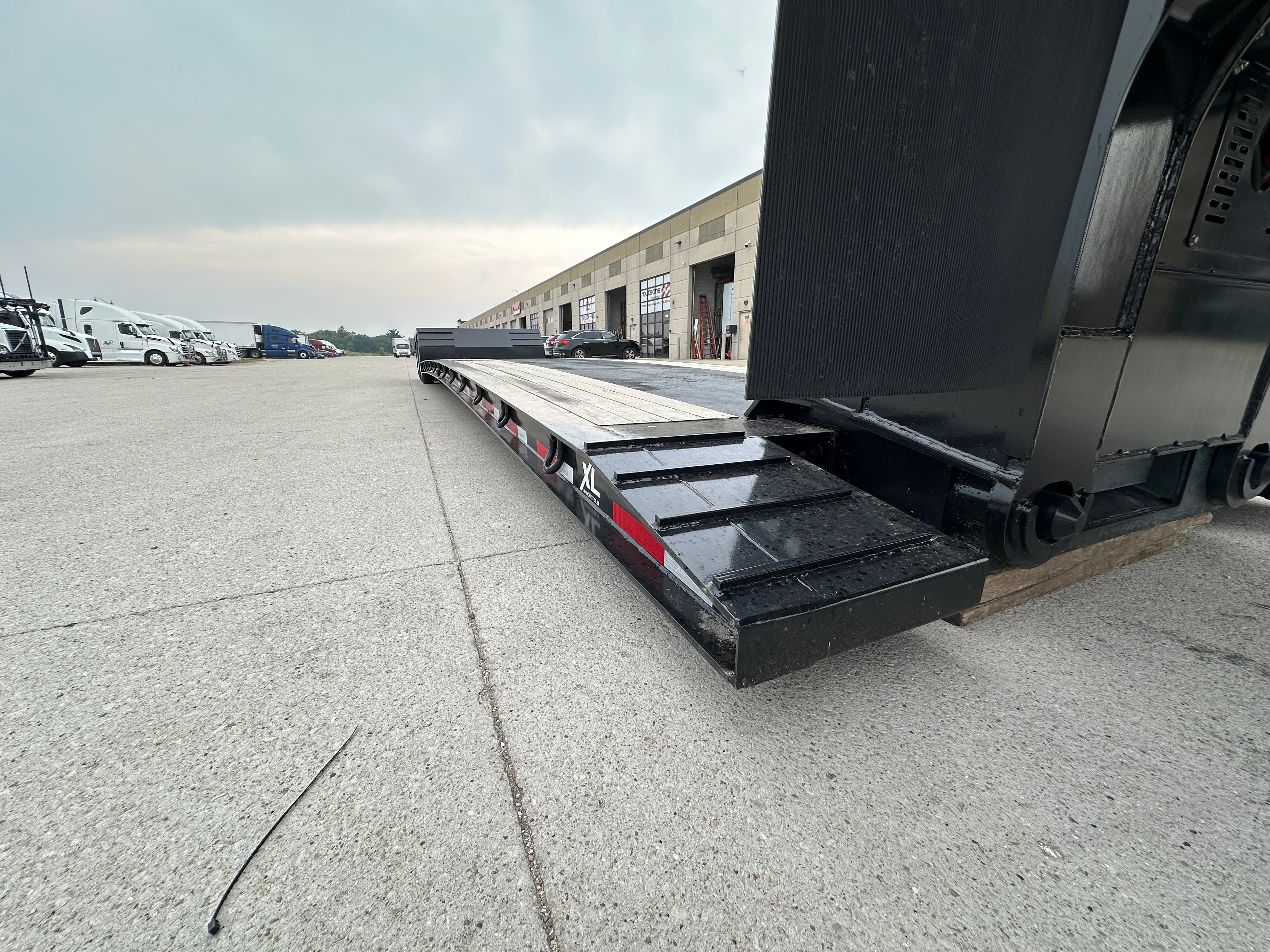

Ramps tapered to 4”

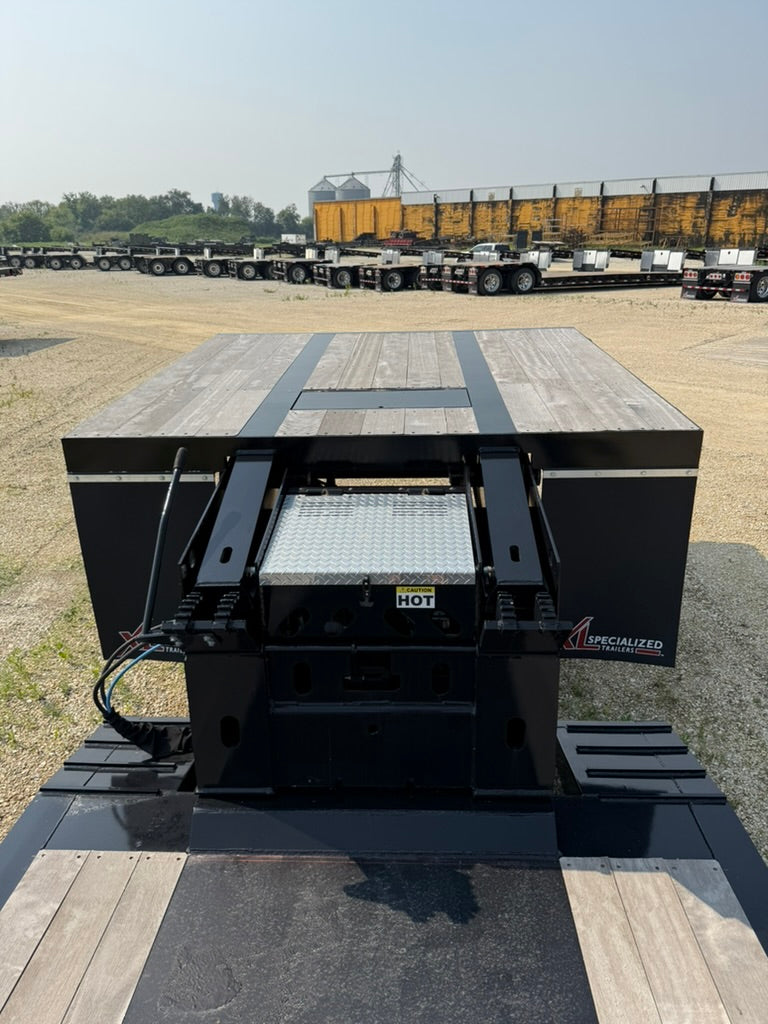

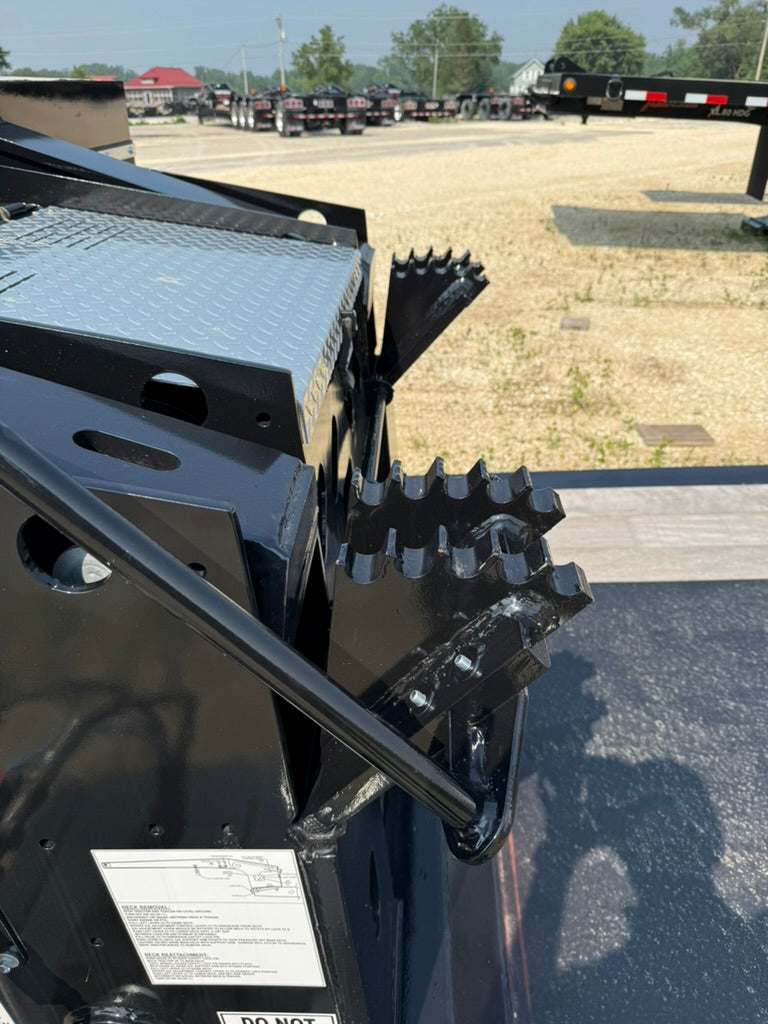

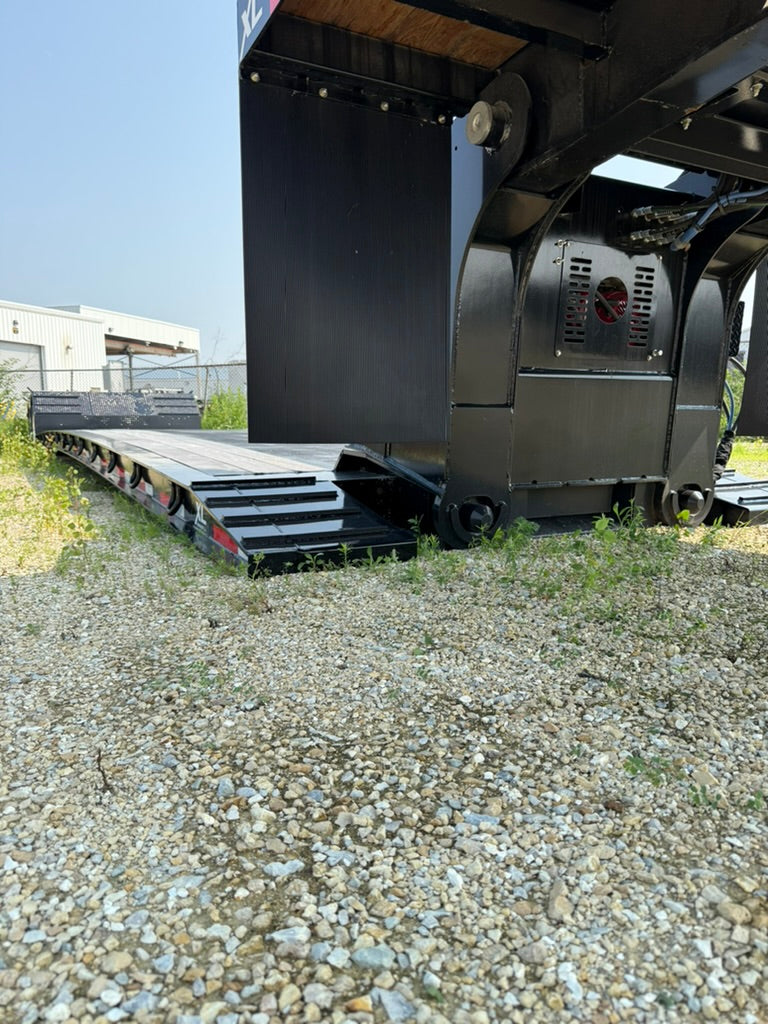

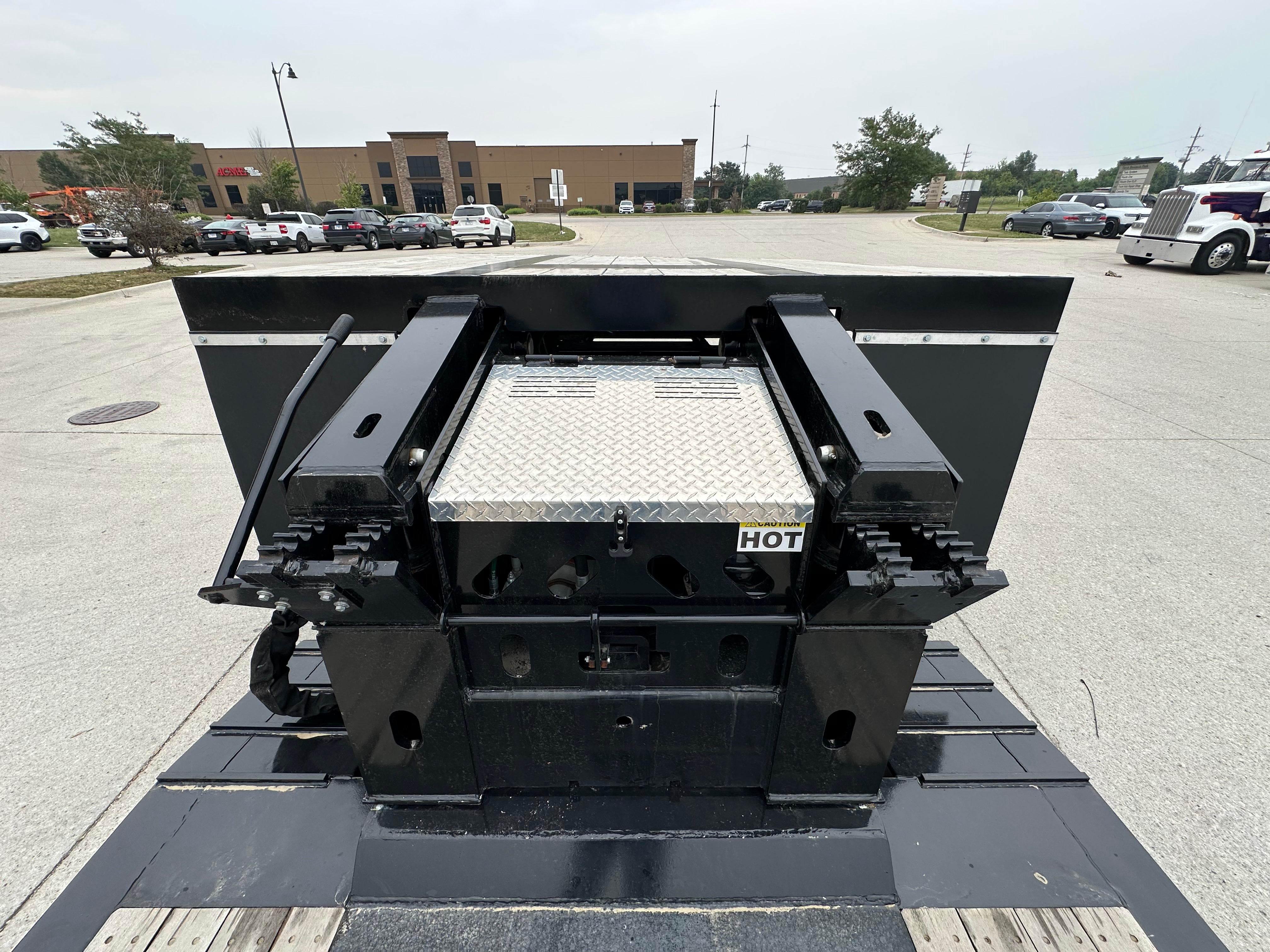

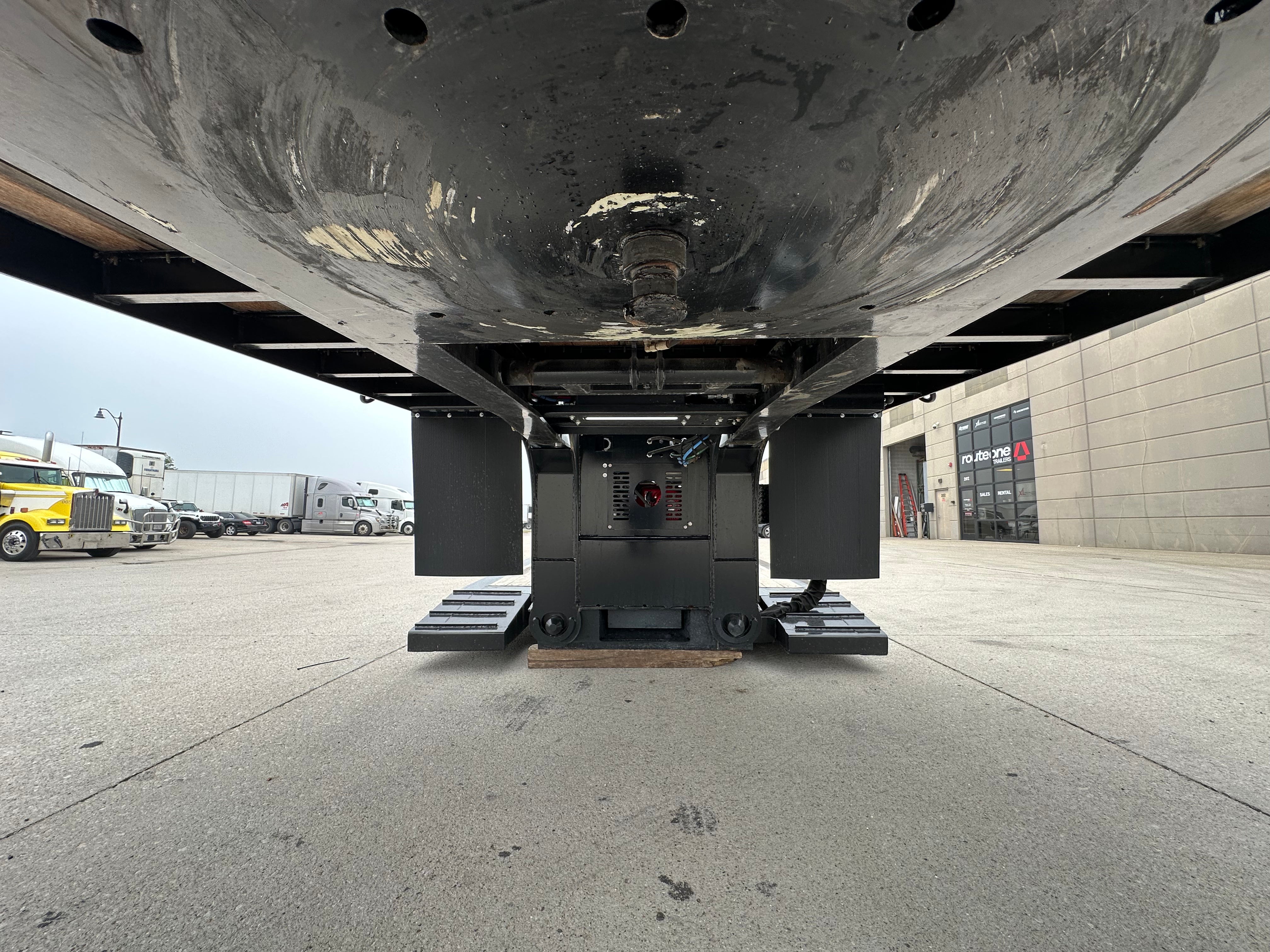

11’ Low-Profile Scraper Neck
King Pin Setting - 16”
Swing Clearance 86”
5th Wheel Height - 49” w/ 5 Variable Ride Height Positions

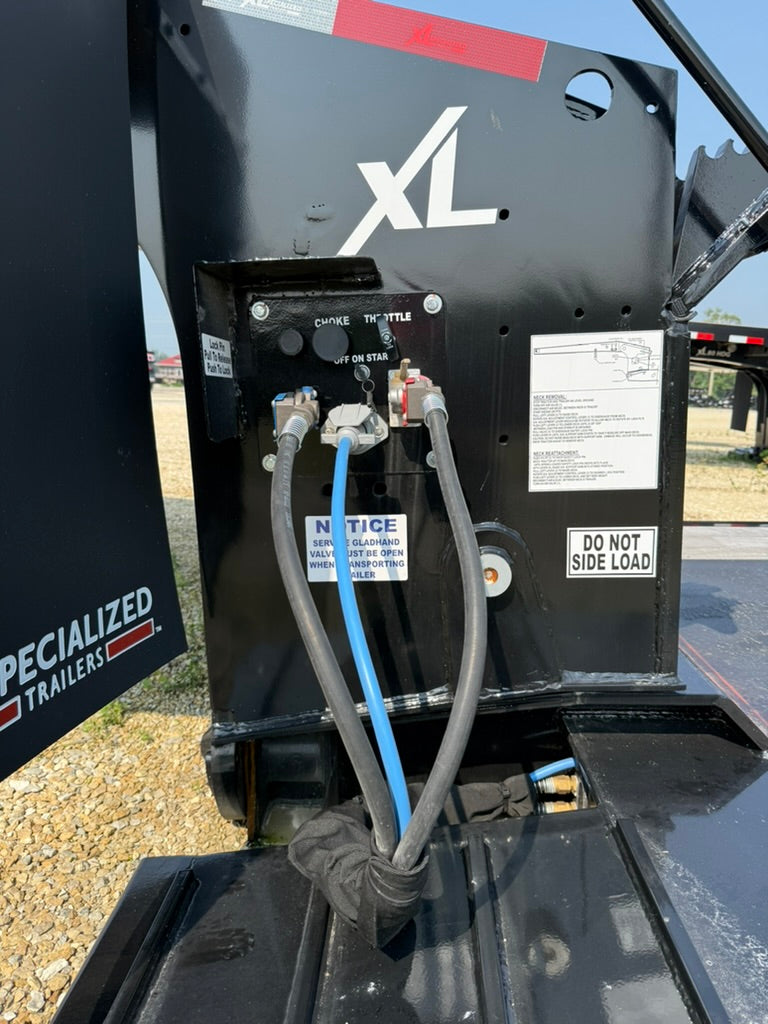

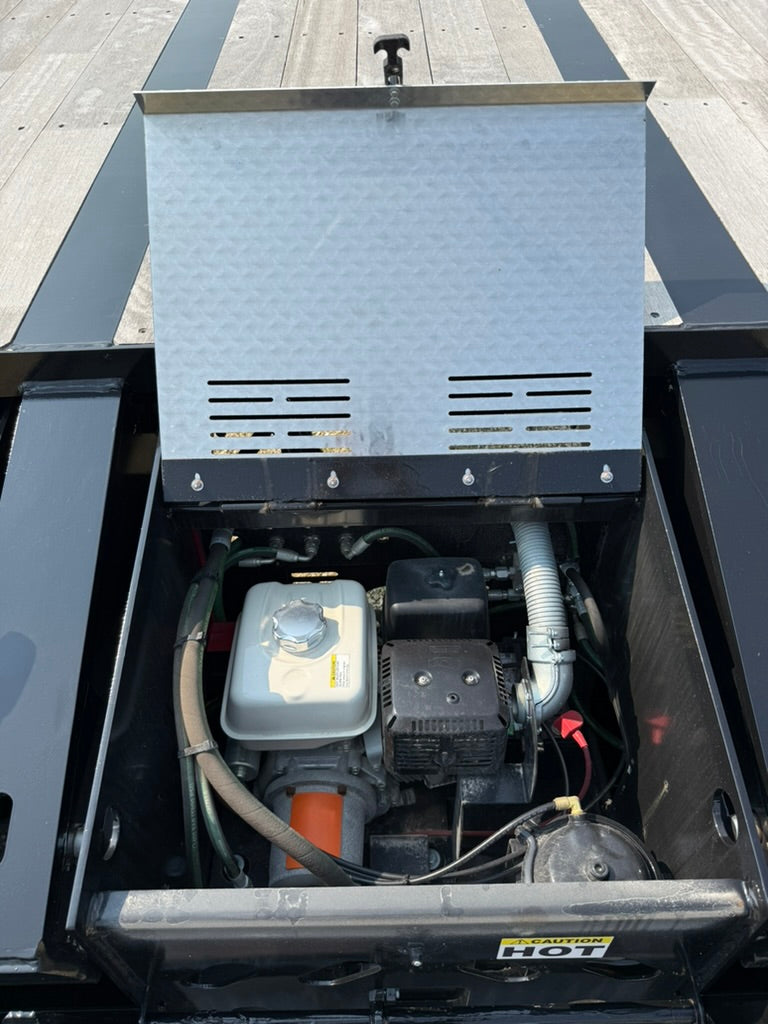

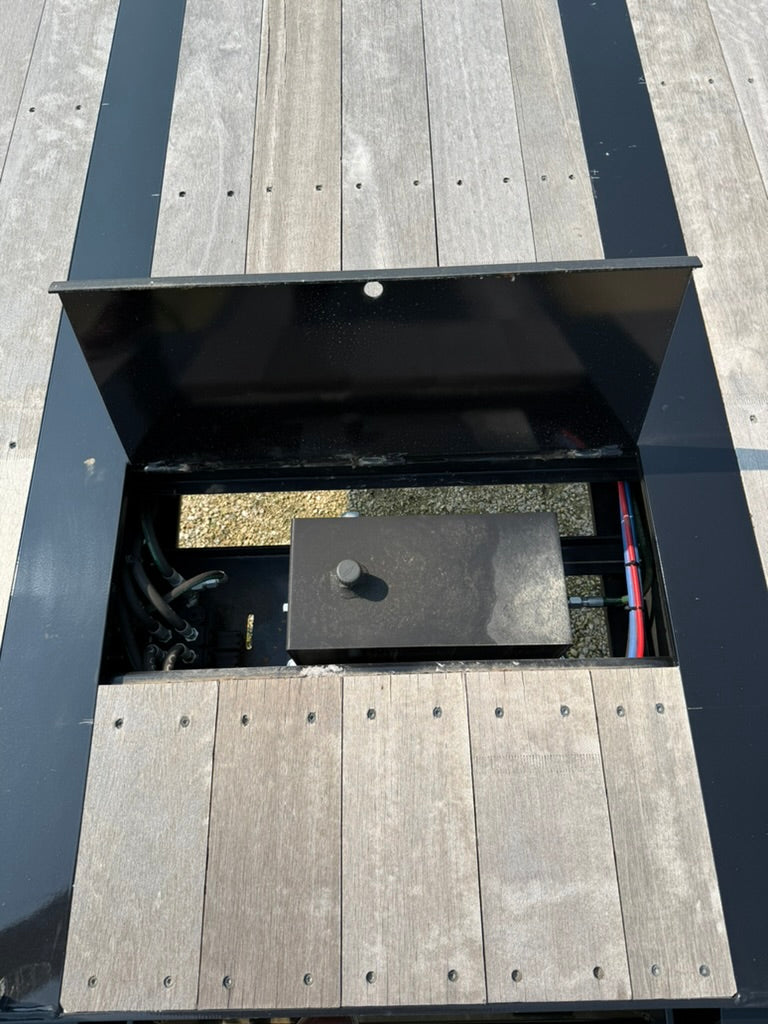

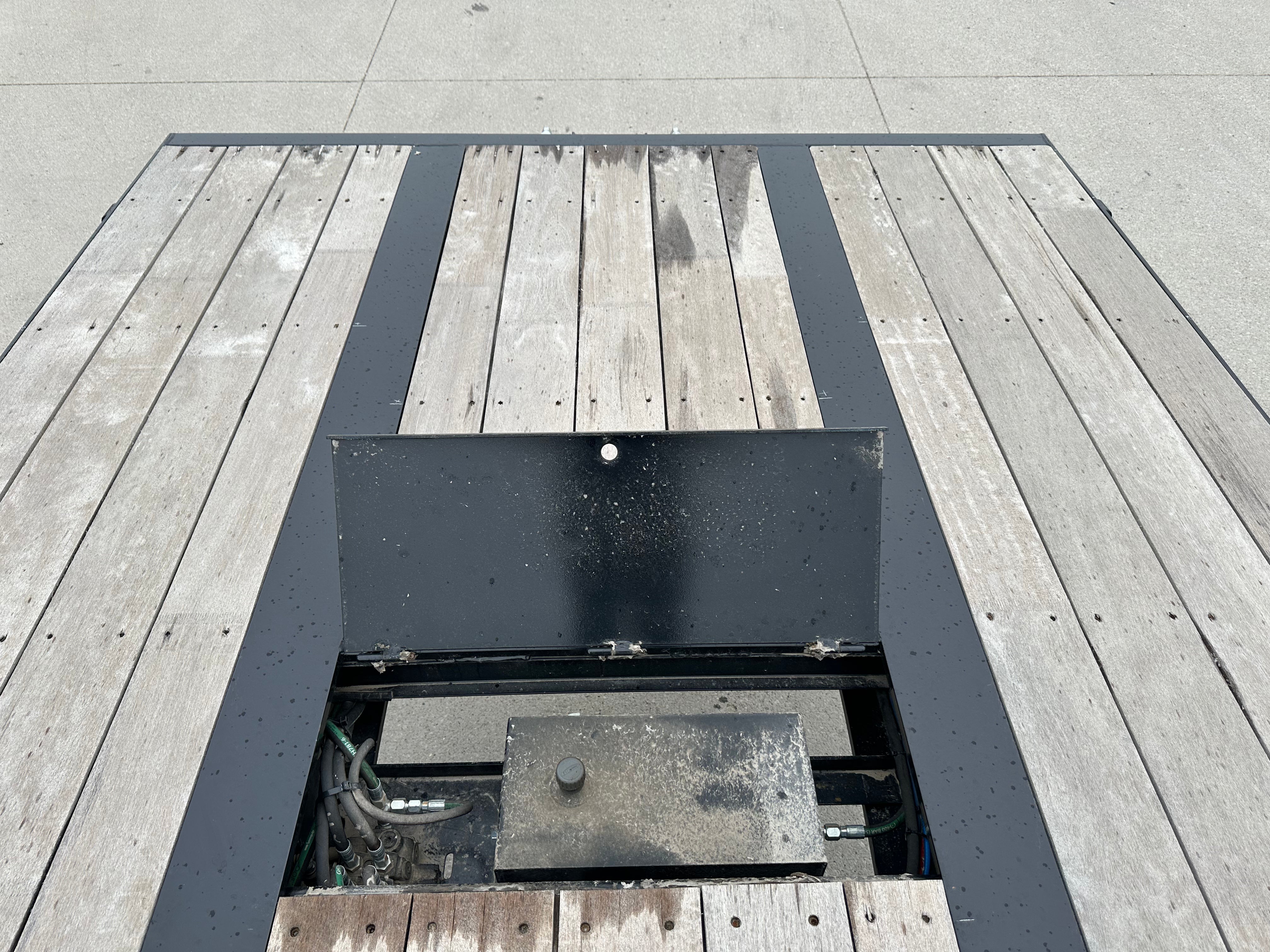

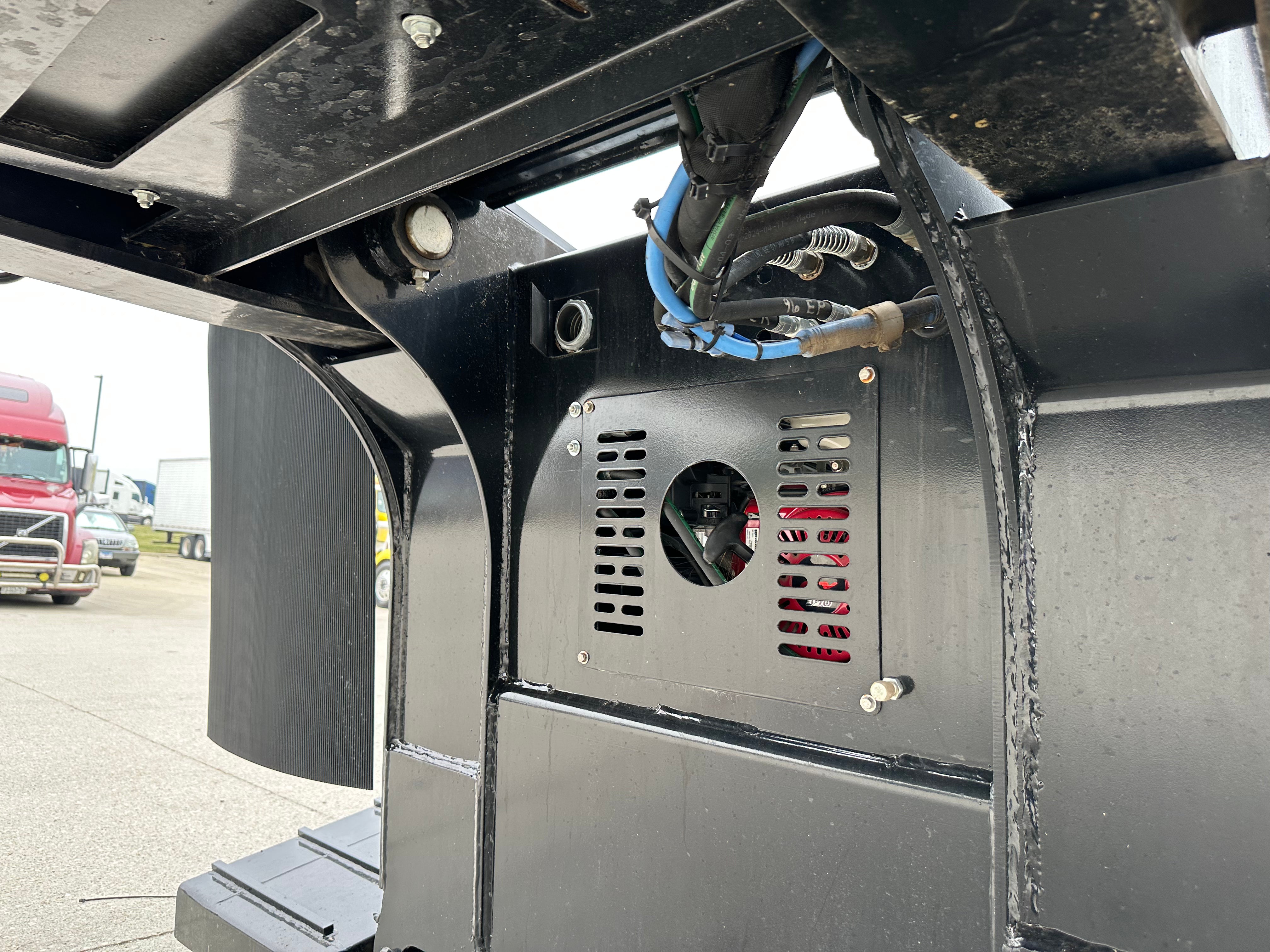

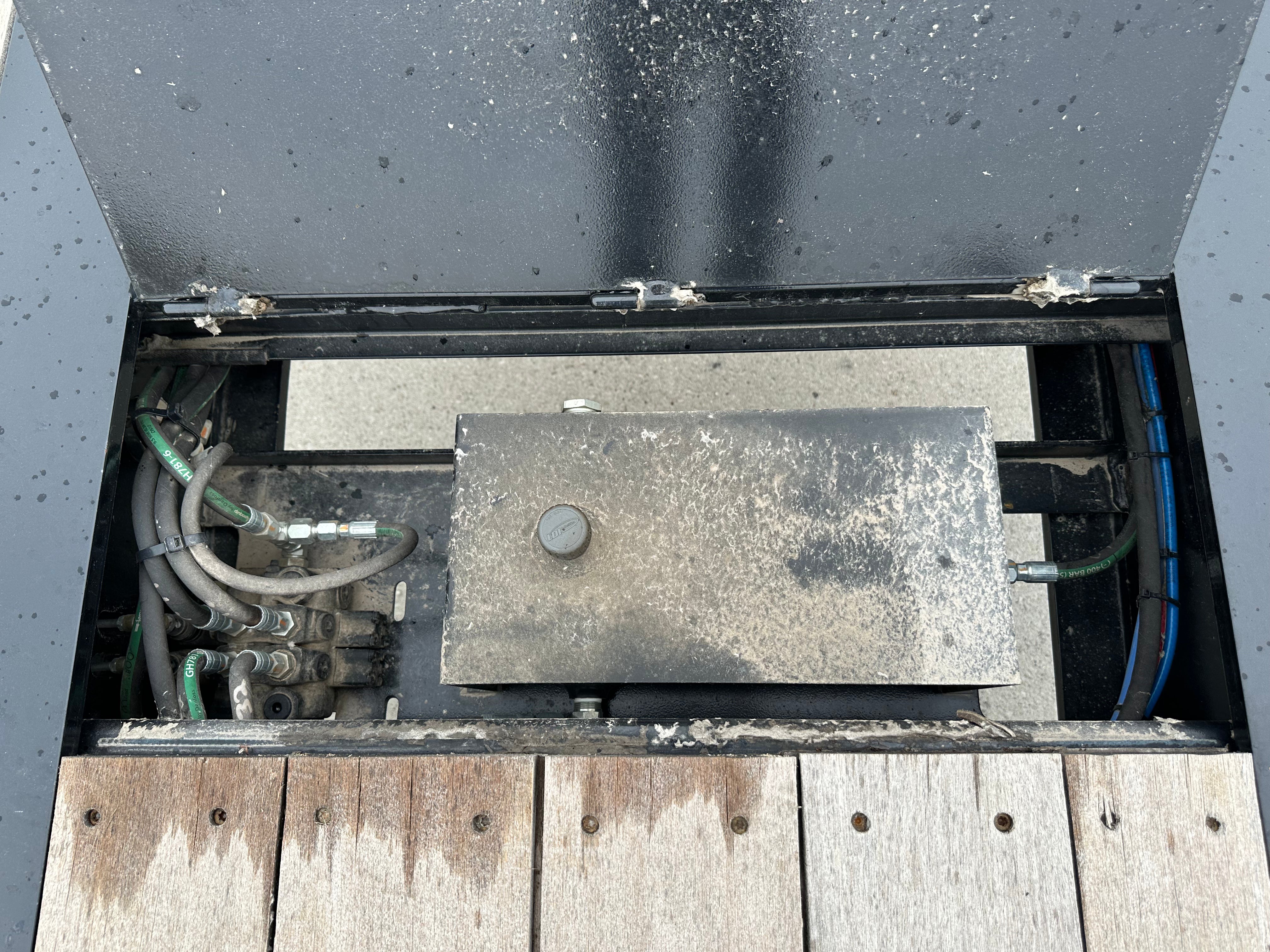

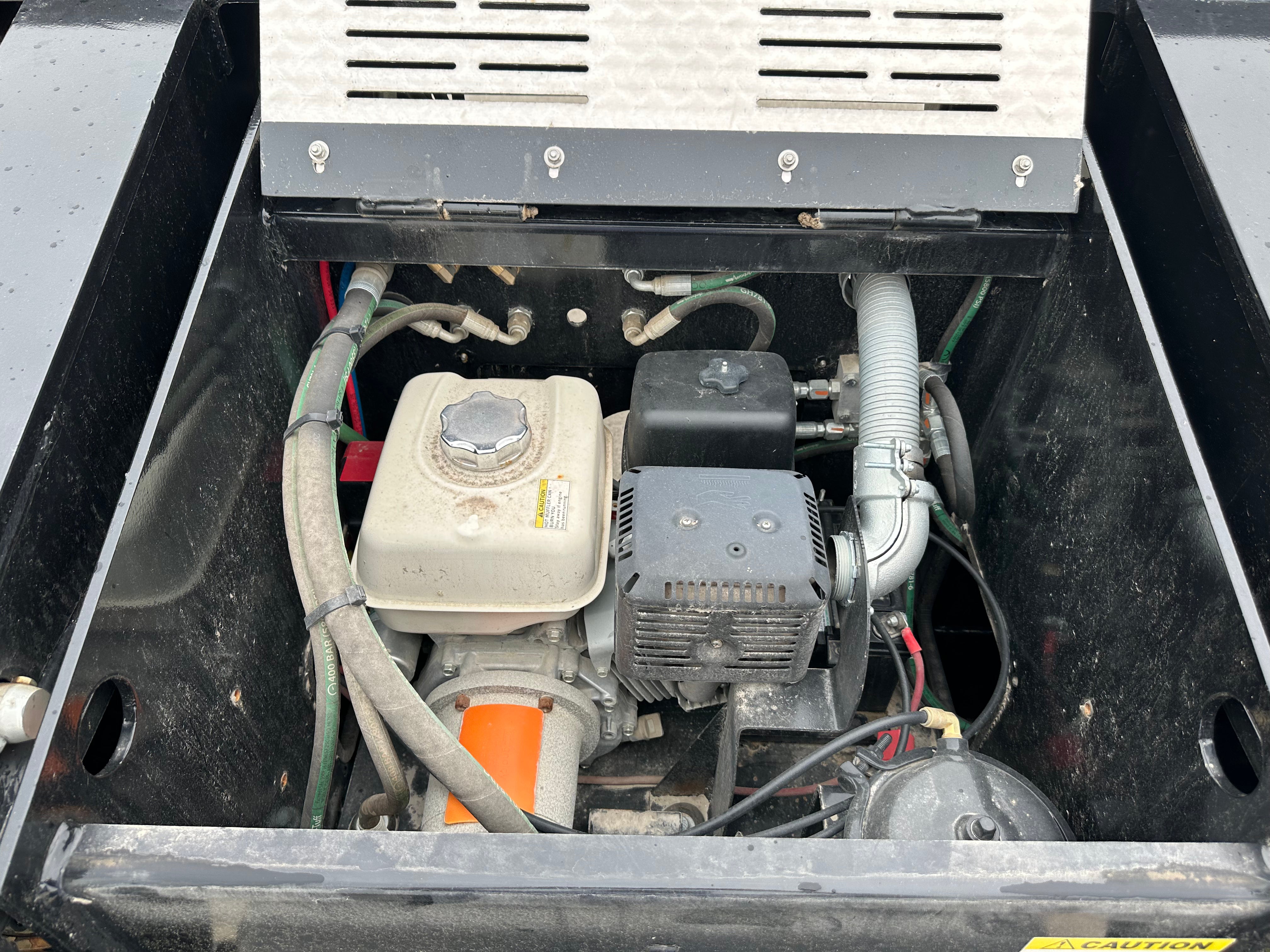

13 HP SCU Pony Motor

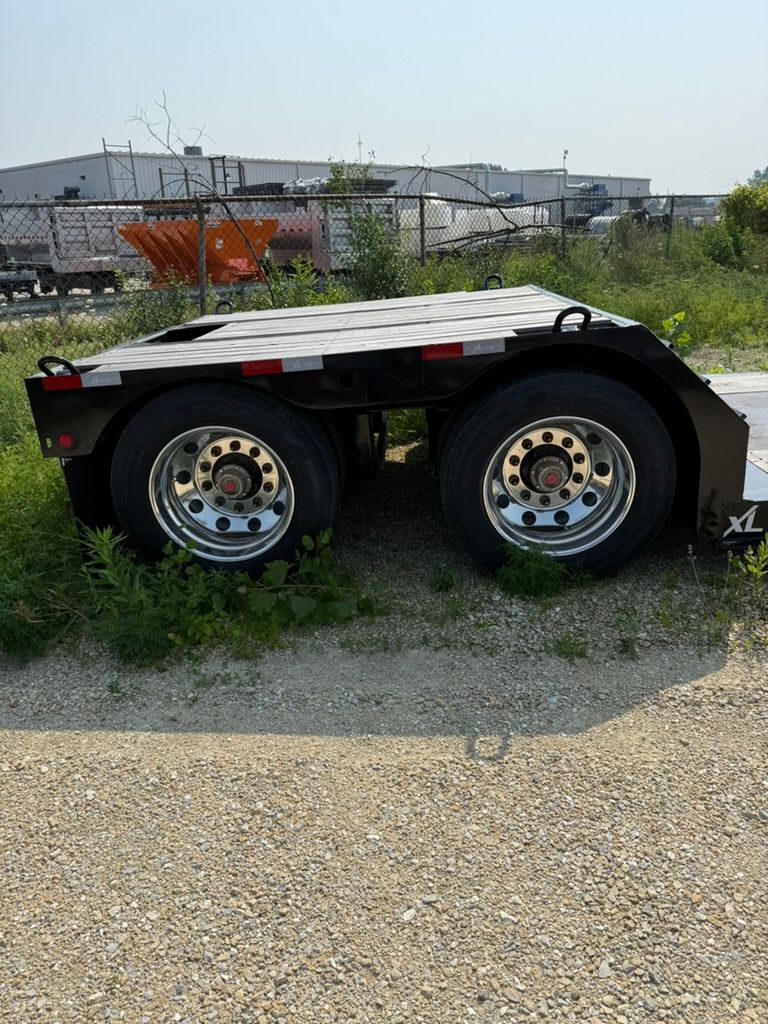

Rear Deck Length - 9’
Rear Deck Loaded Height - 40”

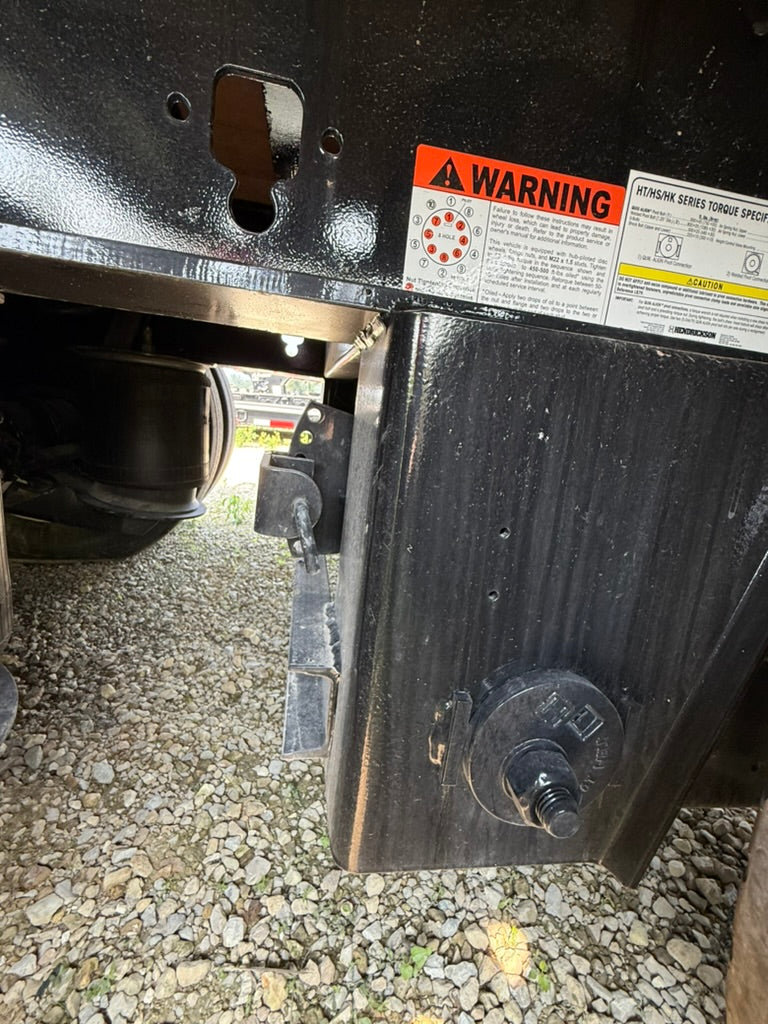

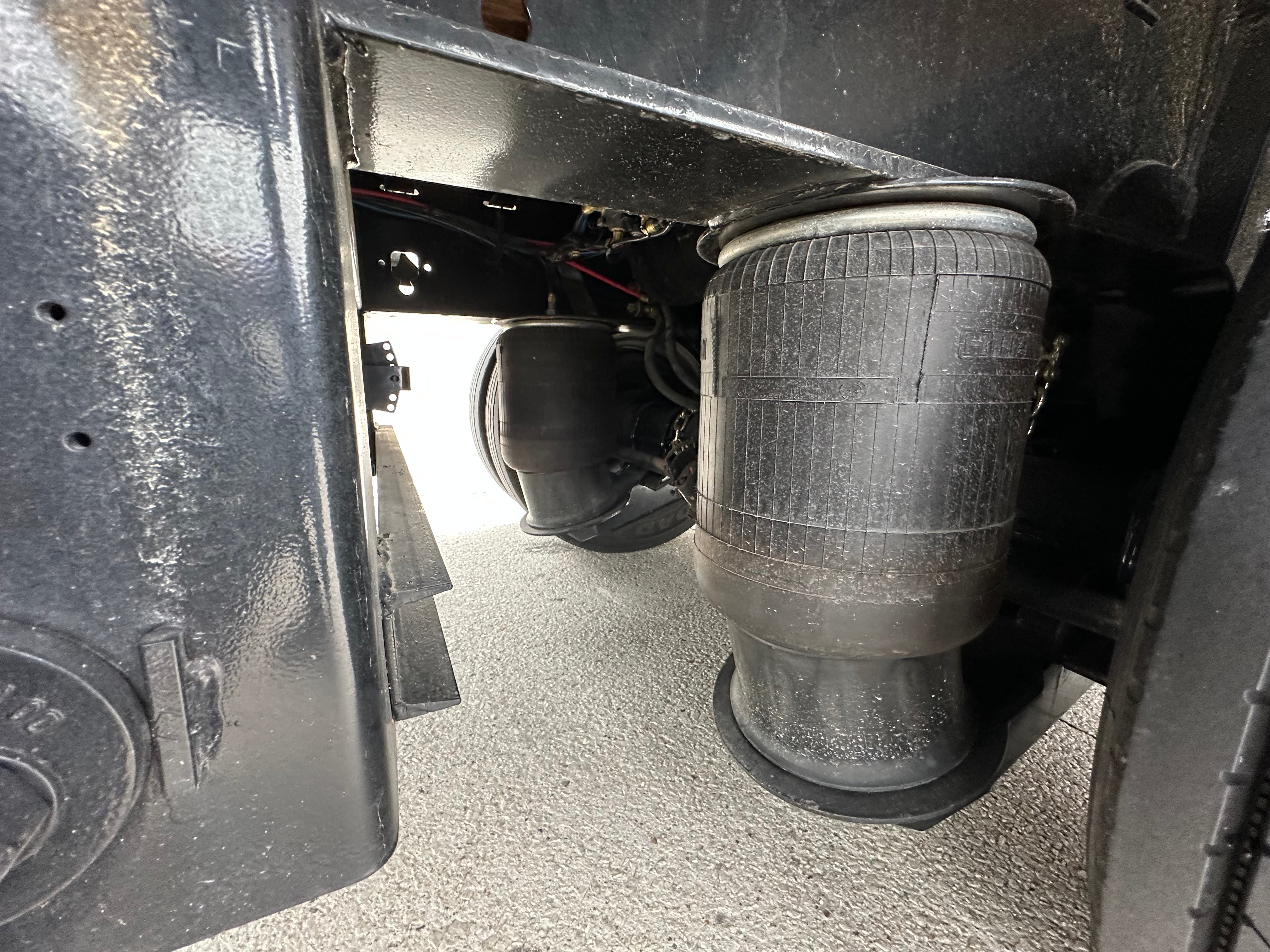

2 Hendrickson Axles 25k Lbs each
54’ Axle spacing

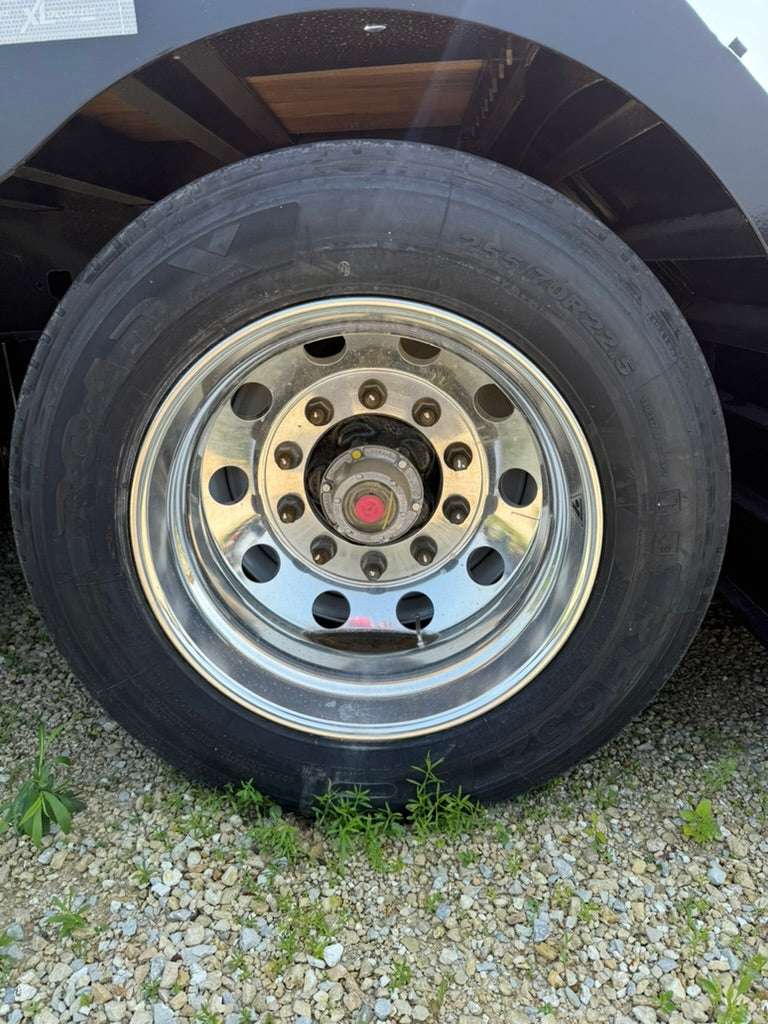

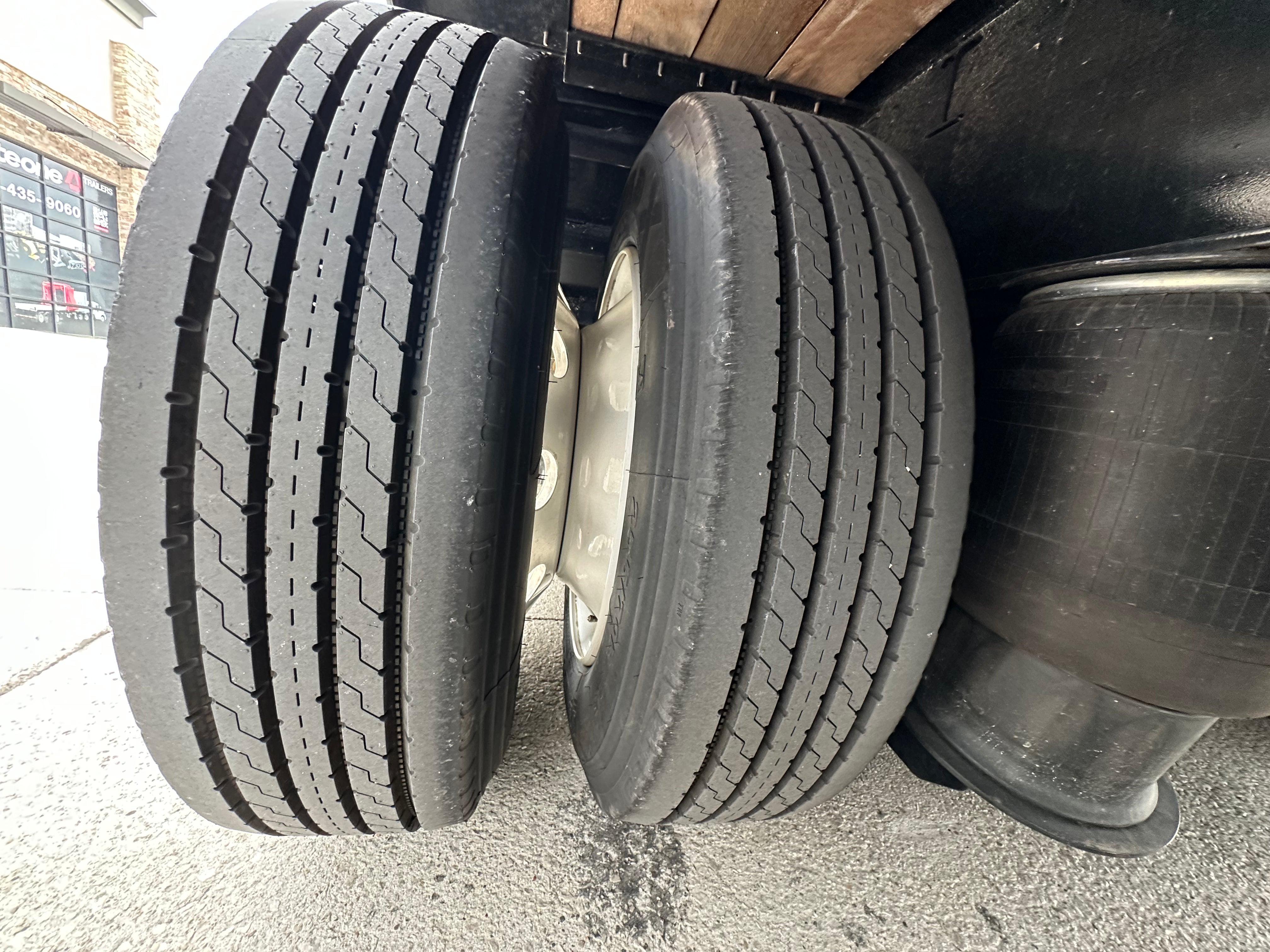

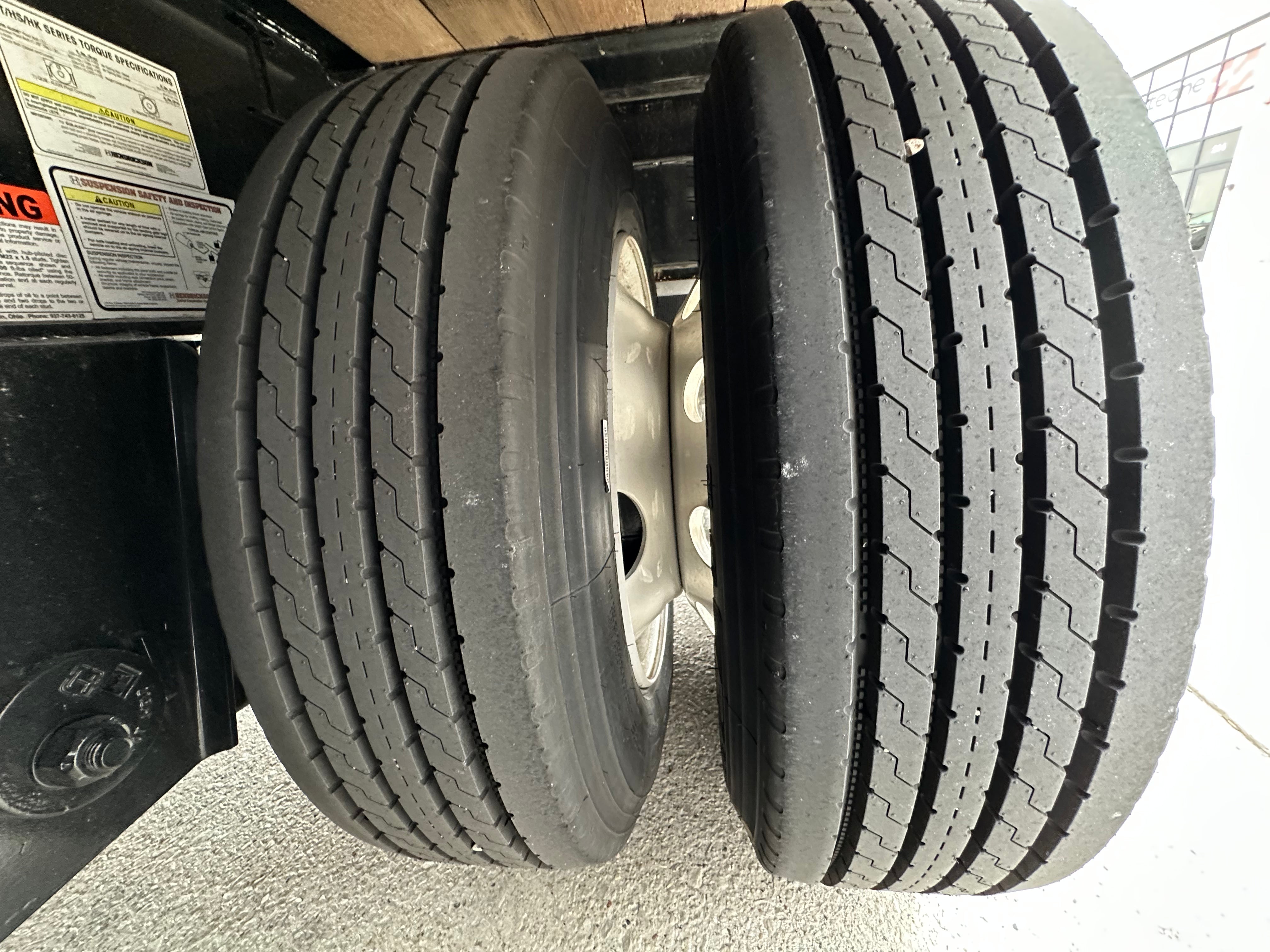

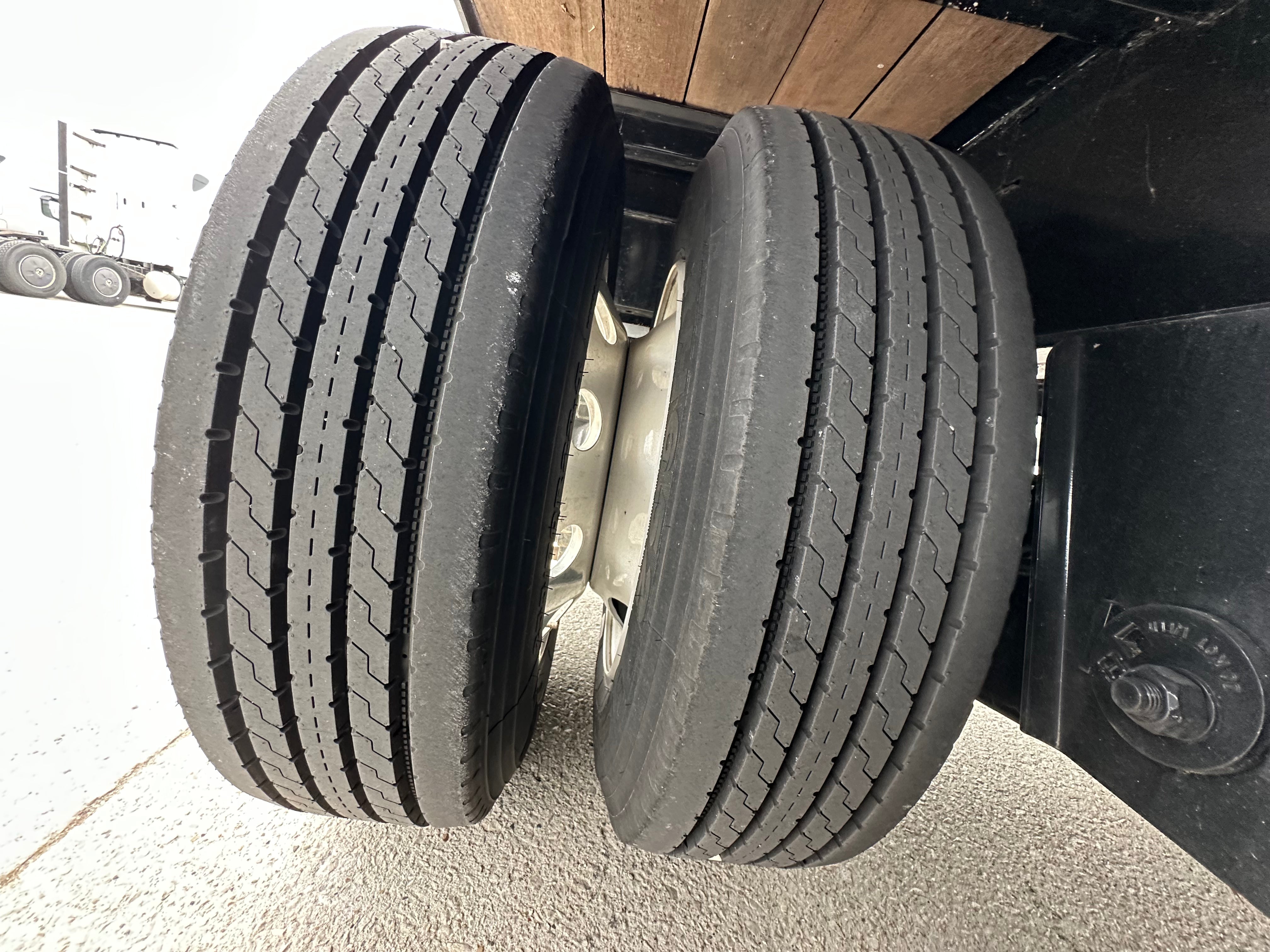

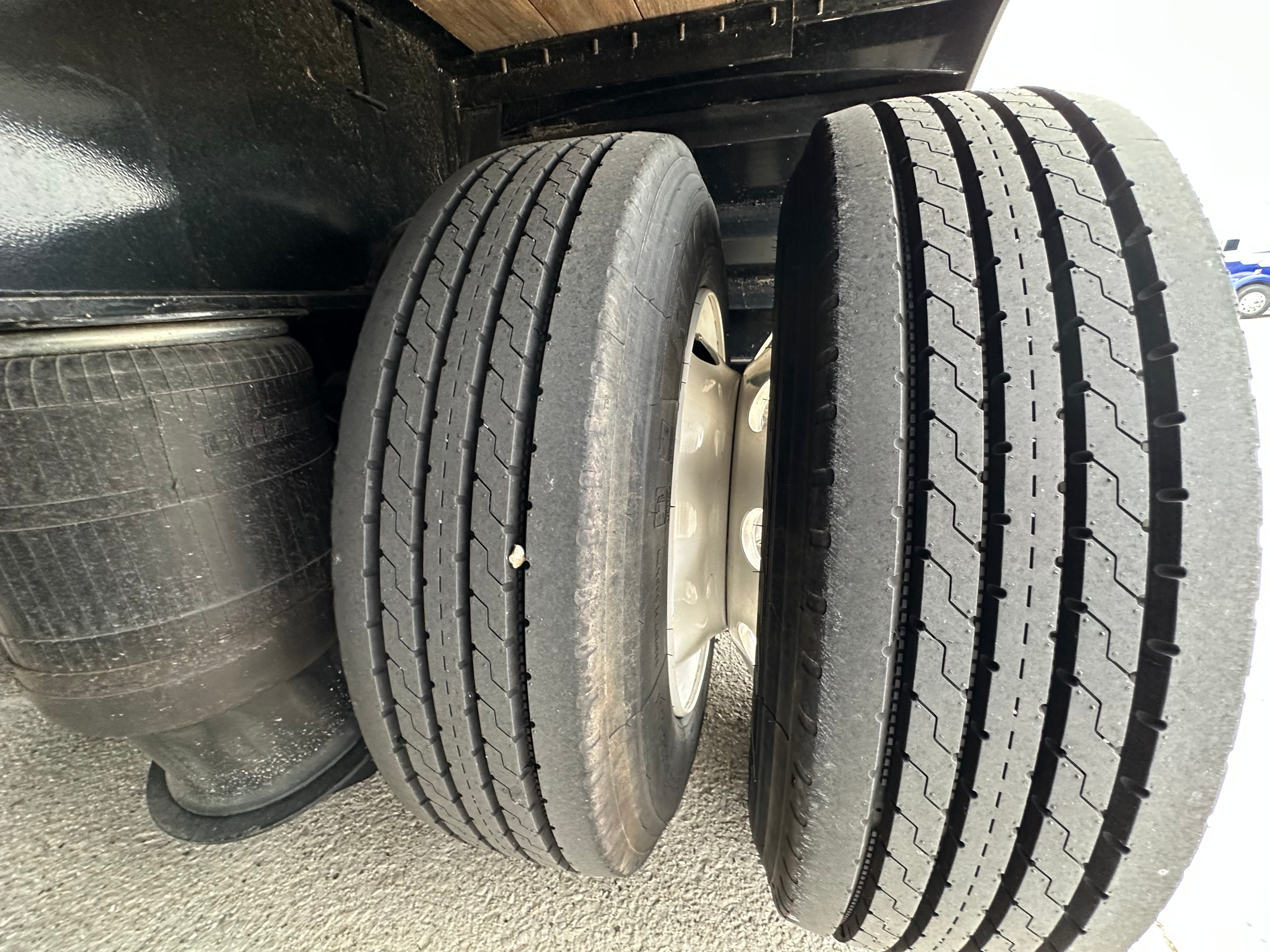

255/70 R22.5 Import Tires

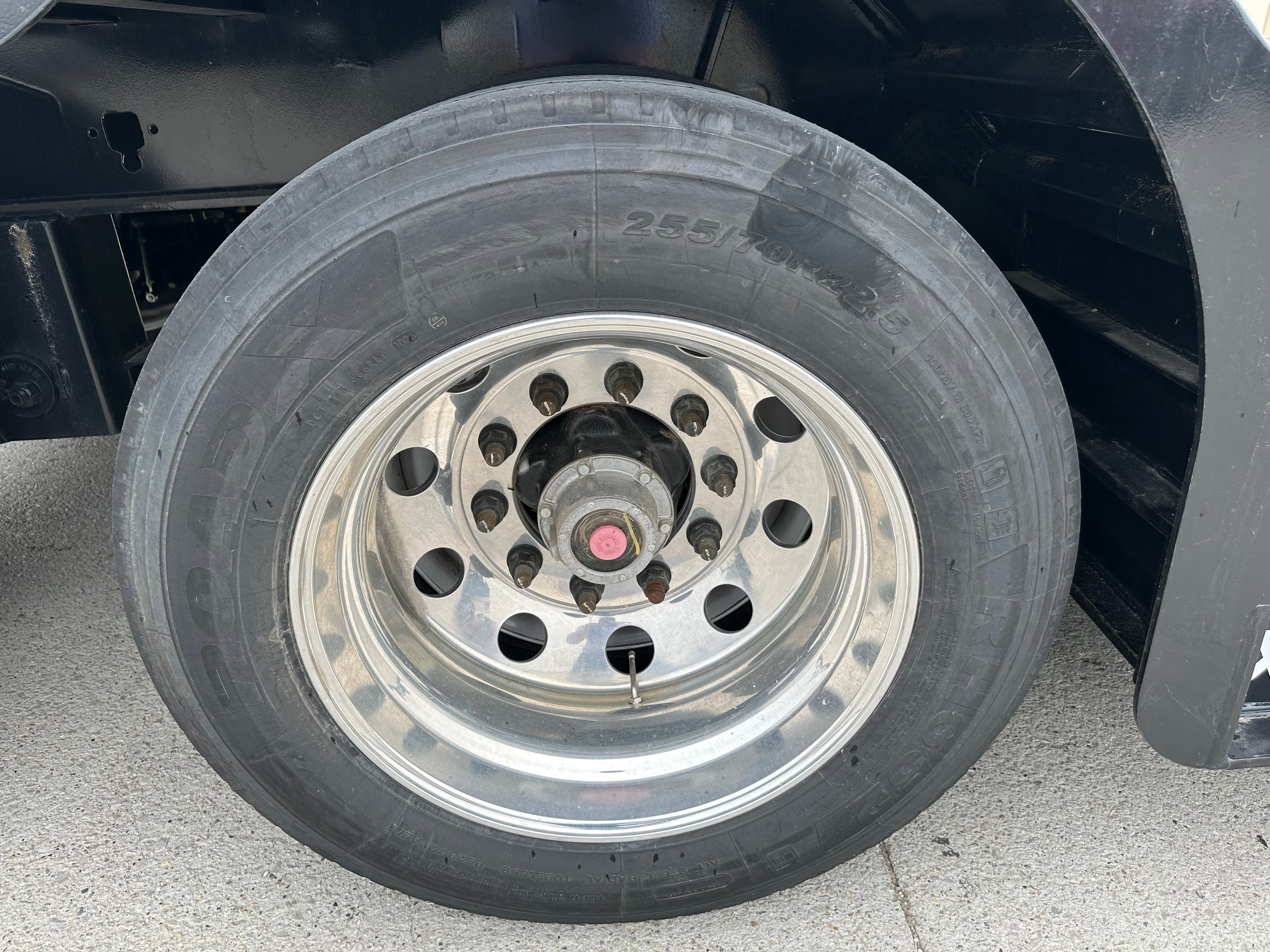

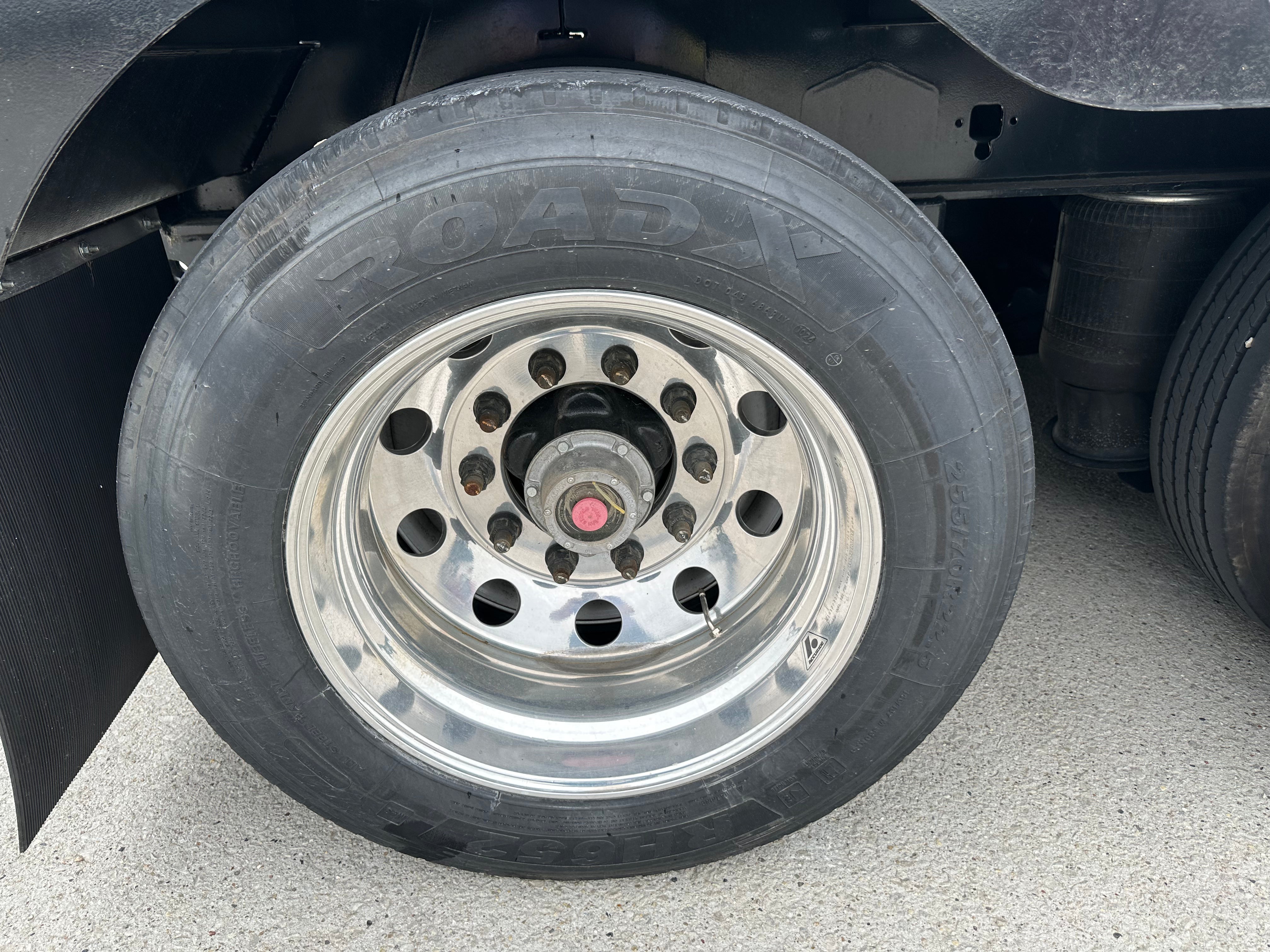

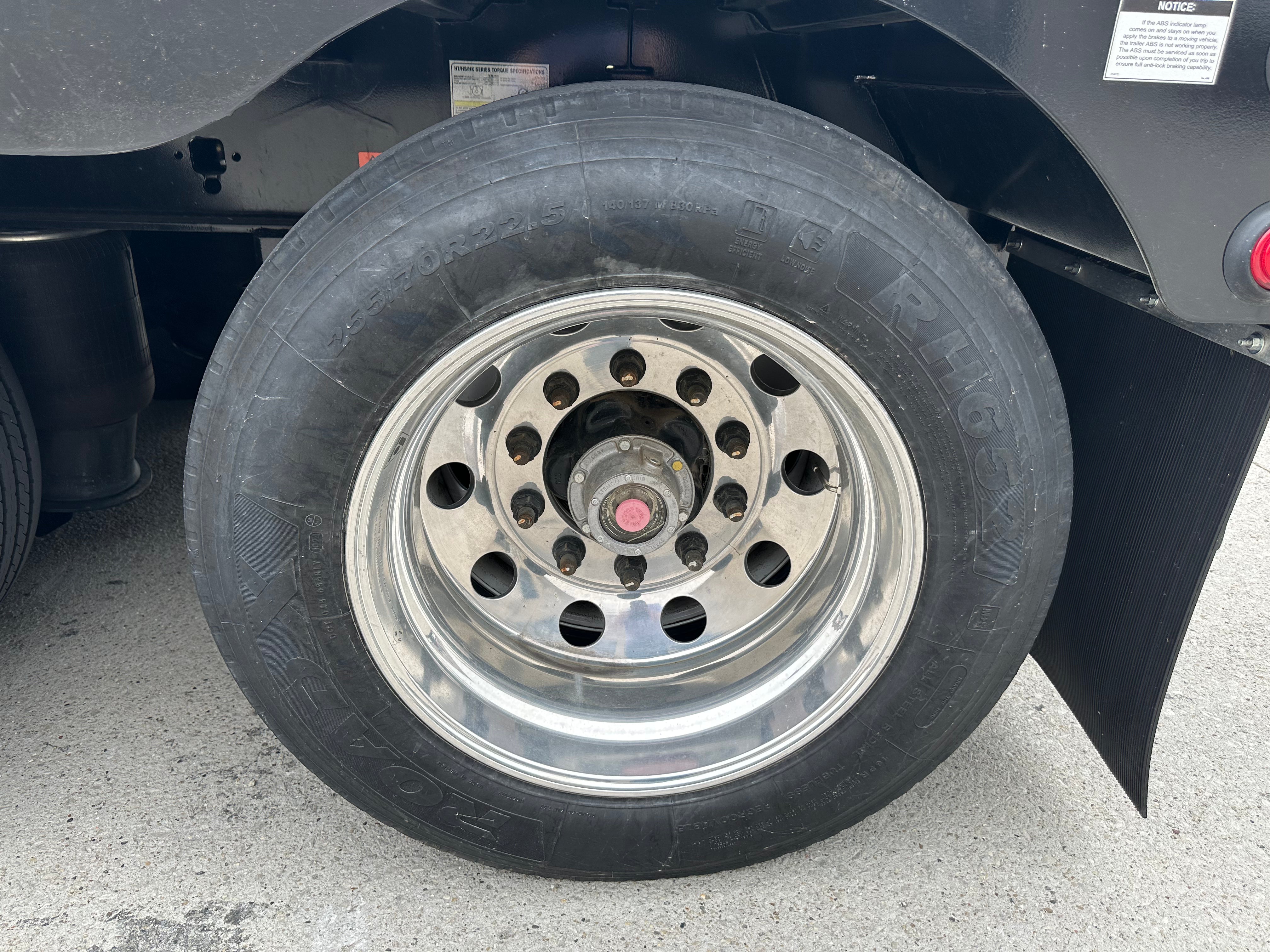

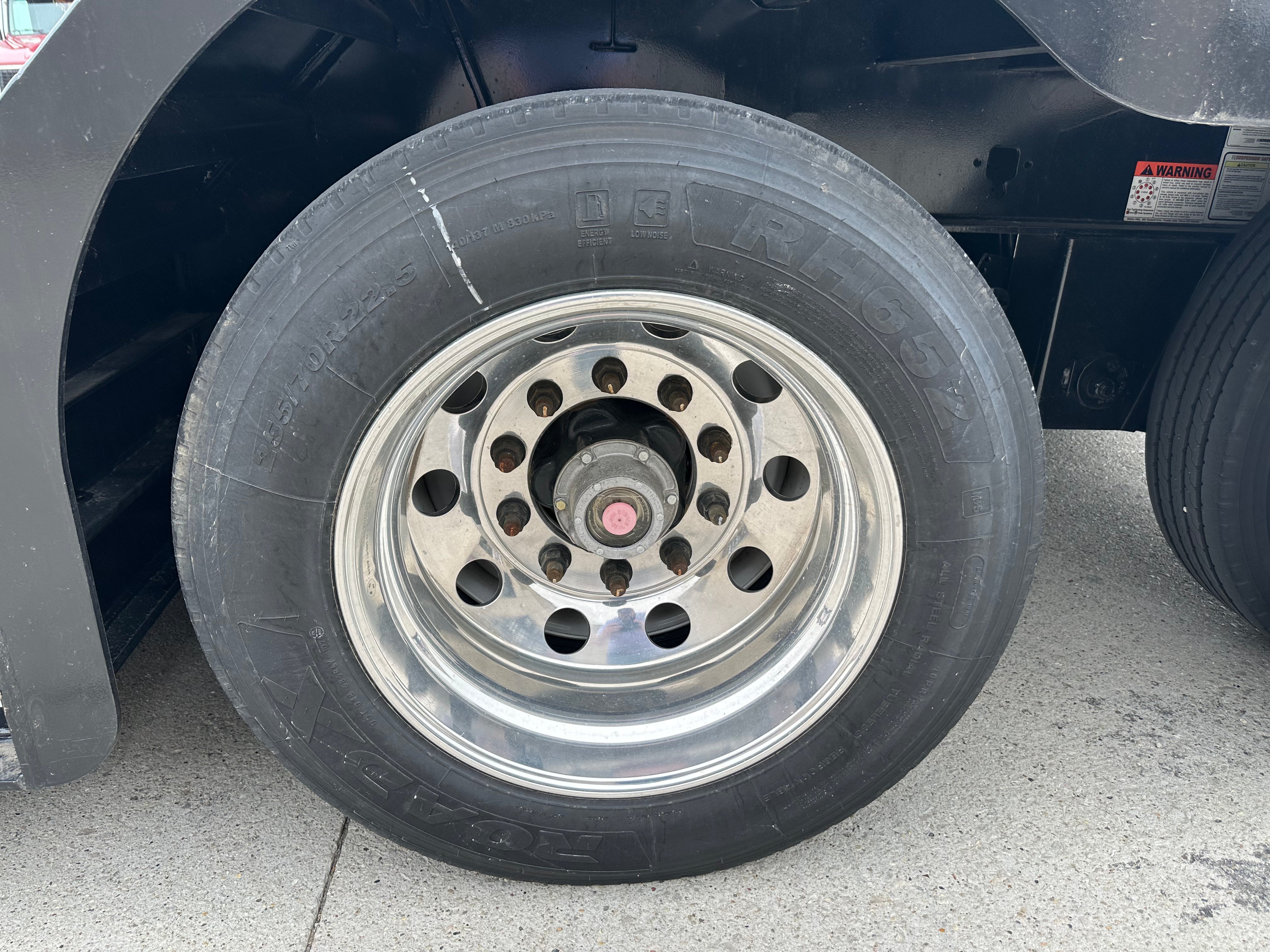

Outside Aluminum wheels
Full with Decking 1 ⅛” Apitong wood

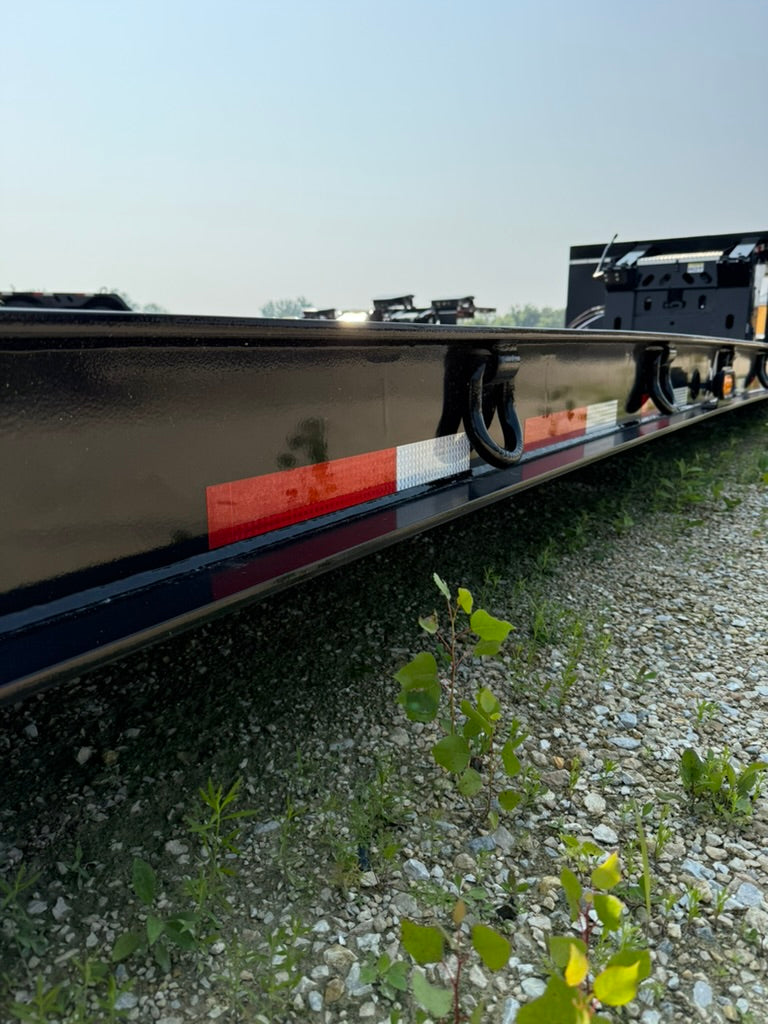

1 Pan style D Ring on each corner
2 Bend D Rings on rear

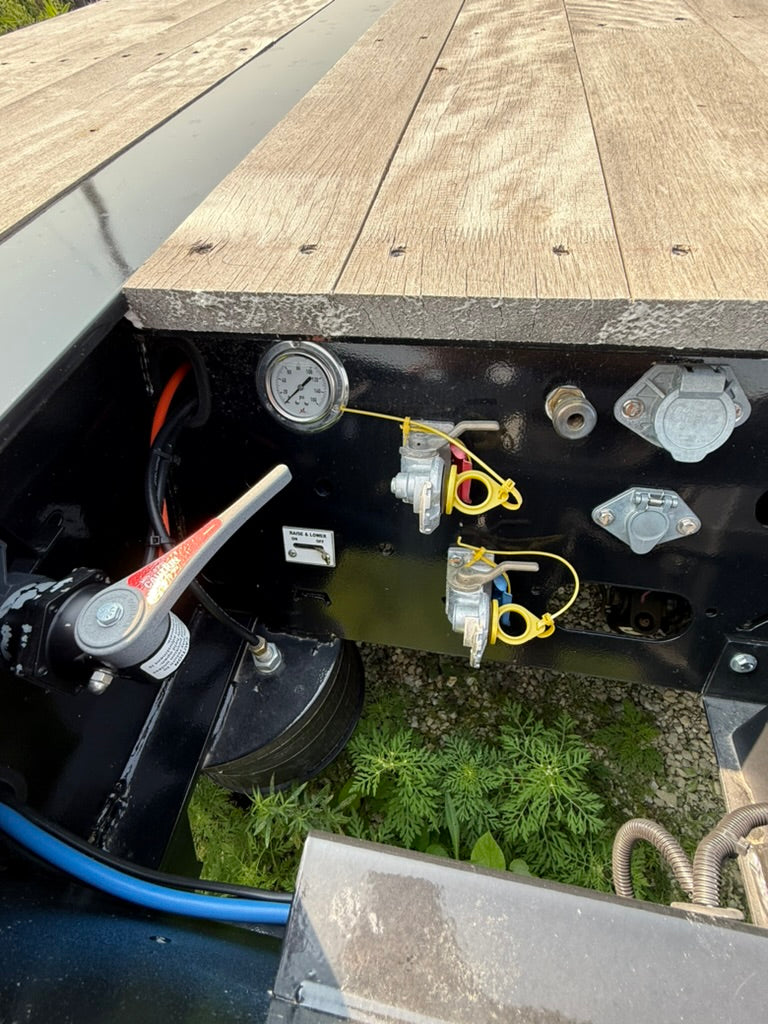

Manual Ride Height Control

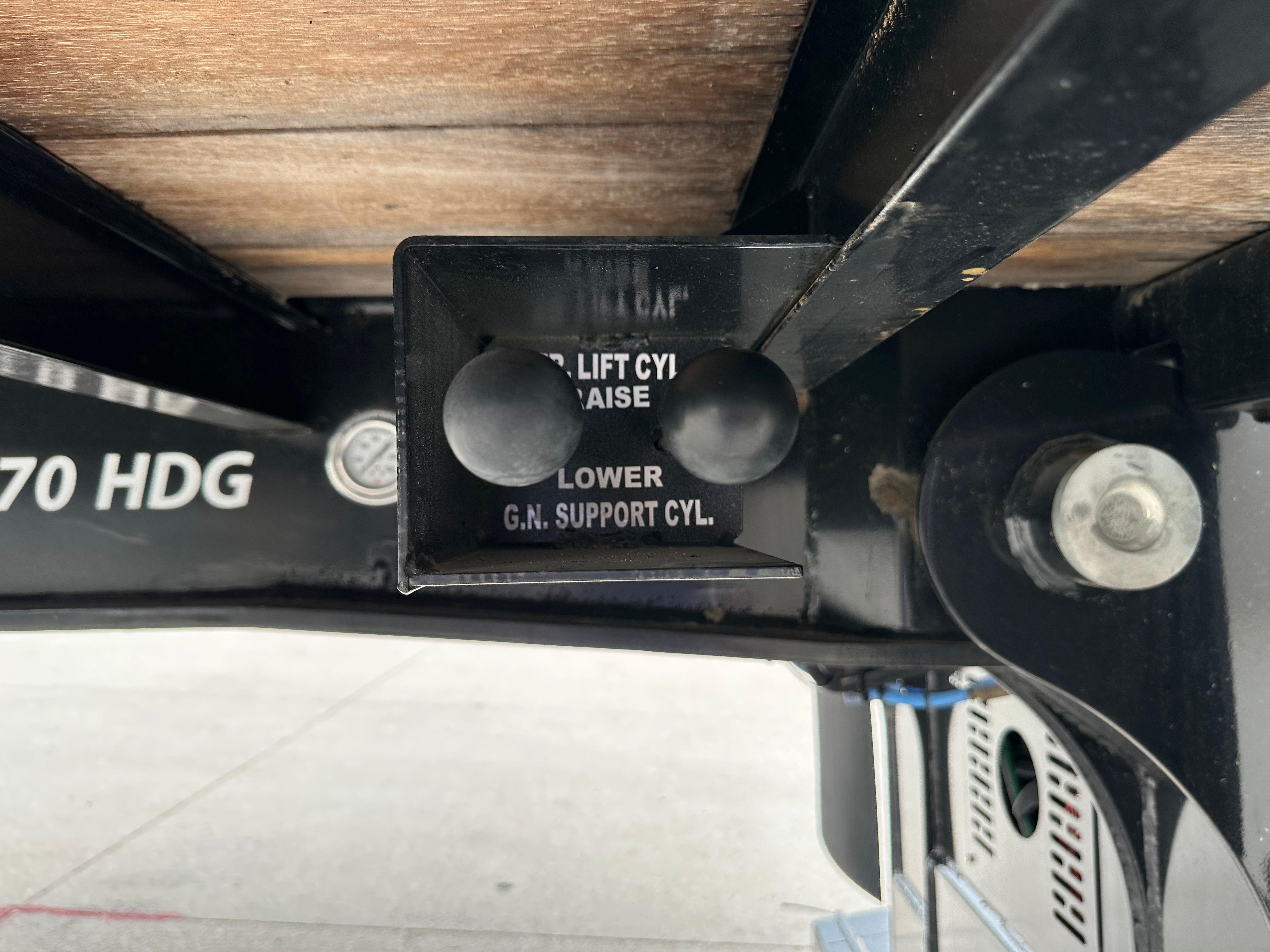

Colas+ Raise & Lower Valves

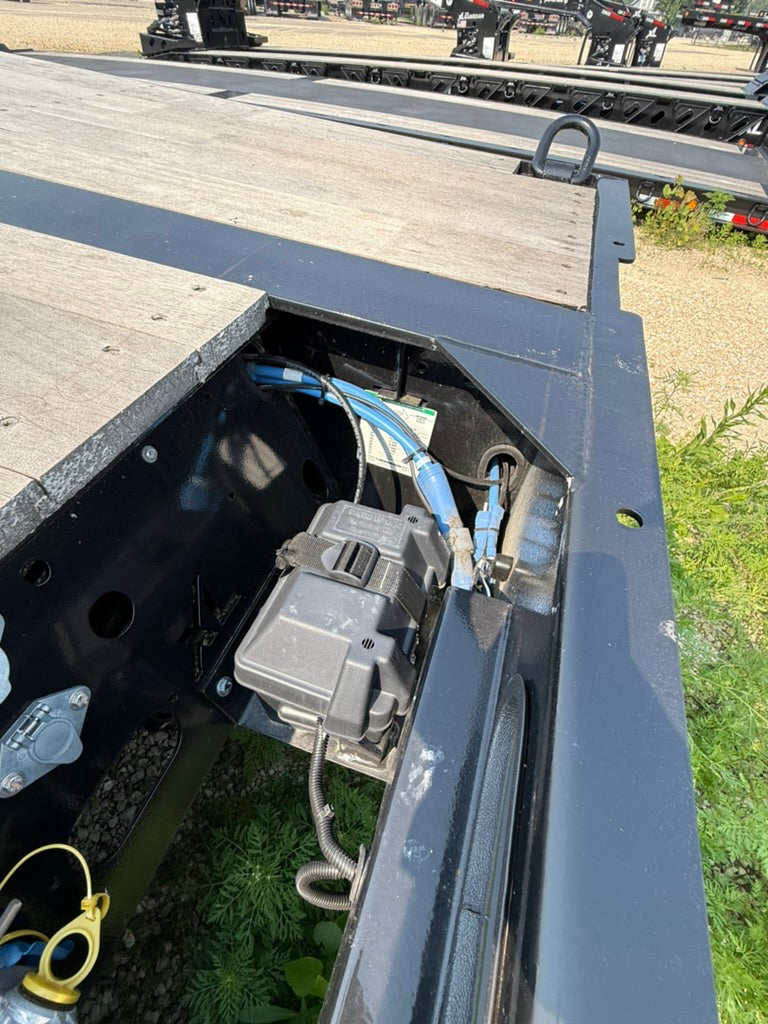

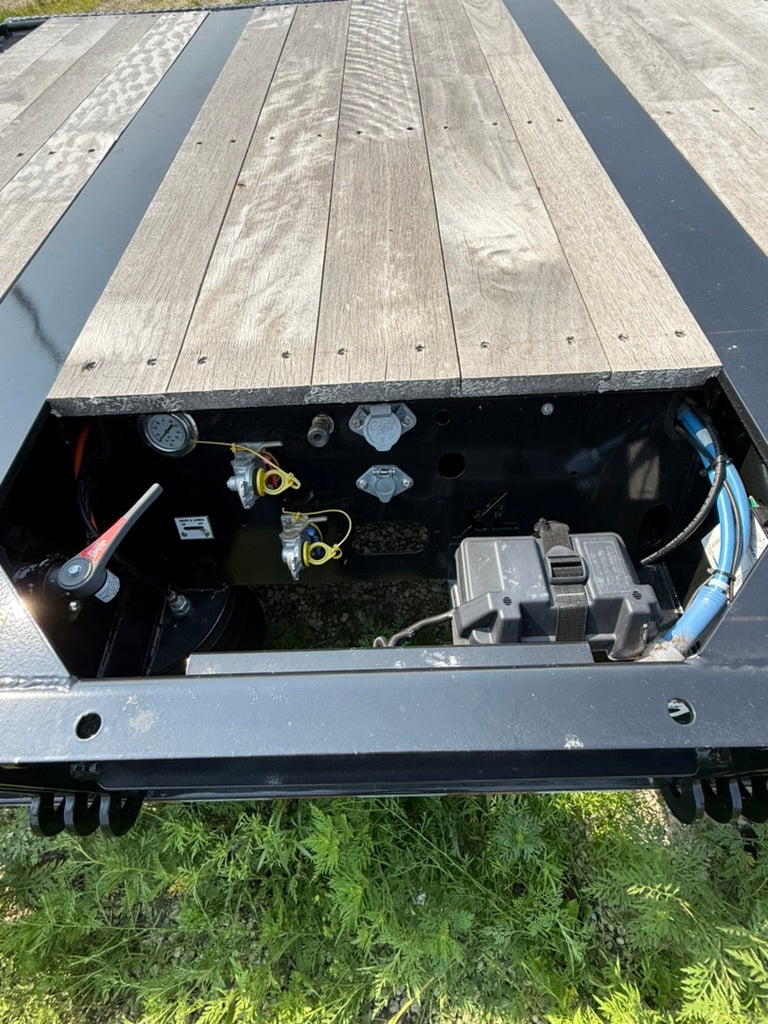

12V Sealed Grote Harness

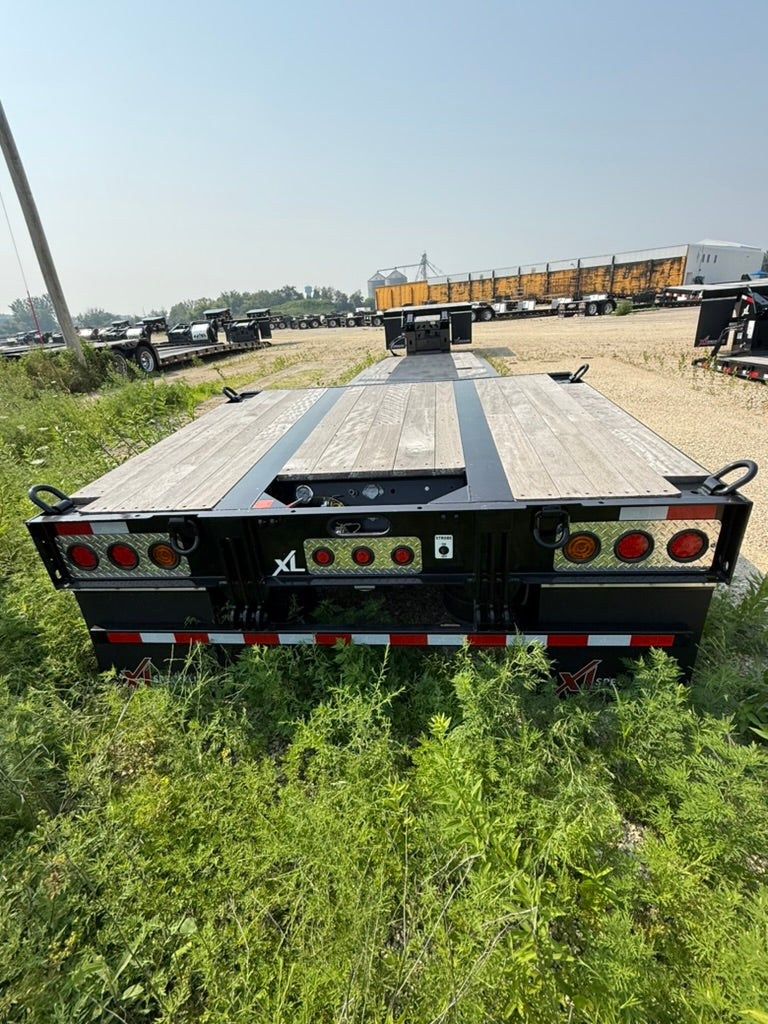

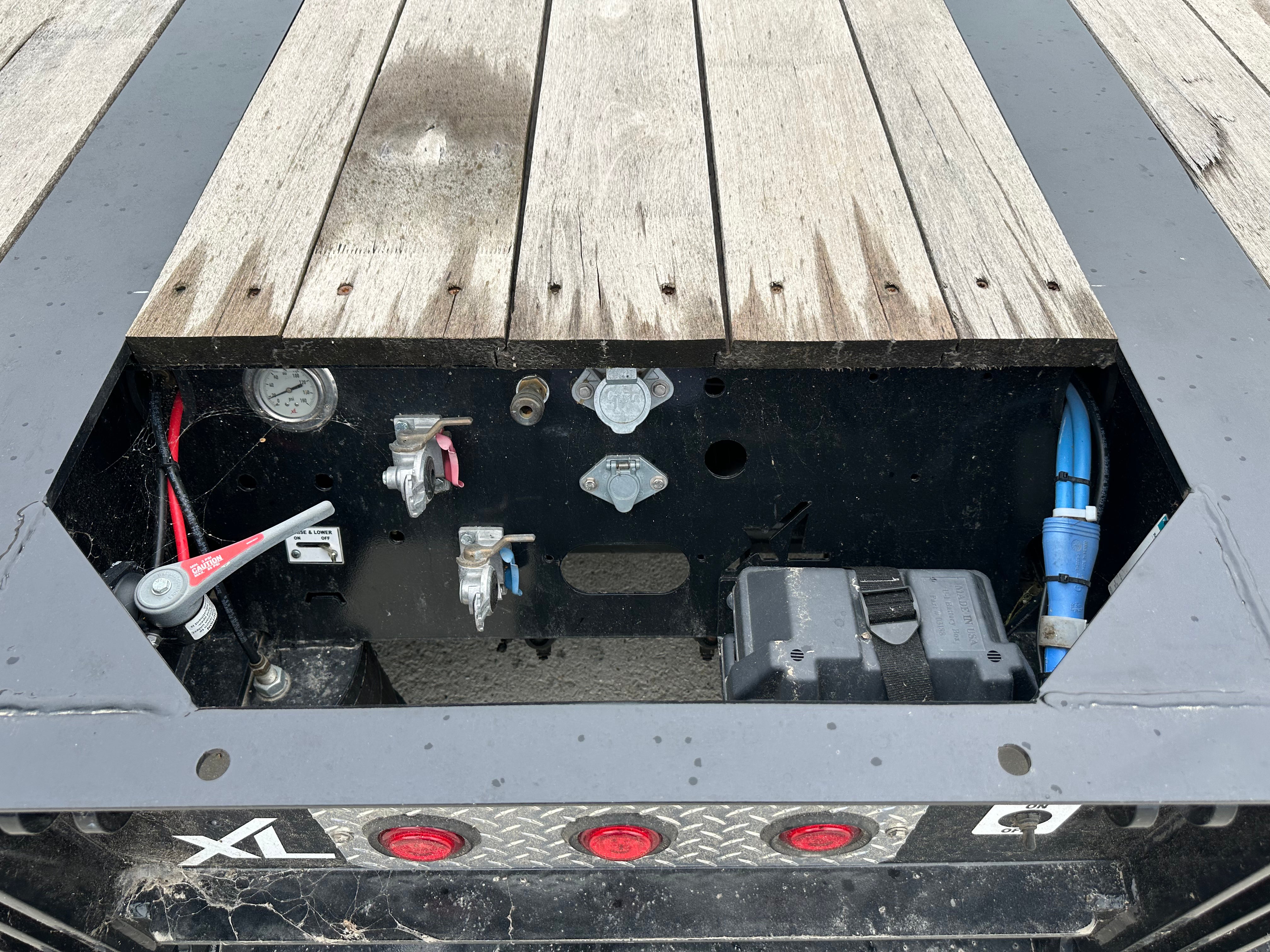

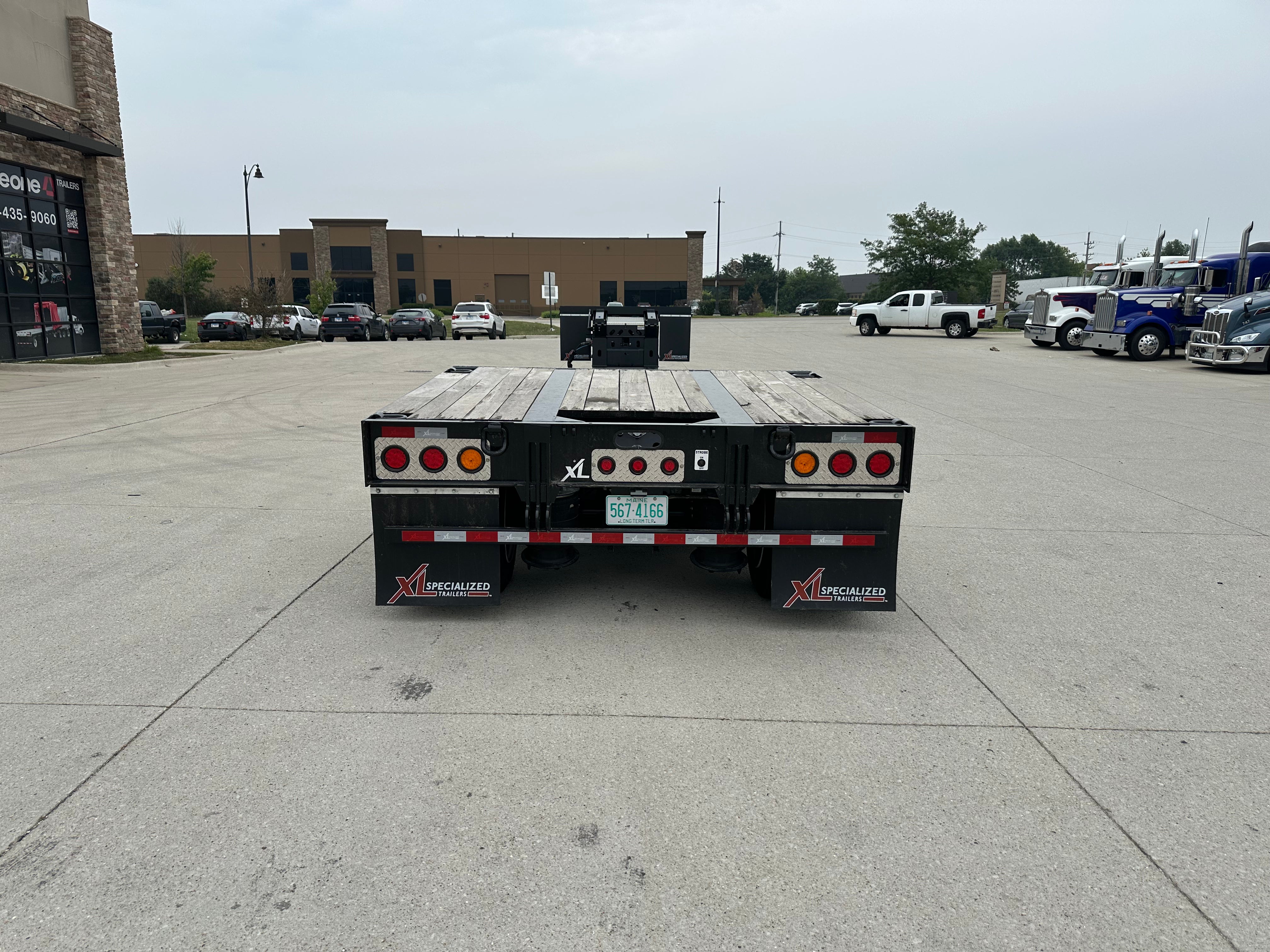

3 Tail Light Package w/ Aluminum Cover
4” Amber Strobe as 3rd Tail Light
Prepped for a Flip Axle
2 - Pair EZ Mount Flag Holders
5 Year Structural Warranty
3 Year Paint Warranty
1 Year Parts & Components Warranty

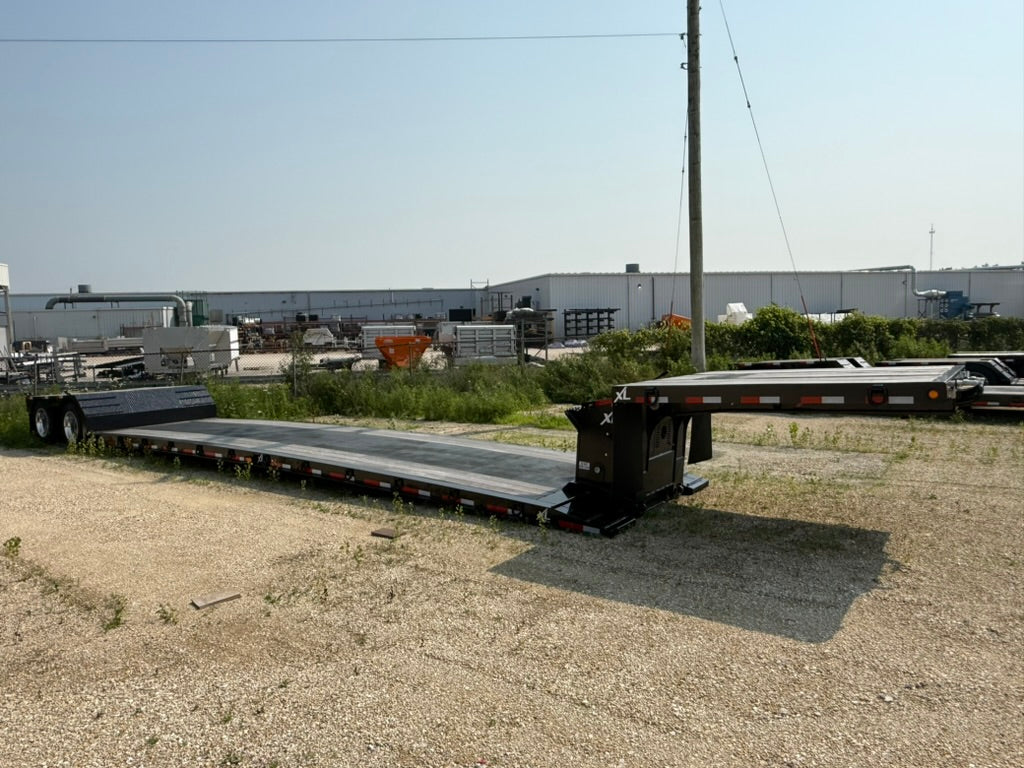

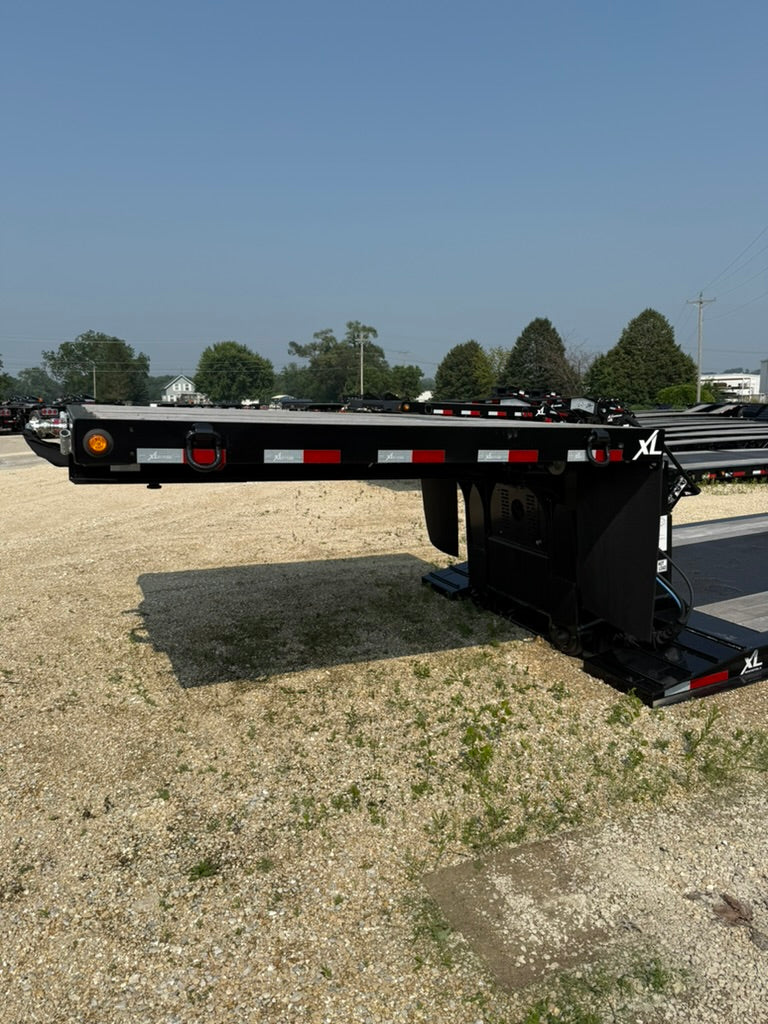

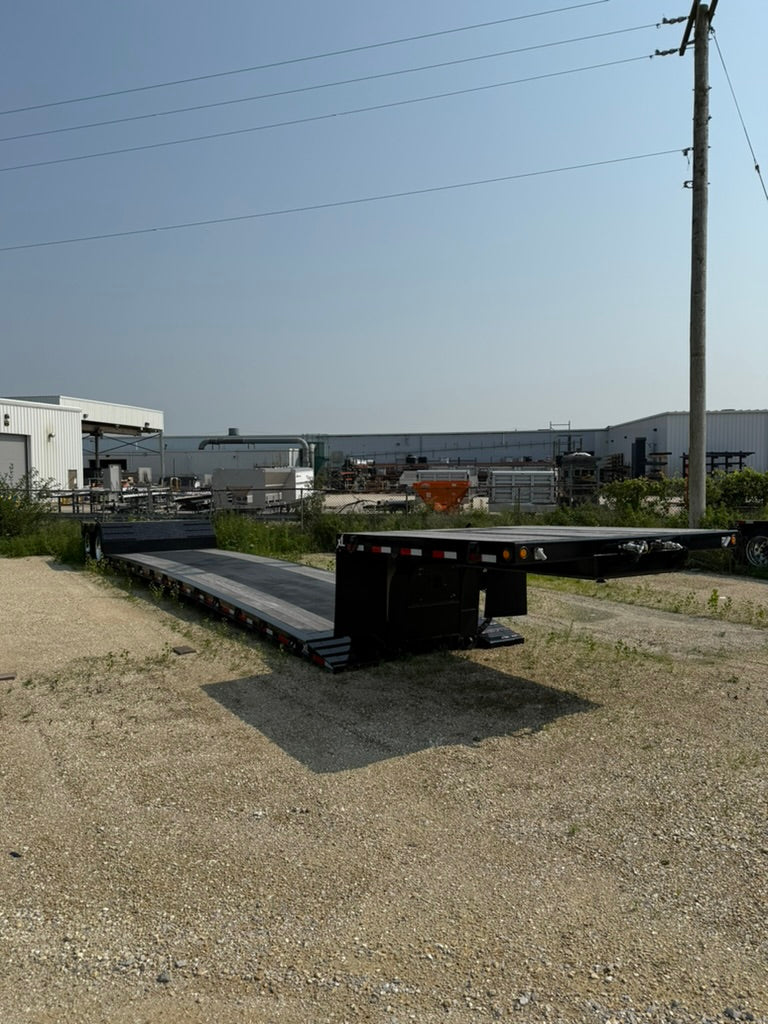

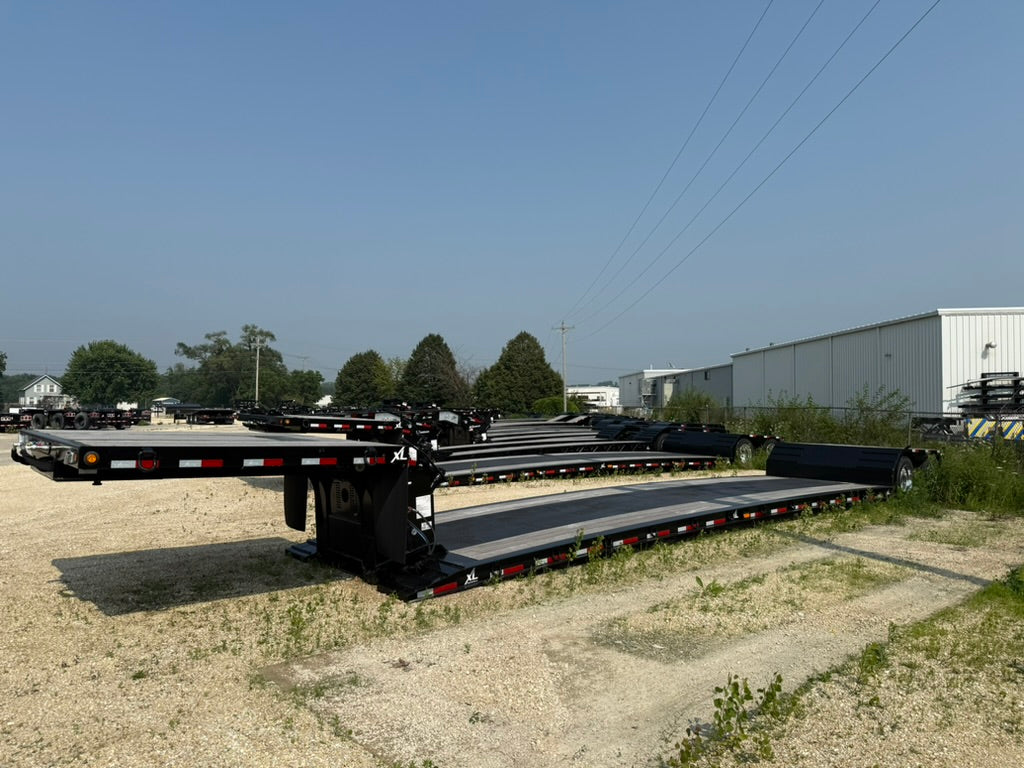

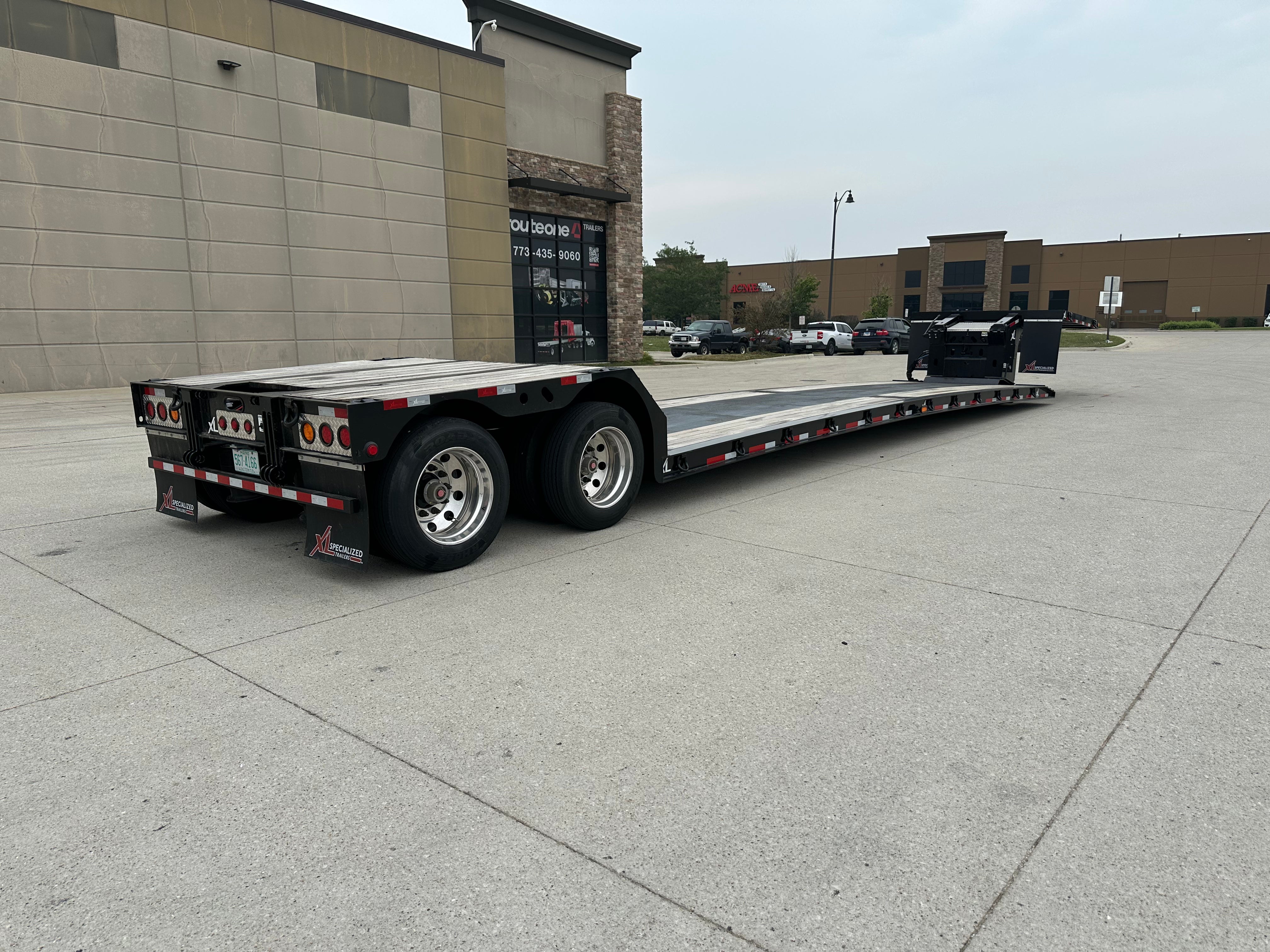

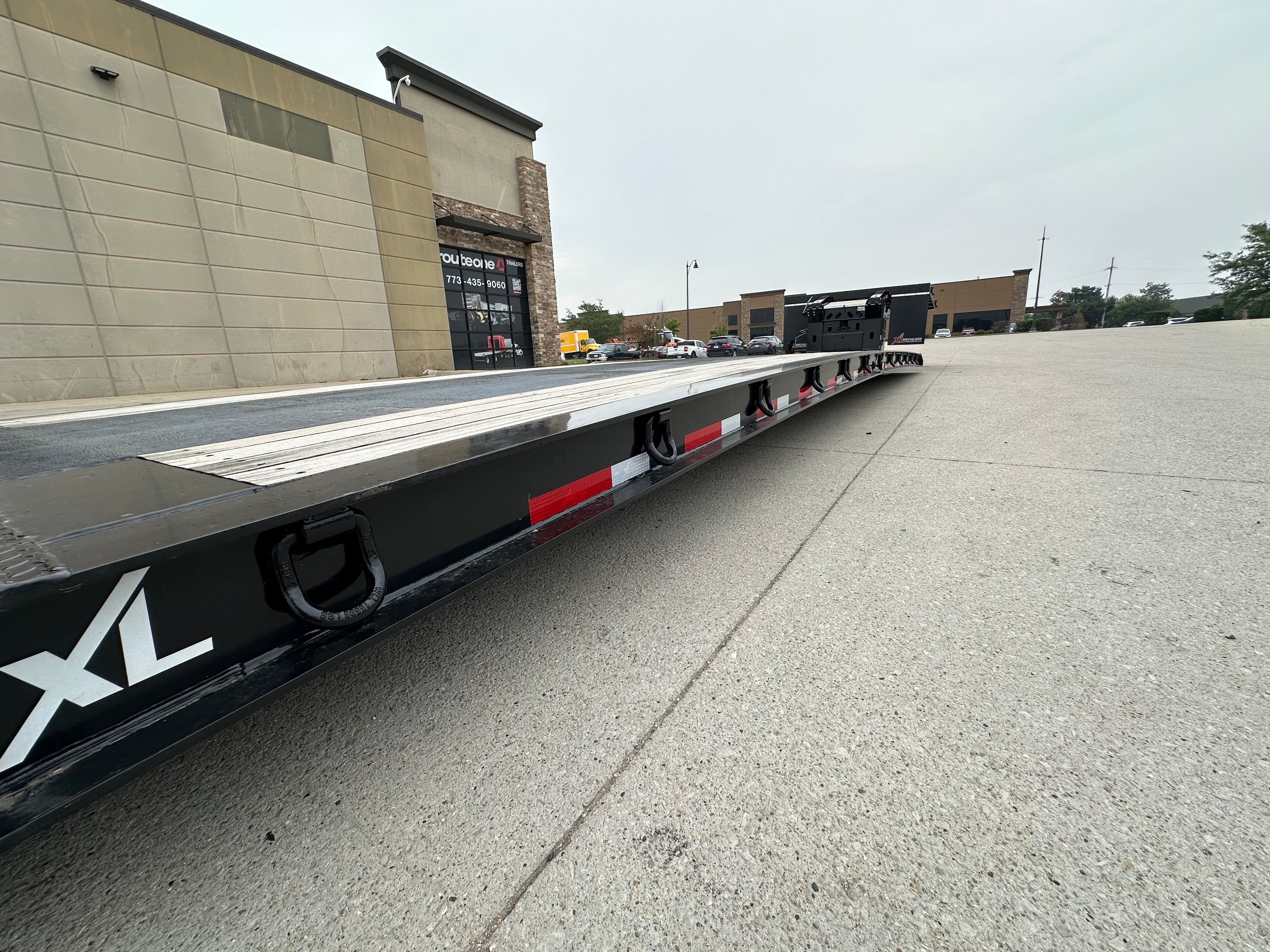

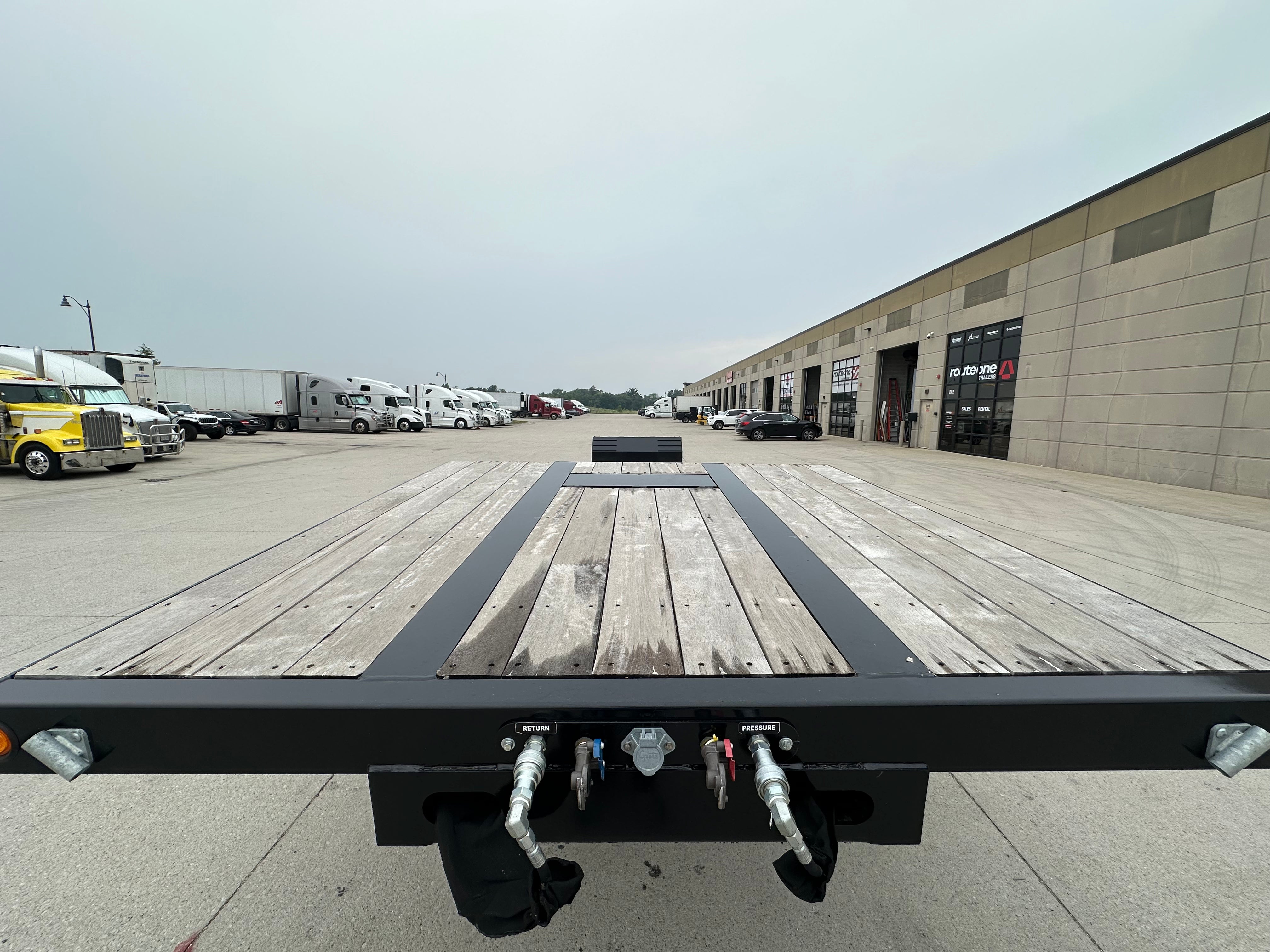

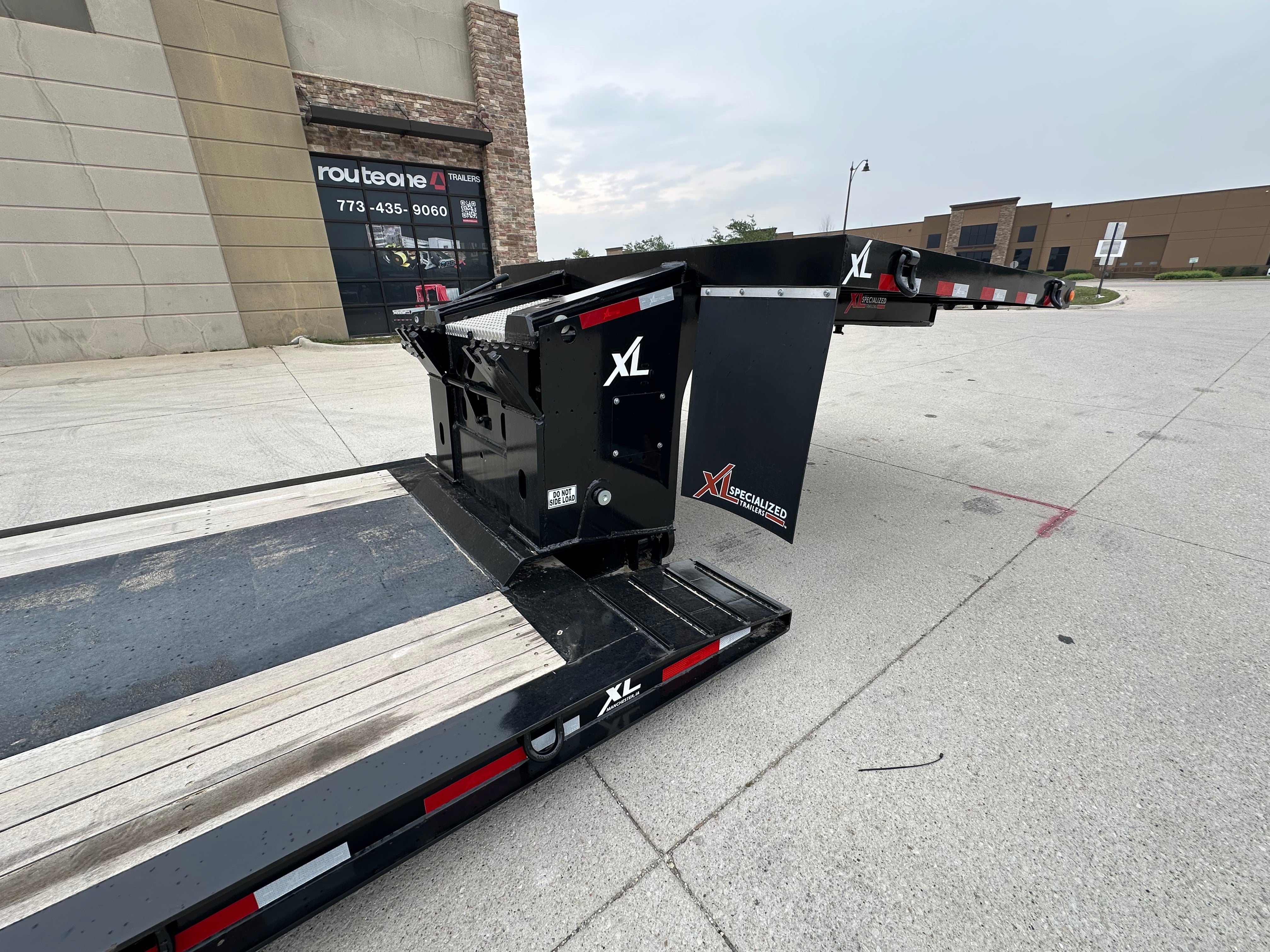

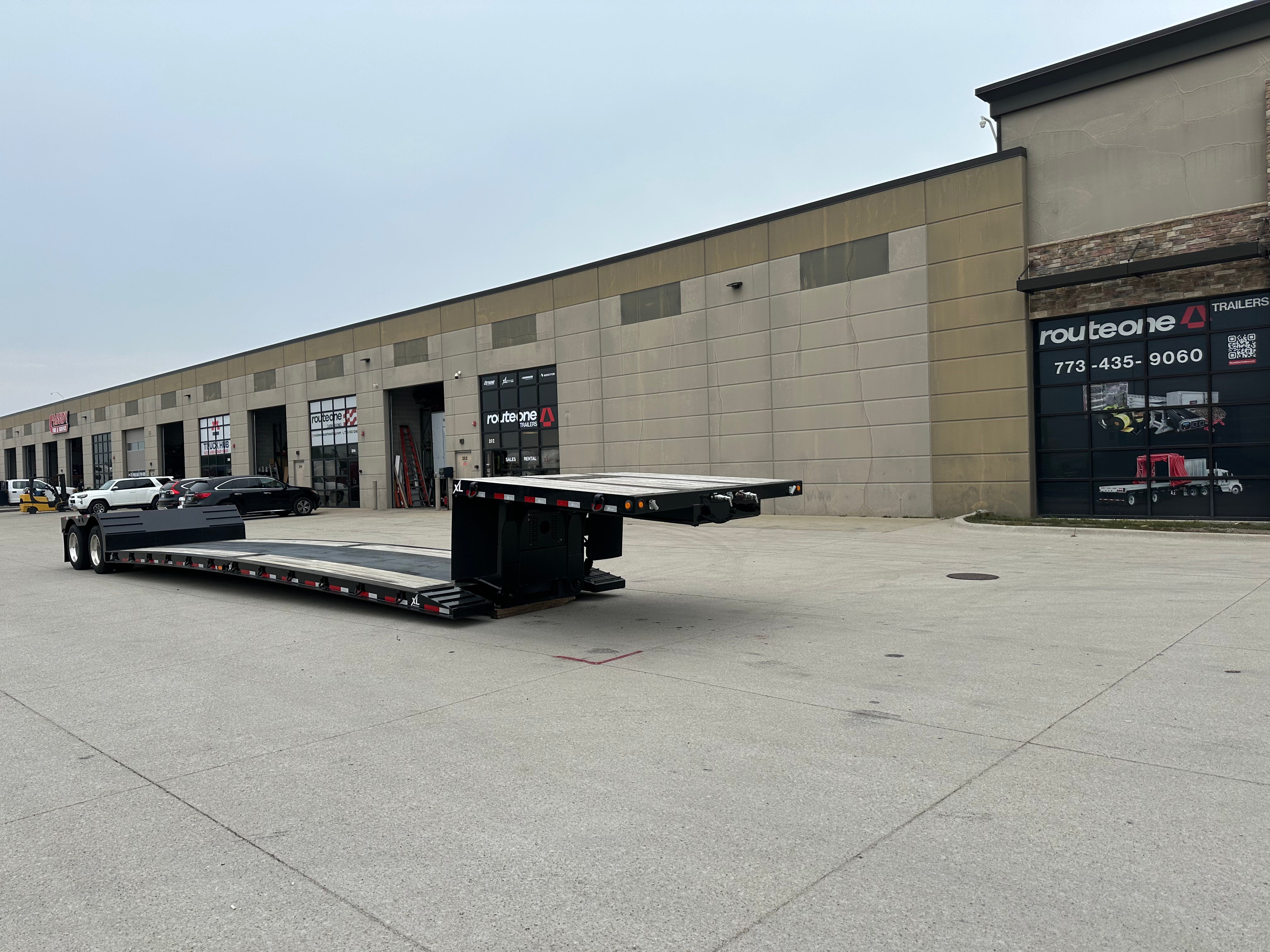

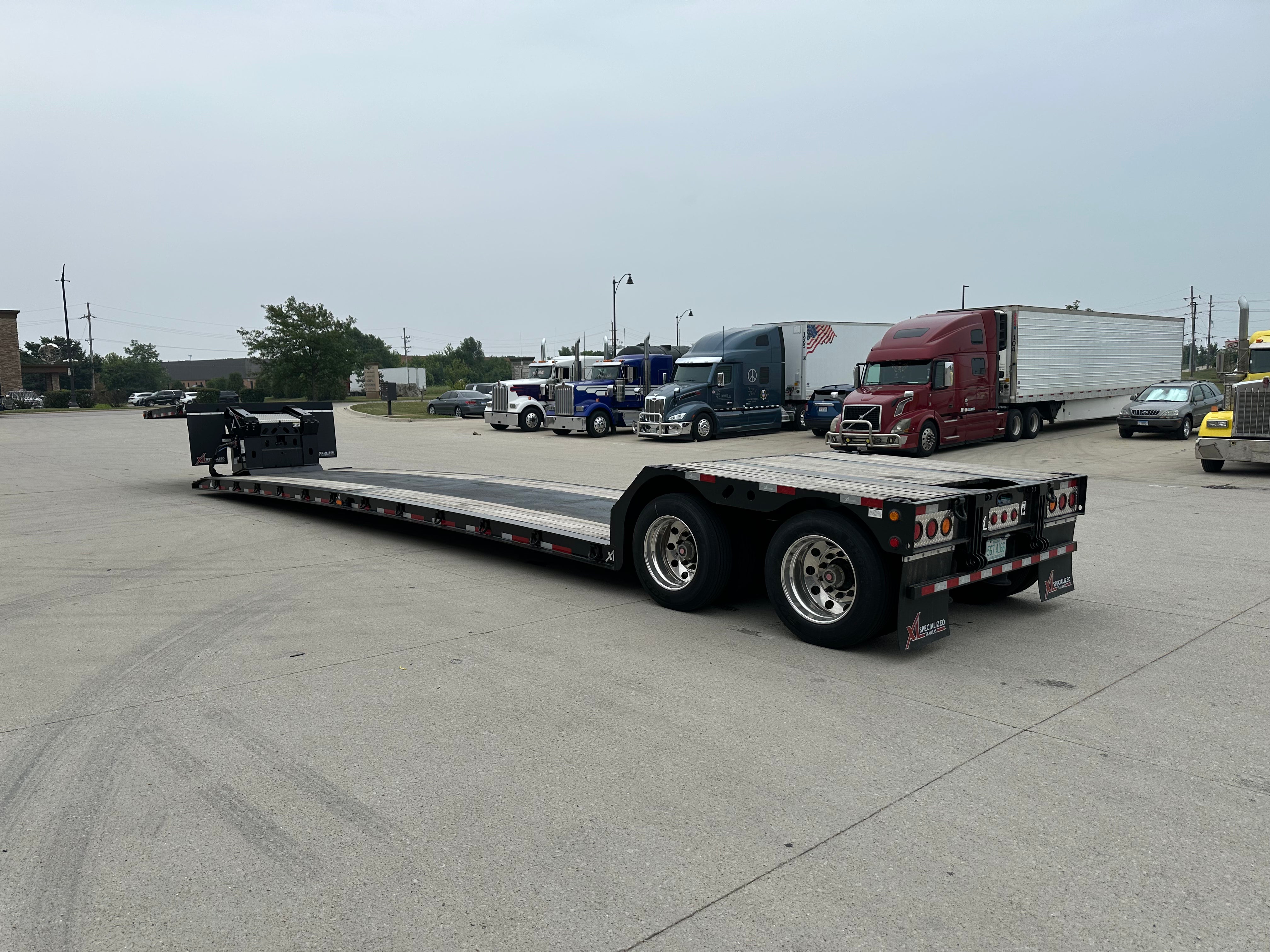

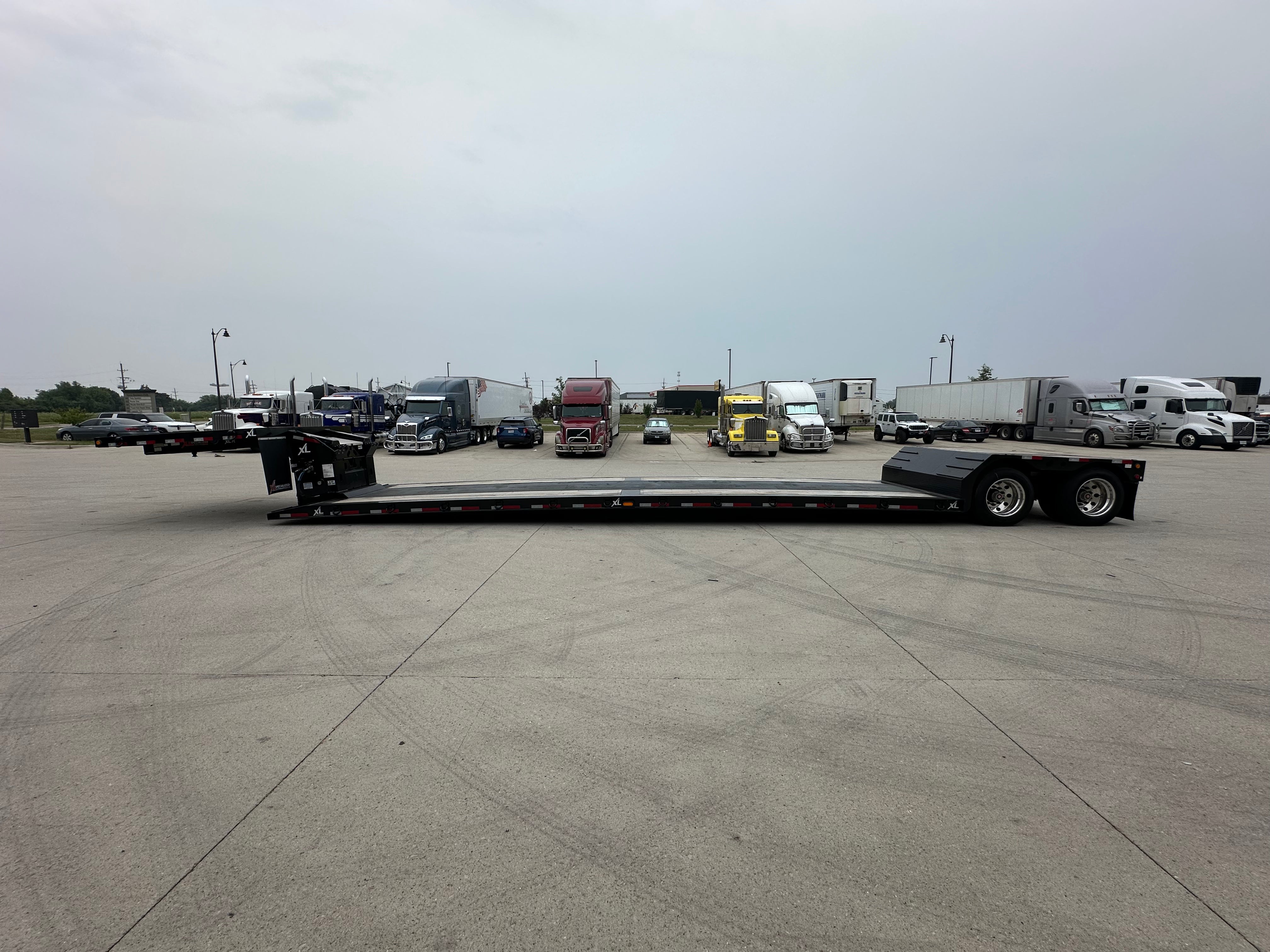

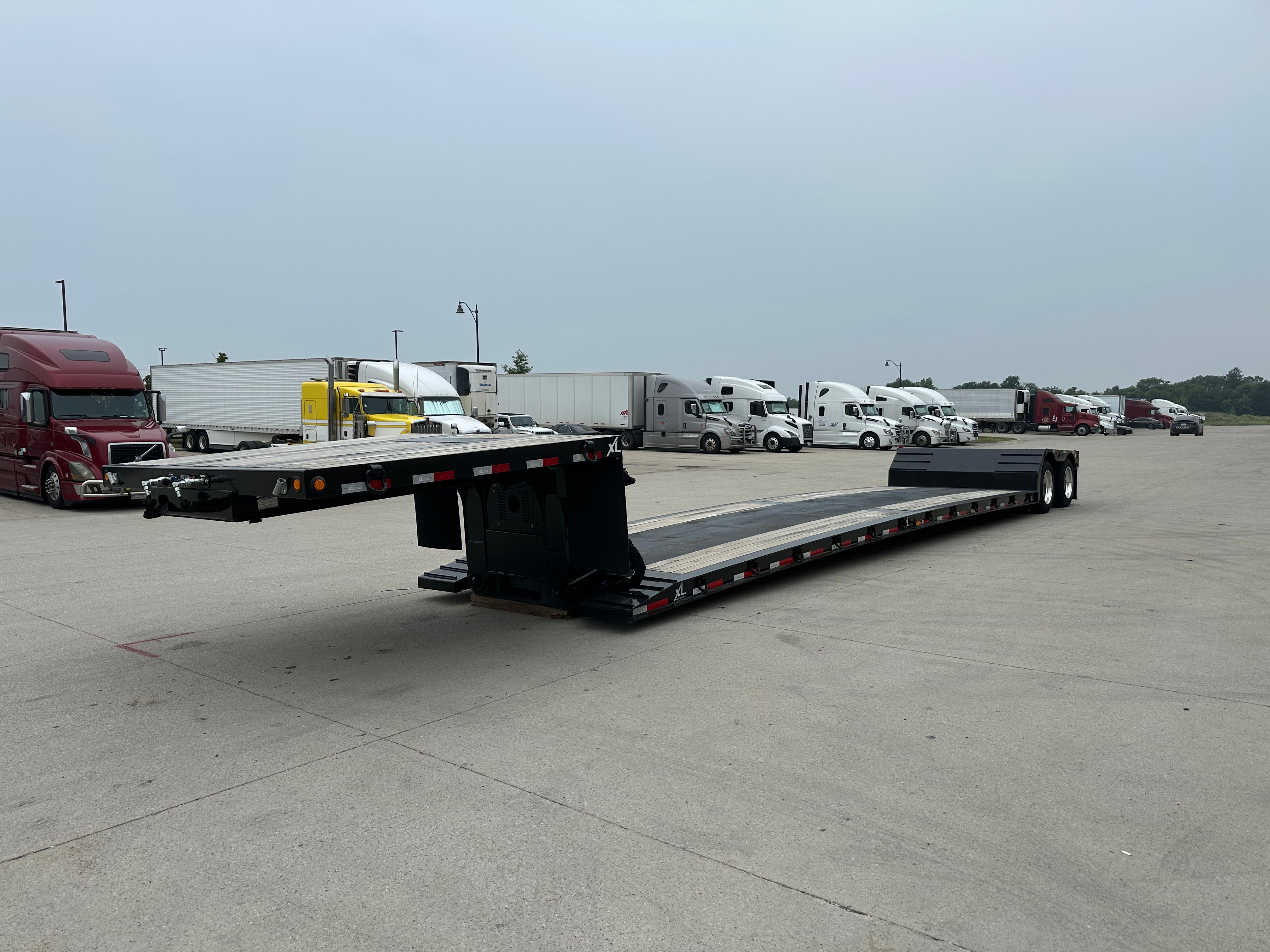

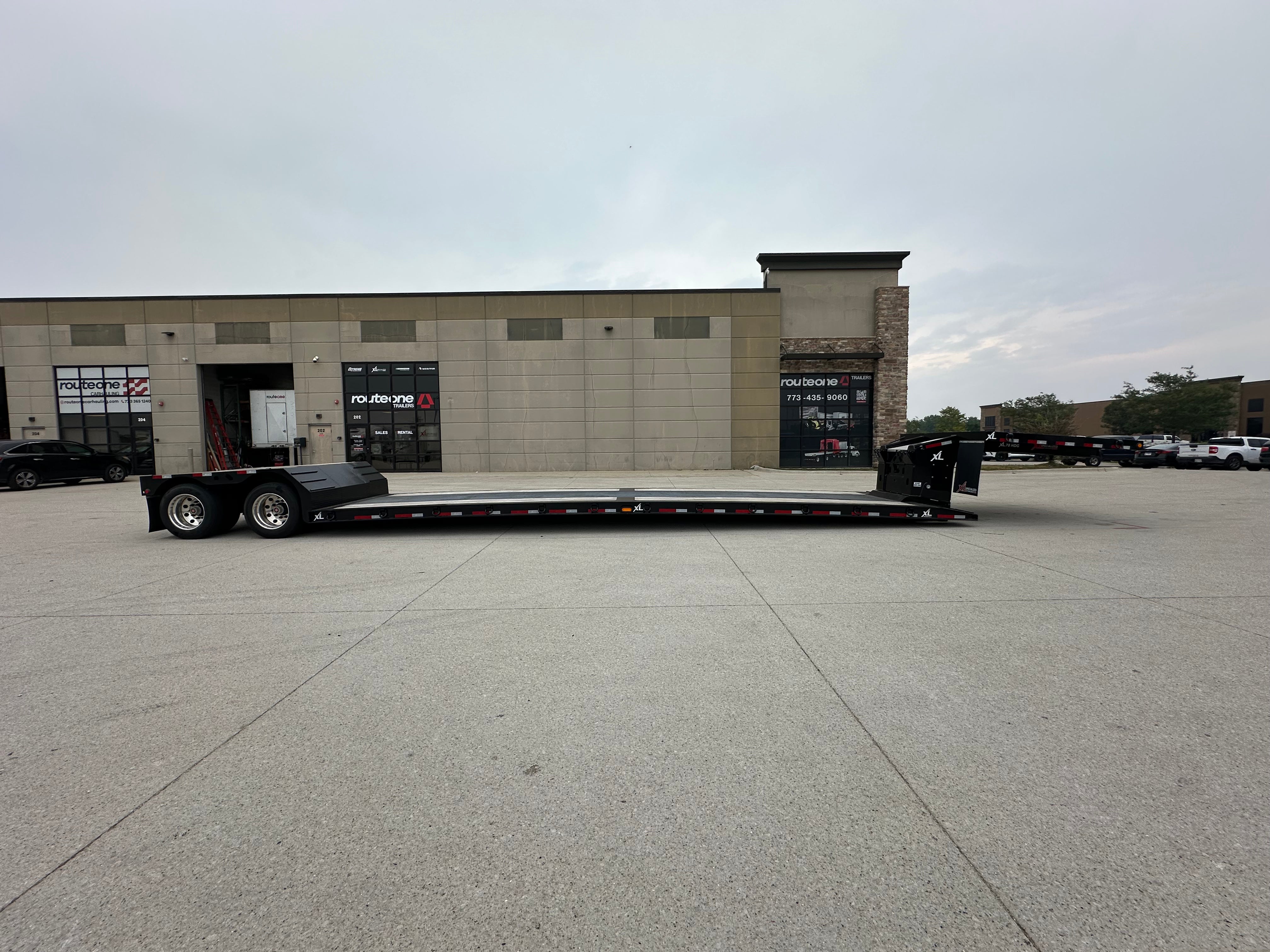

Pictures show a Full With Gooseneck !!!
Ready late May - early June
Pick up in Manchester, IA
