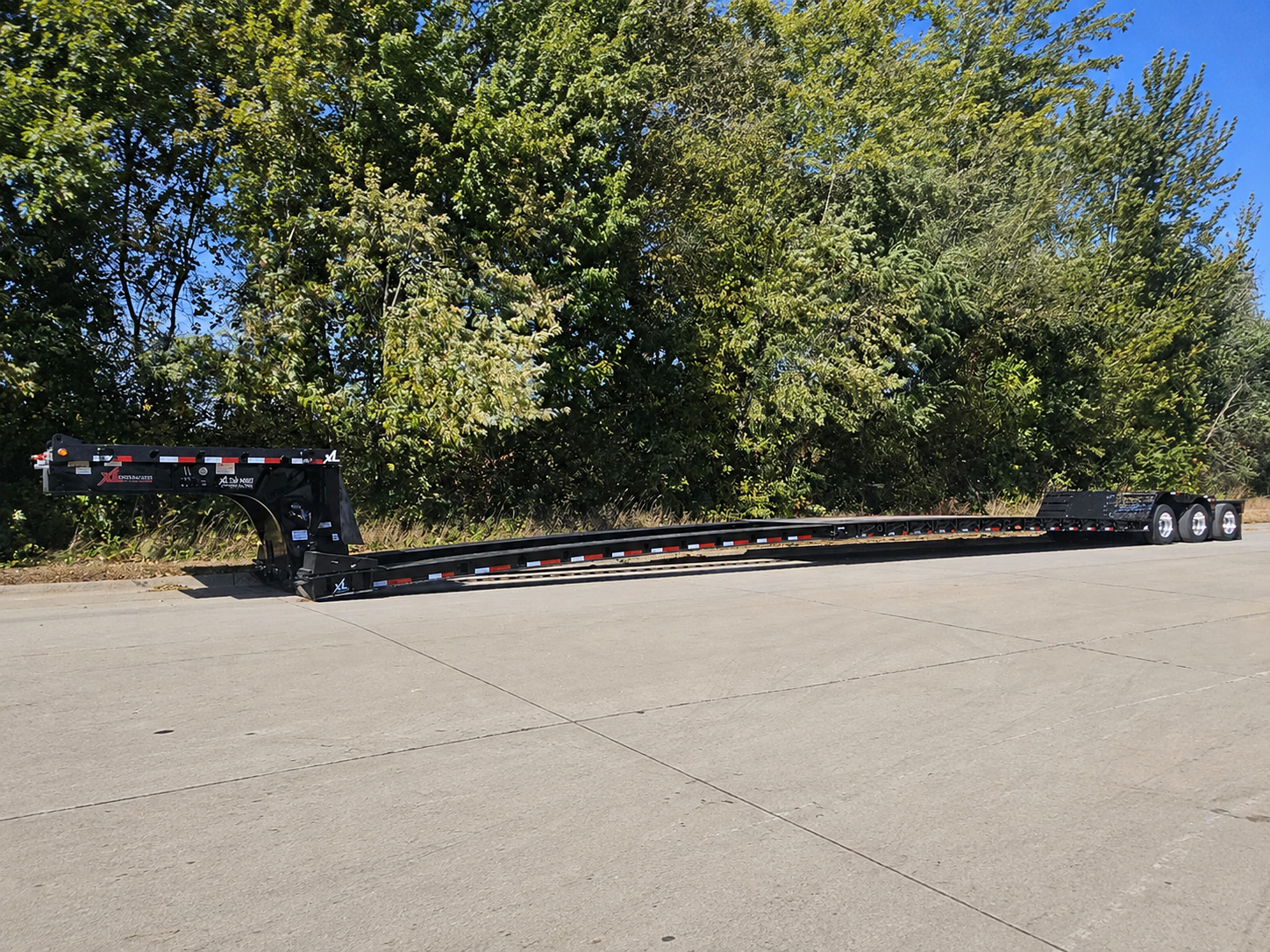

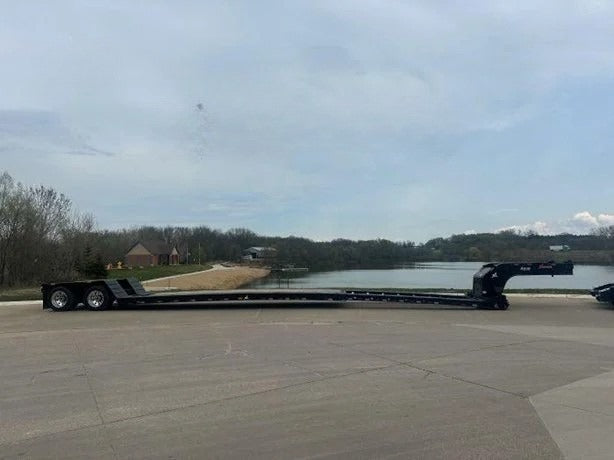

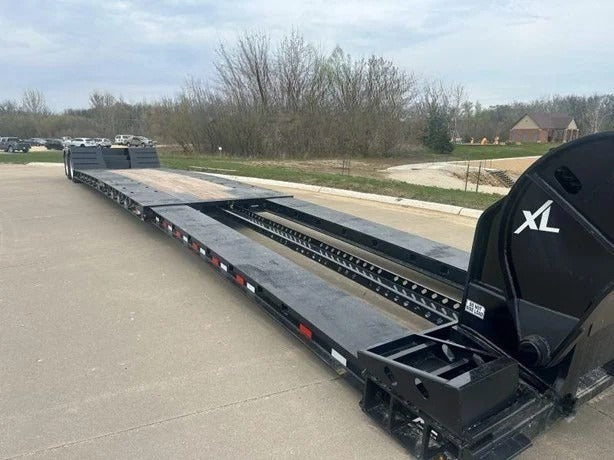

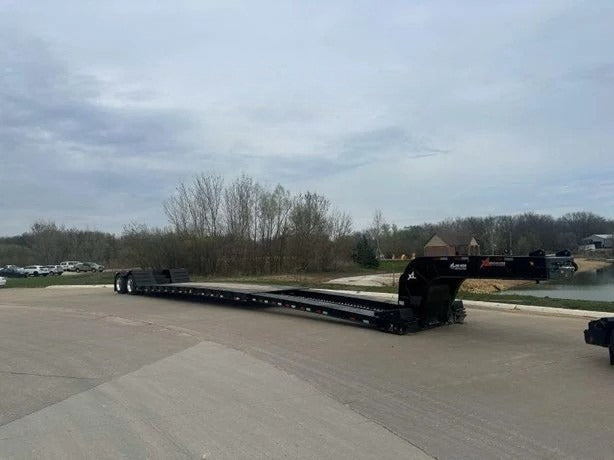

2027 XL 80 Hydraulic Detachable Extendable - Mini-Deck

Overall Dimensions

• Overall length: 53'
• Overall width: 102"

Capacity

• 80,000 lb distributed closed
• 80,000 lb in 16' closed centered on the deck
• 30,000 lb in 5' front and rear of deck fully extended (60,000 lb total)

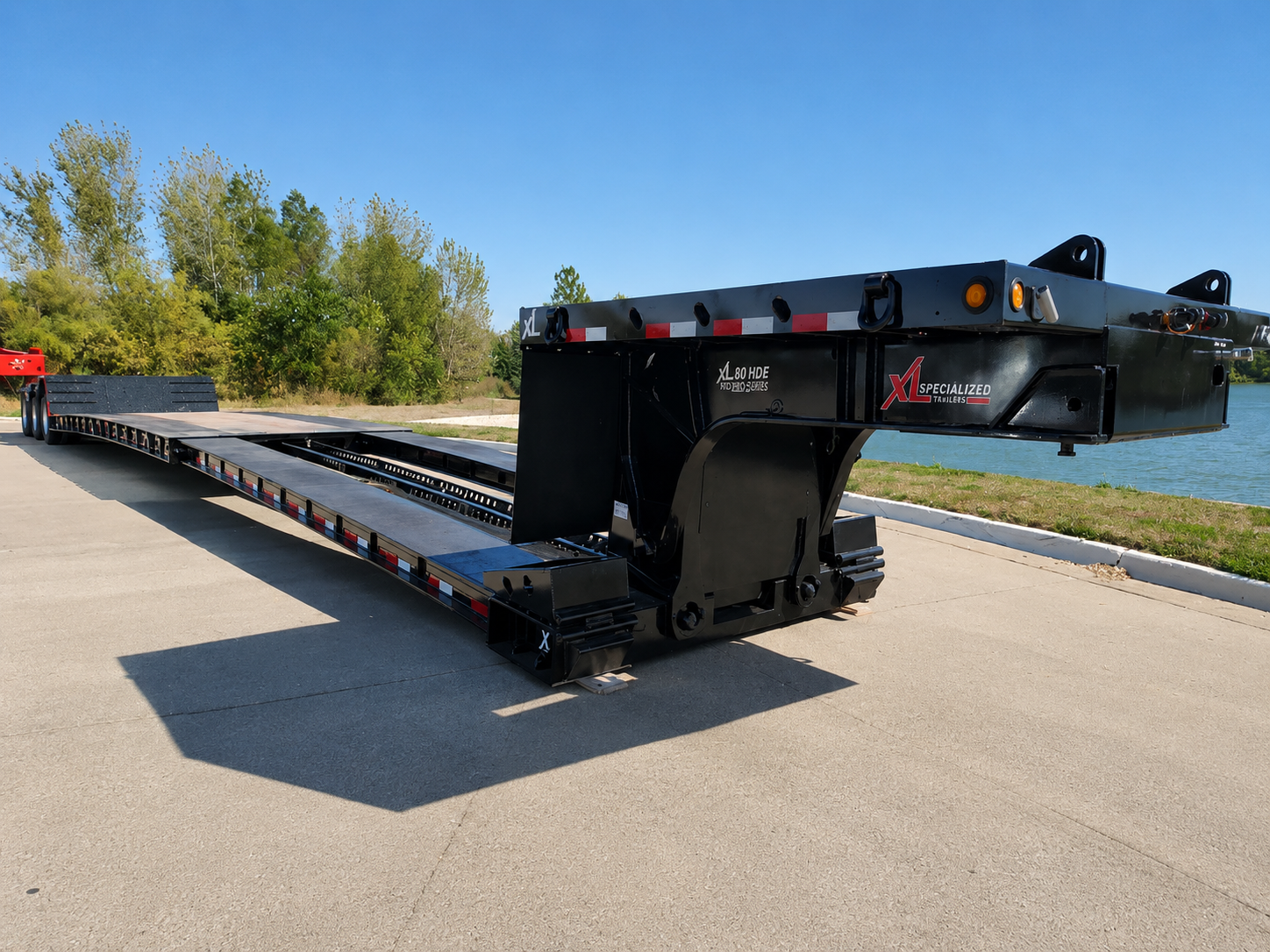

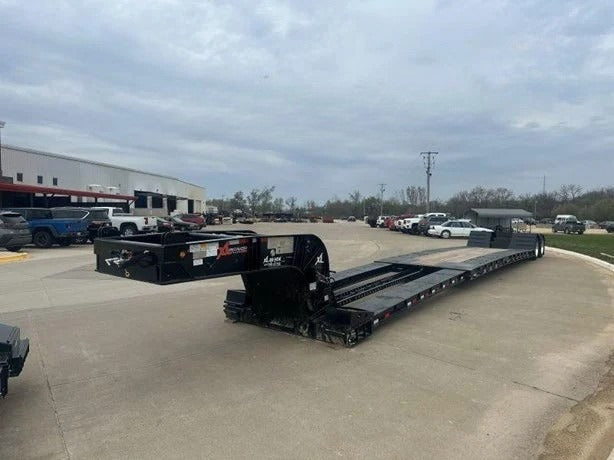

Gooseneck

• Length: 10' 5"
• Kingpin setting: 16"
• Swing clearance: 84"
• 5th wheel height: 49" with 7 variable ride height positions
• Hydraulics: 13 HP Honda, dual hydraulics with aluminum cover
• Decking: Full-width classic neck HDG with 1 1/8" flush Apitong
• 36" flip neck

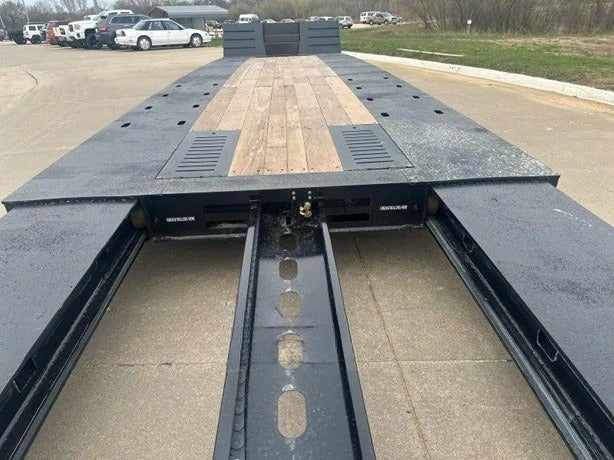

Main Deck

• Length: 33' 3" / opens to 59' 8"
• Loaded deck height: 14" with 4" ground clearance
• Decking: 1 1/8" flush Apitong decking
• Crossmembers: Formed crossmembers on 24" centers
• Beams: 10" fabricated
• D-rings: (11) bent D-rings per side
• Outriggers: Swing-out outrigger brackets only, 24" centers

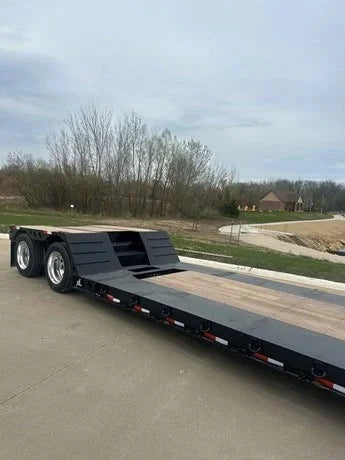

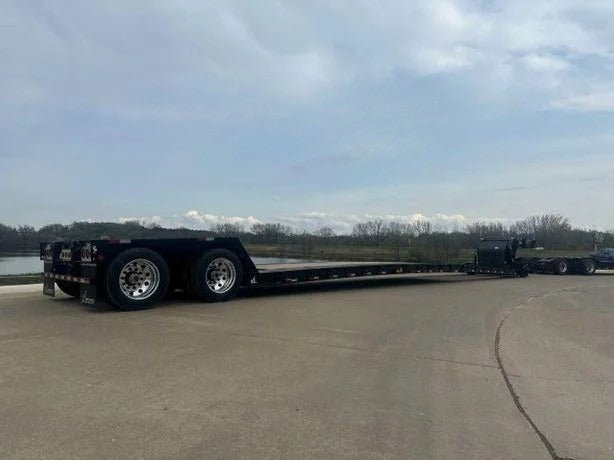

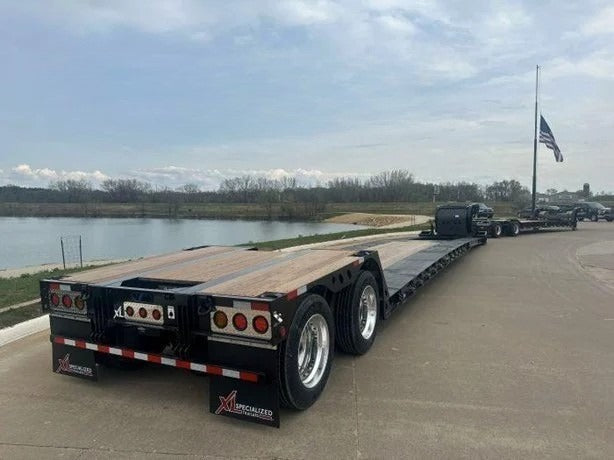

Rear Deck

• Length: 9' 4" with 55° slope
• Loaded deck height: 40"
• Axles: (2) 25,000 lb nominal (5/8" wall)
• Suspension: Hendrickson, 25,000 lb capacity, air ride
• Axle spacing: 54"
• Tires: 255/70R22.5 (H)
• Wheels: 8.25 x 22.5 polished aluminum wheels outside, steel disc inside
• Brakes: 16 1/2" x 7" drums
• Electrical: 12V sealed Grote system with (3) tail light aluminum package
• 4" amber strobe used as 3rd taillight
• Decking: 1 1/8" flush Apitong decking, covered wheels

Included Flip Axle

2027 XL Flip Axle 22 FA Hyd

• Length: 54"
• Loaded deck height: 40"
• Axles: (1) 25,000 lb nominal (5/8" wall)
• Suspension: Hendrickson, 25,000 lb capacity, air ride
• Axle spacing: 54"
• Tires: 255/70R22.5 (H)
• Wheels: 8.25 x 22.5 10-hole pilot mount polished aluminum wheels outside, steel disc
• Electrical: 12V sealed Grote system with (3) tail light aluminum package
• 4" amber strobe used as 3rd taillight
• Covered wheels and covered center with 1 1/8" flush Apitong decking
• (1) pair of flag holders
