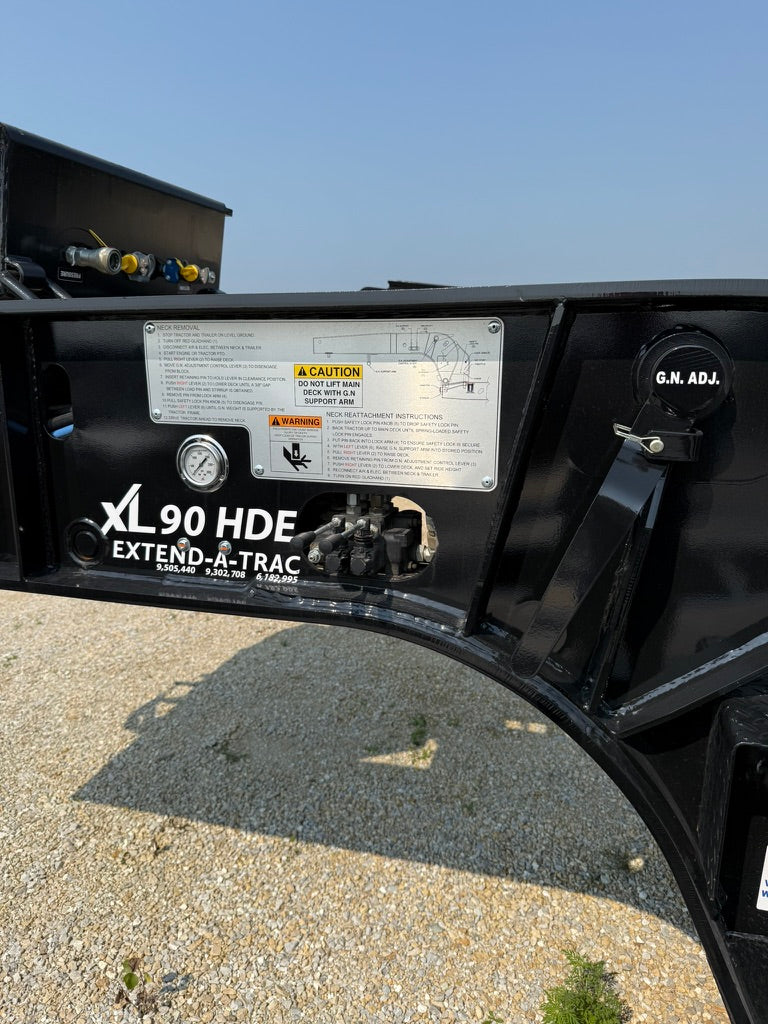

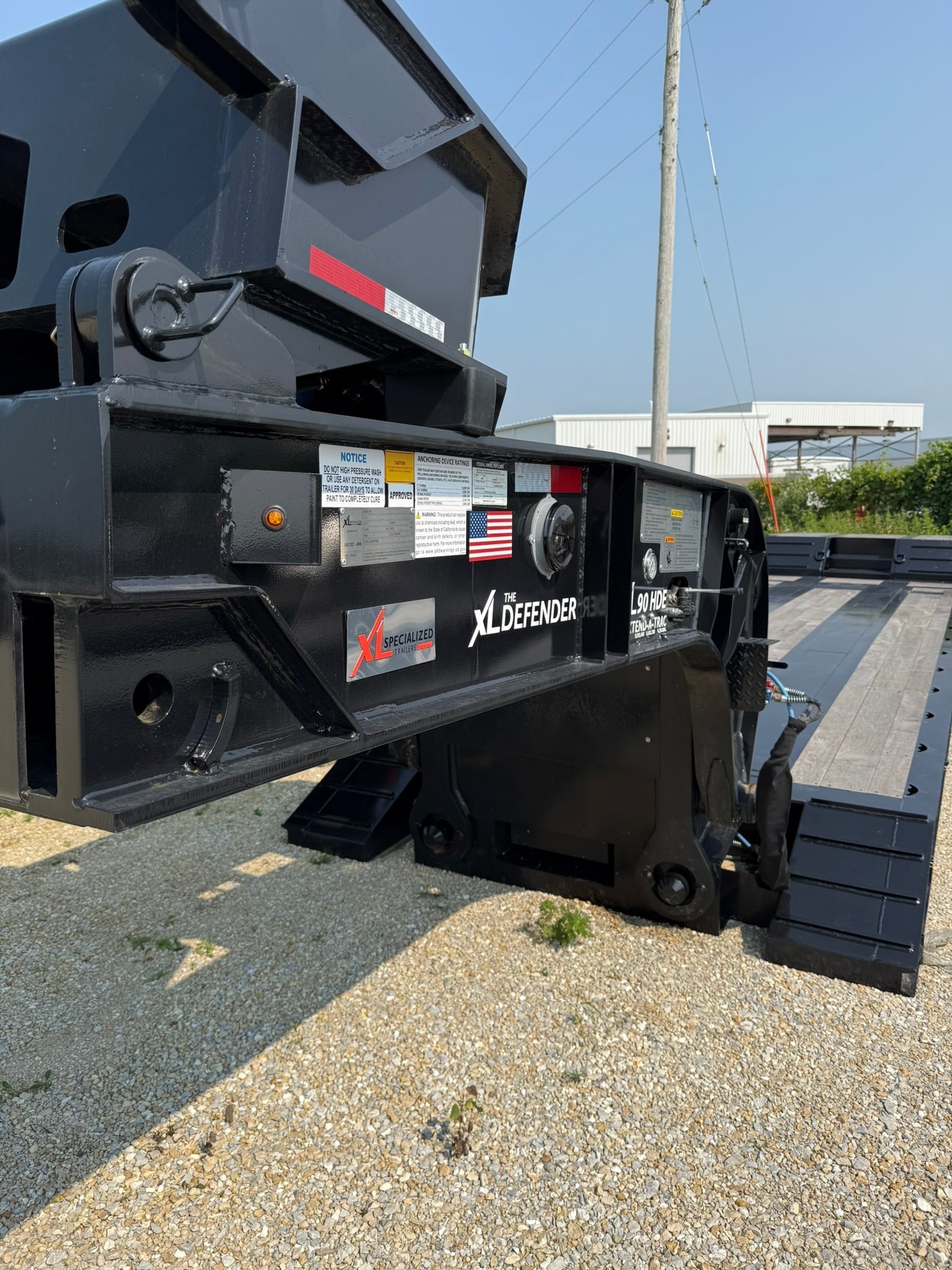

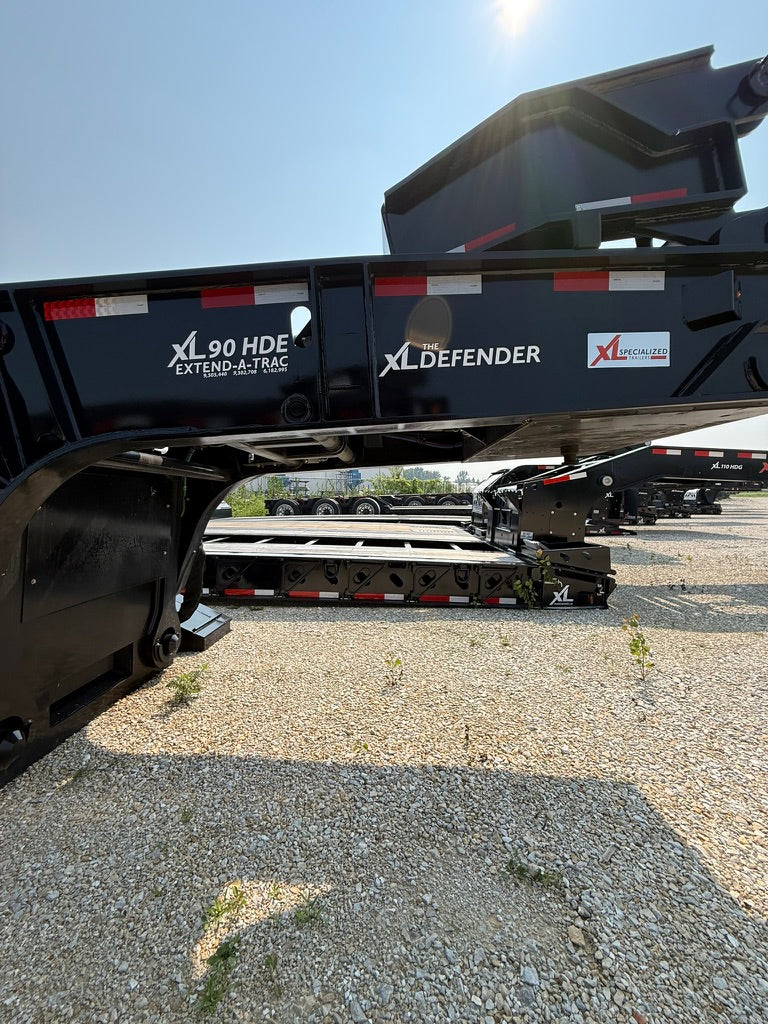

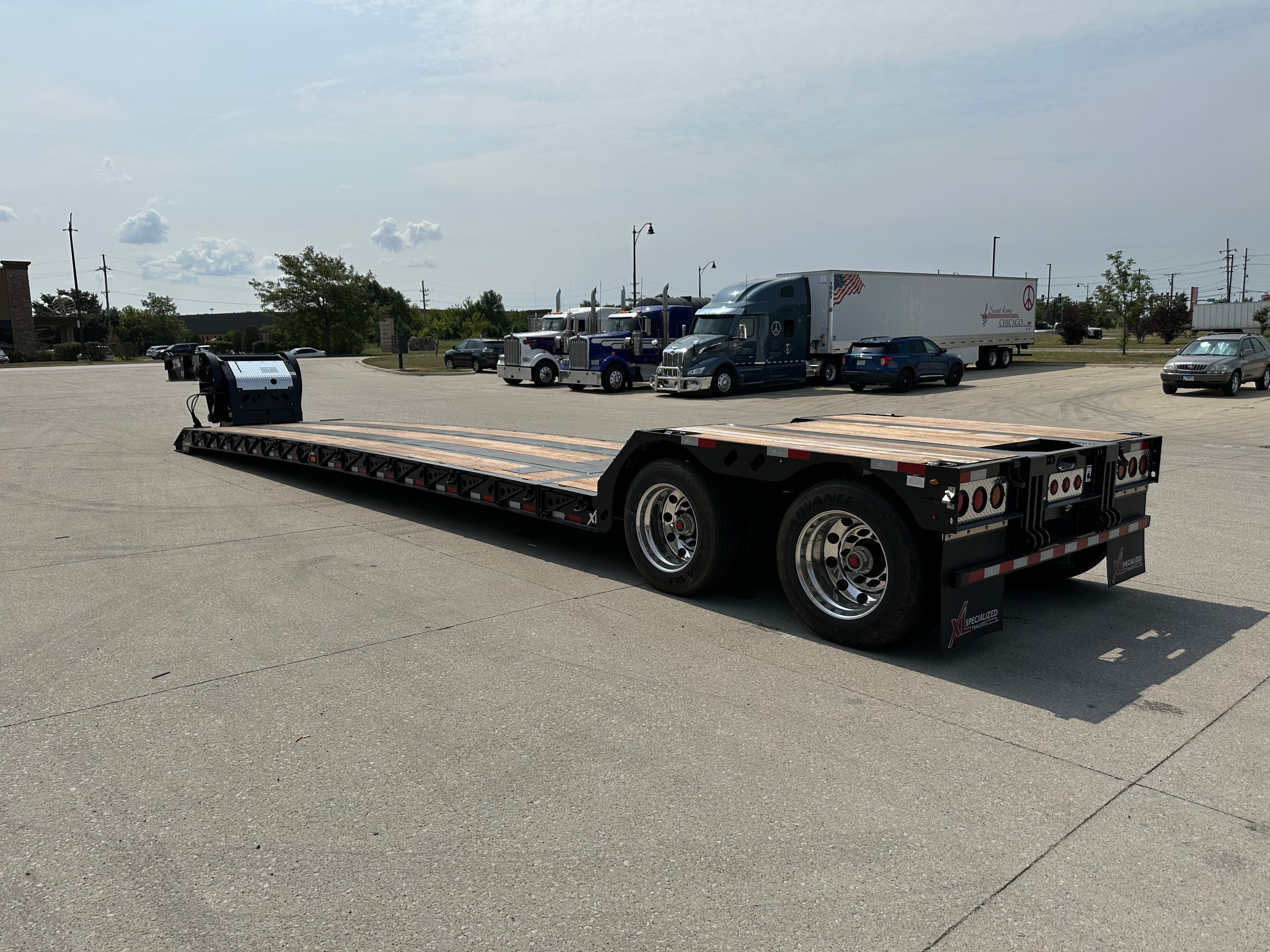

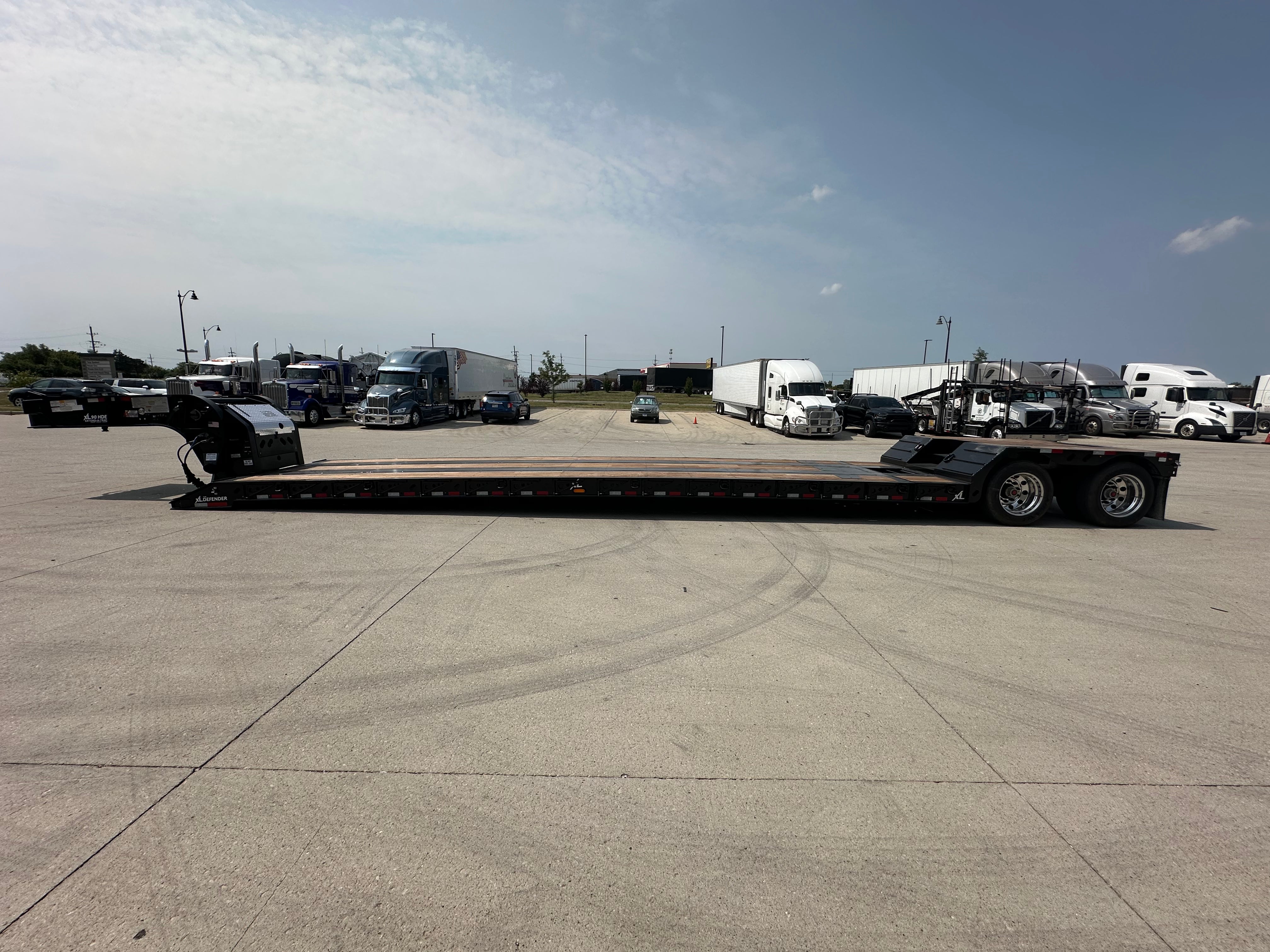

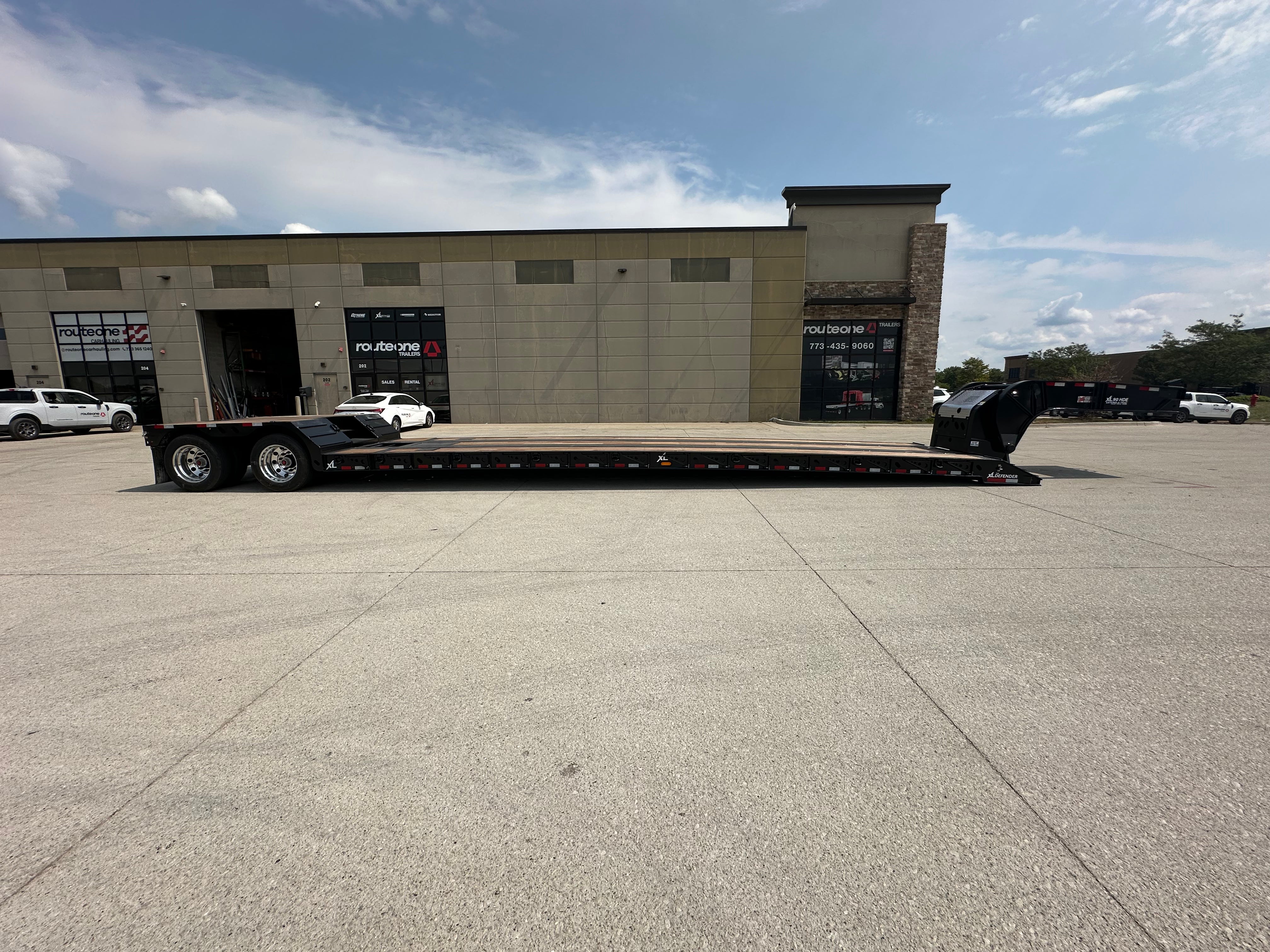

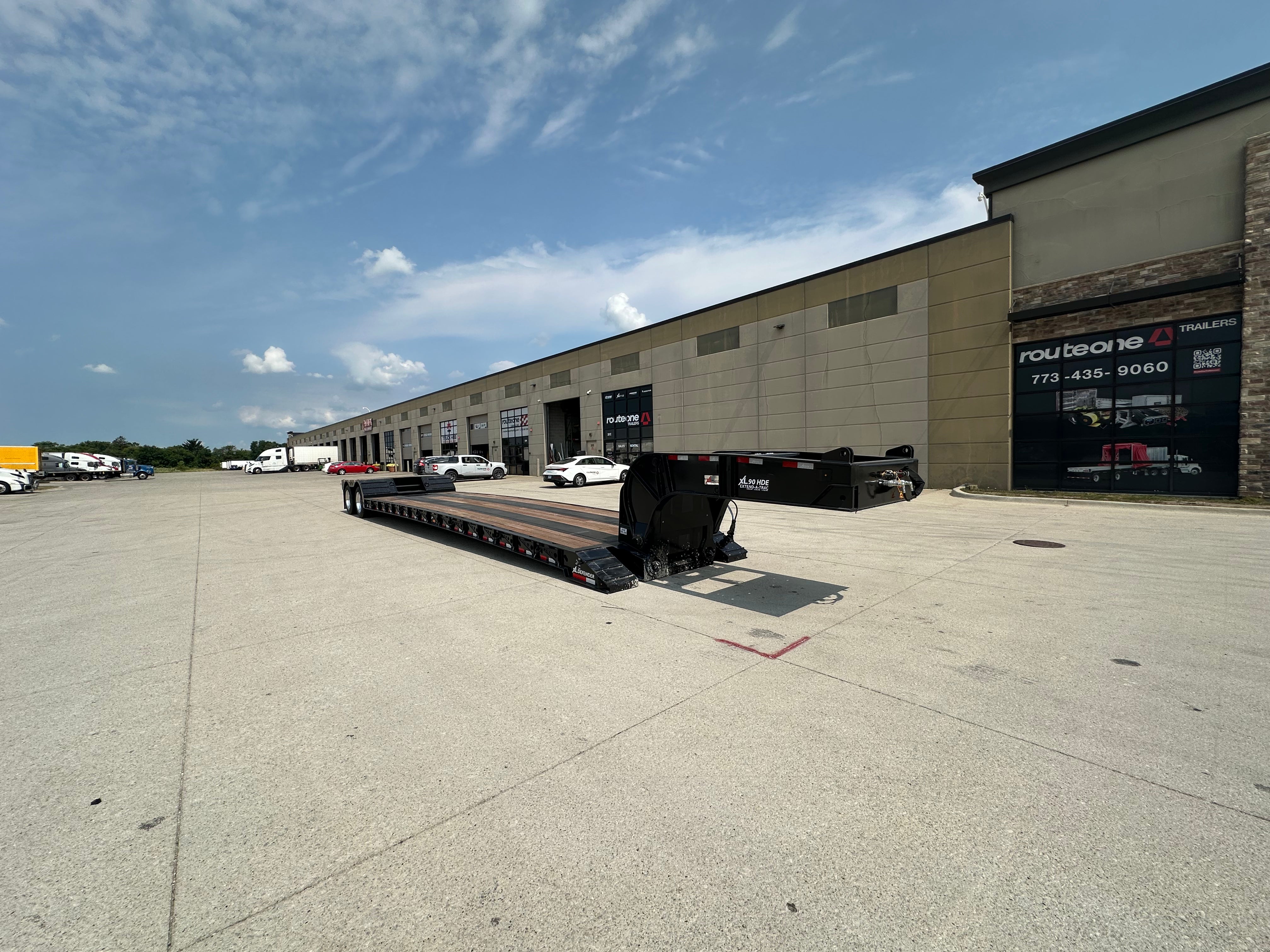

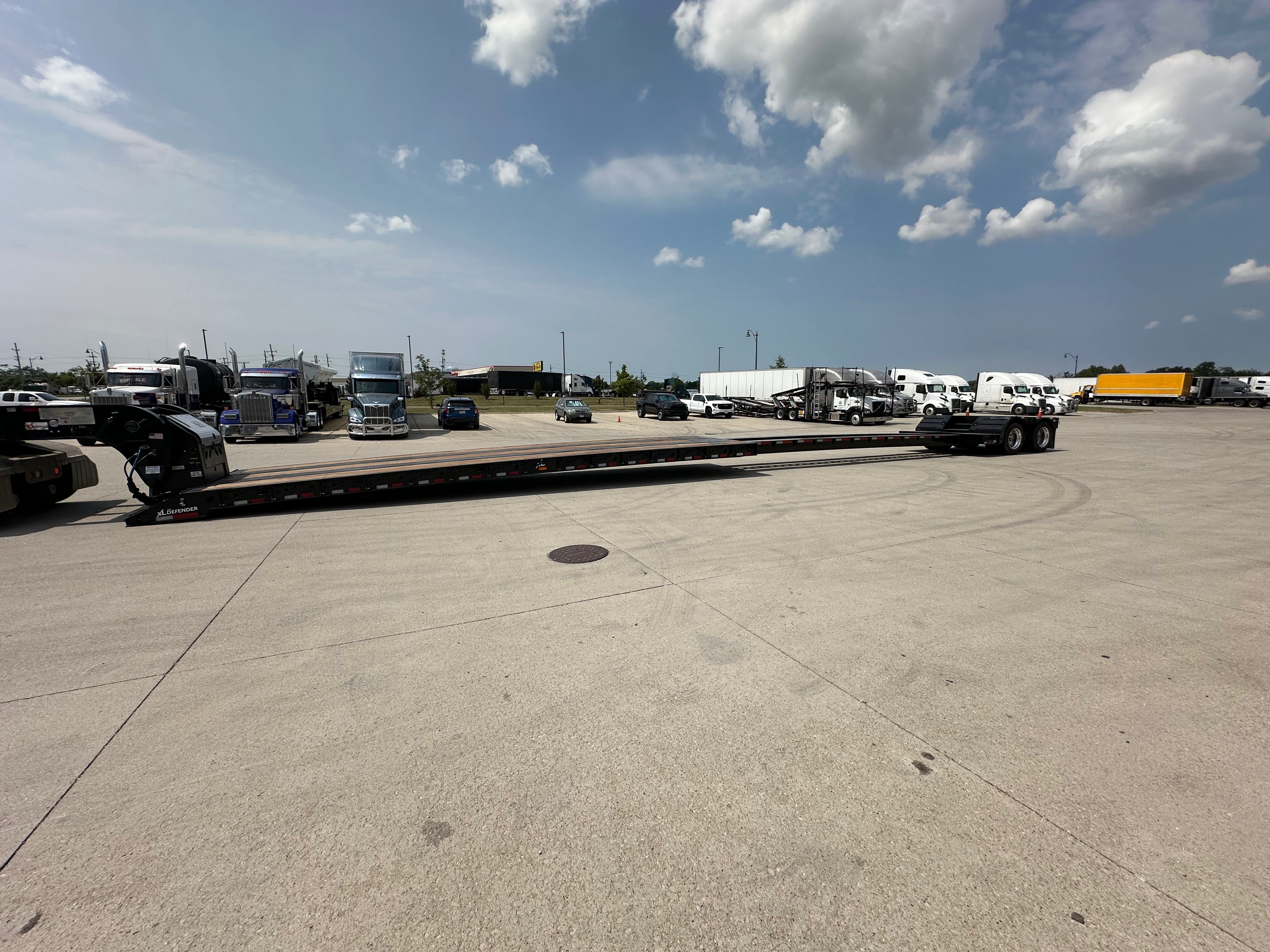

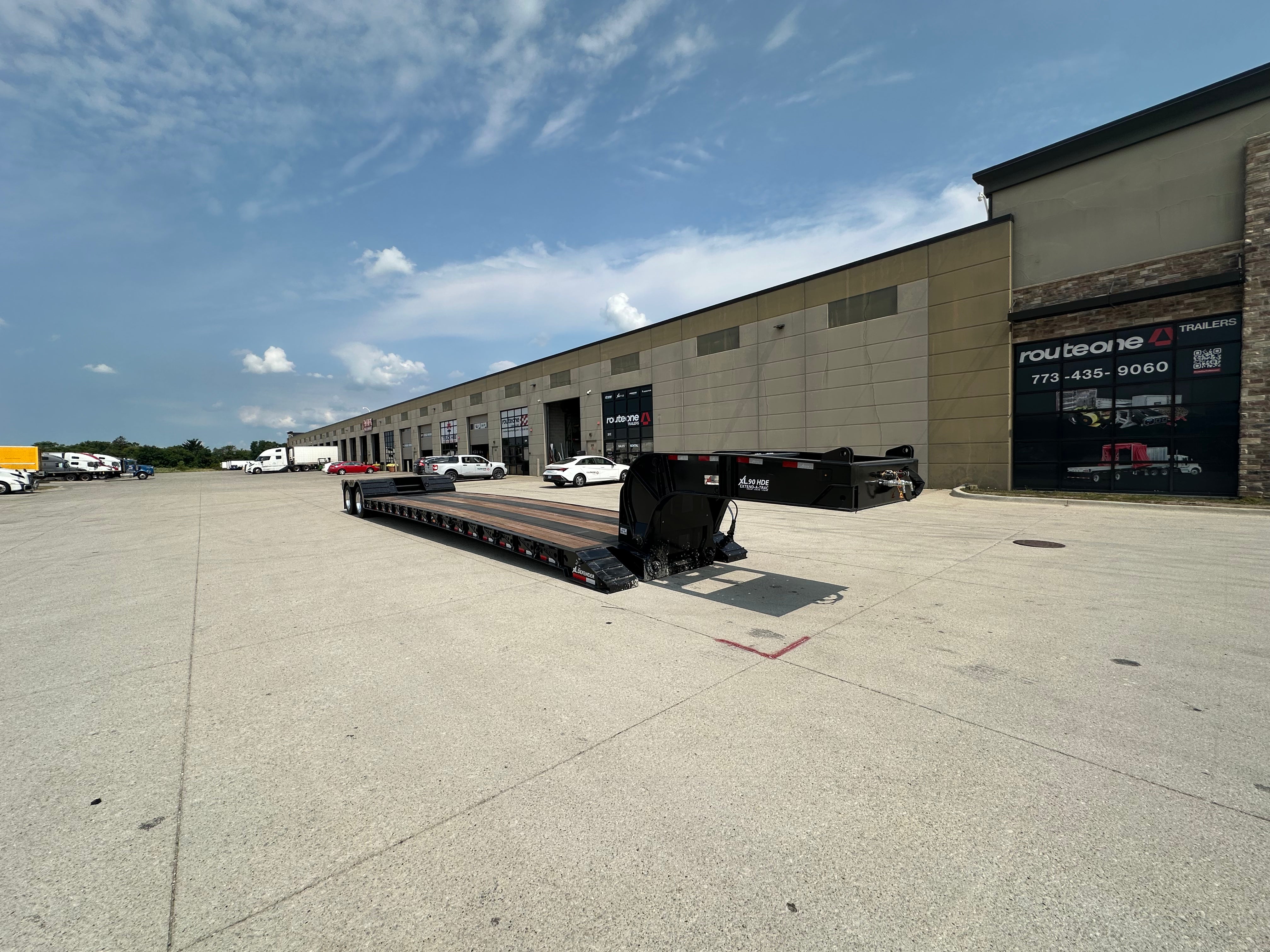

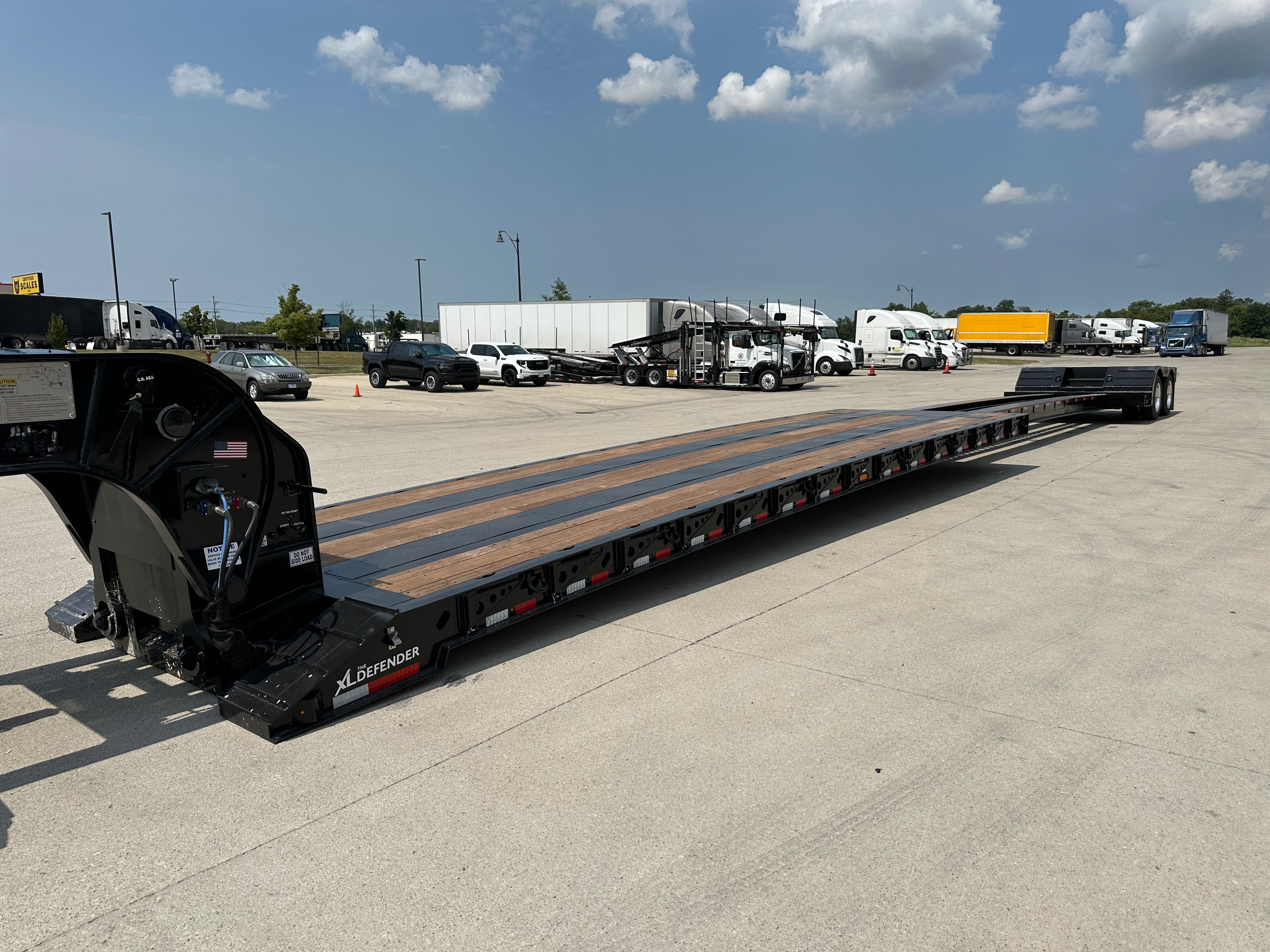

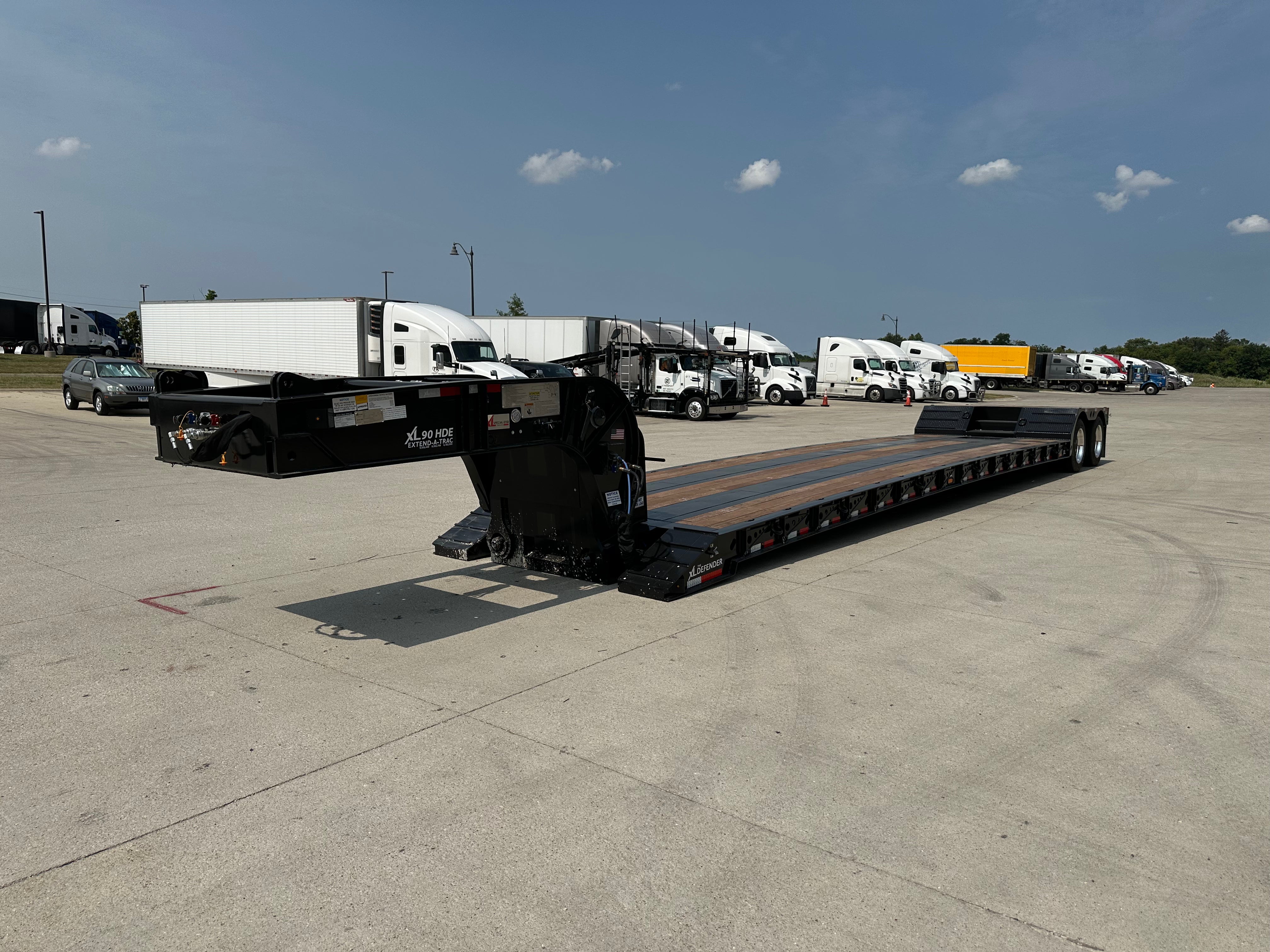

2026 XL 90 HDE Defender

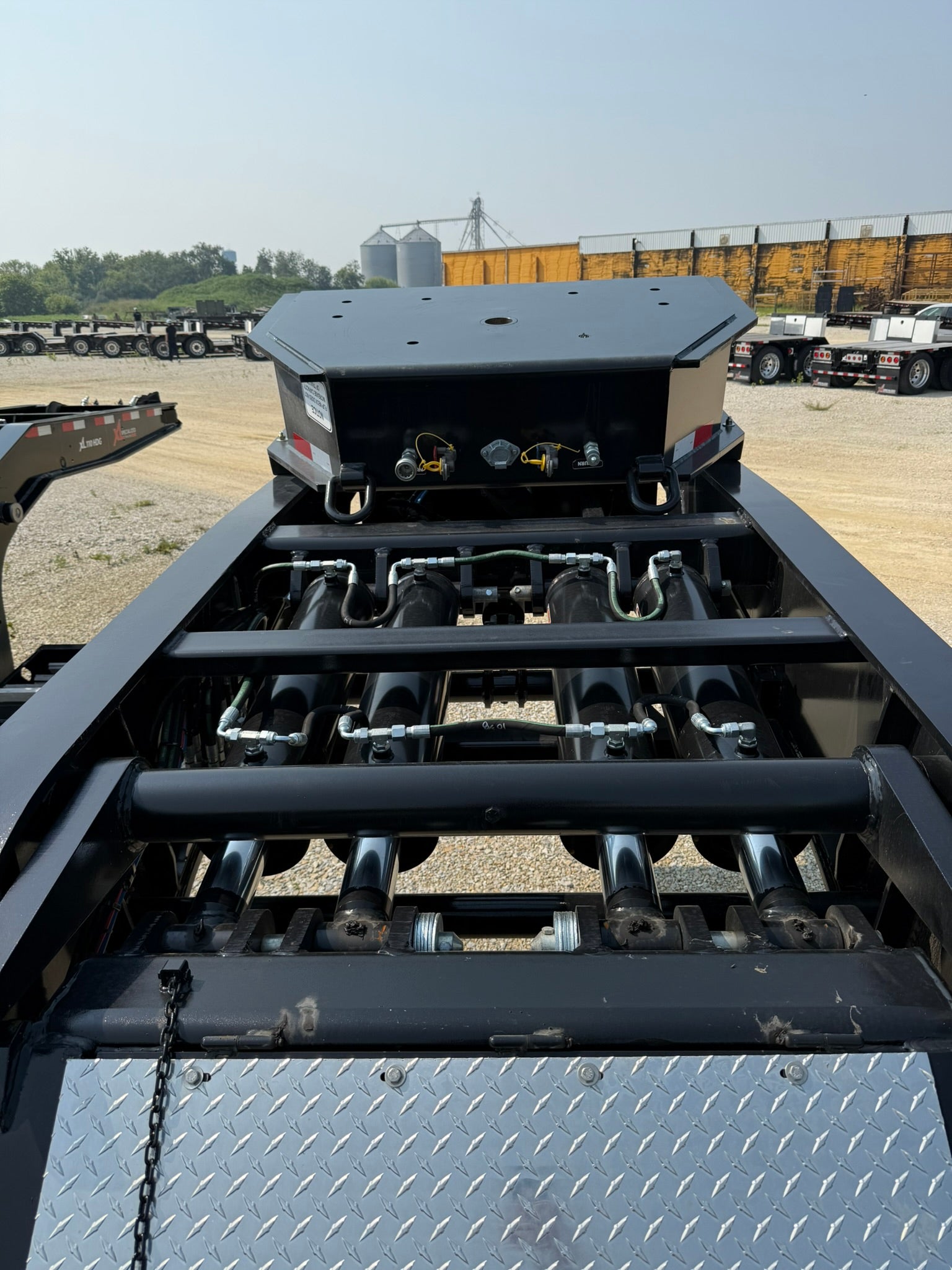

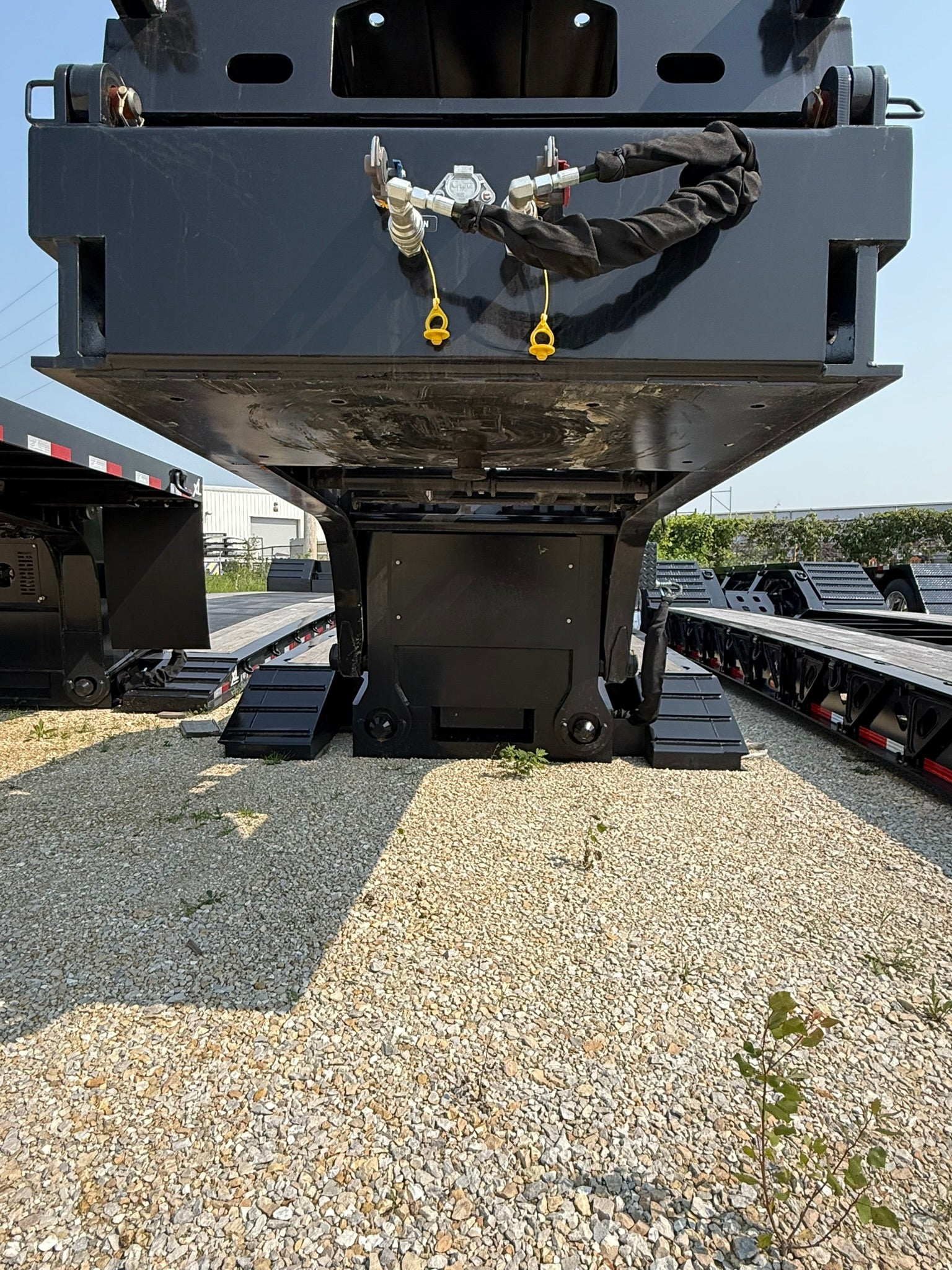

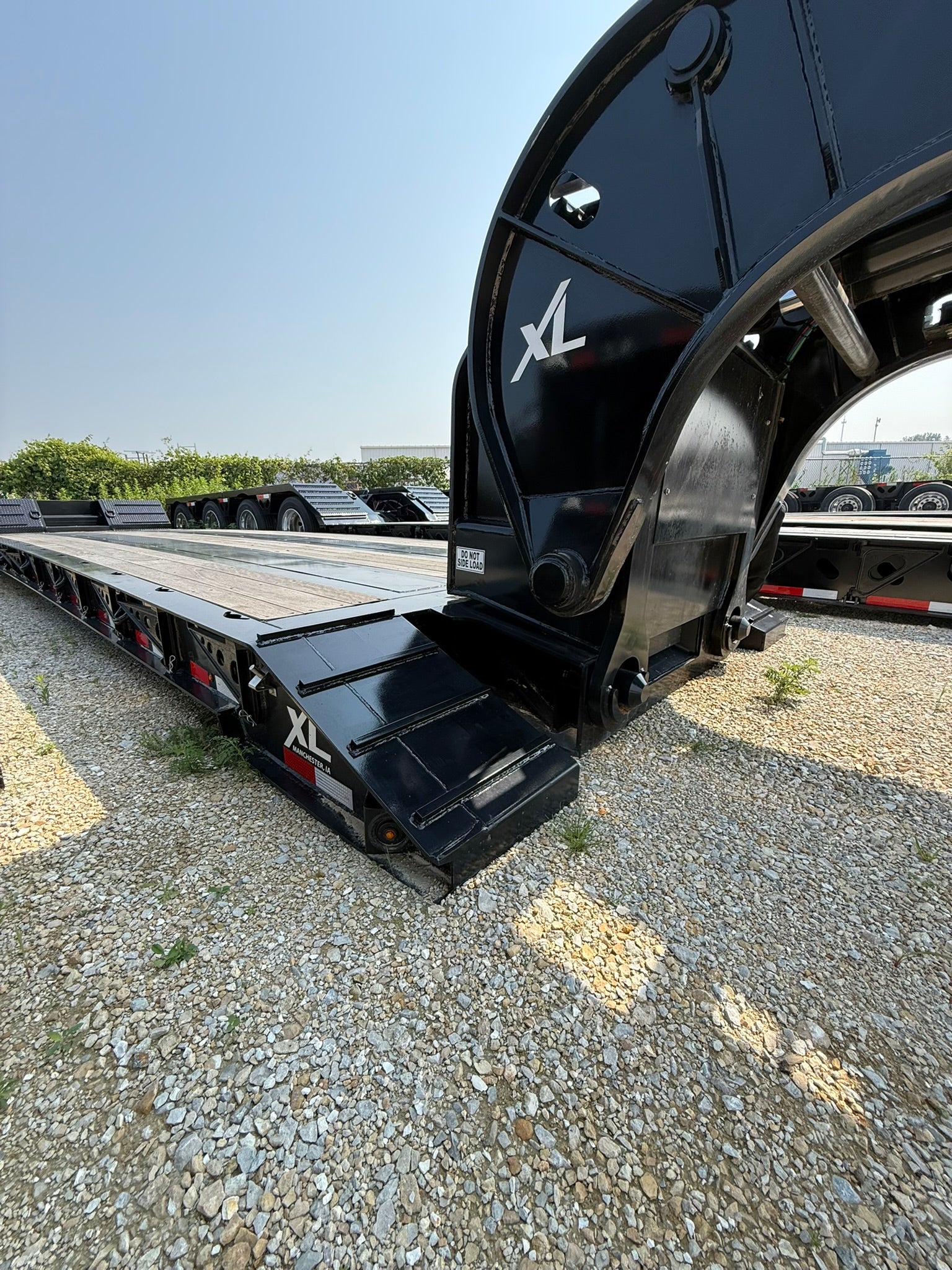

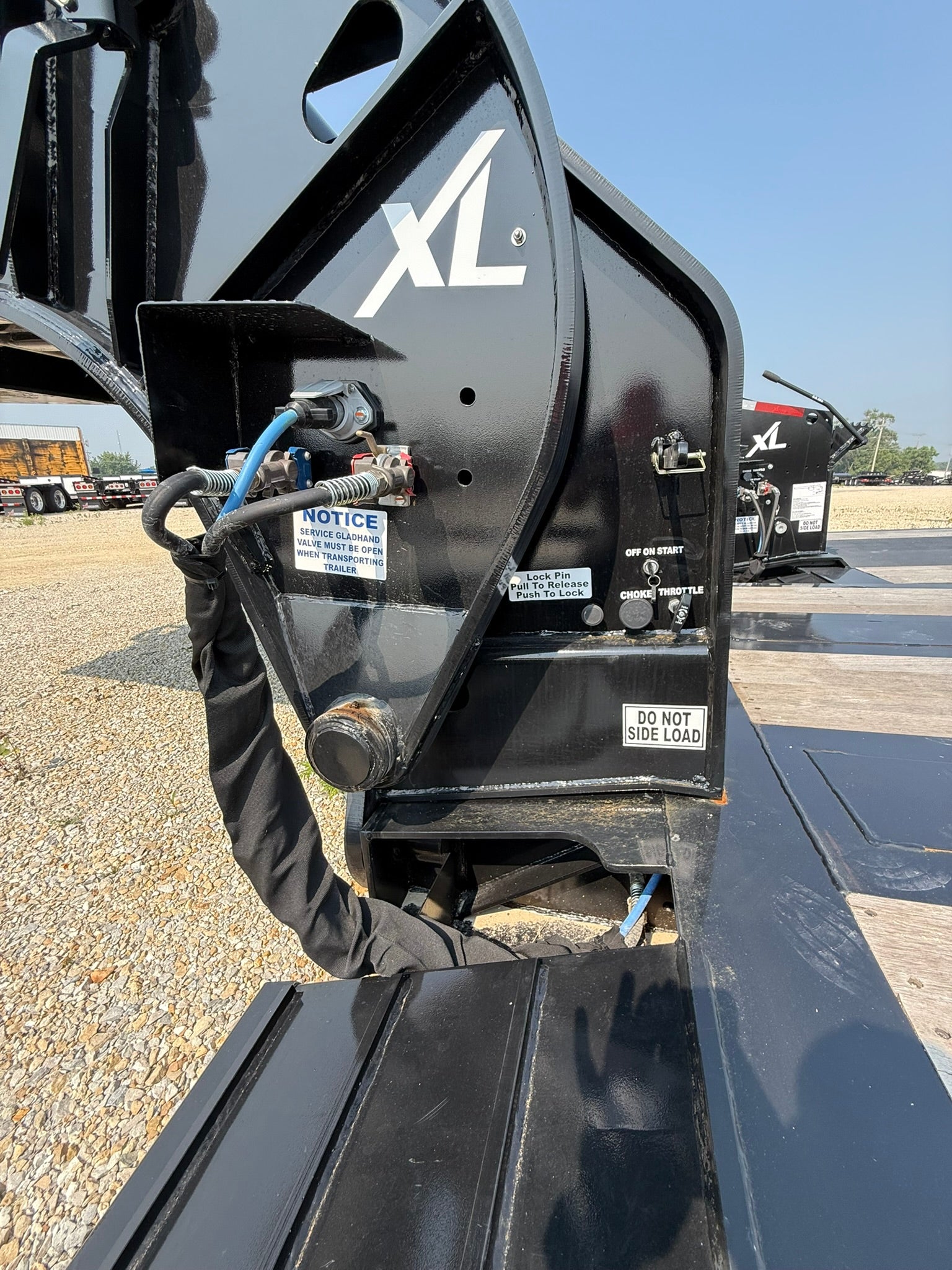

Hydraulic Detachable Gooseneck

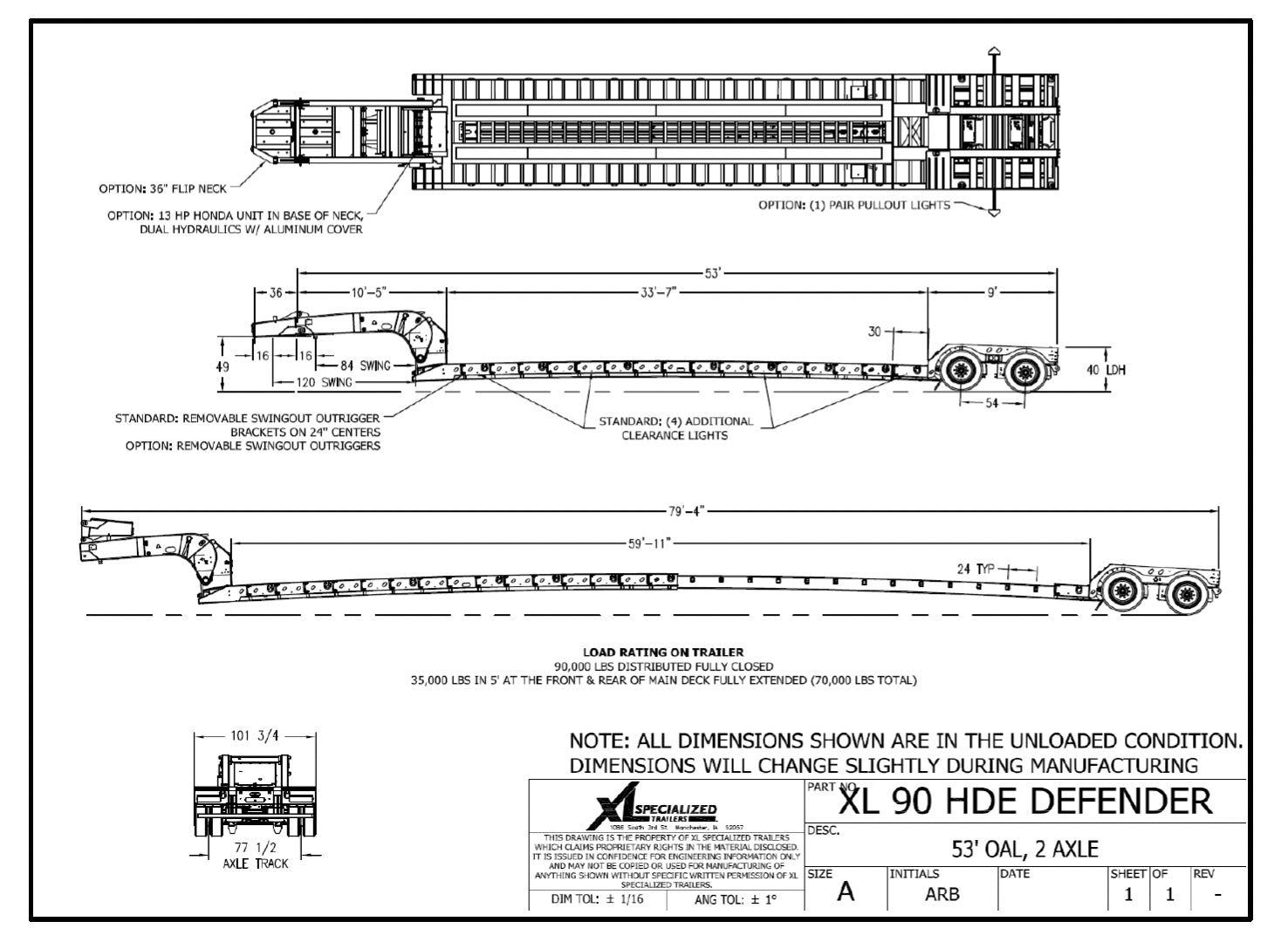

53’ L X 102” W
Extendable to 79’ 4”
Capacity - 90,000 lbs.
Capacity when Fully Extended - 70,000 lbs.
Trailer weight - 27,791 lbs.

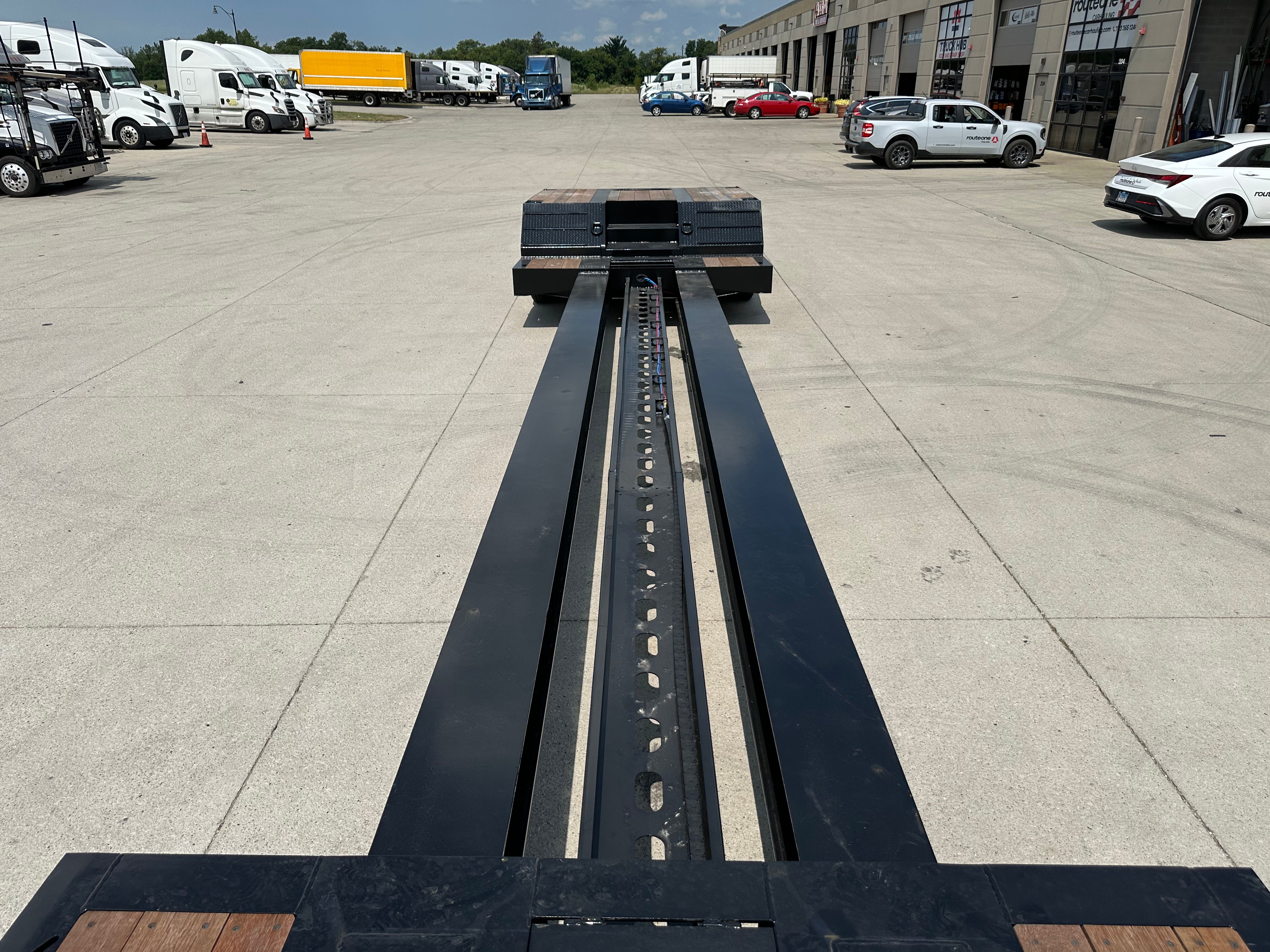

Main Deck Length -  33’ 7” - 59’ 11”
Loaded Deck Height - 20”  w/ 6” Ground Clearance

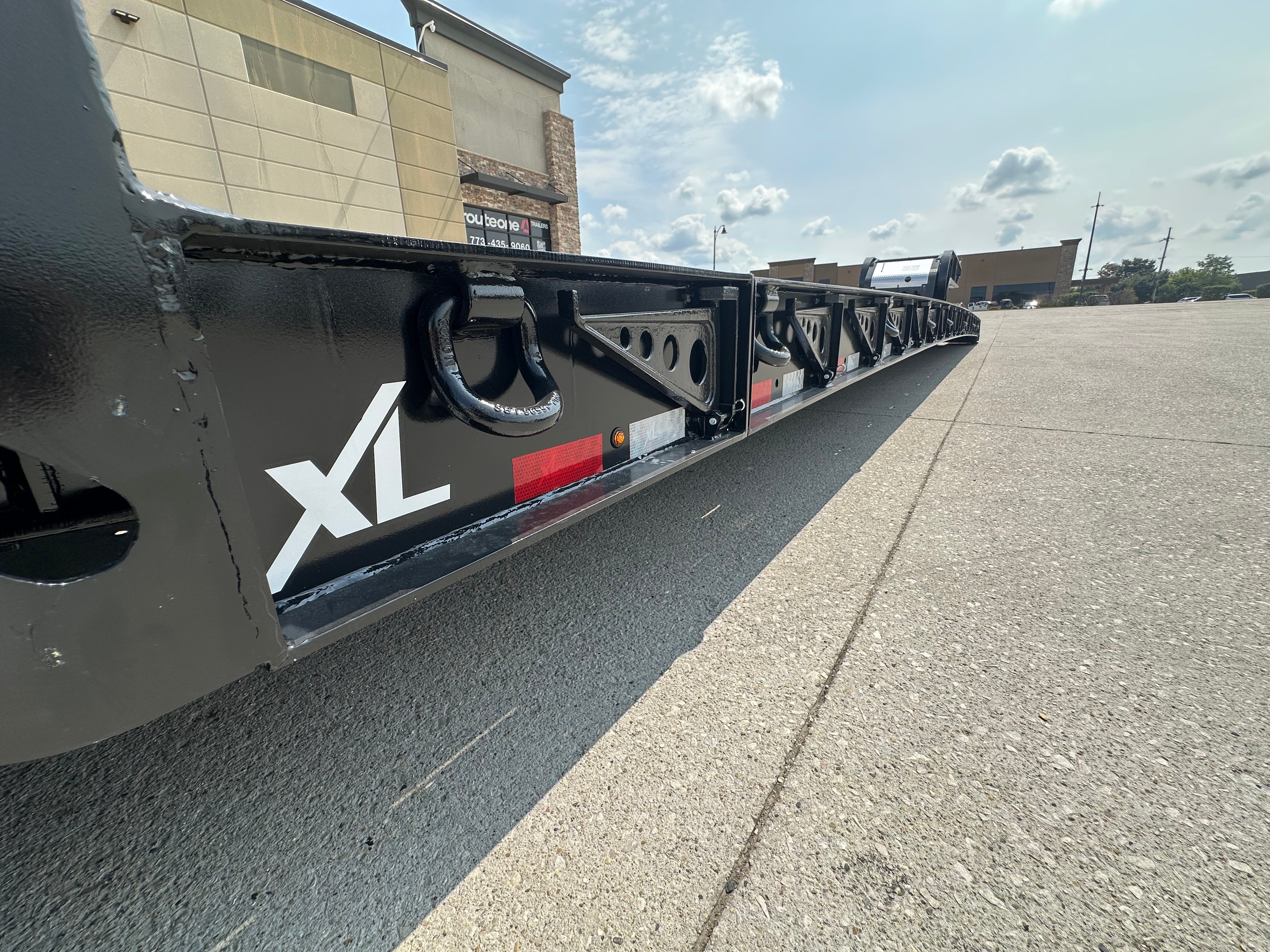

8 - Bent D-Rings Per Side

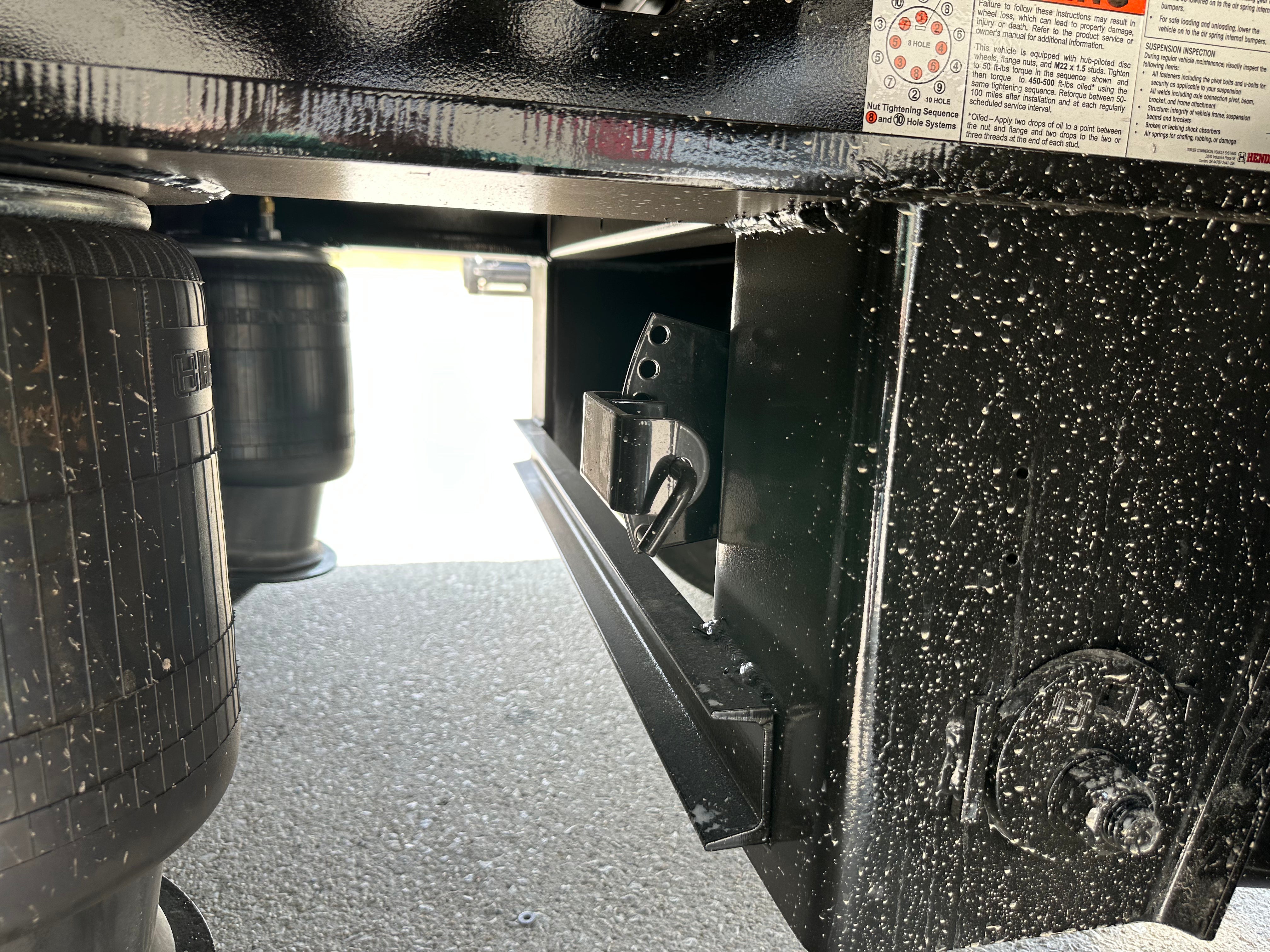

Chain Drops 24” Centers Outside Main Beams

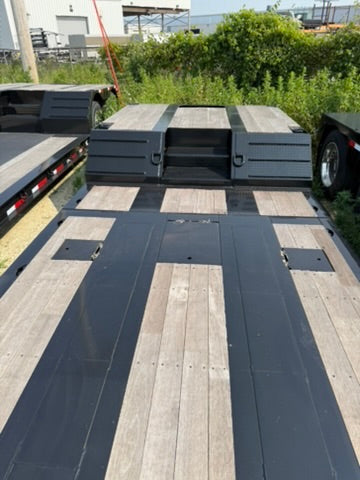

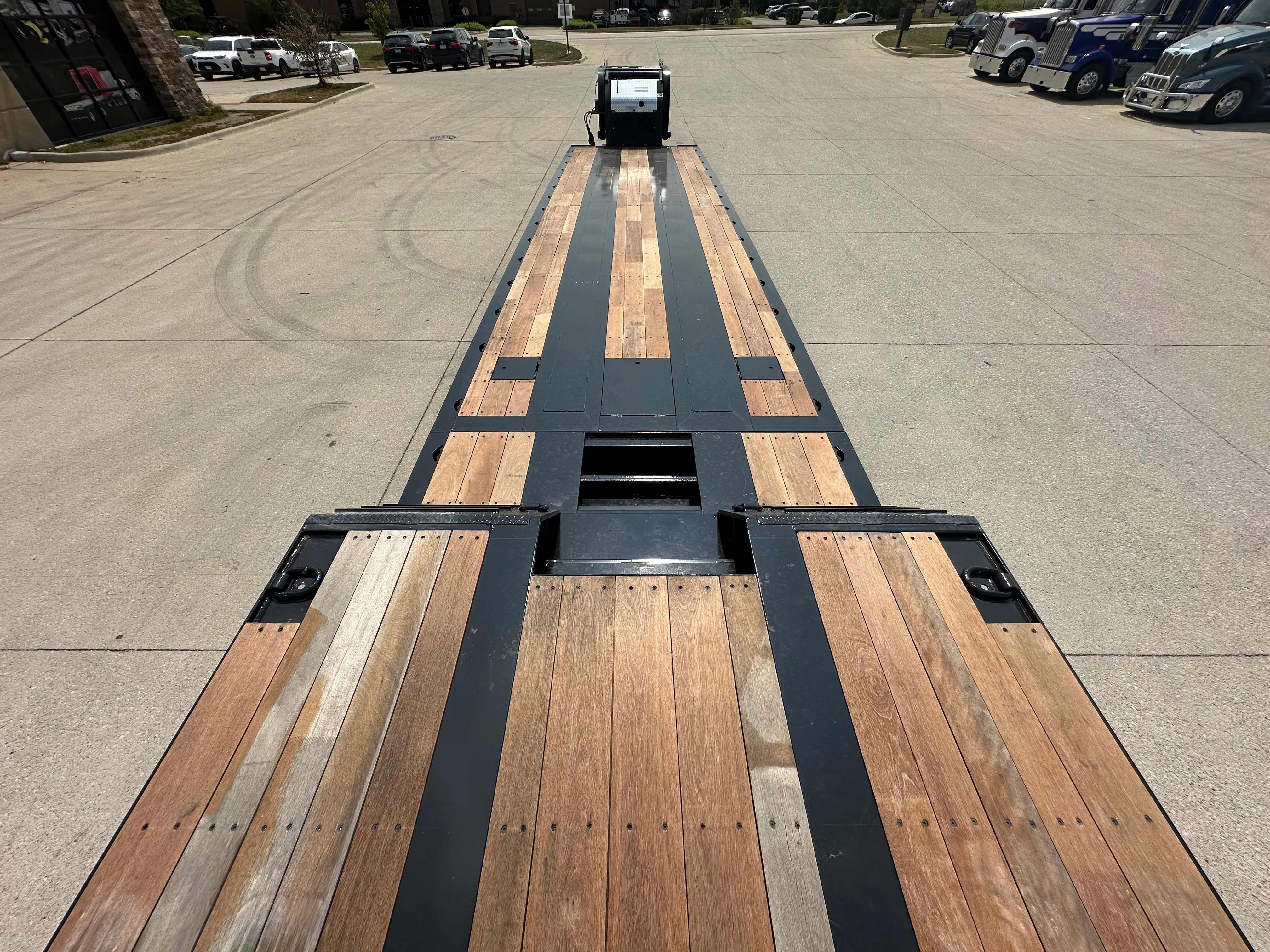

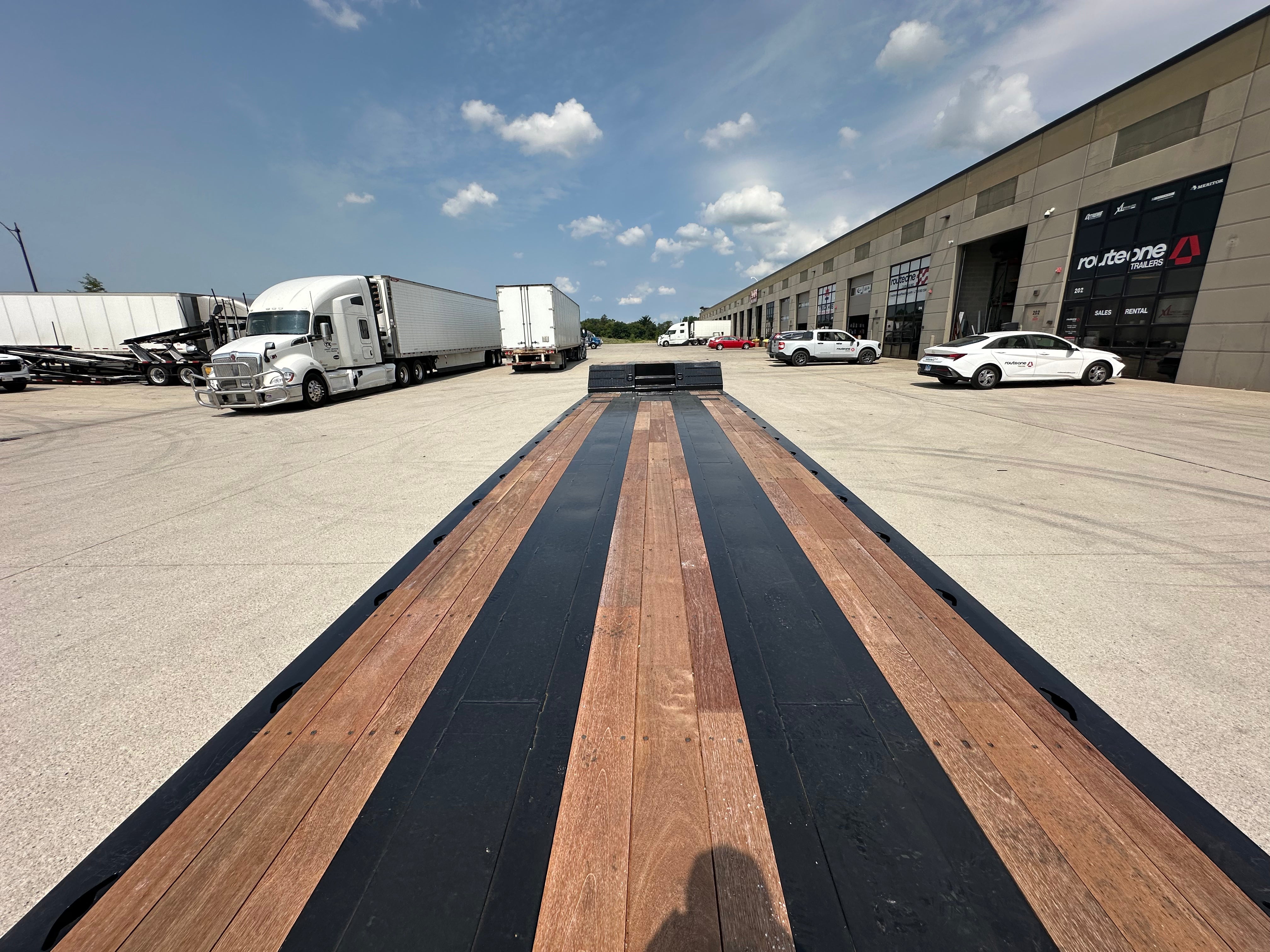

1-⅛” Apiton Decking
Ramps Taper to 4”

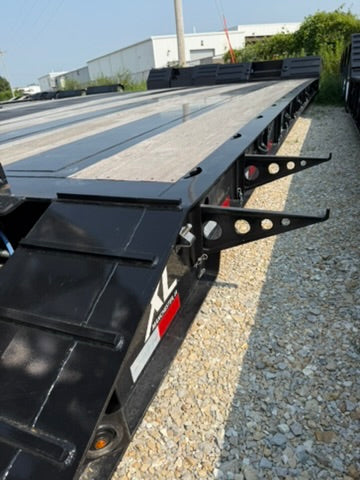

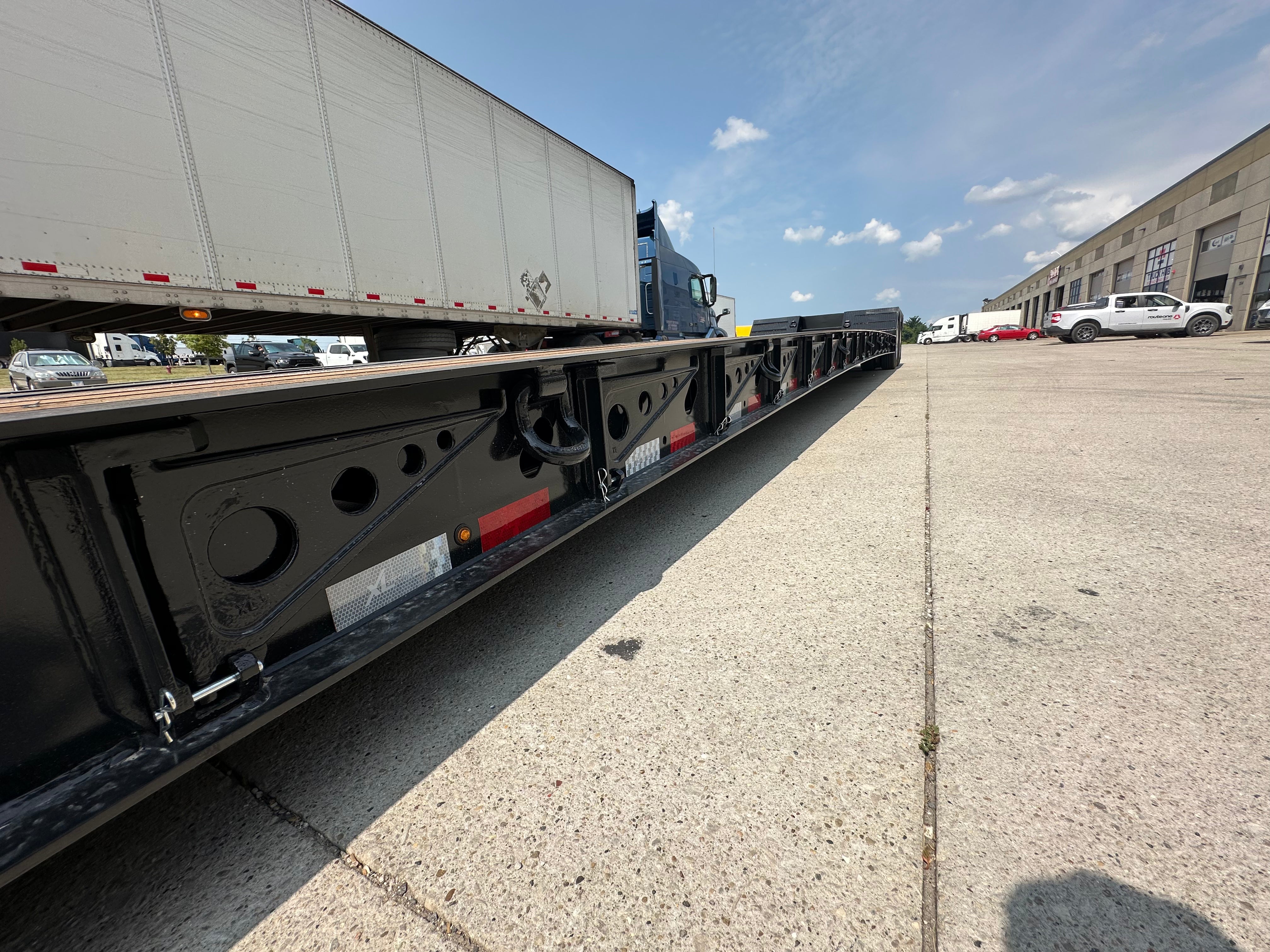

10 - Outriggers Per Side

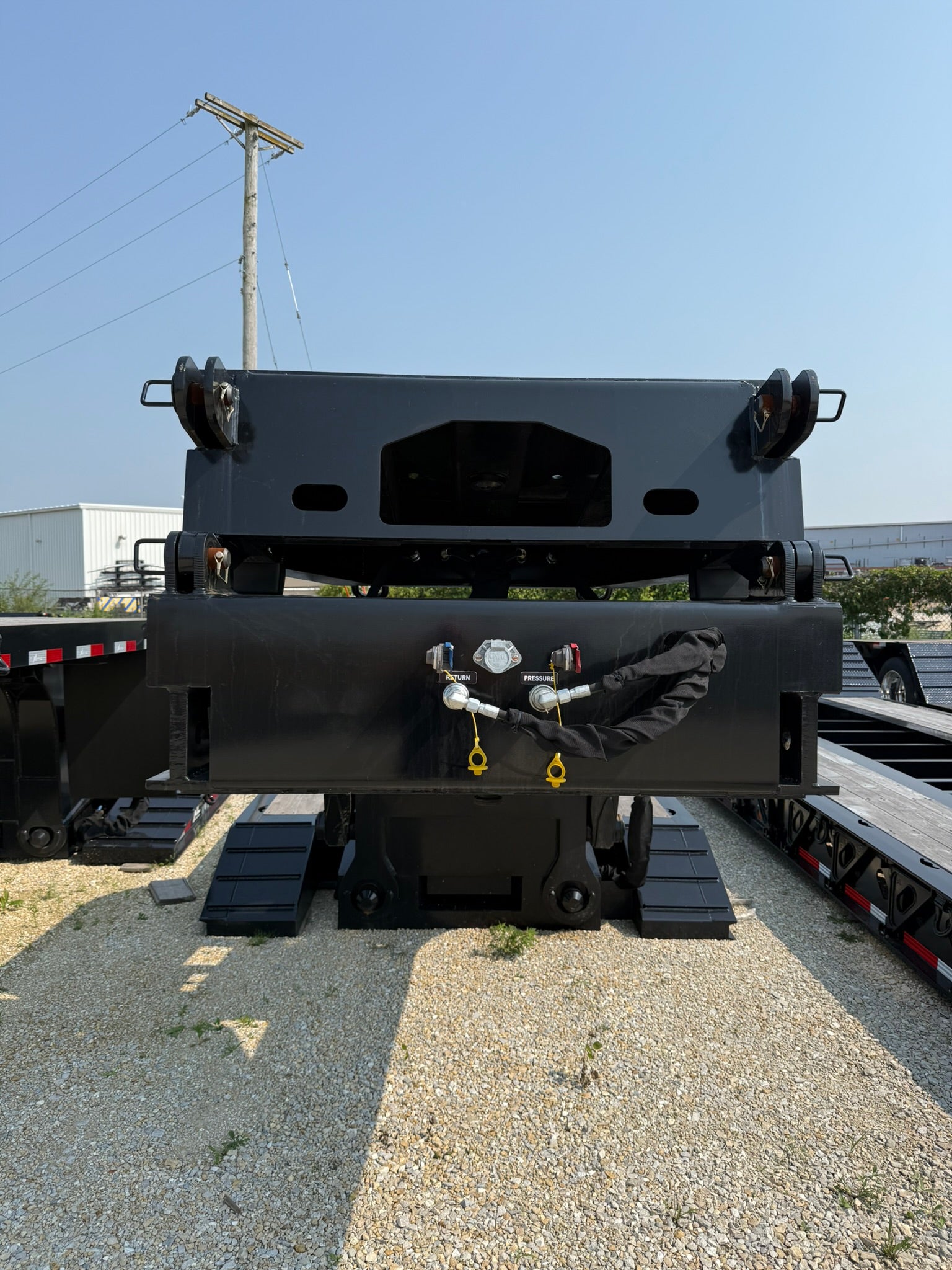

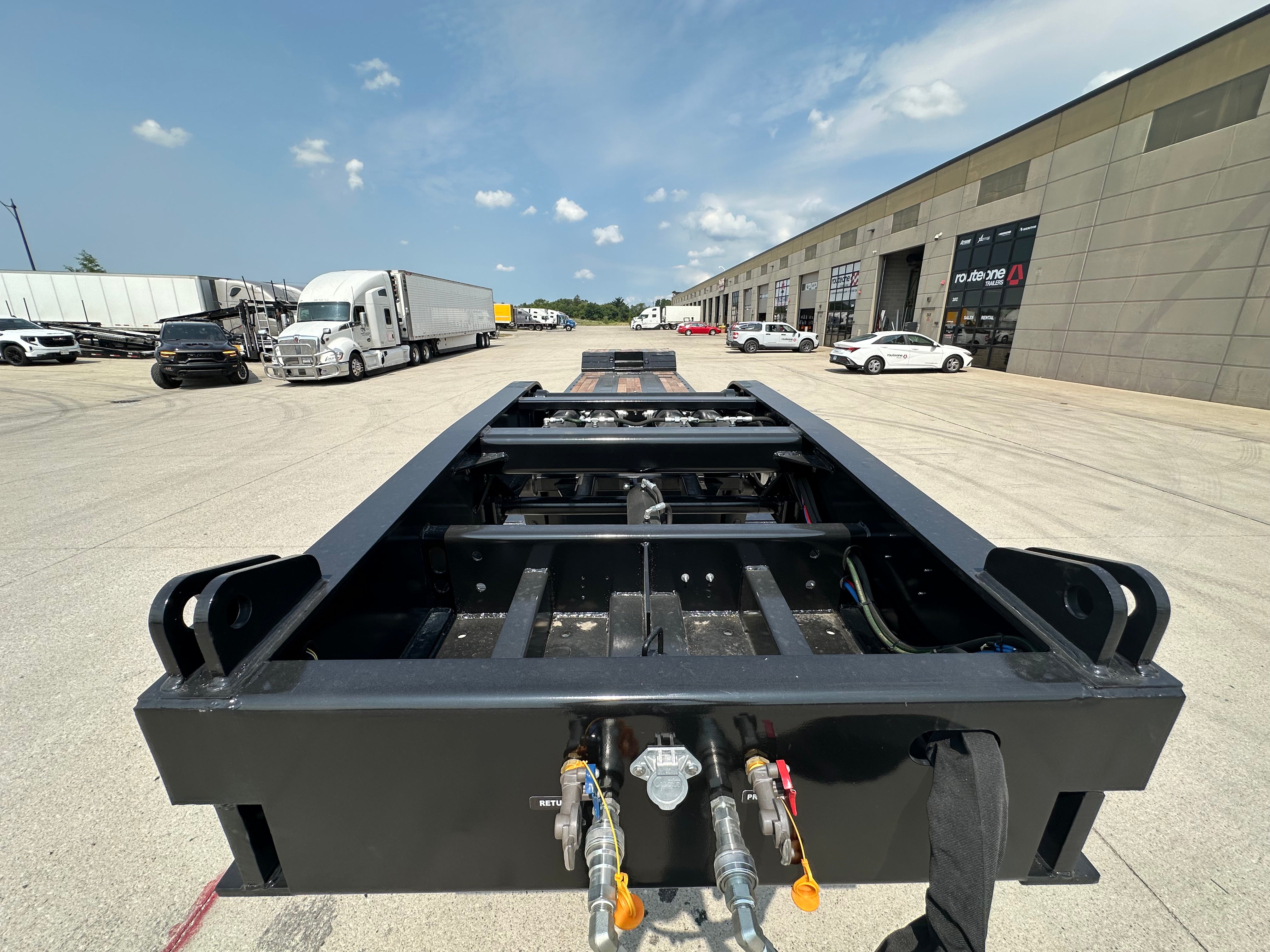

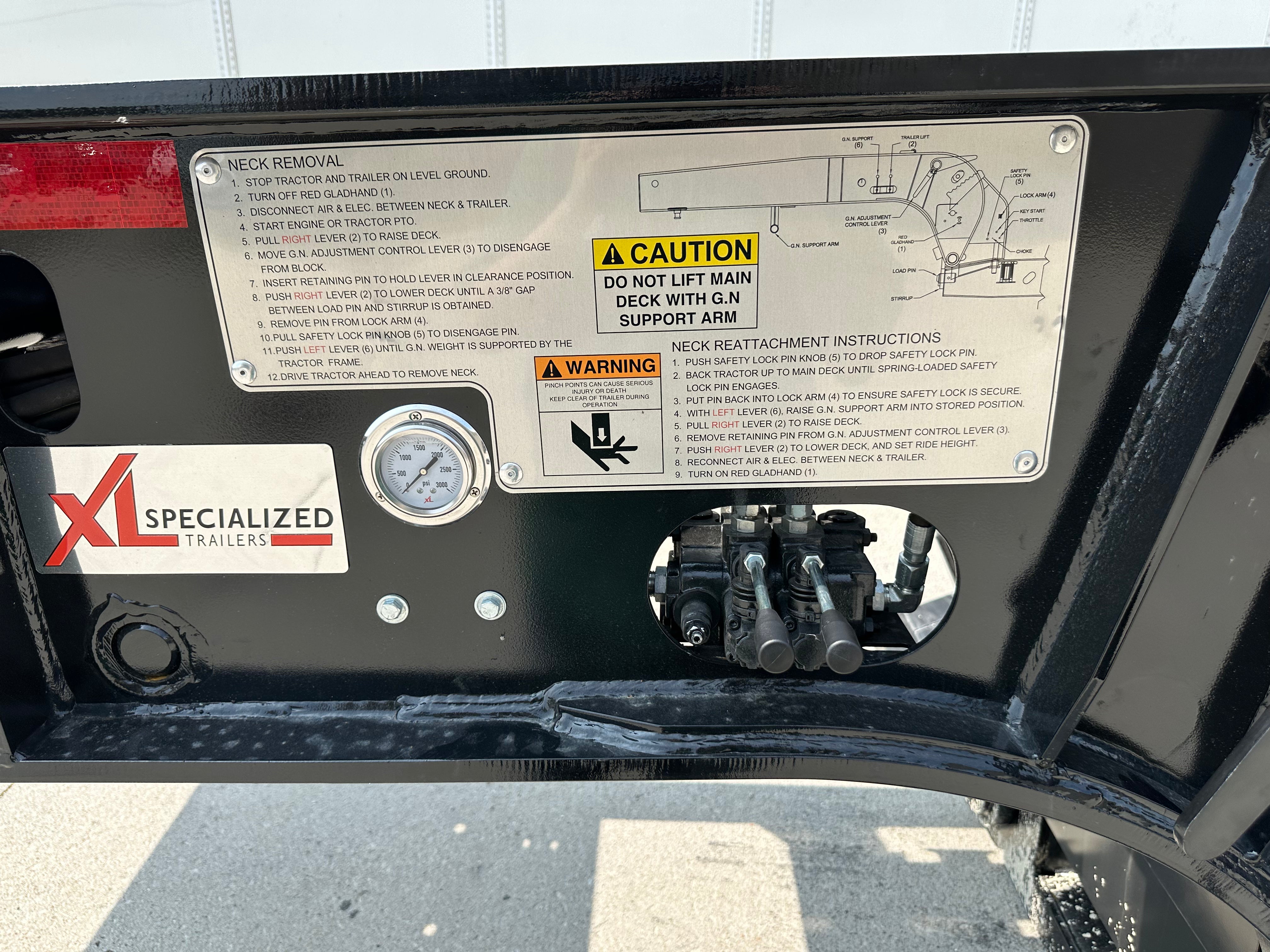

Gooseneck Length - 10’ 5”
King Pin Setting - 16”
5th Wheel Height - 49” w/ 7 Variable Ride height Positions
Gooseneck Swing Clearance - 84”
Grote Trilliant Work Light
Flip Neck Extension Option - 36”

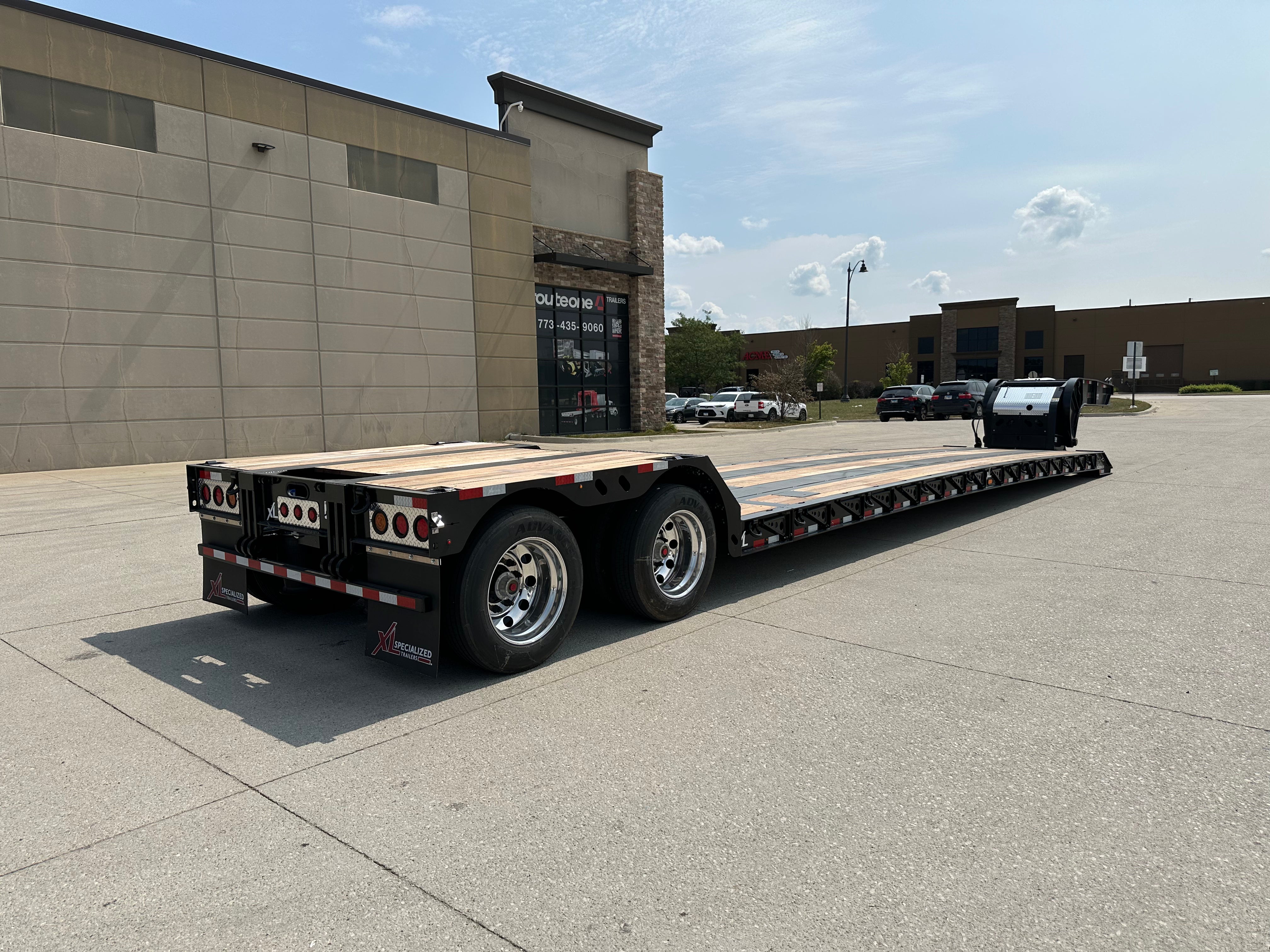

Rear Deck Length - 9’
Rear Deck Loaded Height - 40”
1-⅛” Apitong Decking

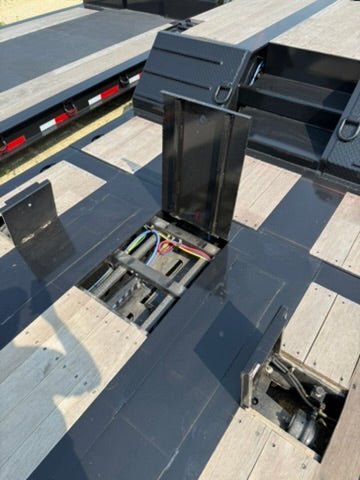

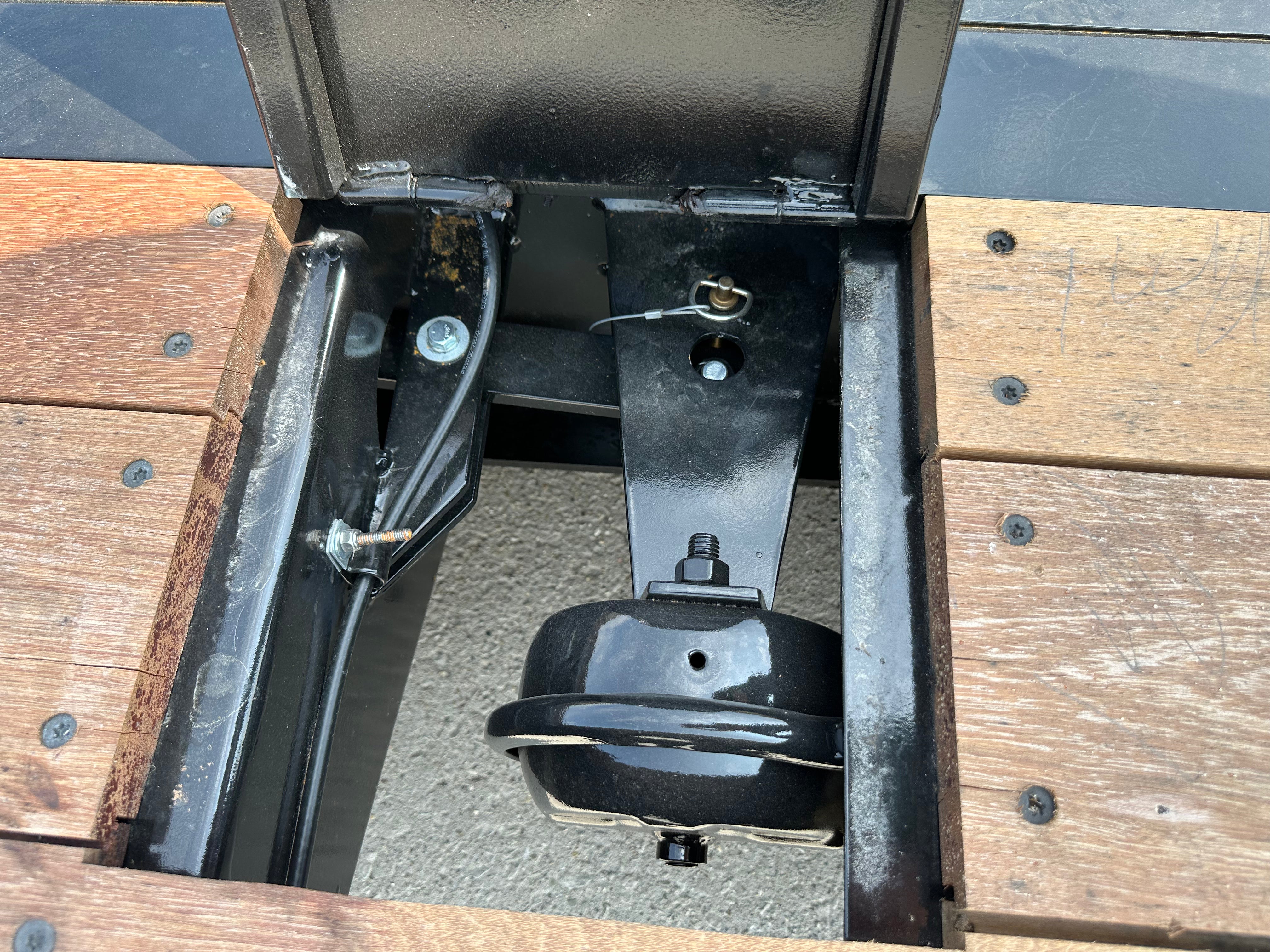

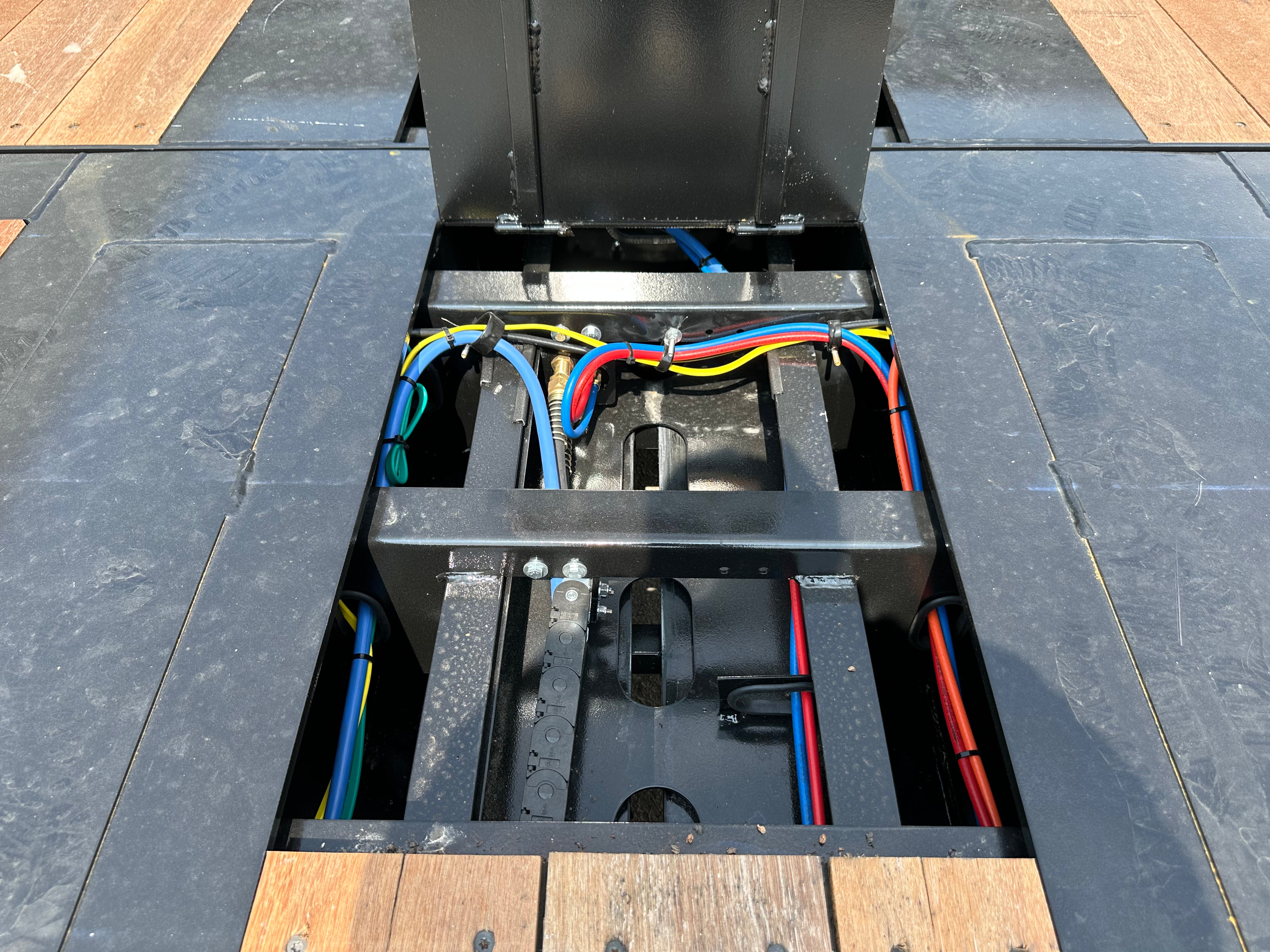

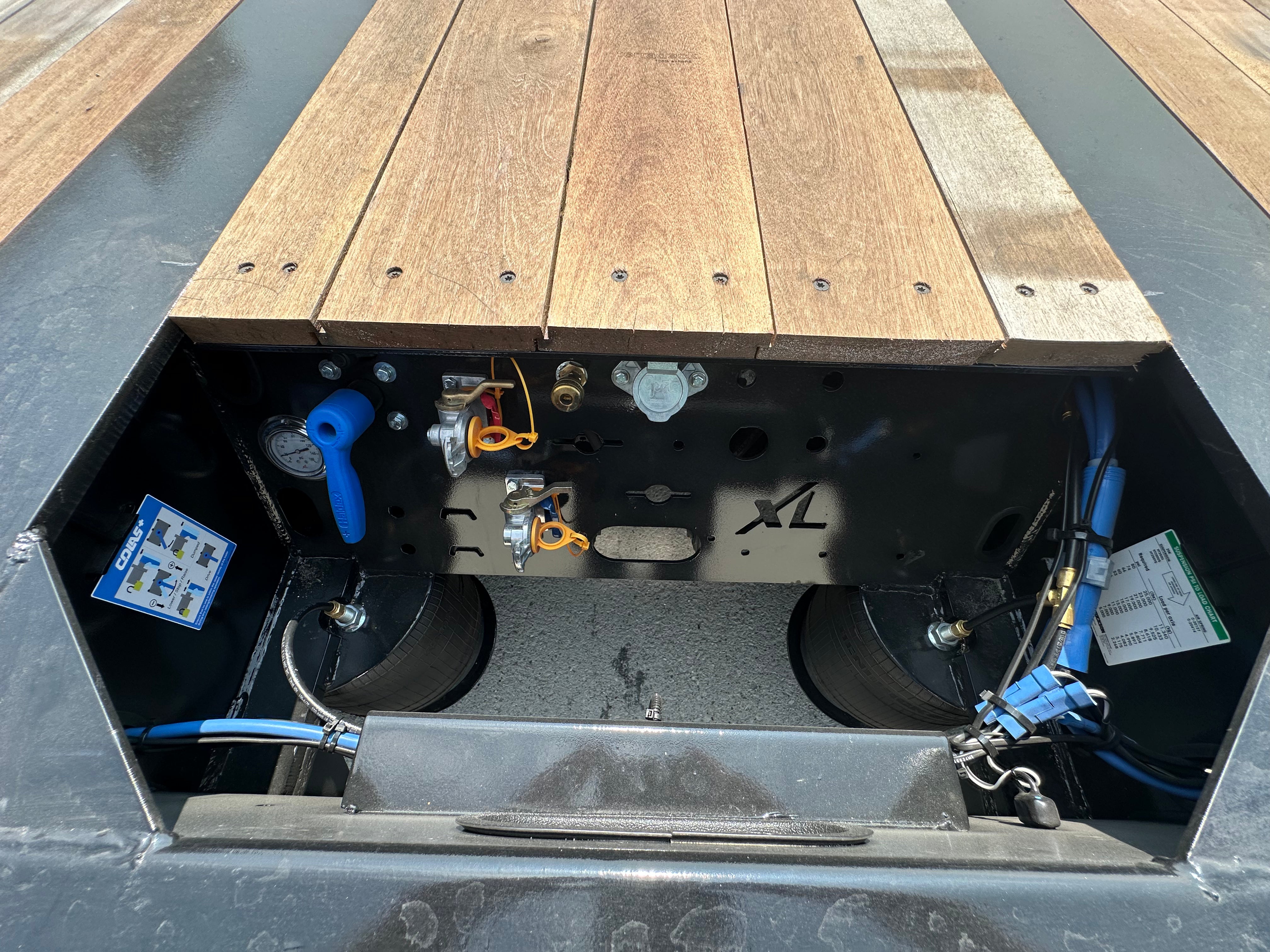

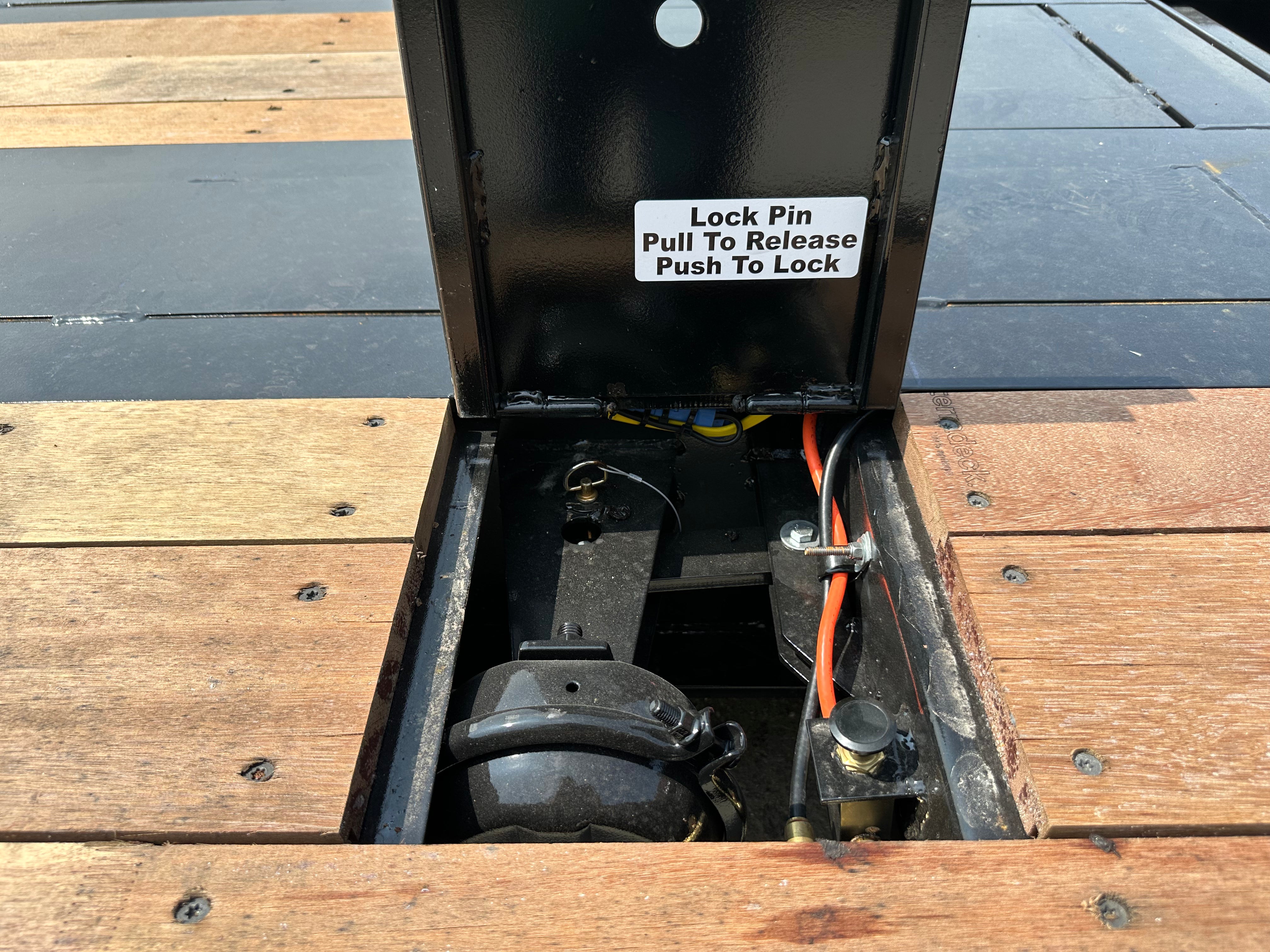

2’ x 2’ Cut Out in Transition Area
1 - Pan Style D-Ring in Each Corner
1 - Pair Flat D-Rings On Rear Transition
2 - Bent D-Rings in Tail Channel
1 - Pair Pullout Lights

Manual Ride Height Control

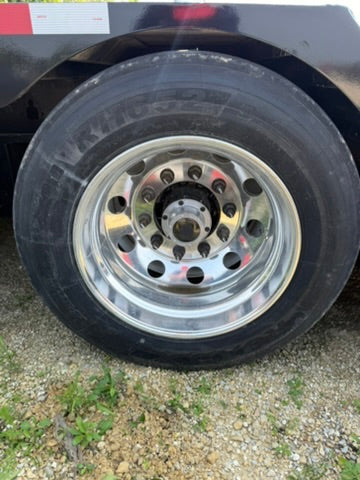

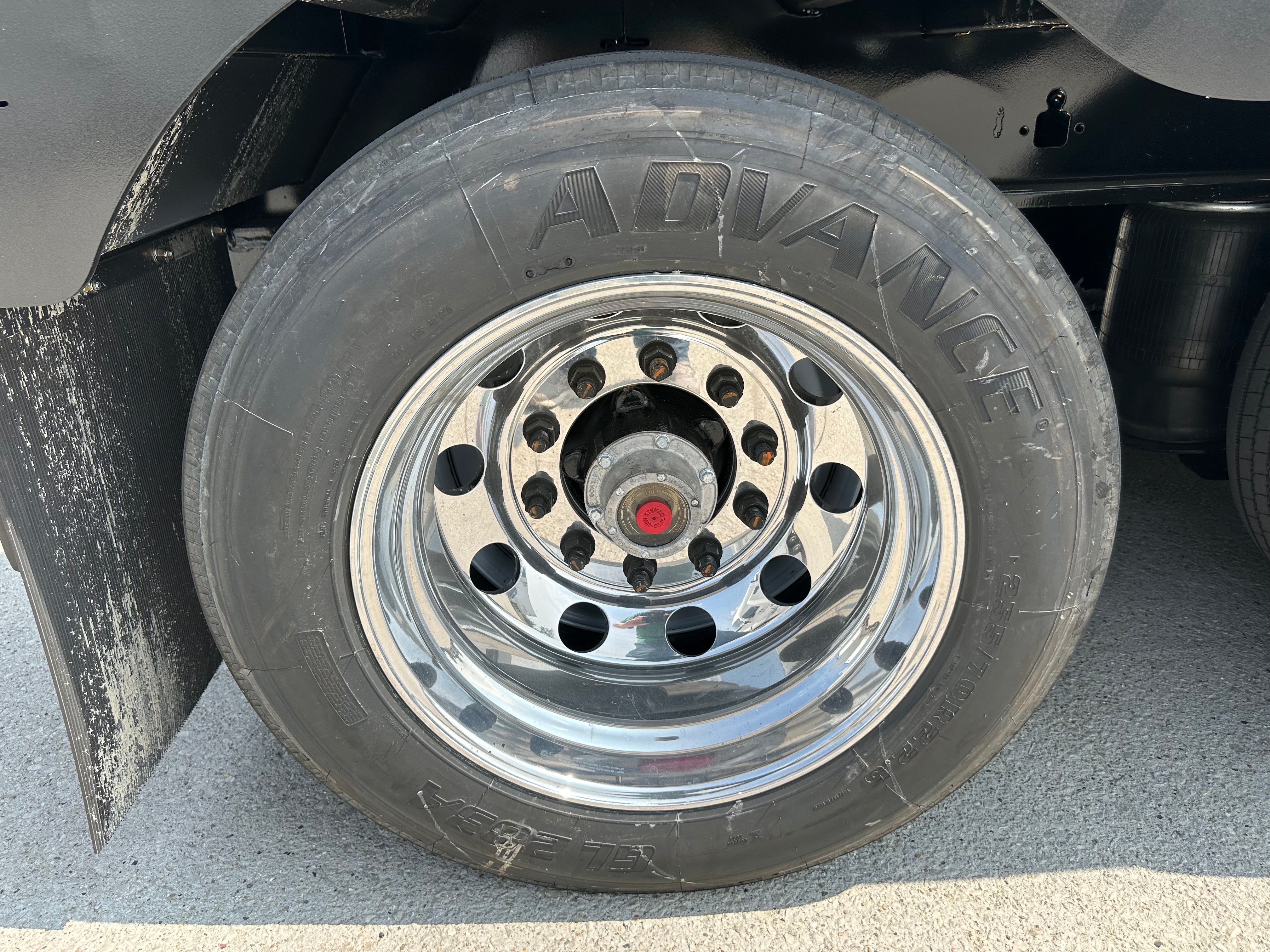

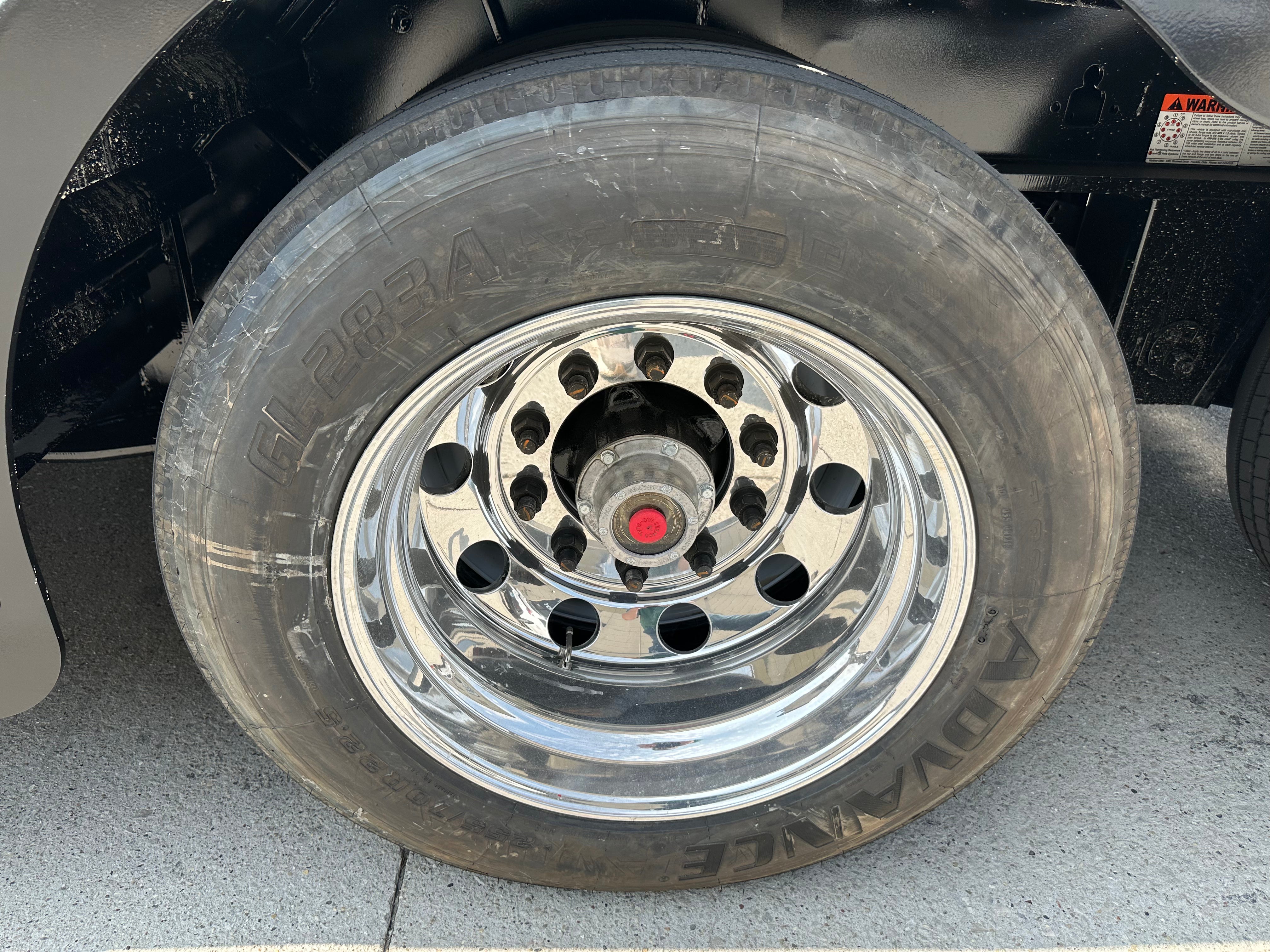

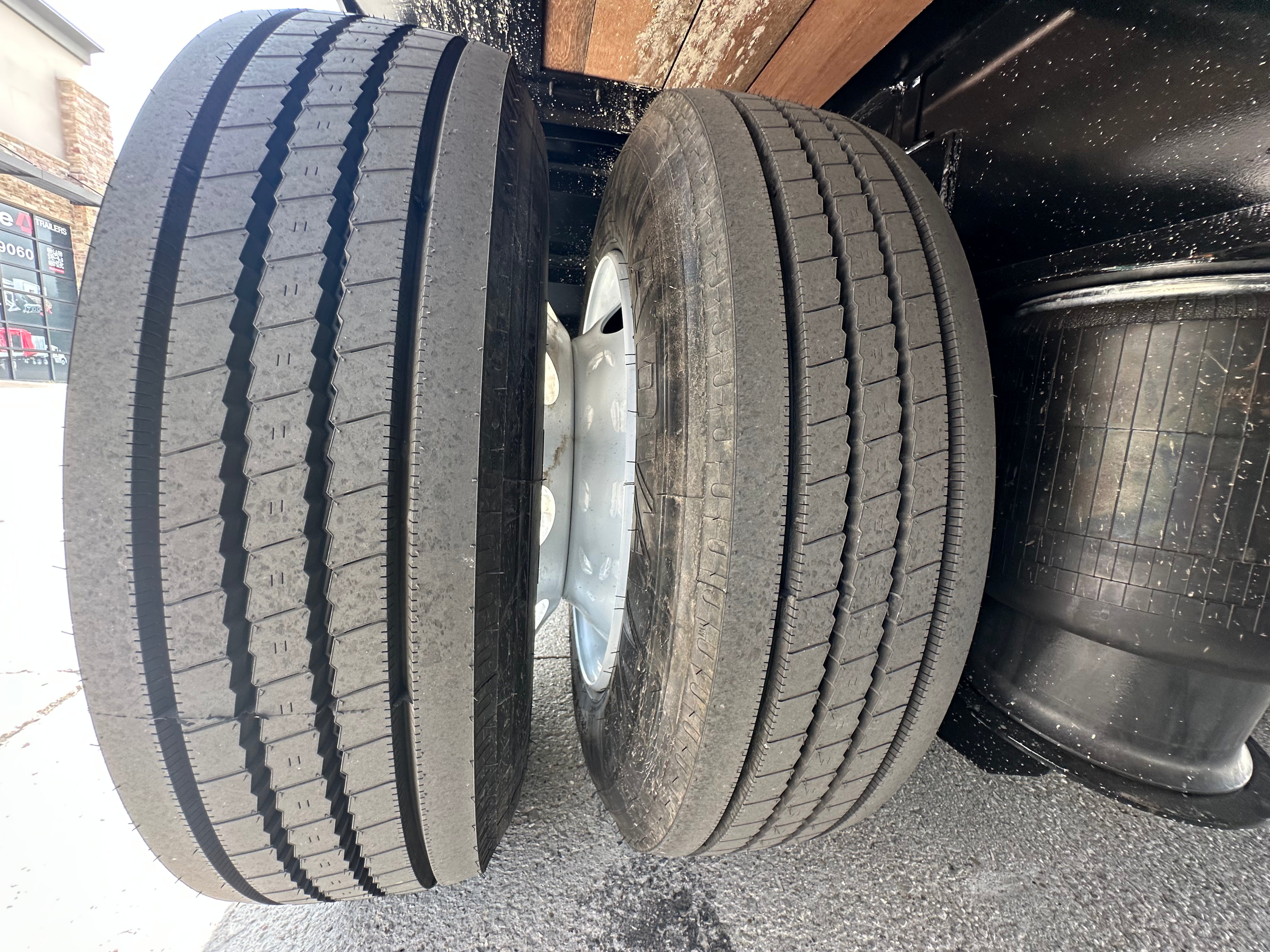

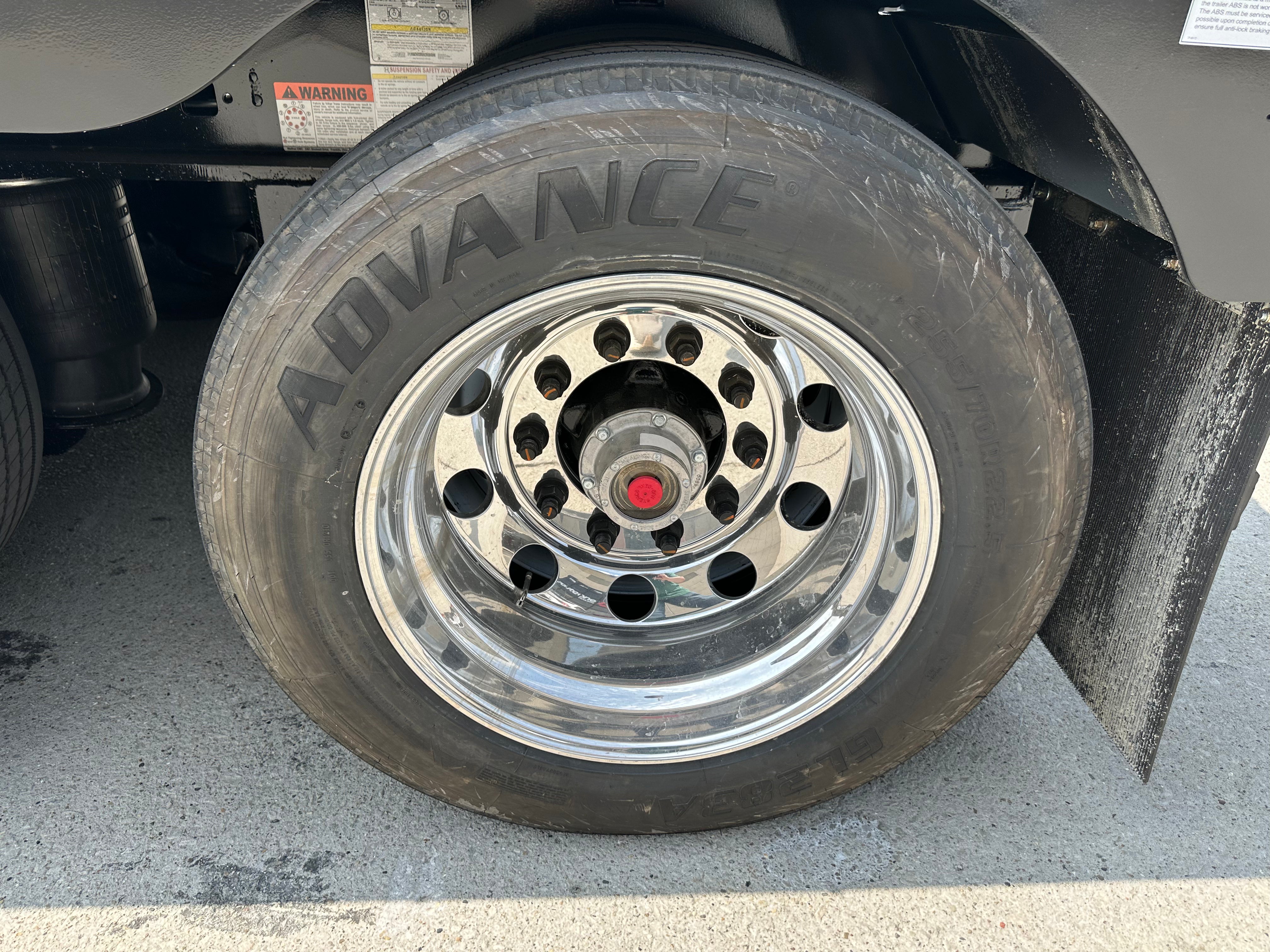

255/70R22.5 Tires

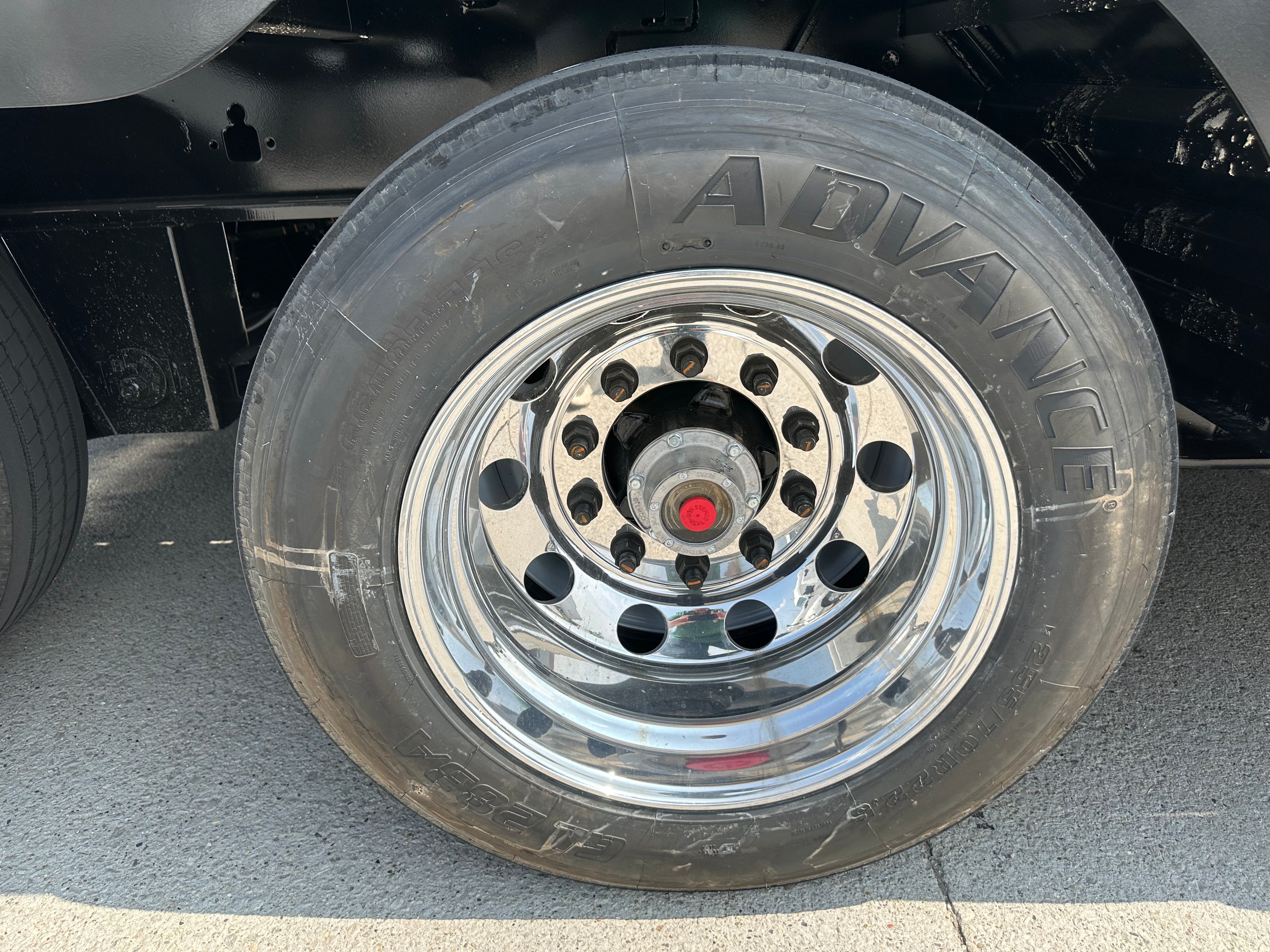

Outer Aluminum Wheels

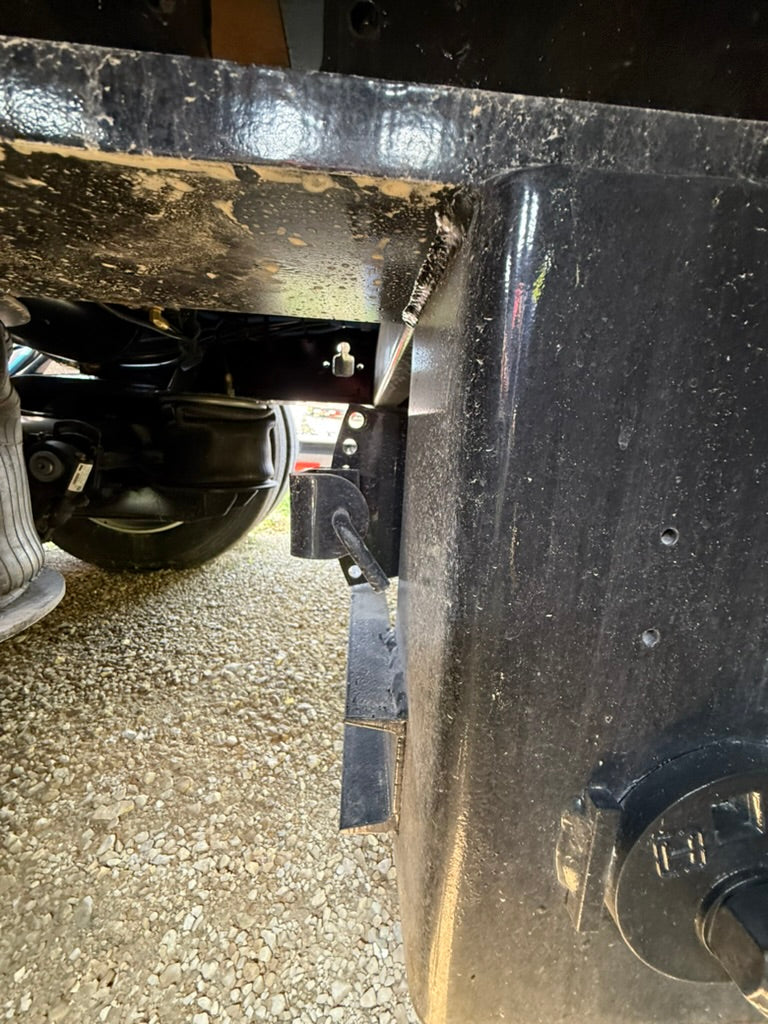

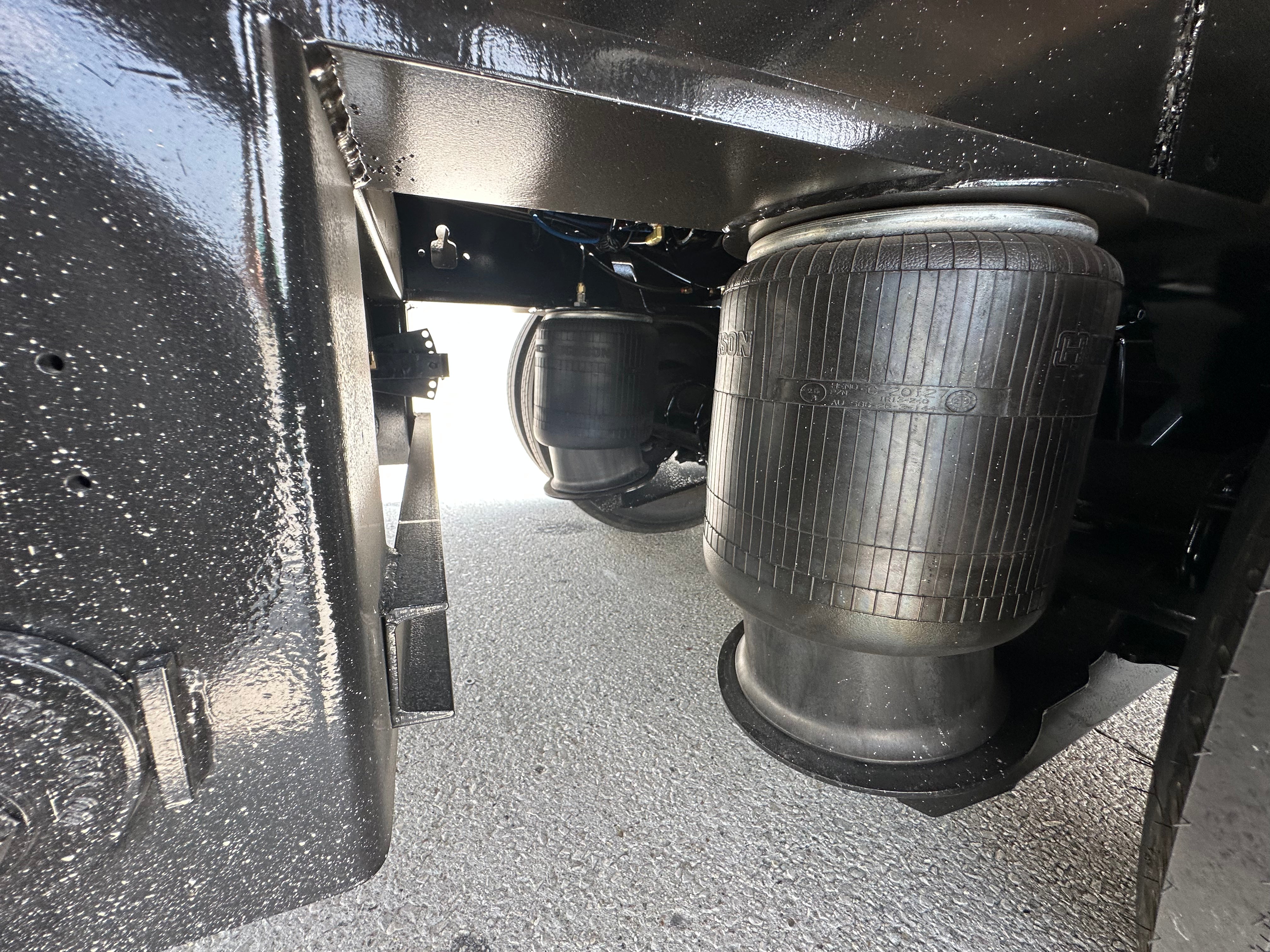

Hendrickson Air Ride Suspension
Colas+ Raise & Lower Valves

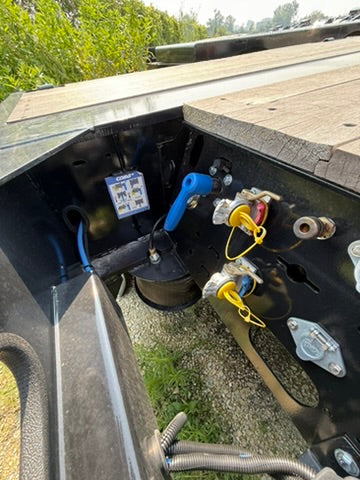

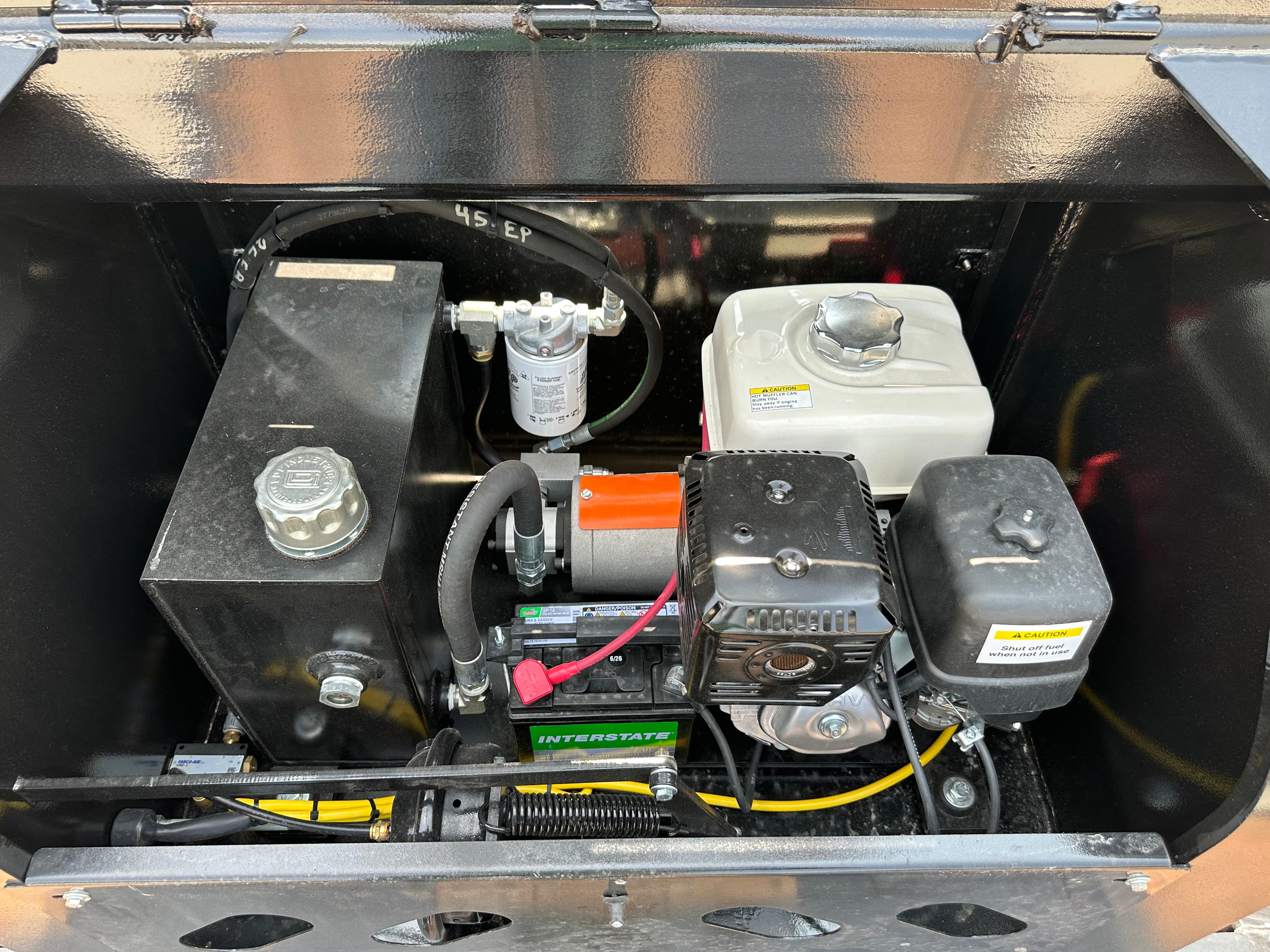

Battery Backup w/ 4-Way Plug

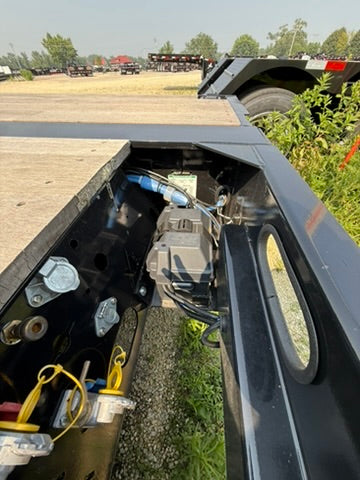

12V Sealed Grote Harness

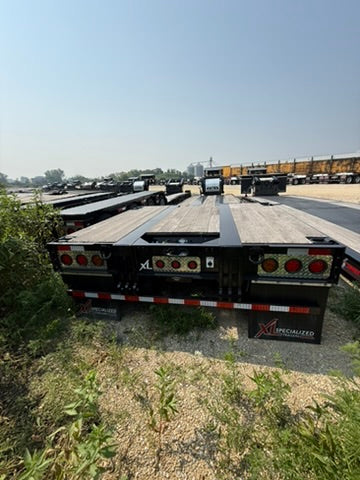

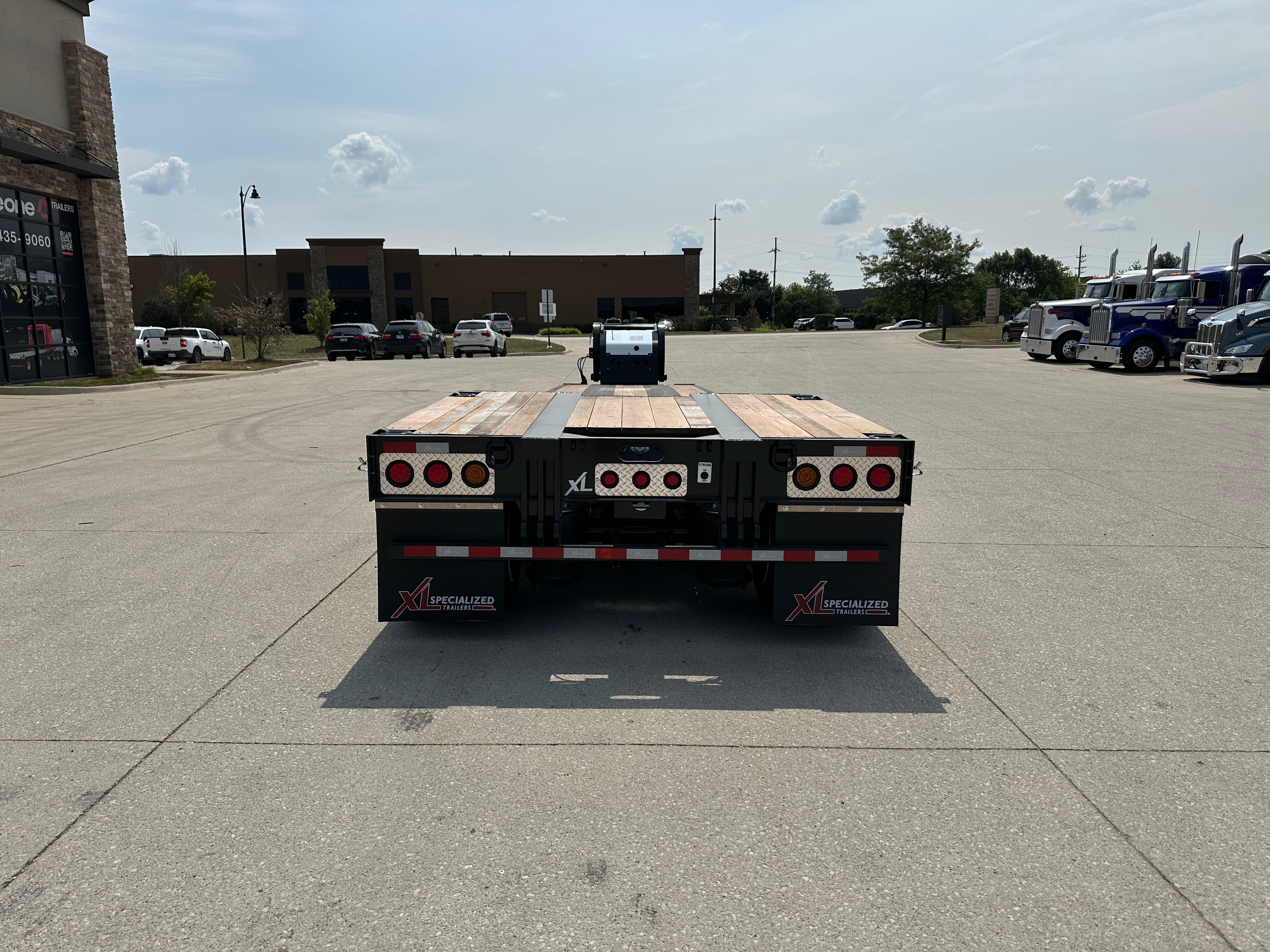

3 Tail Light Package w/ Aluminum Cover
4” Amber Strobe as 3rd Tail Light

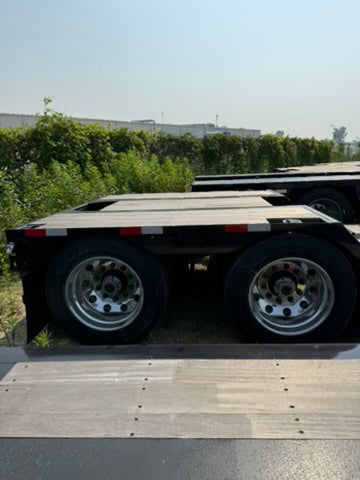

Prepped for Two Axle Booster
2 - Pair EZ Mount Flag Holders

5 Year Structural Warranty
3 Year Paint Warranty
1 Year Parts & Components Warranty

Financing Available
Pick up in East Dundee, IL or Manchester IA
Call Ross 224-335-7786
On the ground now!
